Installation Procedure
CAUTION:
Refer to FASTENER NOTICE
.

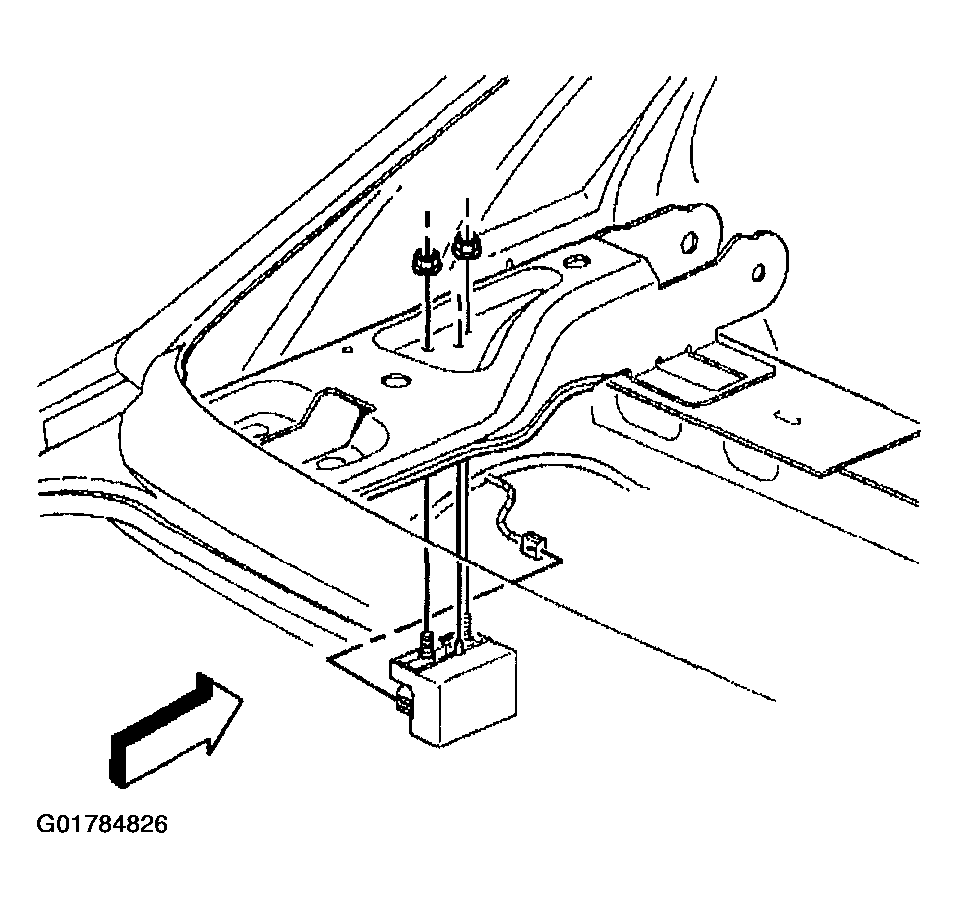

- Install the yaw rate sensor onto the mounting studs.
Tighten
Tighten the 2 yaw rate sensor nuts to 6 N.m (53 lb in).
- Install the rear trim panel shelf. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
- Install the yaw rate sensor electrical connector.
- Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
- Perform the ABS Diagnostic System Check. Refer to Diagnostic System Check - ABS .
