Installation Procedure

Install the battery.

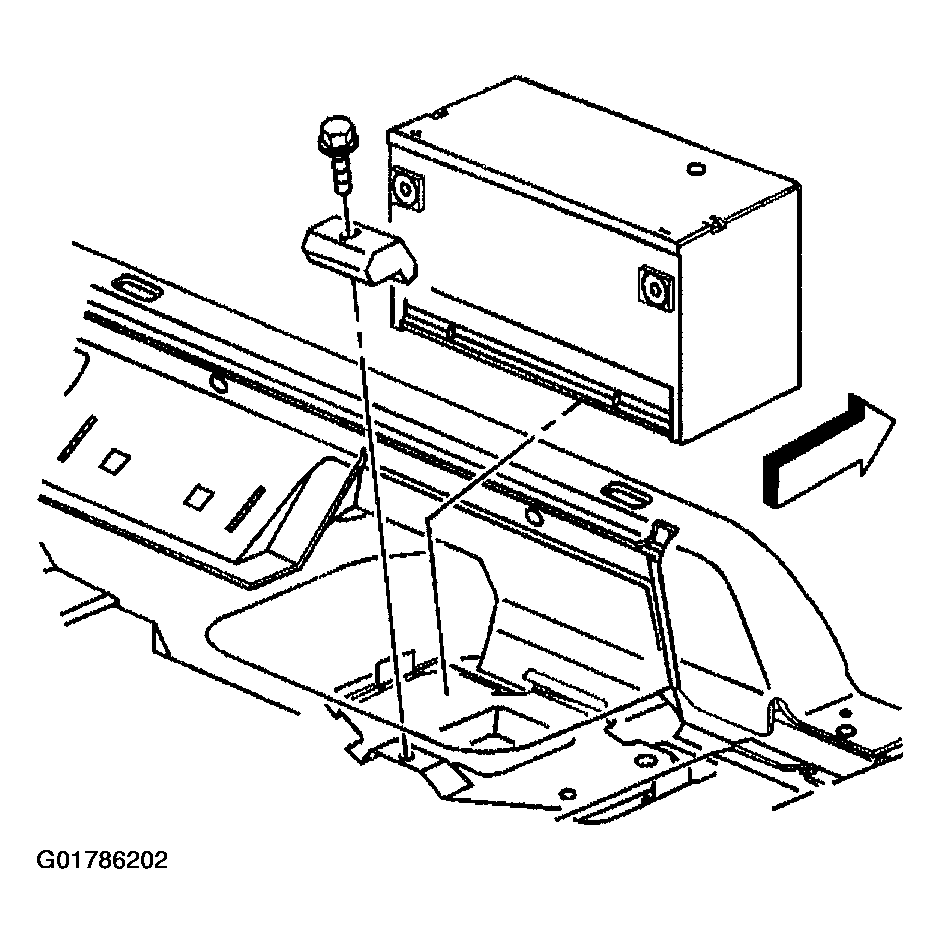

Fig 1: Installing Battery
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the battery retainer and bolt.
Tighten

Tighten the battery retainer bolt to 17 N.m (13 lb ft).

Important: Ensure the vent tube (1) is properly routed through the floor pan grommet.
Install the battery vent tube (1) to the battery.

Fig 2: Installing Battery Vent Tube
Courtesy of GENERAL MOTORS CORP.
Connect the battery positive cable (1) to the battery.

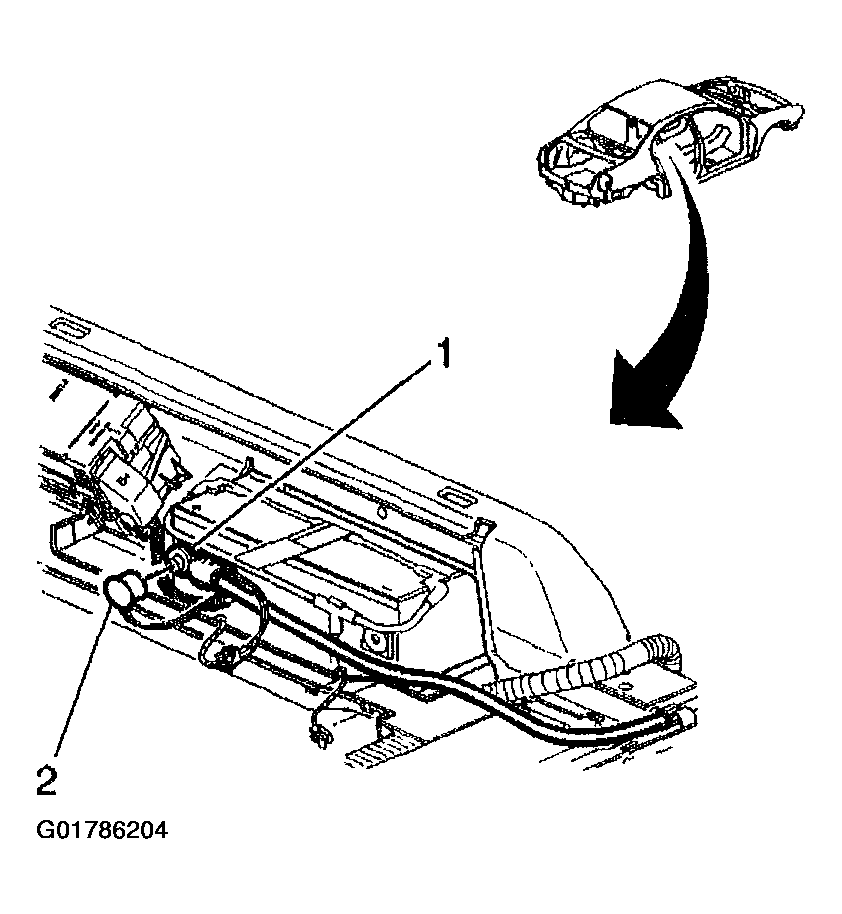

Fig 3: Connecting Battery Positive Cable
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the battery cable bolt to 17 N.m (13 lb ft).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
