Connector Identification

Fig 1: Identifying AIR Relay Connector Terminals (DeVille & Seville)
G00121111Courtesy of GENERAL MOTORS CORP.

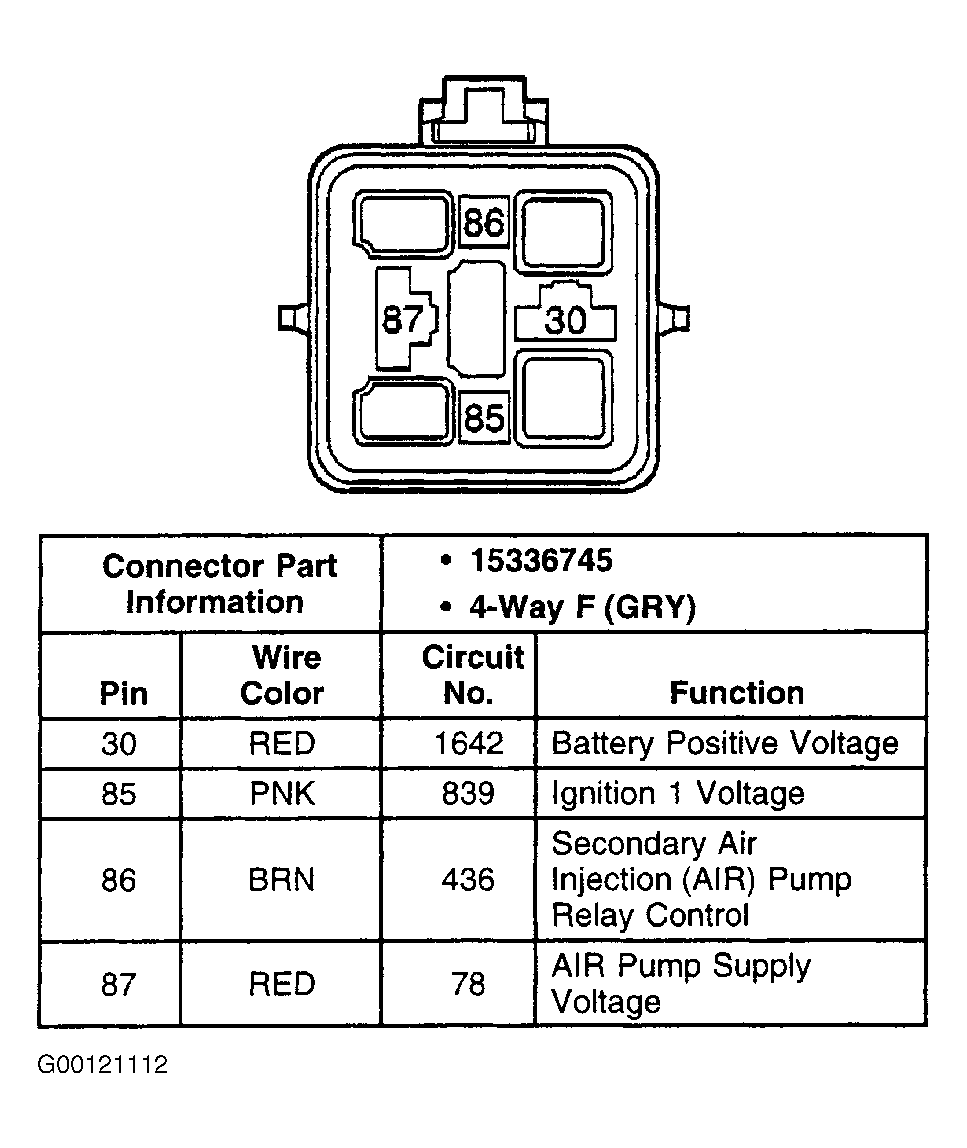

Fig 2: Identifying AIR Relay Connector Terminals (Eldorado)
G00121112Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying CMP Sensor Connector Terminals
G00115008Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying CKP Sensor A Connector Terminals
G00115009Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying CKP Sensor B Connector Terminals (DeVille & Seville)
G00115010Courtesy of GENERAL MOTORS CORP.

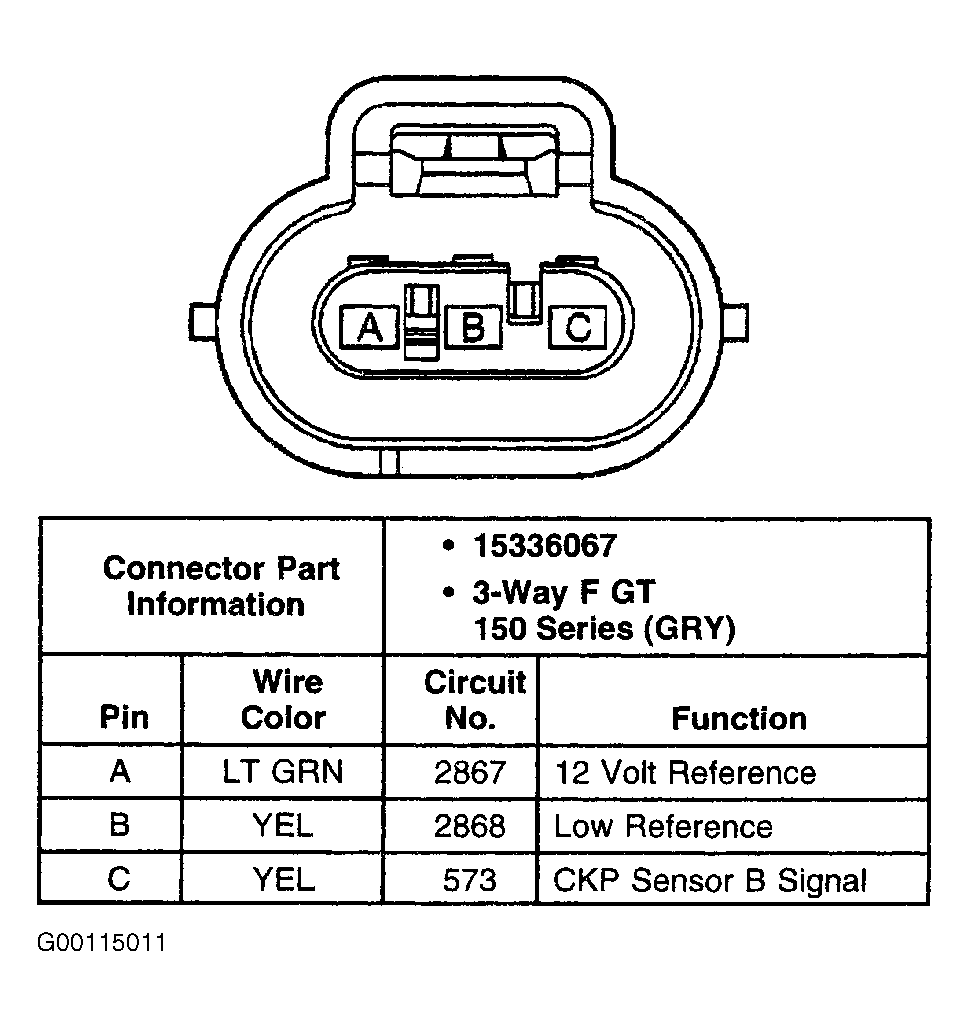

Fig 6: Identifying CKP Sensor B Connector Terminals (Eldorado)
G00115011Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying ECT Sensor Connector Terminals (Deville & Seville)
G00115012Courtesy of GENERAL MOTORS CORP.

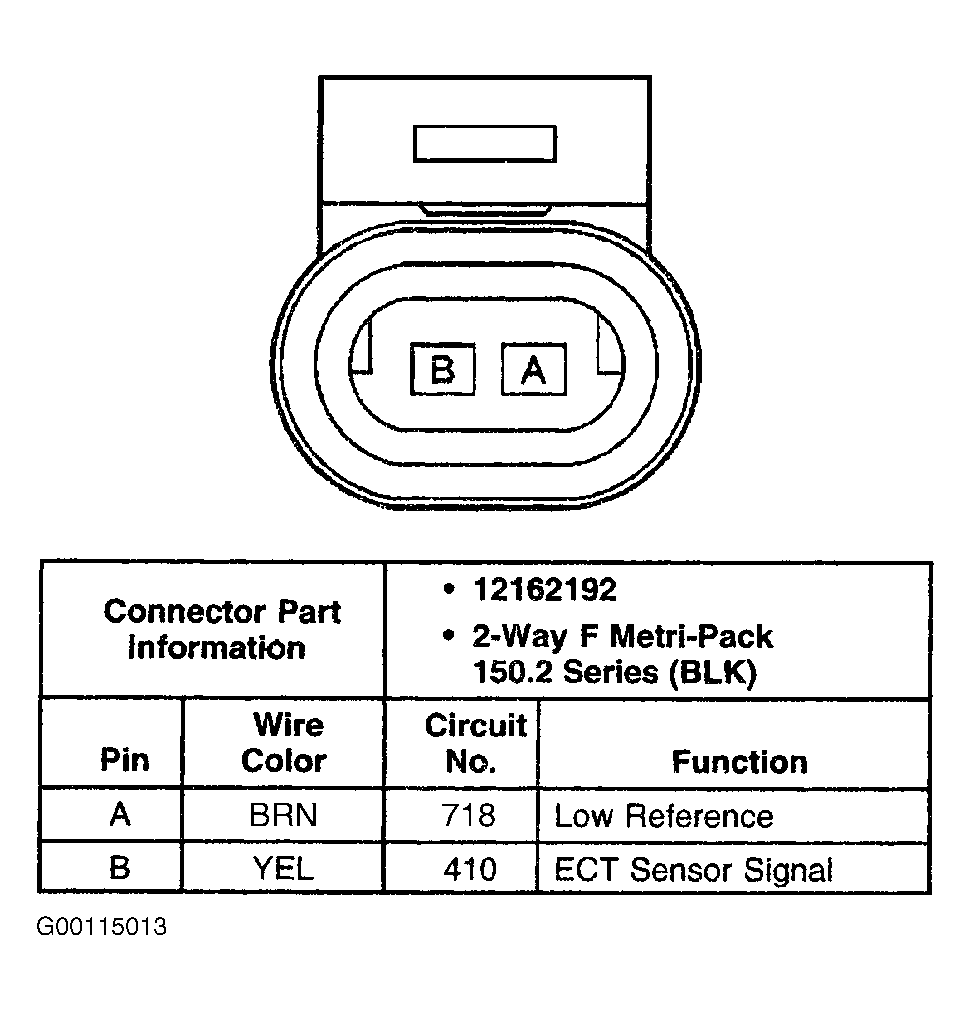

Fig 8: Identifying ECT Sensor Connector Terminals (Eldorado)
G00115013Courtesy of GENERAL MOTORS CORP.

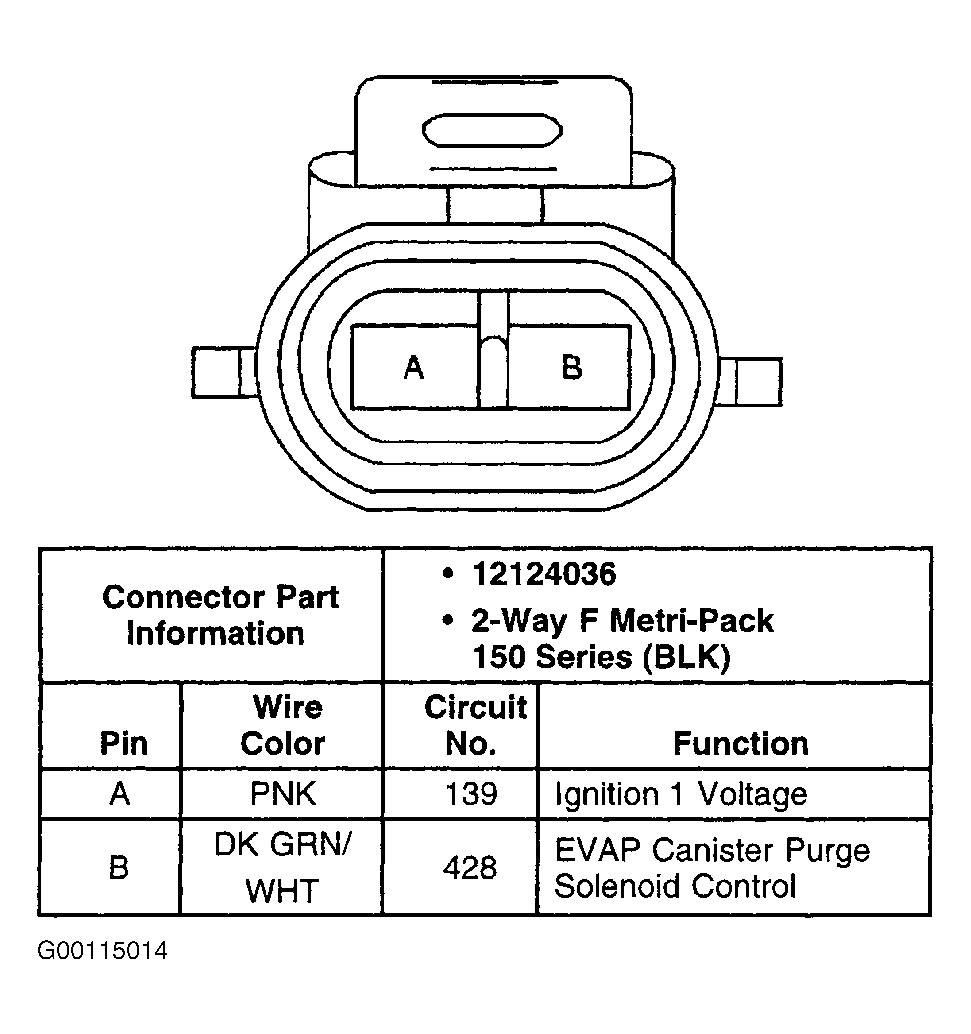

Fig 9: Identifying EVAP Purge Solenoid Connector Terminals (DeVille)
G00115014Courtesy of GENERAL MOTORS CORP.

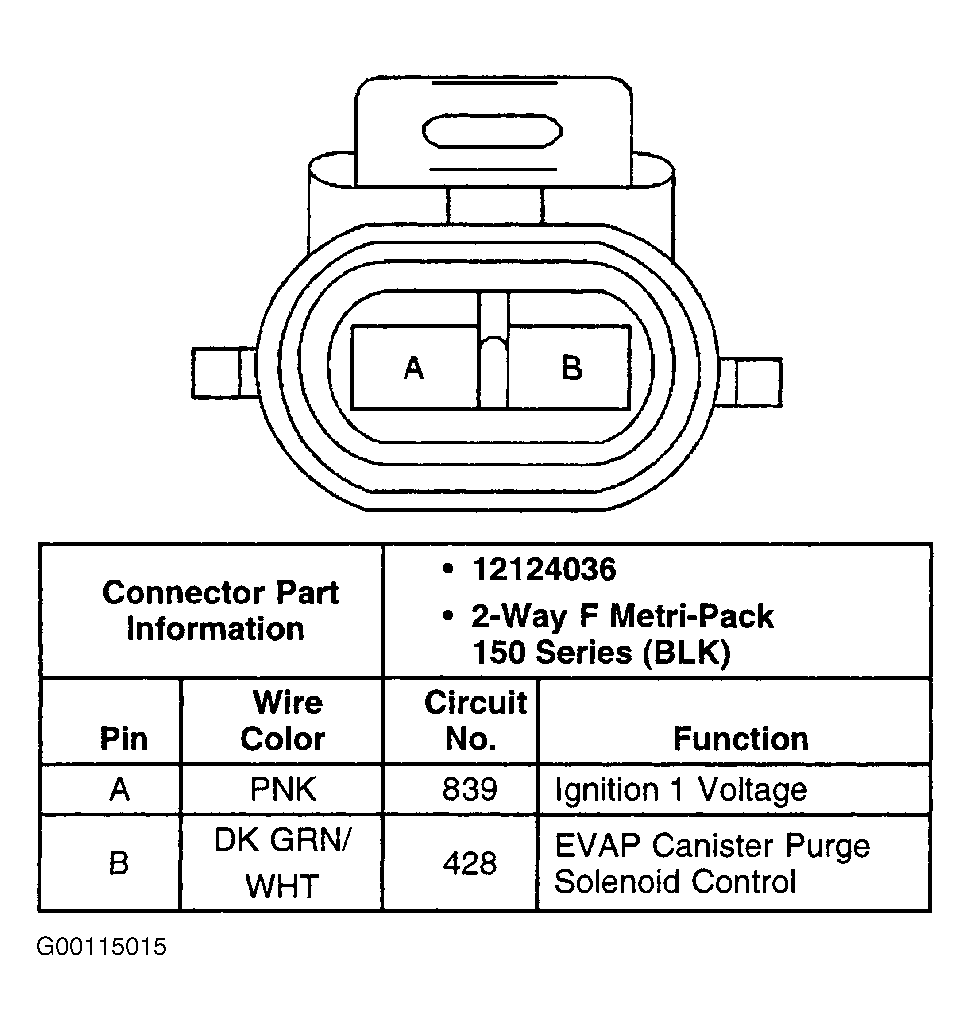

Fig 10: Identifying EVAP Purge Solenoid Connector Terminals (Eldorado)
G00115015Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying EVAP Purge Solenoid Connector Terminals (Seville)
G00115016Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying EVAP Vent Solenoid Connector Terminals (DeVille)
G00115017Courtesy of GENERAL MOTORS CORP.

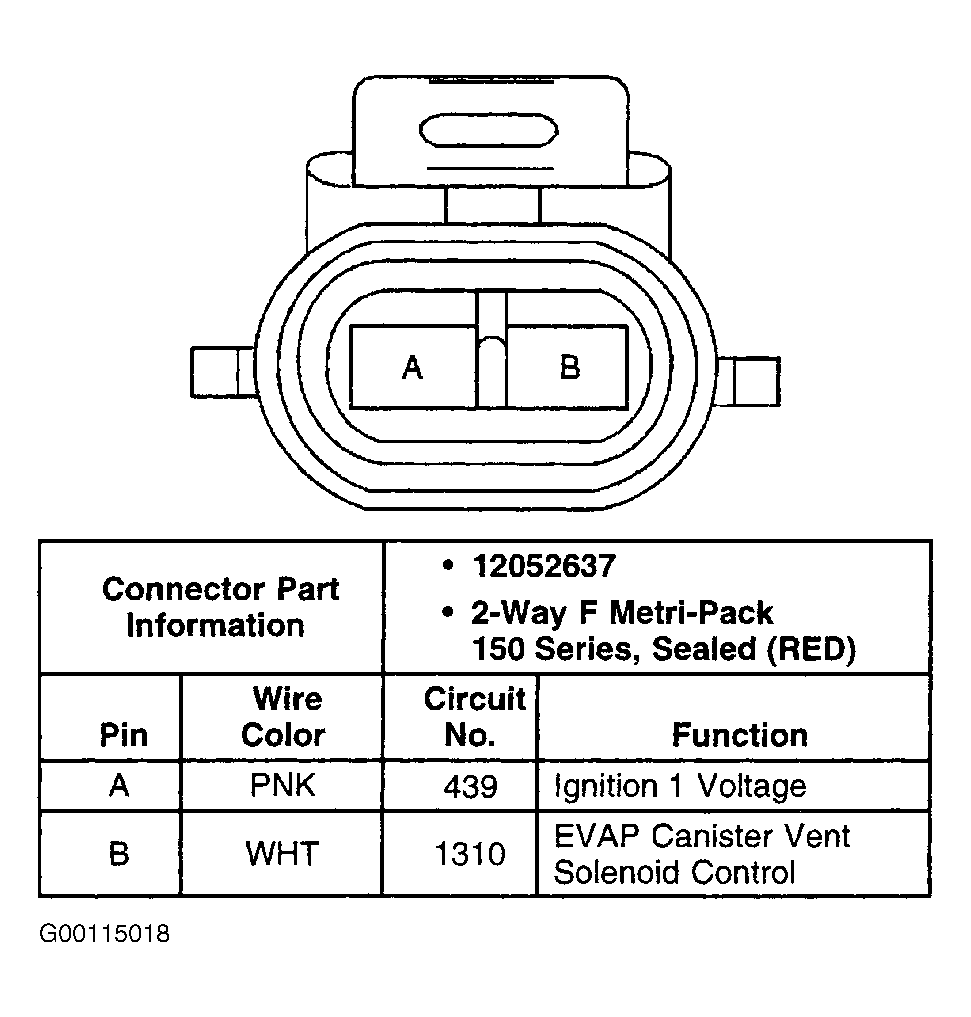

Fig 13: Identifying EVAP Vent Solenoid Connector Terminals (Eldorado)
G00115018Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying EVAP Vent Solenoid Connector Terminals (Seville)
G00115019Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying EGR Valve Connector Terminals
G00115020Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying FTP Sensor Connector Terminals
G00115023Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Fuel Pump & Sender Connector Terminals (DeVille & Seville)
G00115021Courtesy of GENERAL MOTORS CORP.

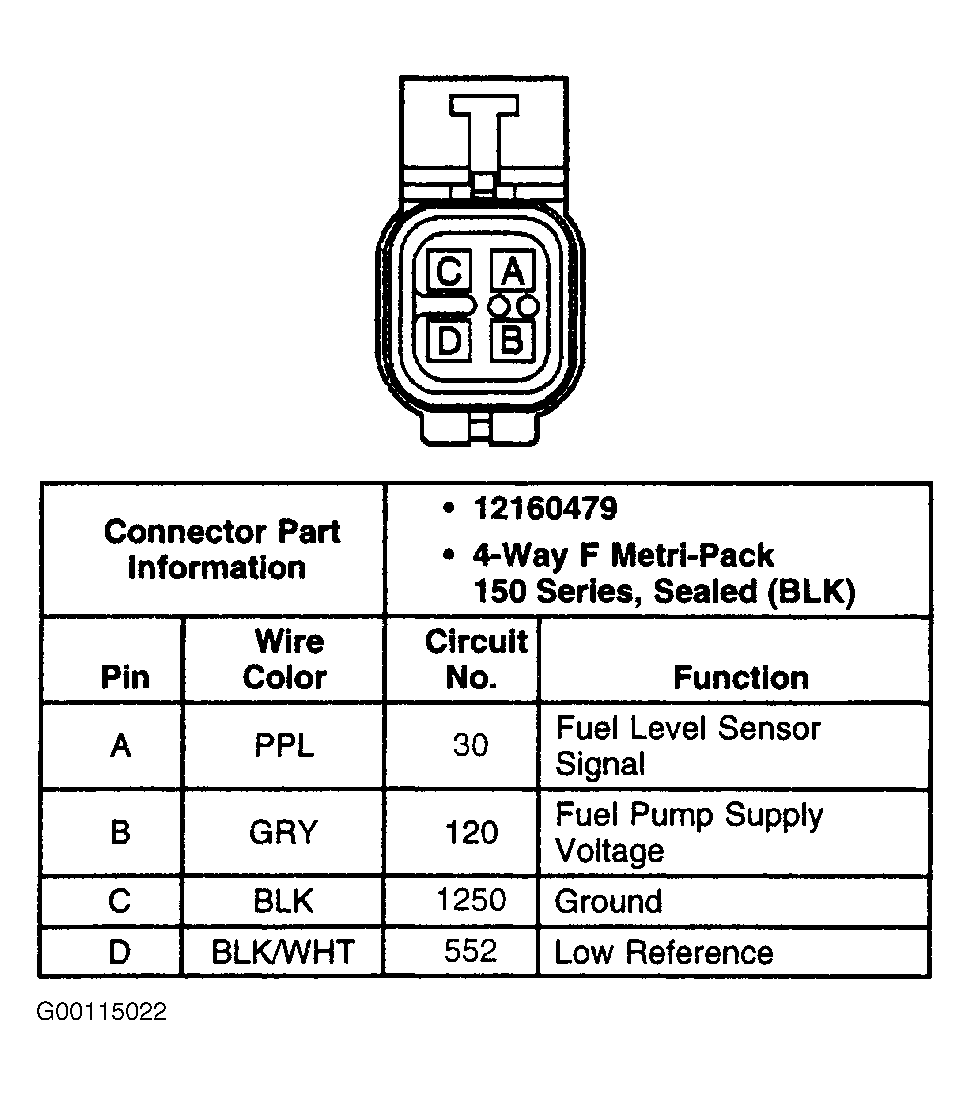

Fig 18: Identifying Fuel Pump & Sender Connector Terminals (Eldorado)
G00115022Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying HO2S Bank 1, Sensor 1 Connector Terminals
G00115024Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (DeVille)
G00115025Courtesy of GENERAL MOTORS CORP.

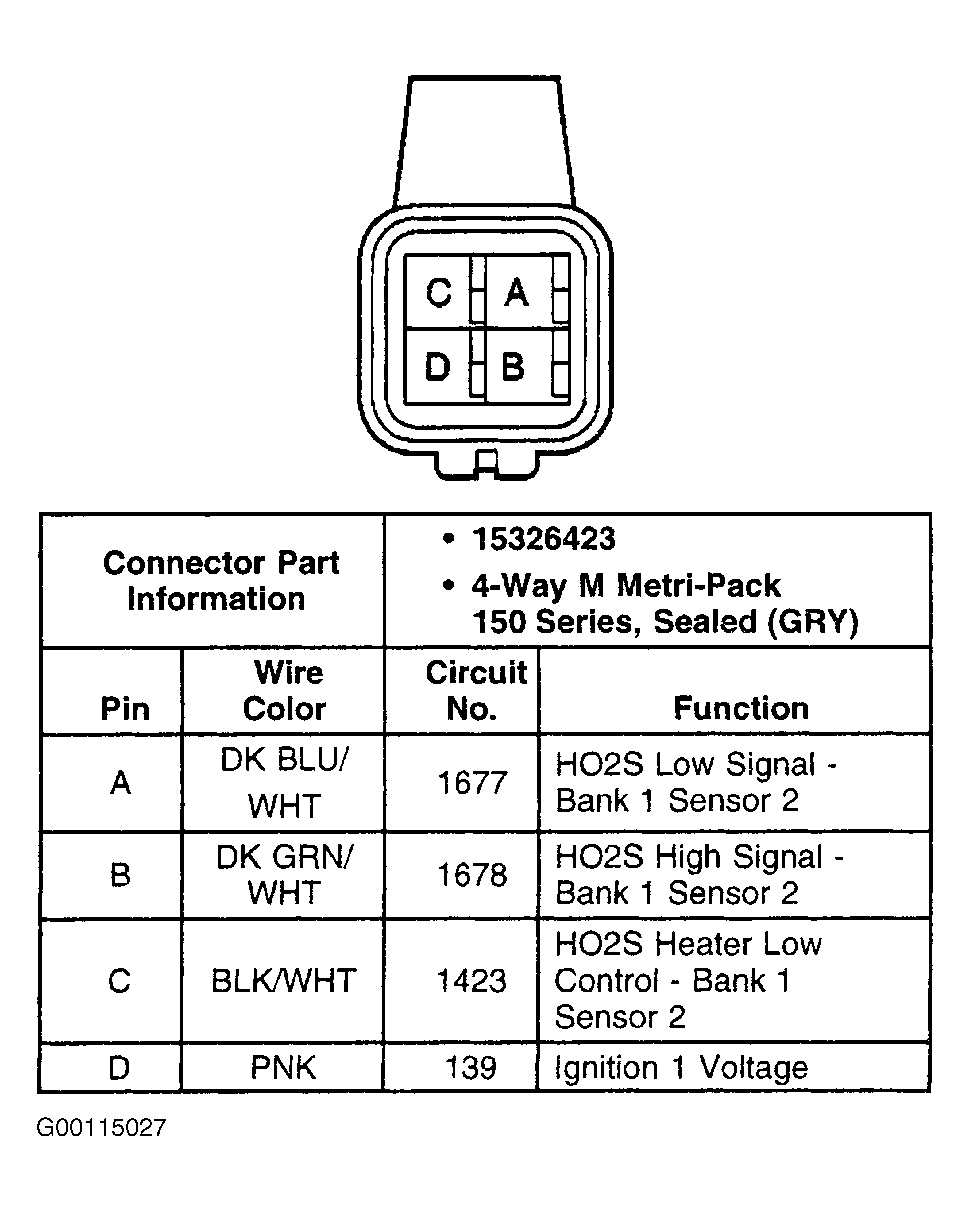

Fig 21: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (Eldorado)
G00115027Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (Seville)
G00115026Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying HO2S Bank 2, Sensor 1 Connector Terminals (DeVille & Seville)
G00115028Courtesy of GENERAL MOTORS CORP.

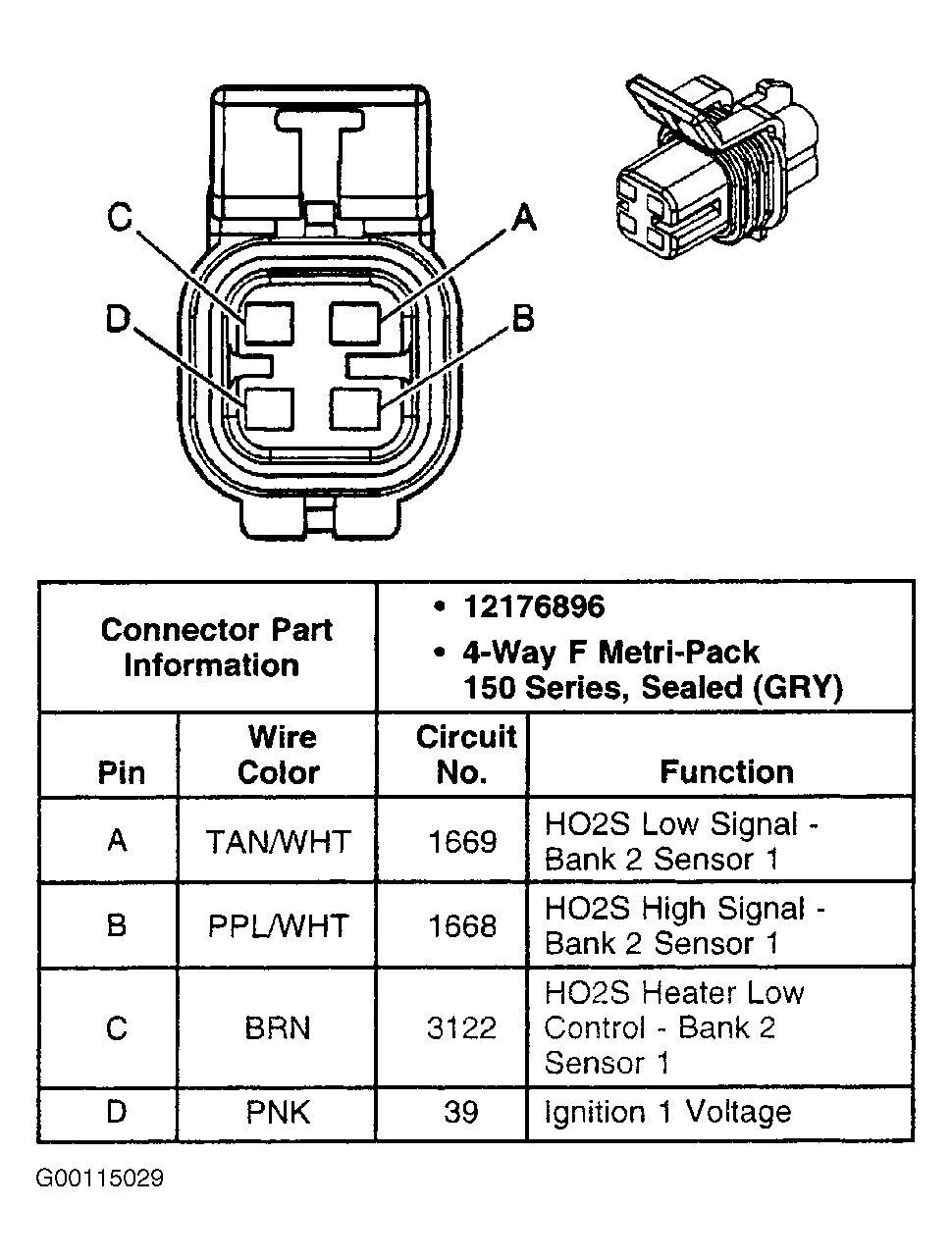

Fig 24: Identifying HO2S Bank 2, Sensor 1 Connector Terminals (Eldorado)
G00115029Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying IAC Sensor Connector Terminals
G00115030Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying ICM Bank 1 Connector Terminals (DeVille)
G00115031Courtesy of GENERAL MOTORS CORP.

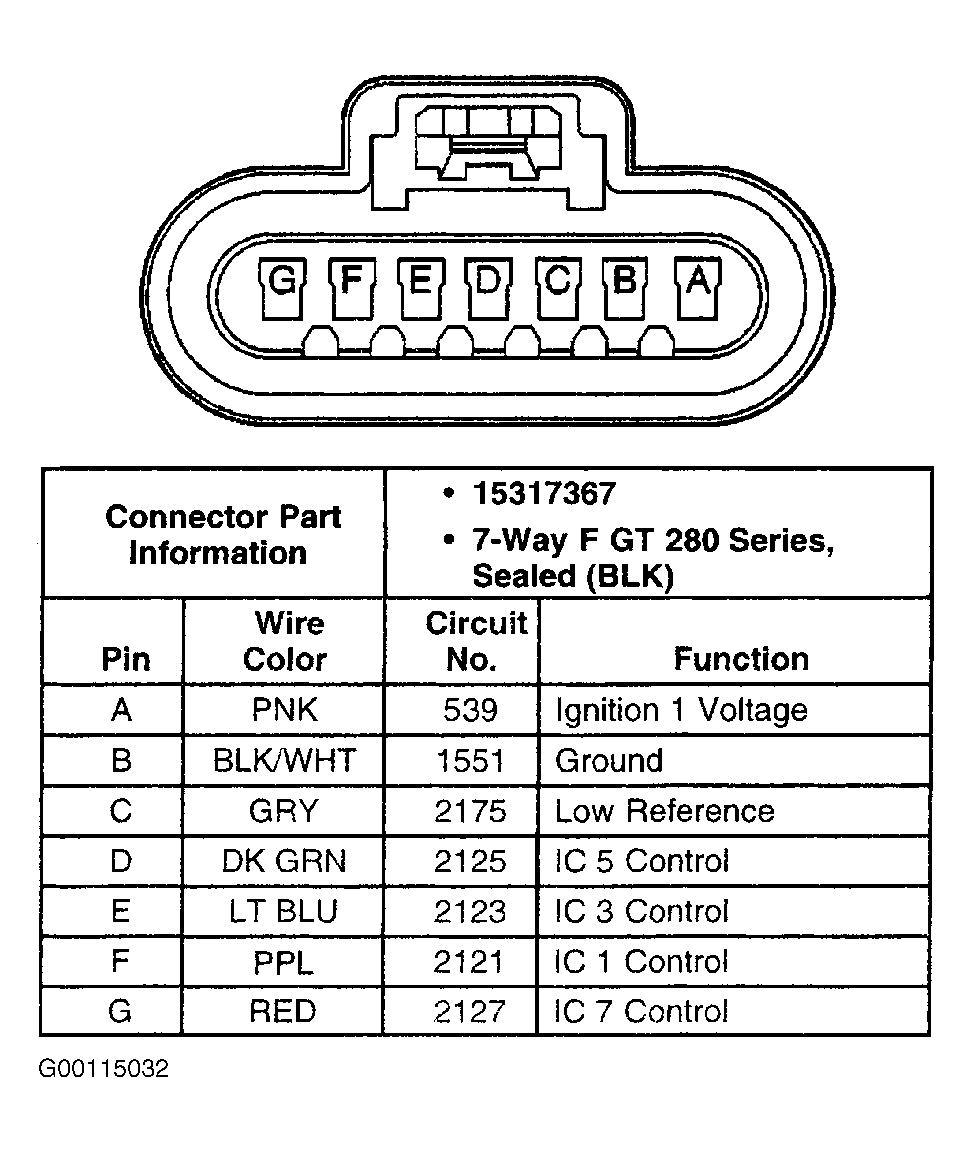

Fig 27: Identifying ICM Bank 1 Connector Terminals (Eldorado)
G00115032Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying ICM Bank 1 Connector Terminals (Seville)
G00115033Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying ICM Bank 2 Connector Terminals (DeVille & Seville)
G00115034Courtesy of GENERAL MOTORS CORP.

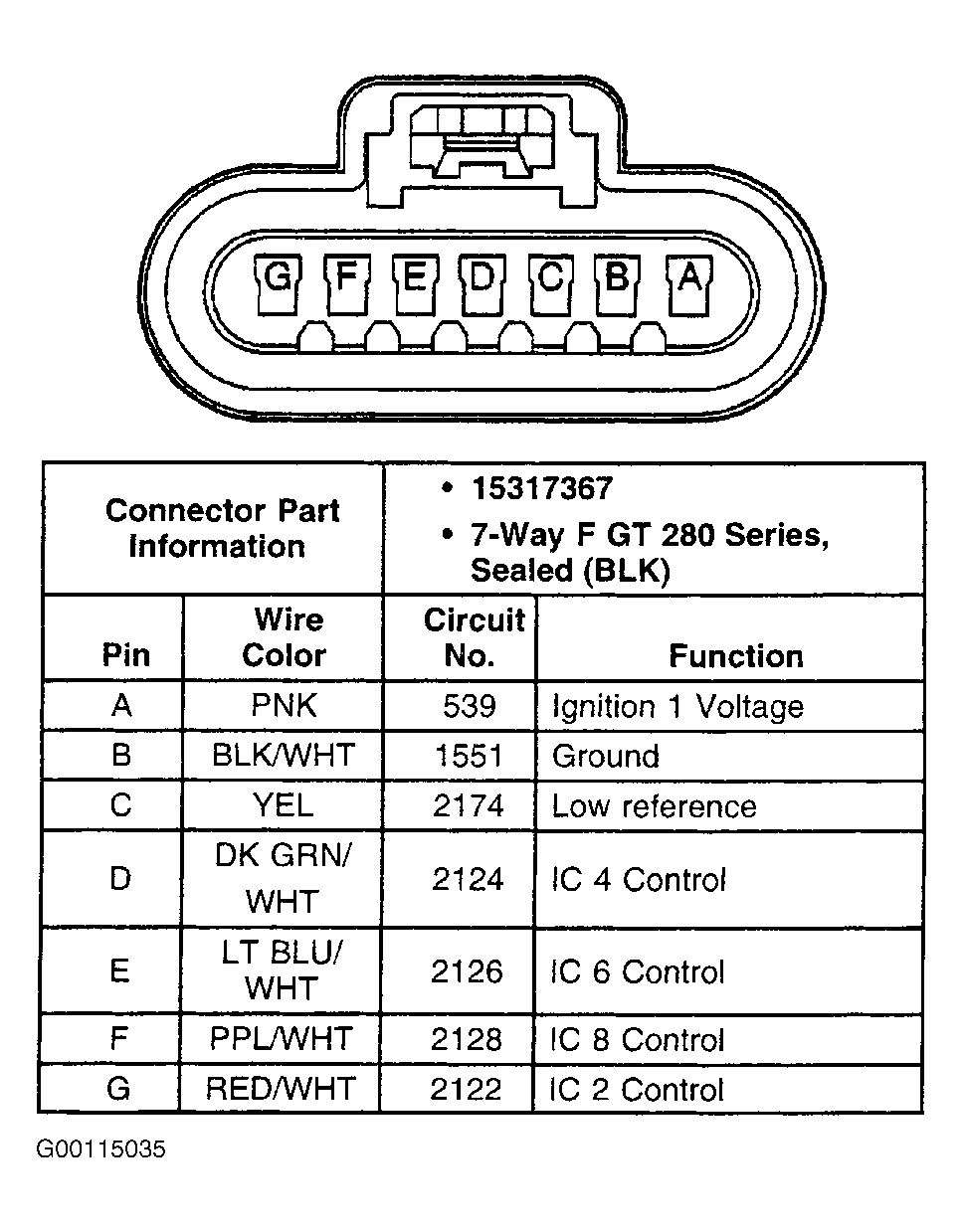

Fig 30: Identifying ICM Bank 2 Connector Terminals (Eldorado)
G00115035Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying Knock Sensor Connector Terminals
G00115036Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying MAP Sensor Connector Terminals (DeVille & Seville)
G00121106Courtesy of GENERAL MOTORS CORP.

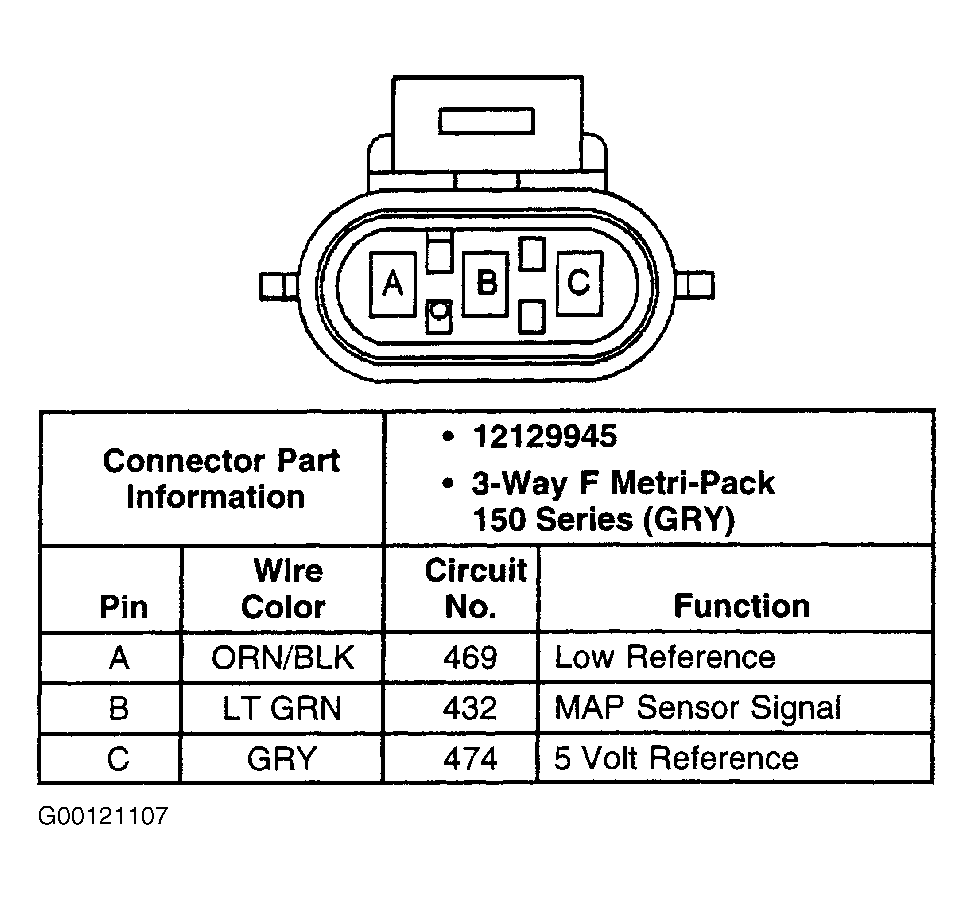

Fig 33: Identifying MAP Sensor Connector Terminals (Eldorado)
G00121107Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying MAF/IAT Sensor Connector Terminals (DeVille)
G00121108Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying MAF/IAT Sensor Connector Terminals (Eldorado)
G00121109Courtesy of GENERAL MOTORS CORP.

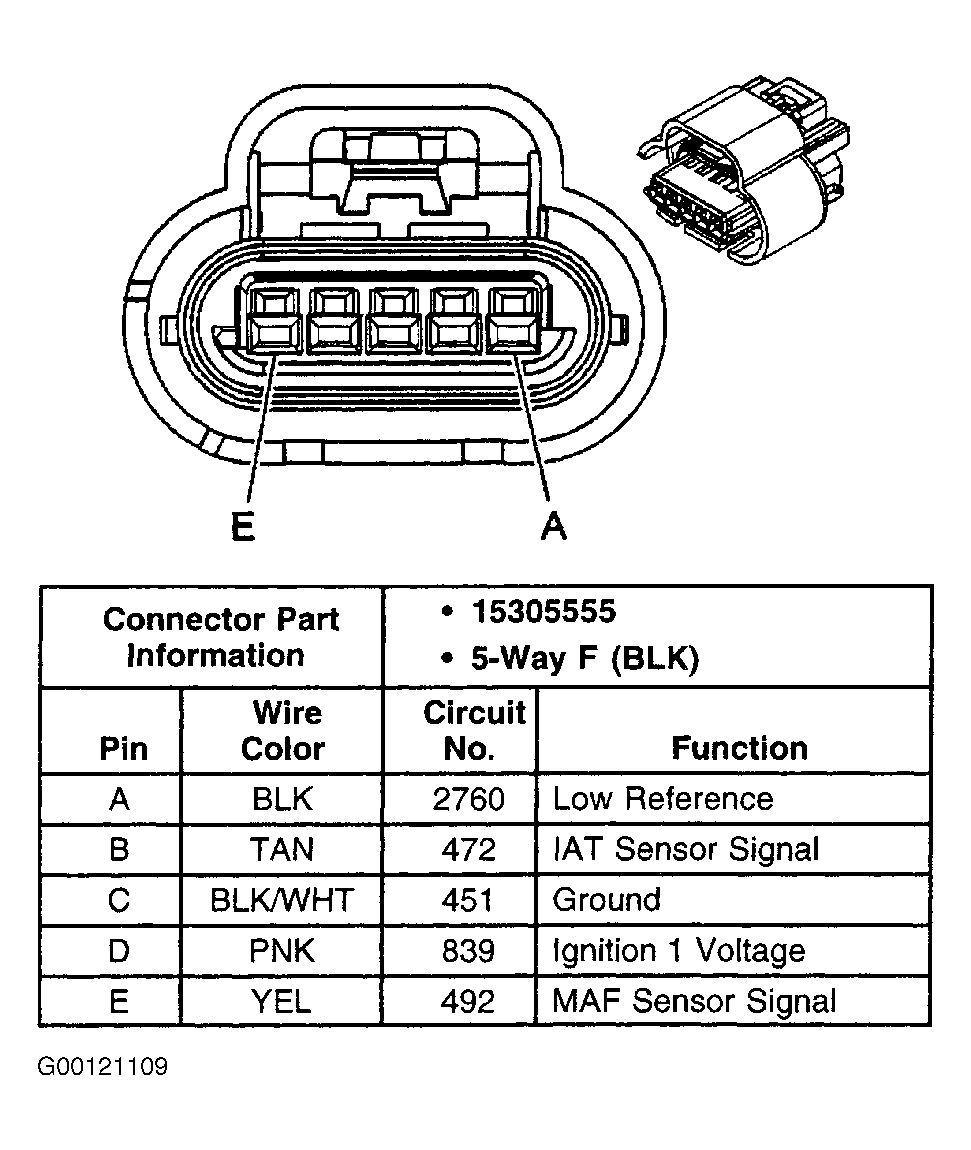

Fig 36: Identifying MAF/IAT Sensor Connector Terminals (Seville)
G00121110Courtesy of GENERAL MOTORS CORP.

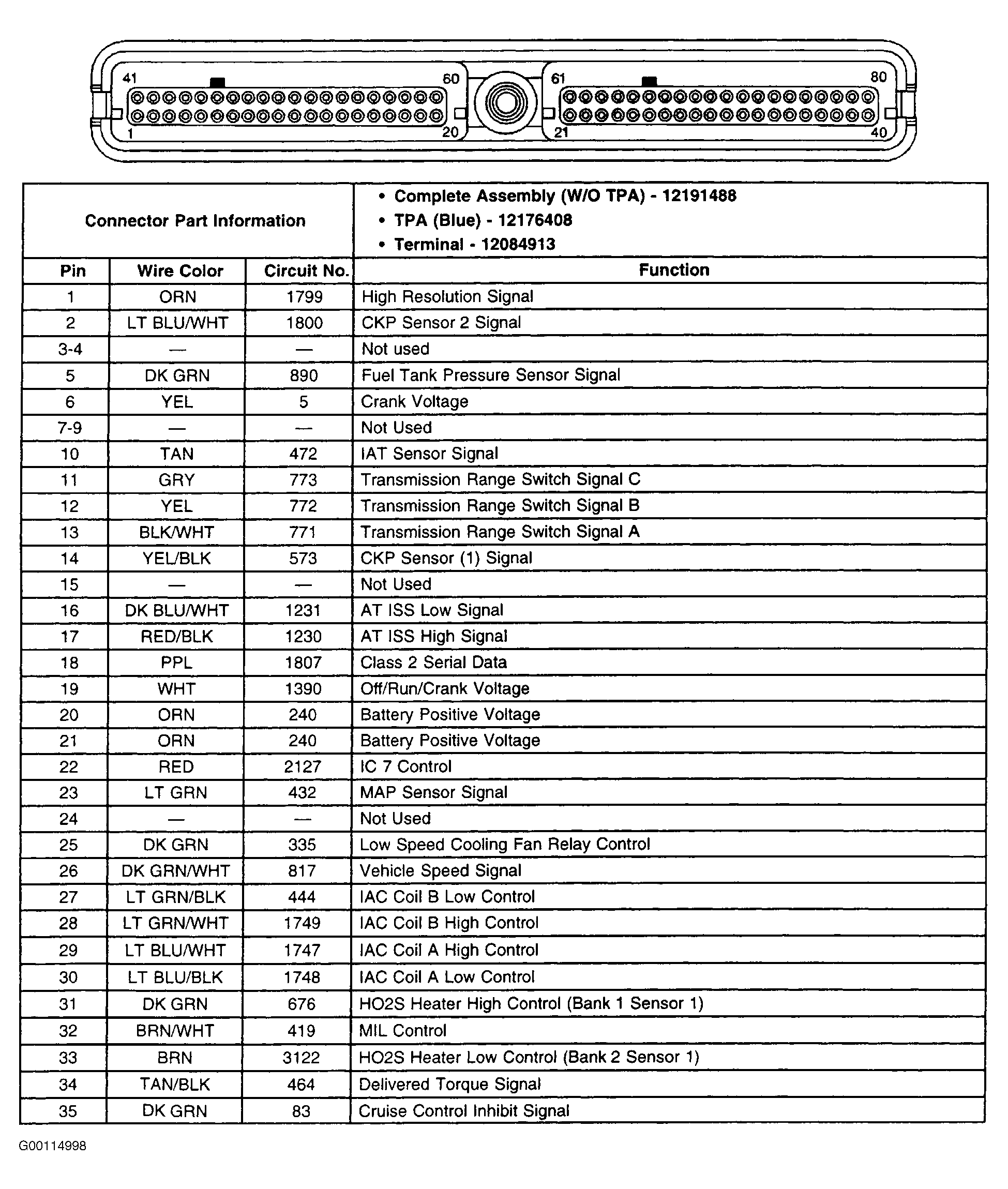

Fig 37: Identifying PCM Connector C1 Terminals (DeVille & Seville - 1 Of 3)
G00114998Courtesy of GENERAL MOTORS CORP.

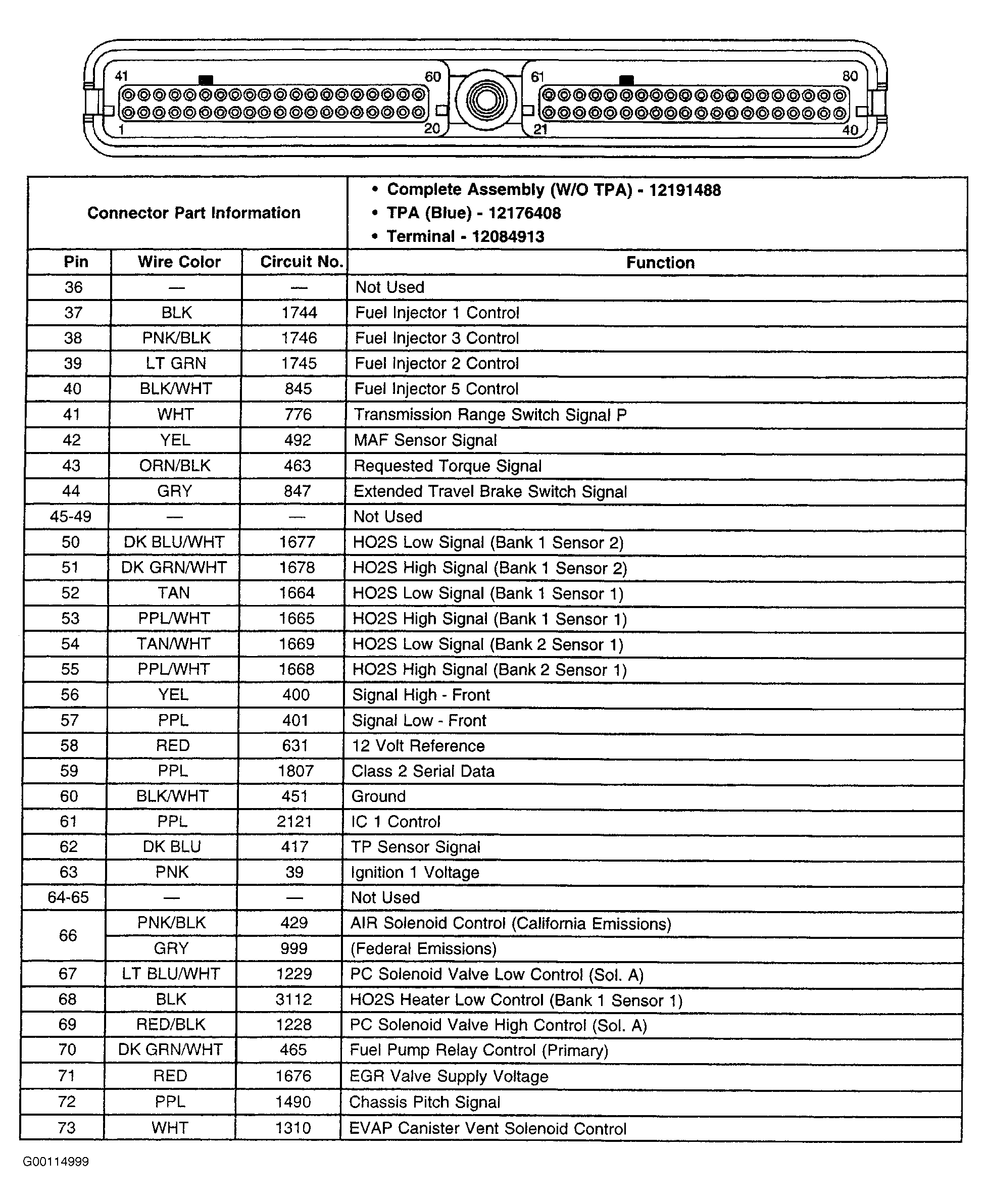

Fig 38: Identifying PCM Connector C1 Terminals (DeVille & Seville - 2 Of 3)
G00114999Courtesy of GENERAL MOTORS CORP.

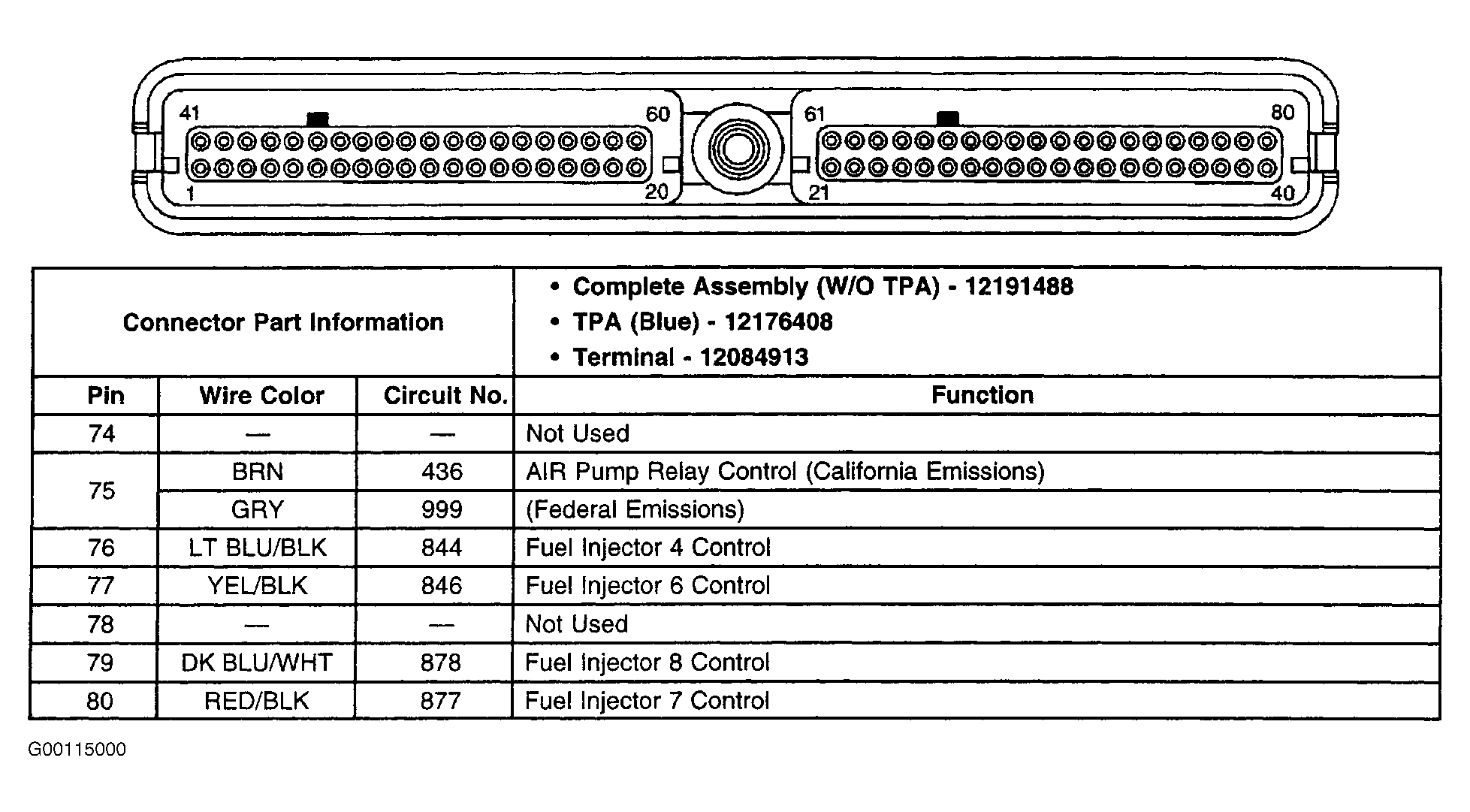

Fig 39: Identifying PCM Connector C1 Terminals (DeVille & Seville - 3 Of 3)
G00115000Courtesy of GENERAL MOTORS CORP.

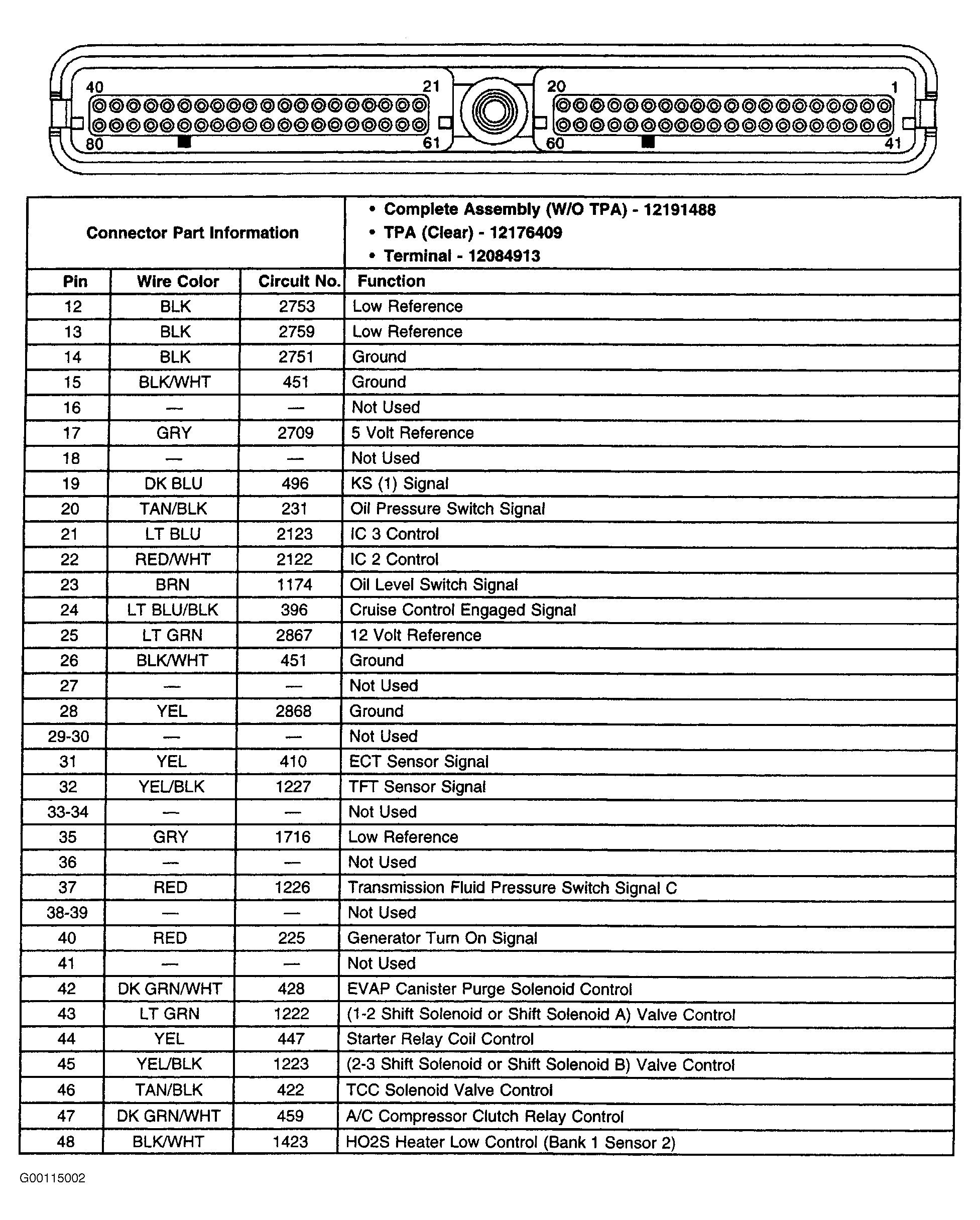

Fig 40: Identifying PCM Connector C2 Terminals (DeVille & Seville - 1 Of 3)
G00115001Courtesy of GENERAL MOTORS CORP.
Fig 41: Identifying PCM Connector C2 Terminals (DeVille & Seville - 2 Of 3)
G00115002Courtesy of GENERAL MOTORS CORP.

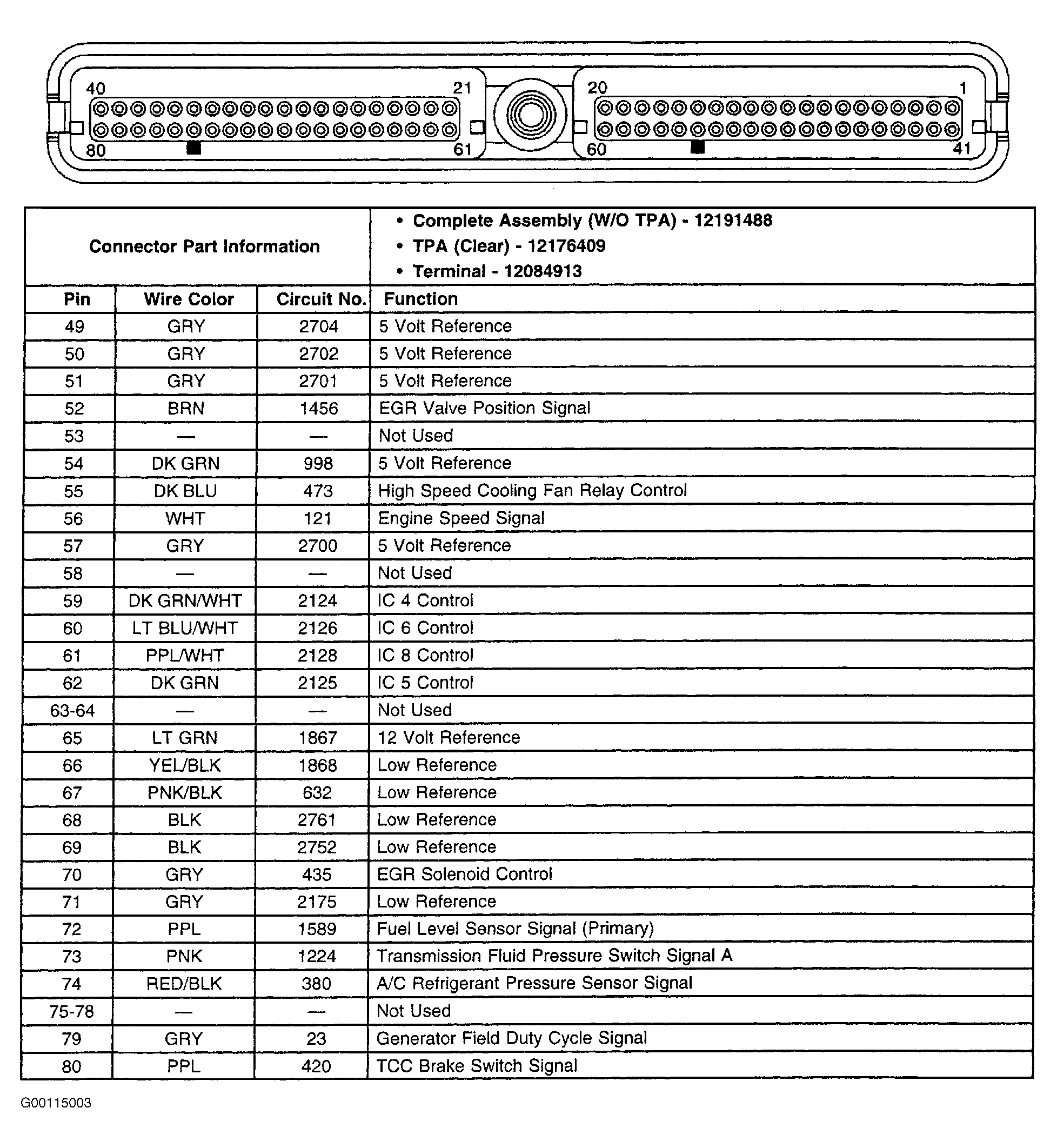

Fig 42: Identifying PCM Connector C2 Terminals (DeVille & Seville - 3 Of 3)
G00115003Courtesy of GENERAL MOTORS CORP.

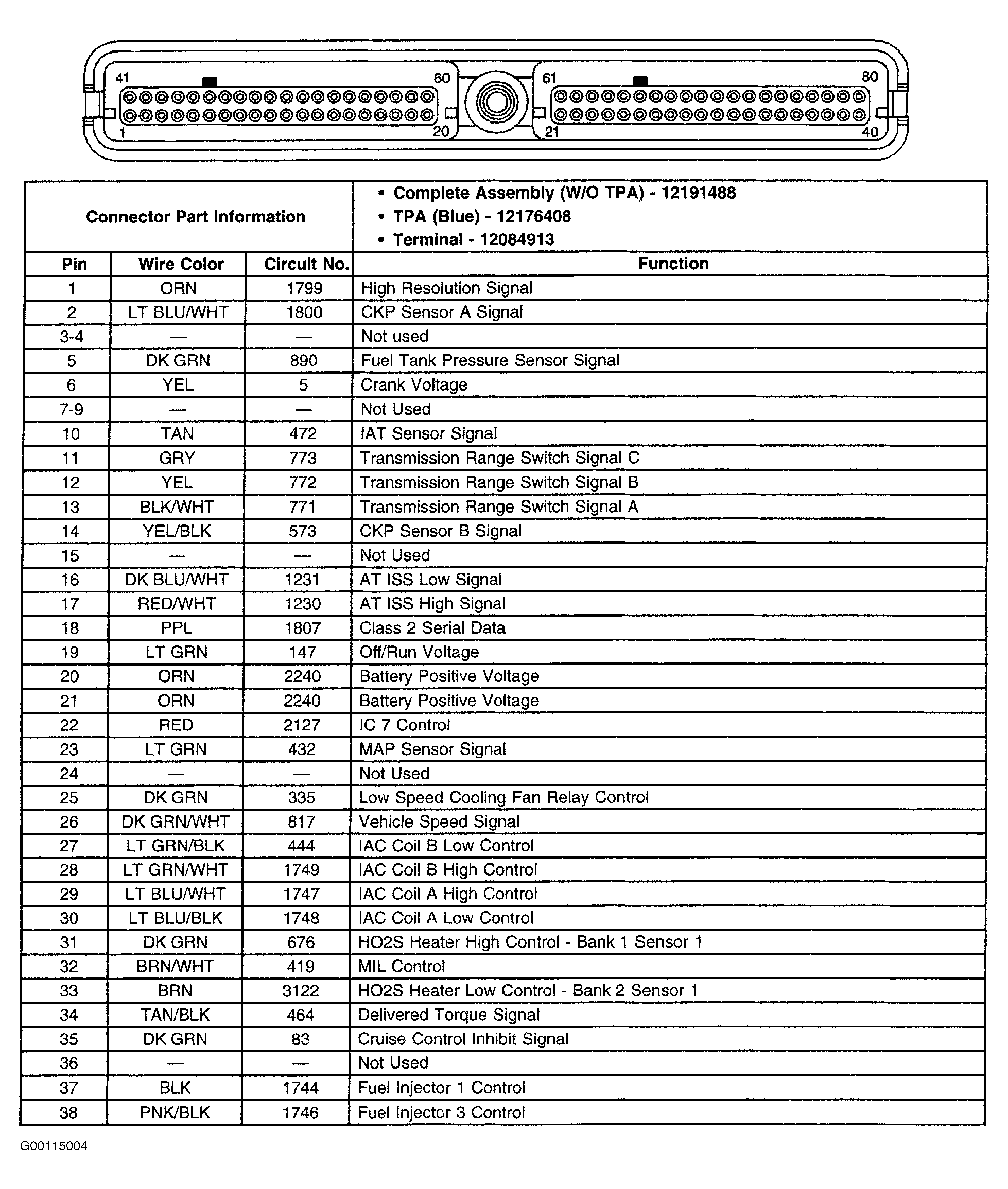

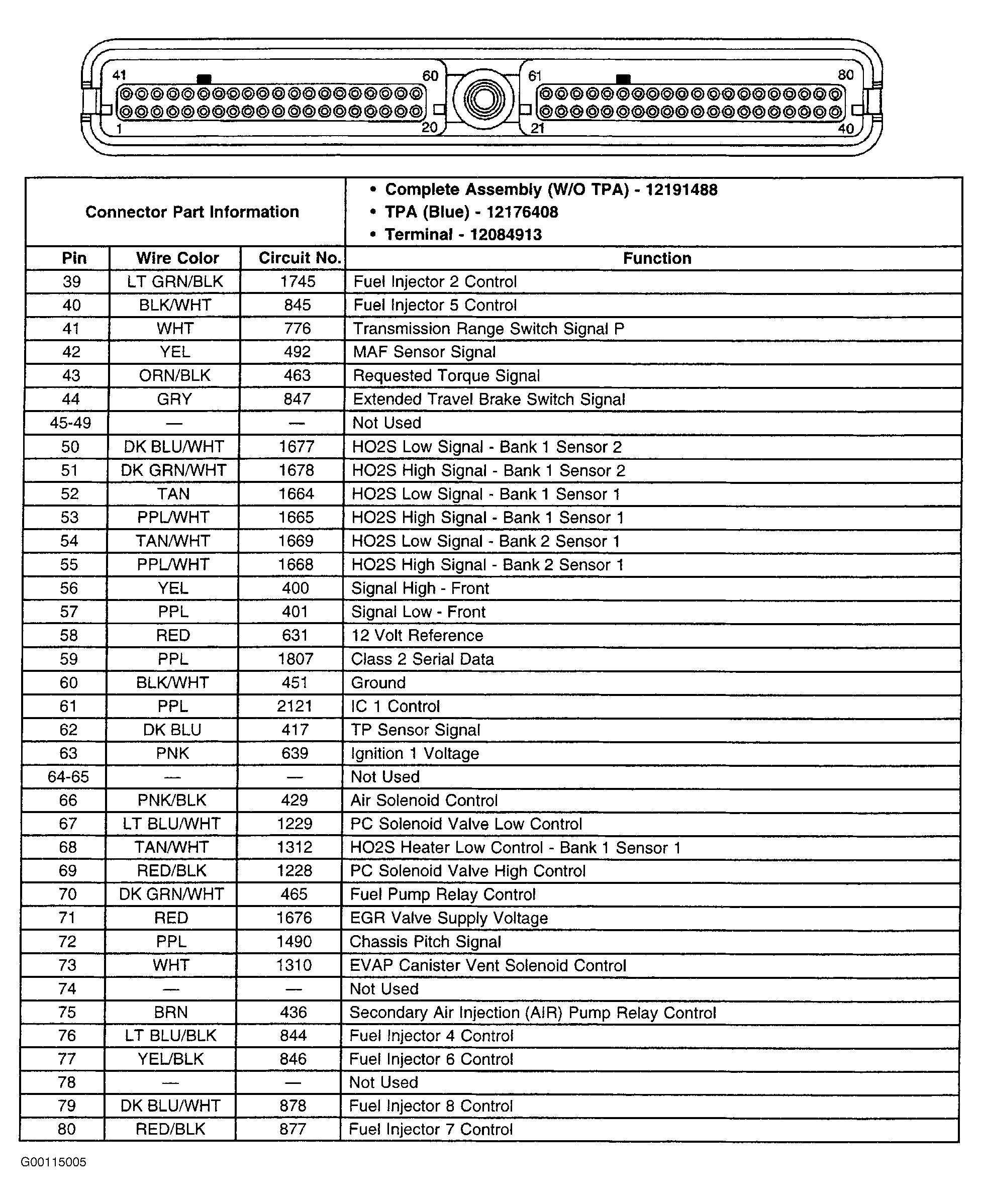

Fig 43: Identifying PCM Connector C1 Terminals (Eldorado - 1 Of 2)
G00115004Courtesy of GENERAL MOTORS CORP.
Fig 44: Identifying PCM Connector C1 Terminals (Eldorado - 2 Of 2)
G00115005Courtesy of GENERAL MOTORS CORP.

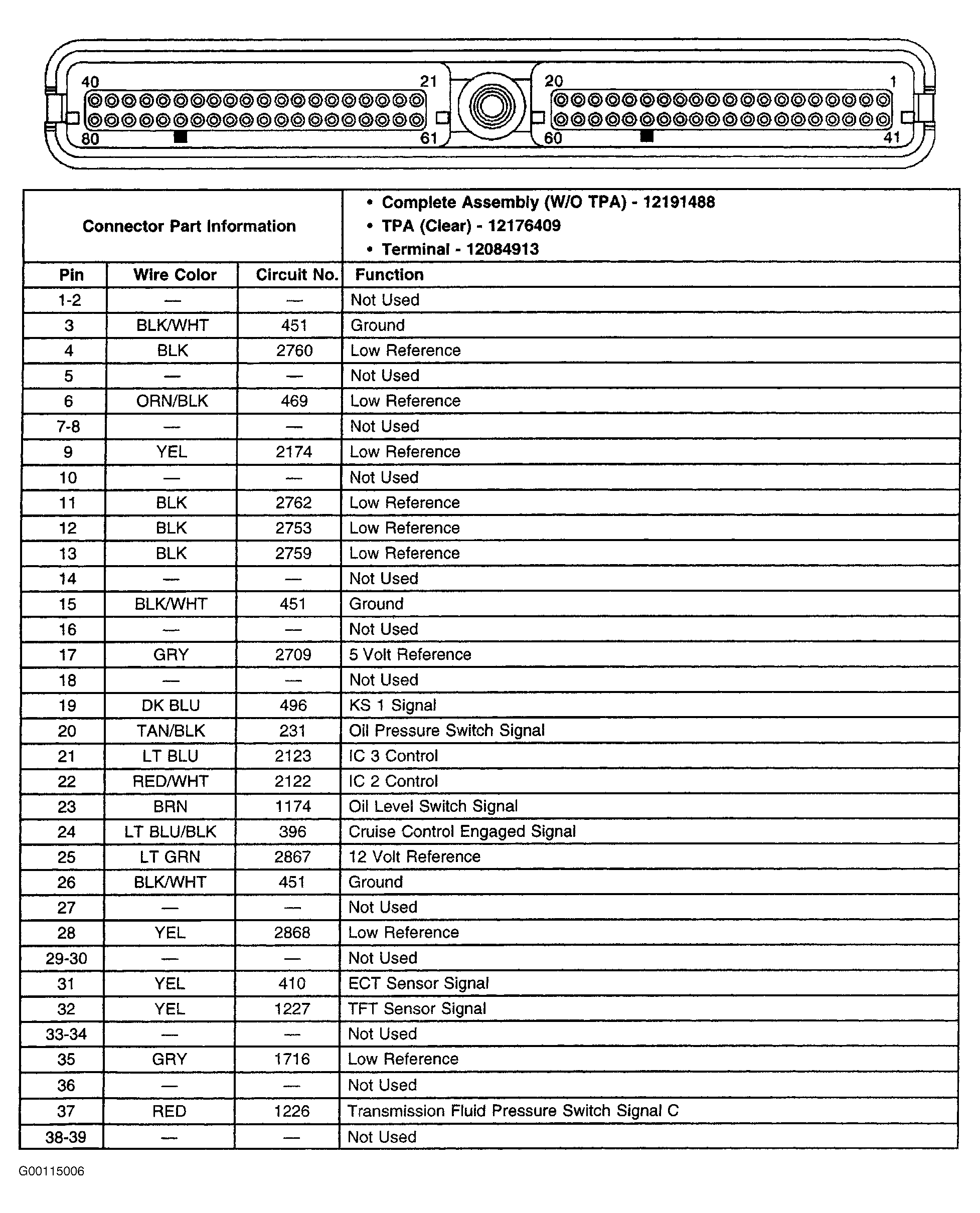

Fig 45: Identifying PCM Connector C2 Terminals (Eldorado - 1 Of 2)
G00115006Courtesy of GENERAL MOTORS CORP.

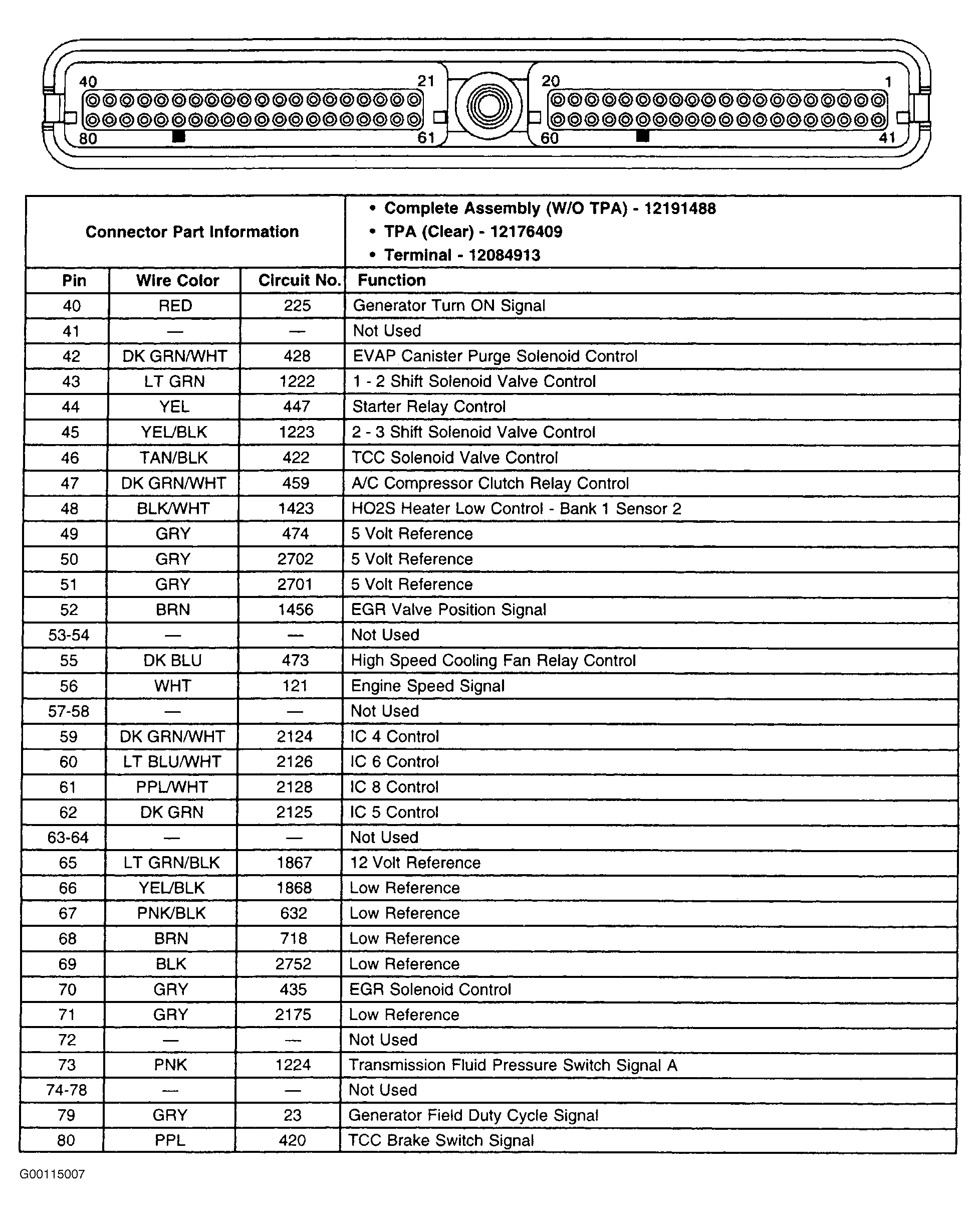

Fig 46: Identifying PCM Connector C2 Terminals (Eldorado - 2 Of 2)
G00115007Courtesy of GENERAL MOTORS CORP.
Fig 47: Identifying Stop Light Switch Connector Terminals
G00121113Courtesy of GENERAL MOTORS CORP.
Fig 48: Identifying TP Sensor Connector Terminals
G00121114Courtesy of GENERAL MOTORS CORP.
Fig 49: Identifying VSS Connector Terminals
G00121115Courtesy of GENERAL MOTORS CORP.
