Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the memory seat module and install the memory seat module screws (1).

    Tighten

    Tighten the screws 2 N.m (18 lb in).

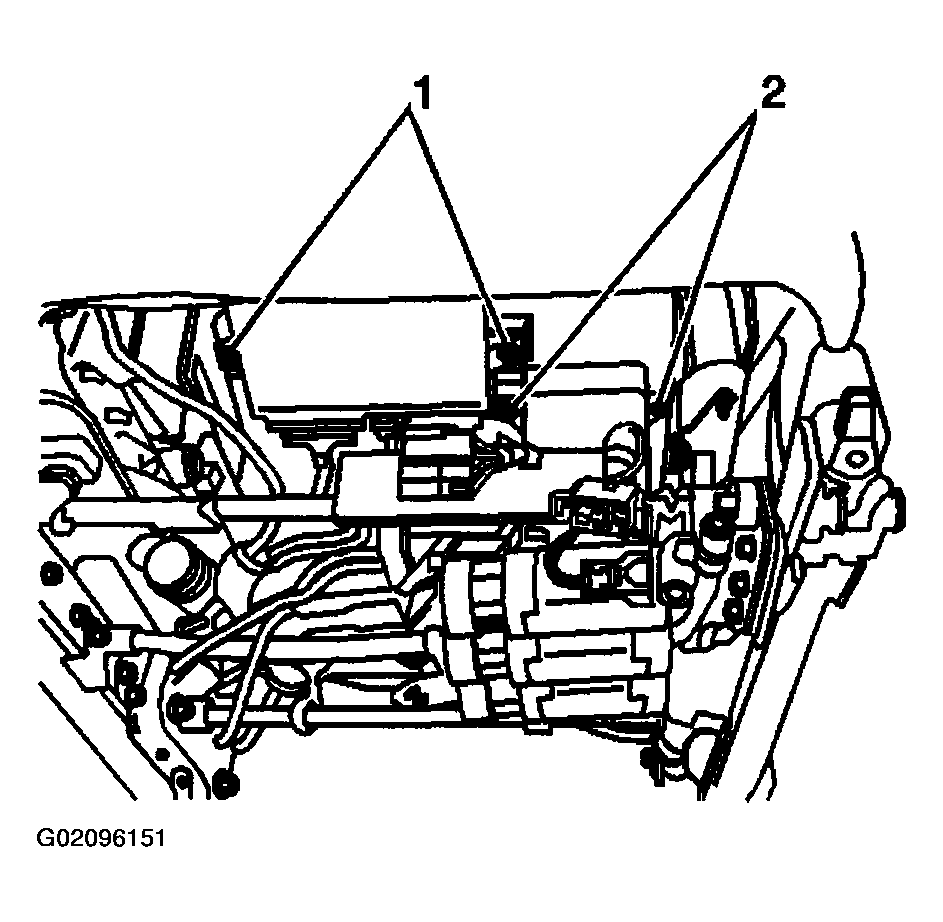

    Fig 1: Installing Memory Seat Module And Memory Seat Module Screws
    G02096151Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connections to the module.
  3. Install the front seat cushion. SEAT CUSHION REPLACEMENT - FRONT

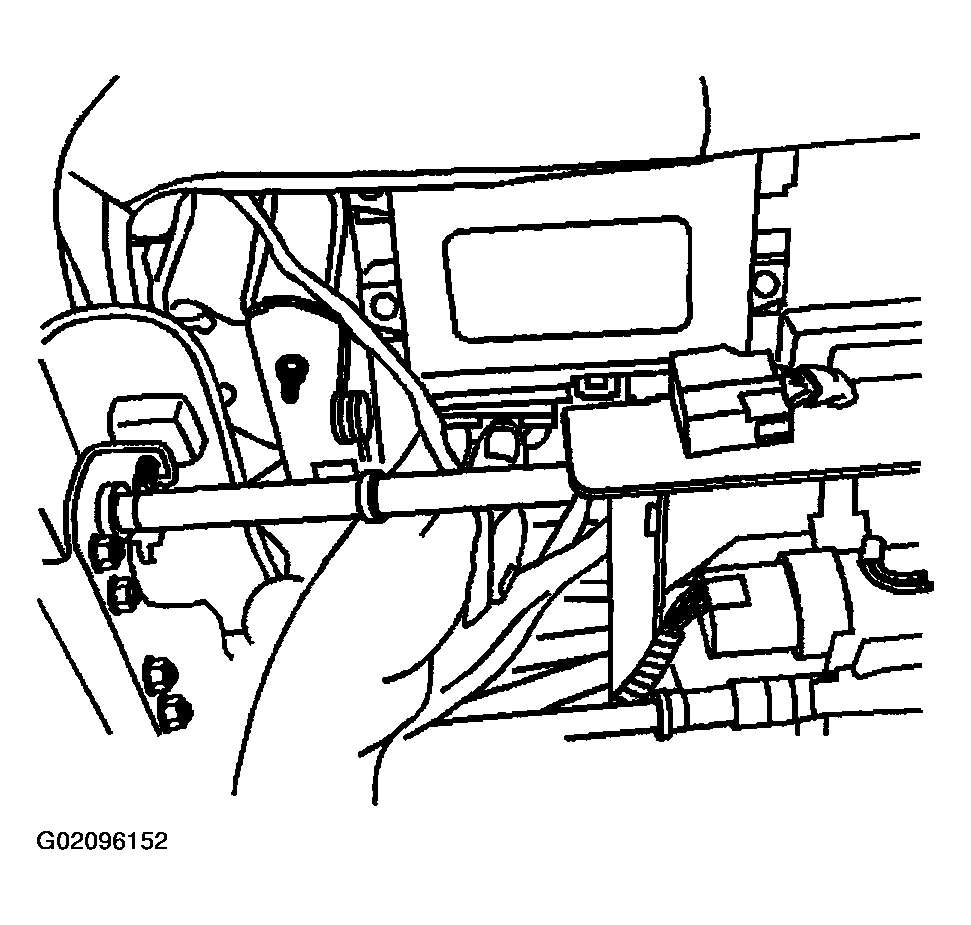

    Fig 2: Connecting Electrical Connections To Module
    G02096152Courtesy of GENERAL MOTORS CORP.
