Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Remove the front seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  2. Disconnect the electrical connectors from the heated seat module.

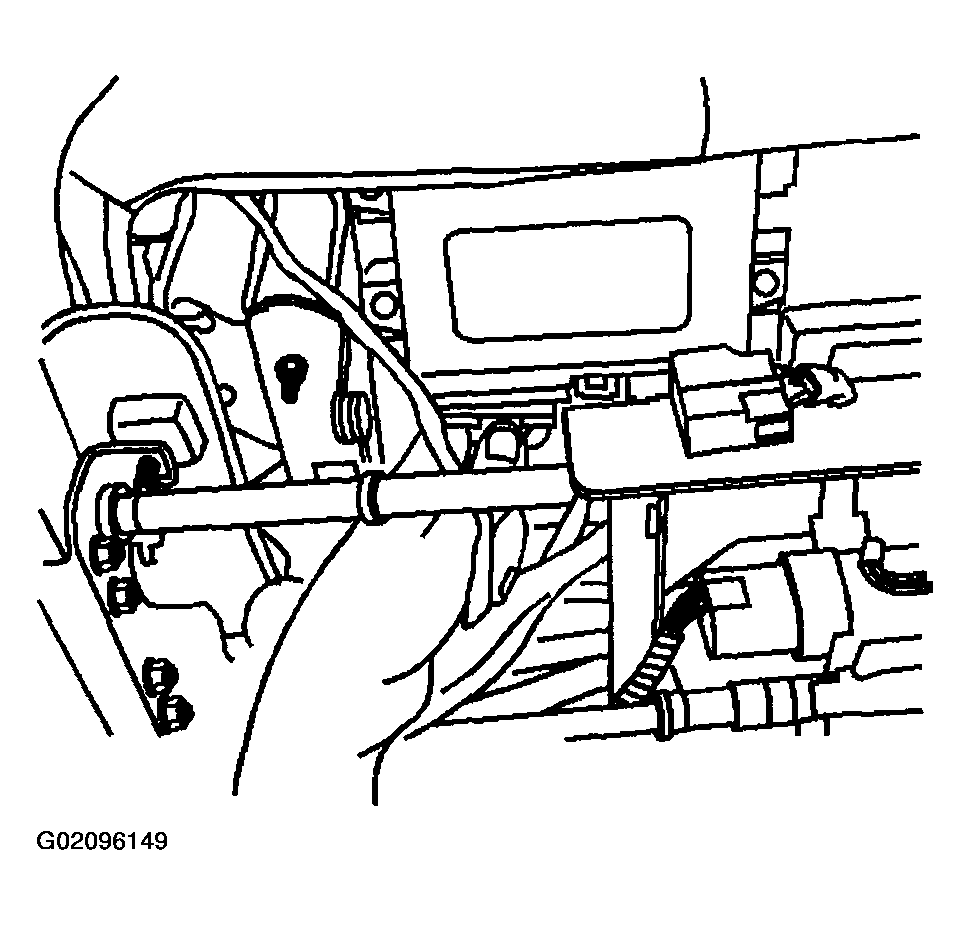

    Fig 1: Disconnecting Electrical Connectors From Heated Seat Module
    G02096149Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws (1) retaining the memory seat module to the seat frame.
  4. Remove the memory seat module.

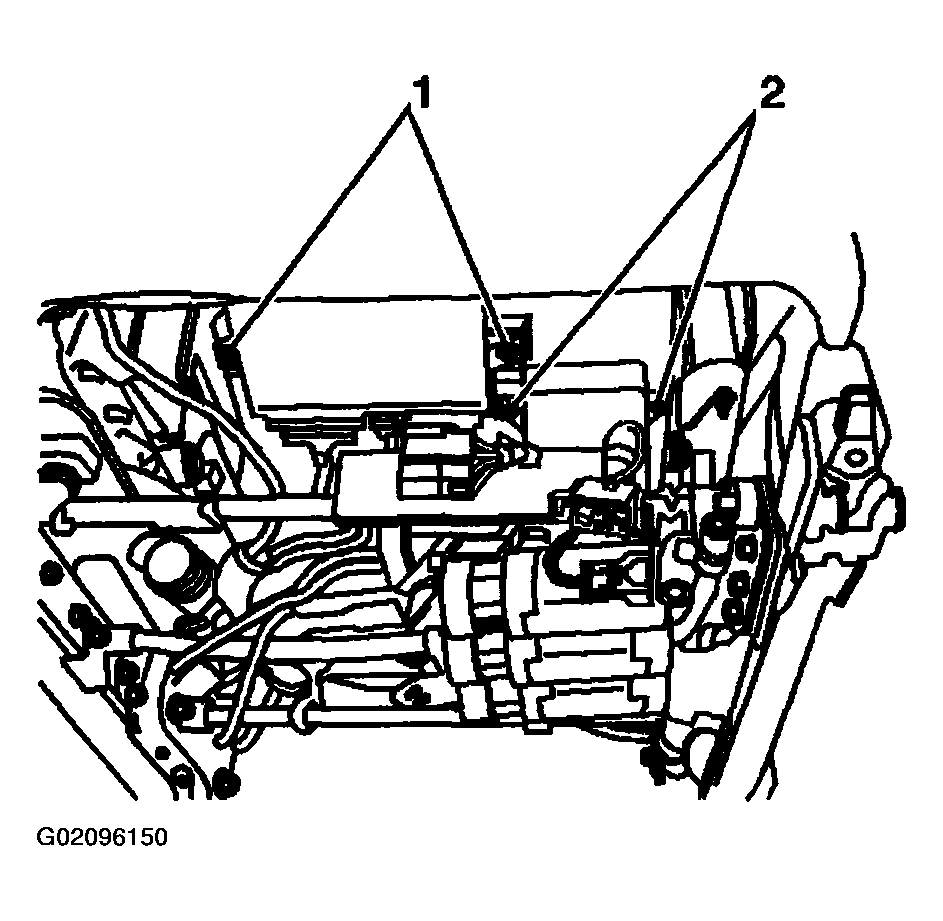

    Fig 2: Removing Screws Retaining Memory Seat Module To Seat Frame
    G02096150Courtesy of GENERAL MOTORS CORP.
