ABS Component Views

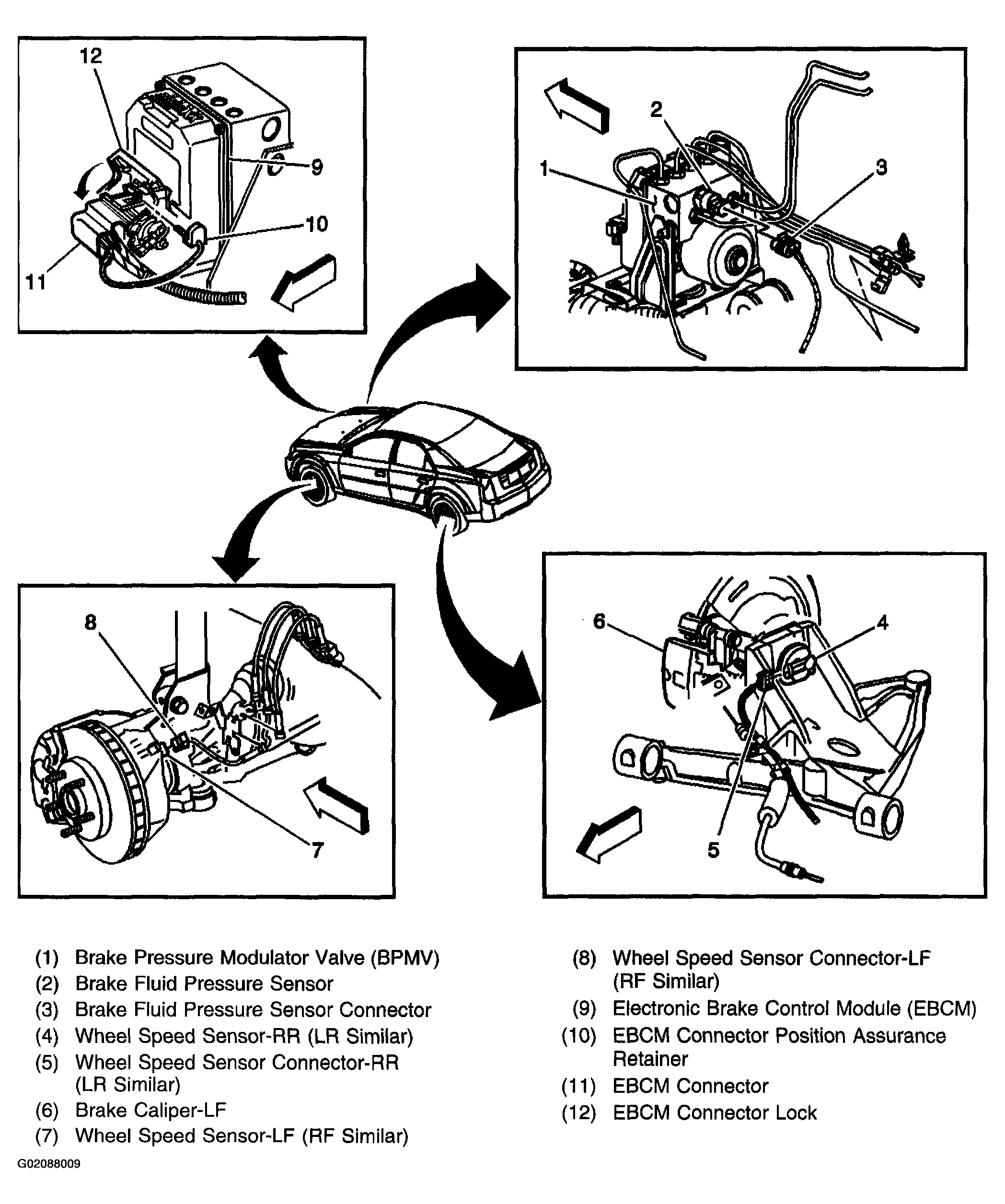

Fig 1: EBCM And Wheel Speed Sensors
G02088009Courtesy of GENERAL MOTORS CORP.

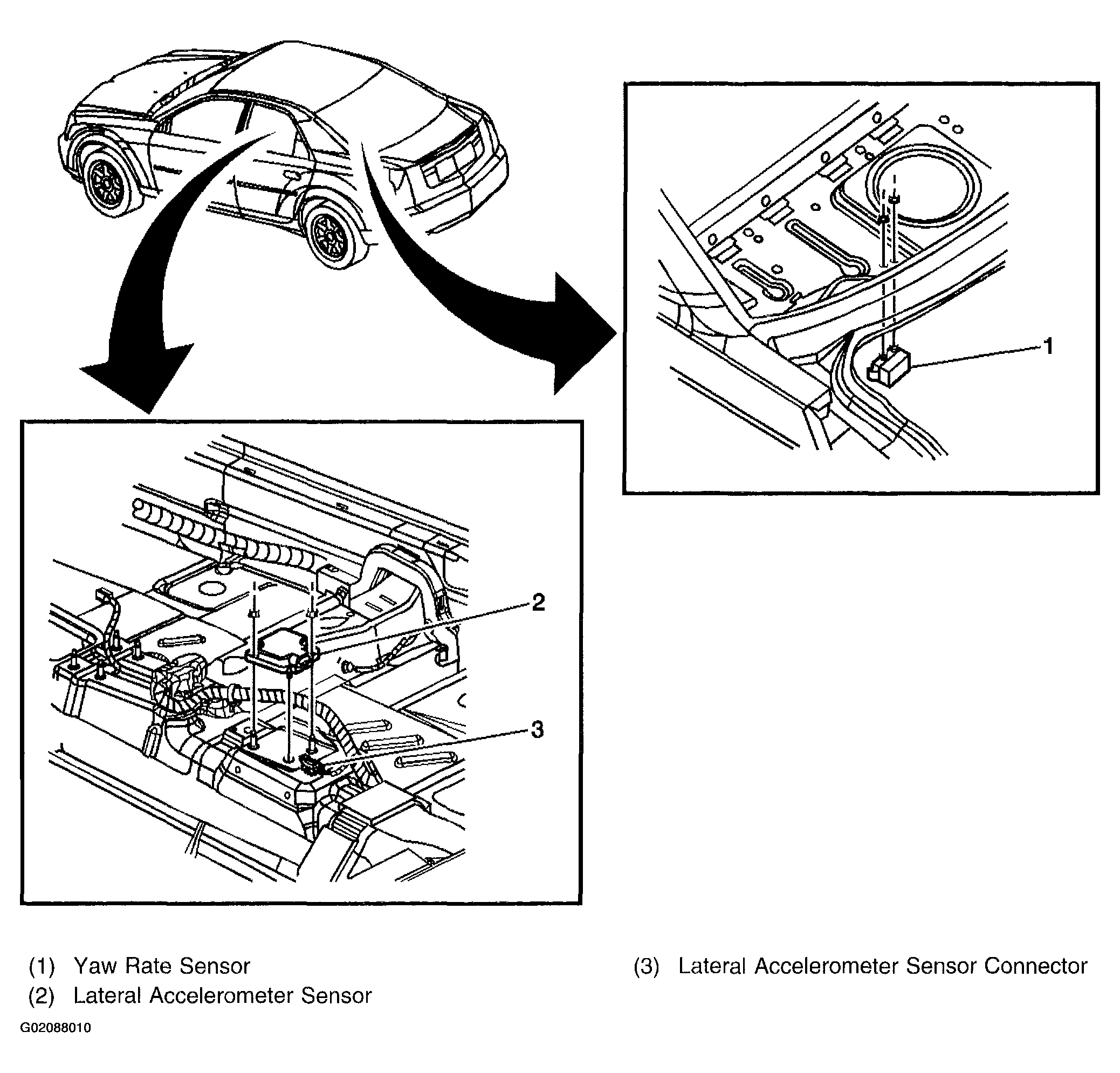

Fig 2: Yaw and Accelerometer Sensors
G02088010Courtesy of GENERAL MOTORS CORP.

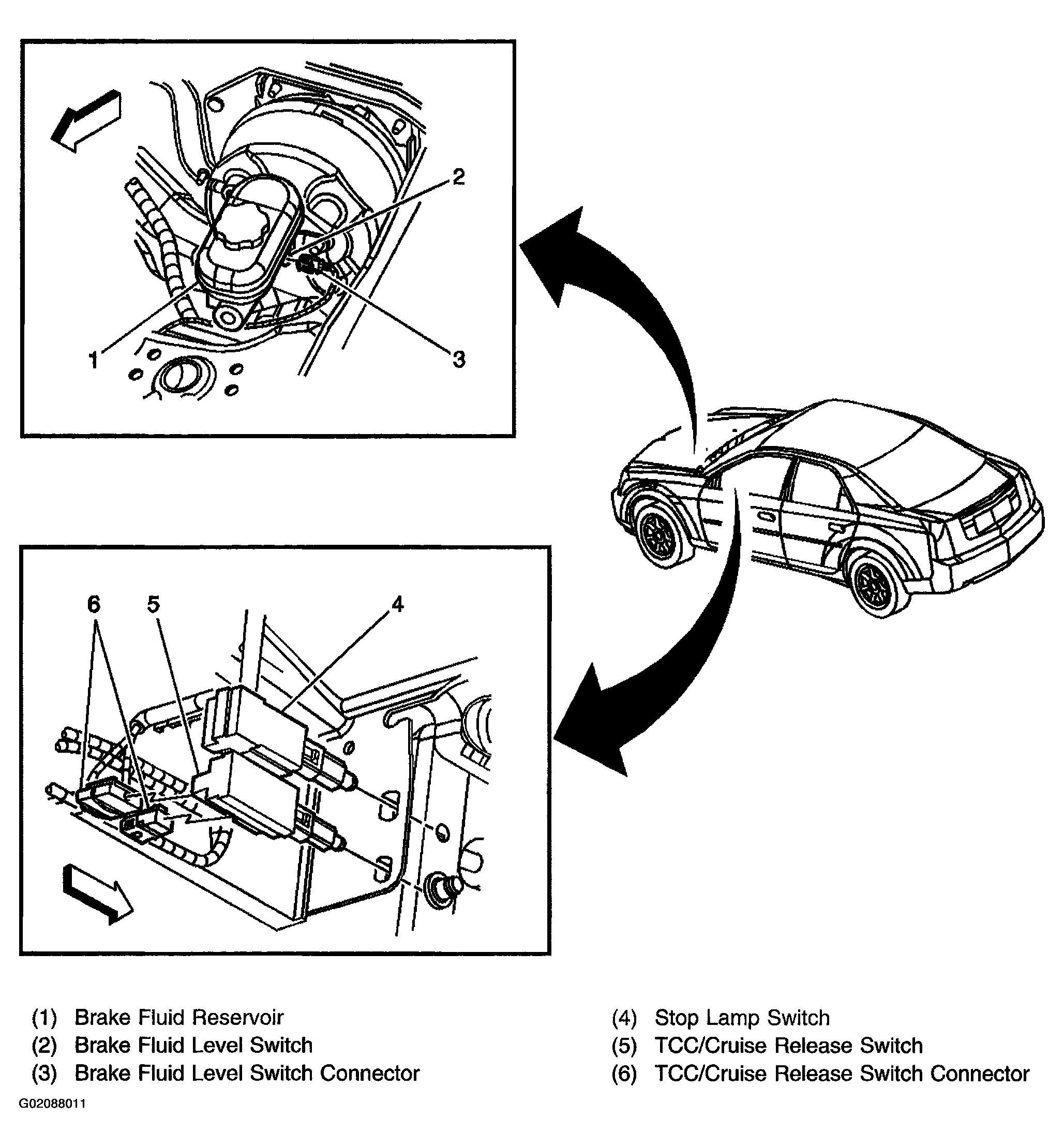

Fig 3: Brake and Brake Fluid Level Switches
G02088011Courtesy of GENERAL MOTORS CORP.
