Installation Procedure

  1. Connect the lateral accelerometer sensor electrical connector.
  2. Install the lateral accelerometer sensor (2) to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the lateral accelerometer sensor mounting nuts (1) to the mounting studs.

    Tighten

    Tighten the lateral accelerometer sensor mounting nuts to 9 N.m (80 lb in).

  4. Install the center console to the vehicle. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR in Instrument Panel, Gages, and Console.
  5. Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .

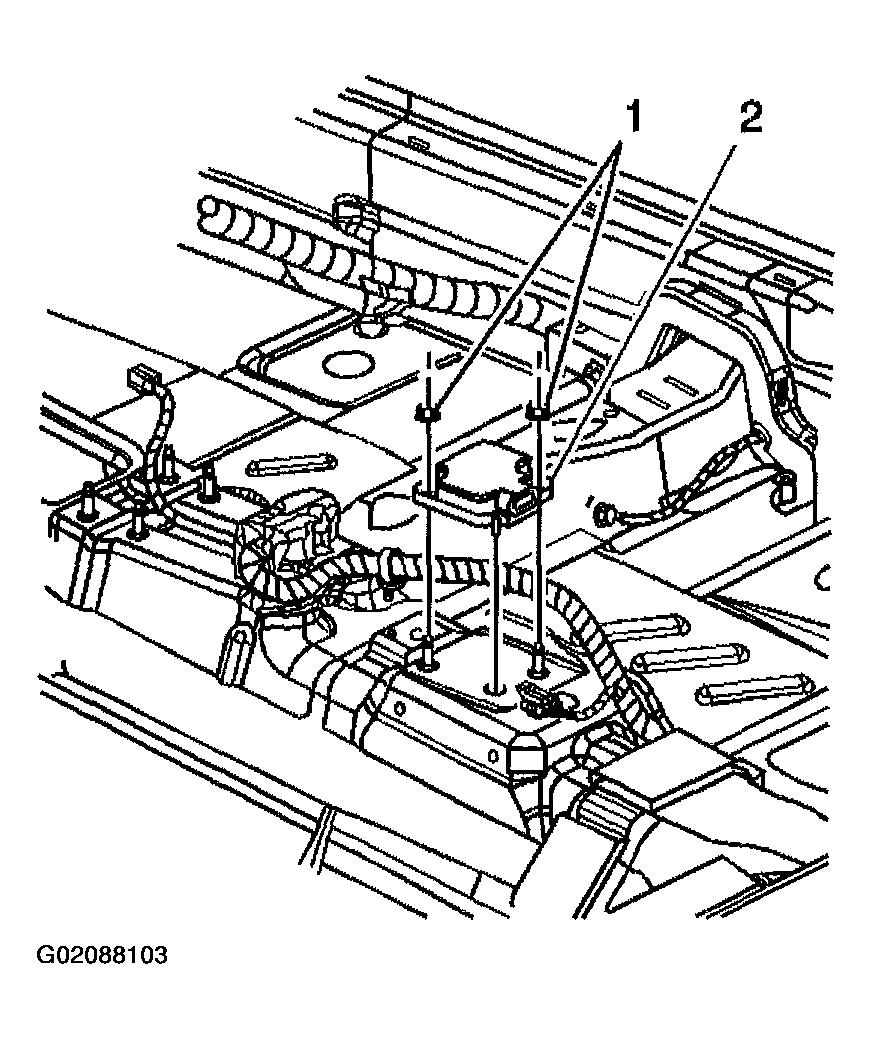

    Fig 1: Lateral Accelerometer Sensor Mounting Nuts
    G02088103Courtesy of GENERAL MOTORS CORP.
