Home >> Cadillac >> 2003 >> CTS Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Sunroof Control Module Connector End View C1

Sunroof Control Module Connector End View C1

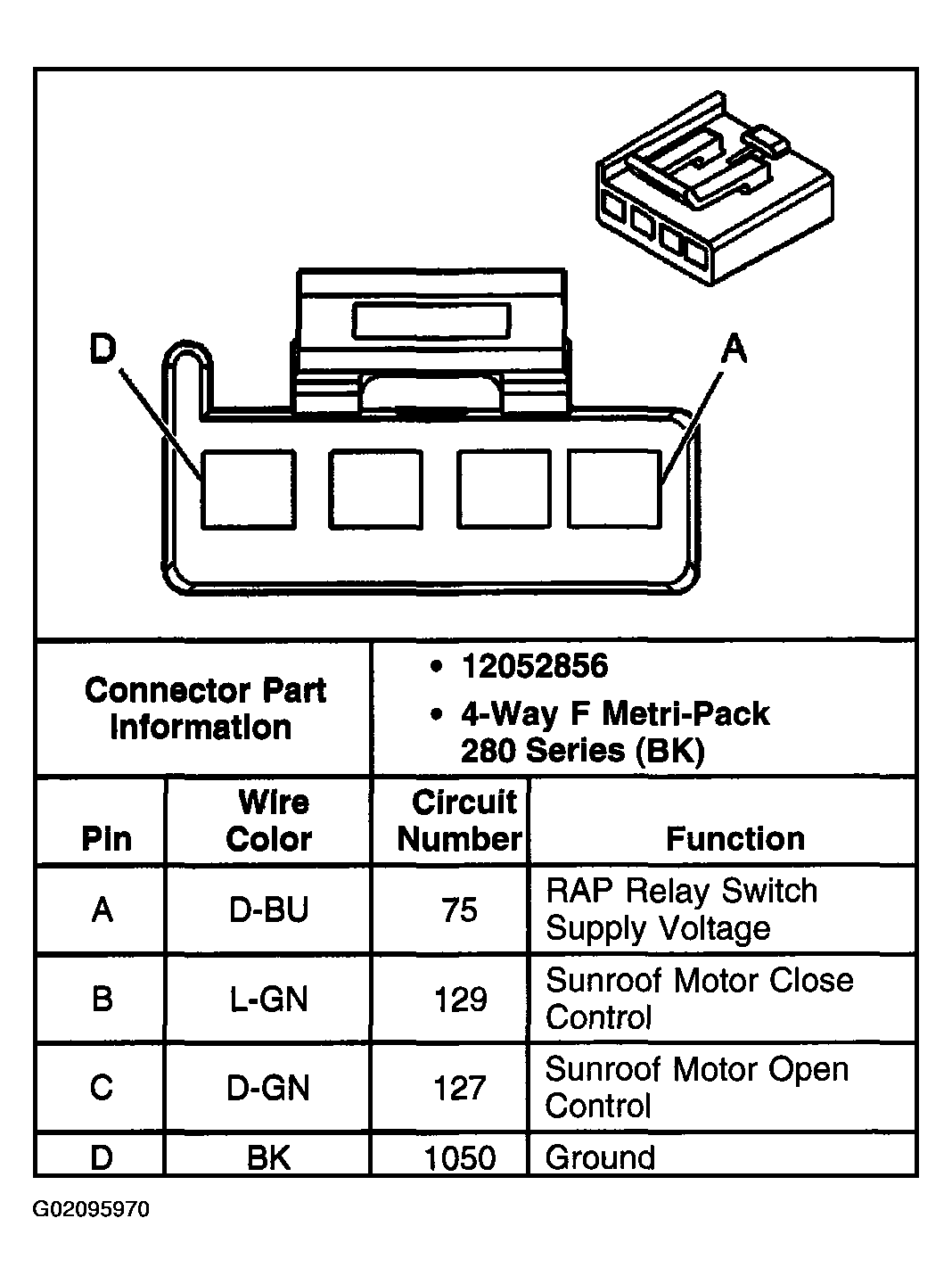

Fig 1: Sunroof Control Module C1

G02095970

Courtesy of GENERAL MOTORS CORP.
