Vehicle Communication Interface Module Connector End View C2

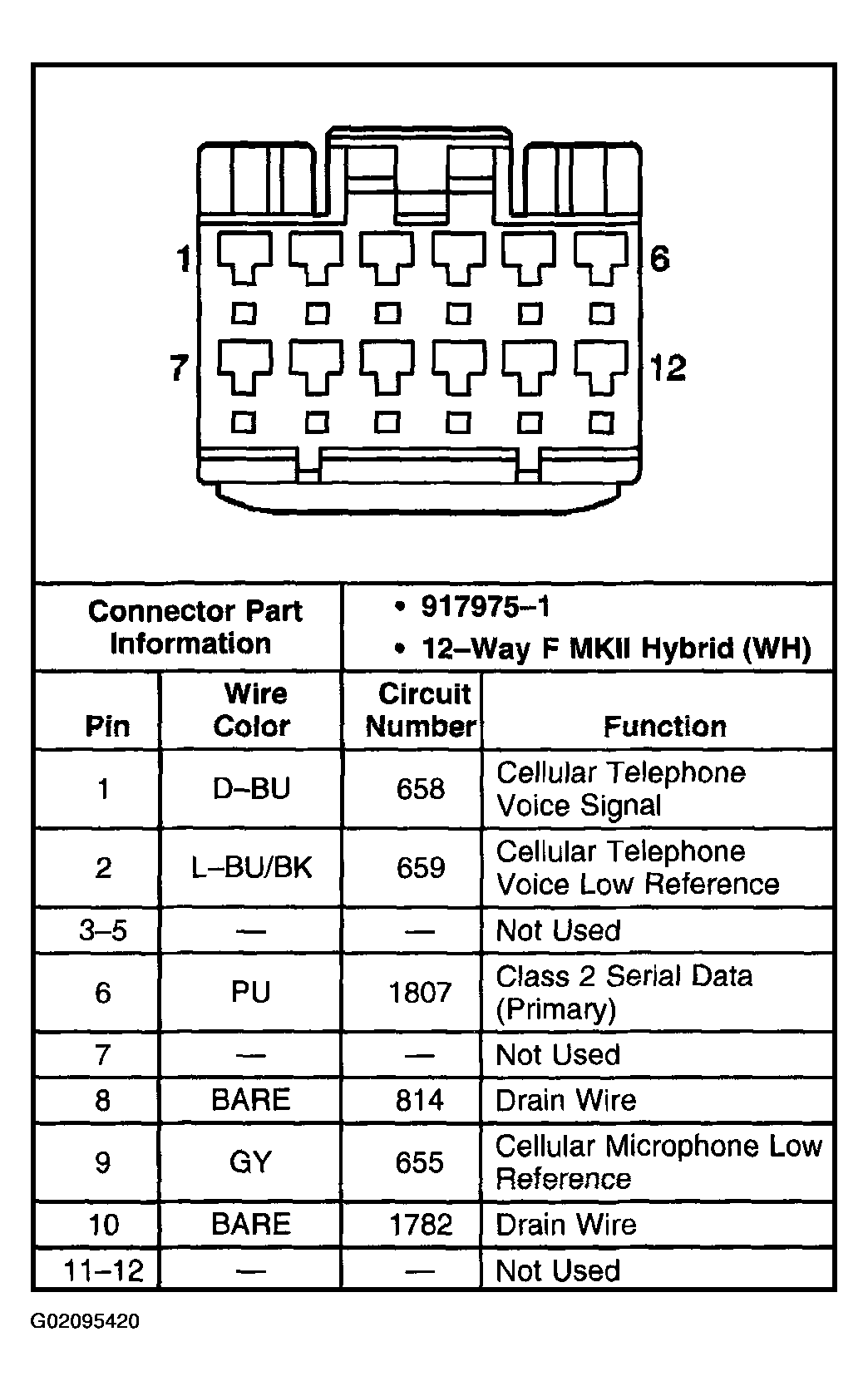

Fig 1: Vehicle Communication Interface Module C2

G02095420

Courtesy of GENERAL MOTORS CORP.
