Home >> Cadillac >> 2003 >> CTS Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Vehicle Communication Interface Module Connector End View C3

Vehicle Communication Interface Module Connector End View C3

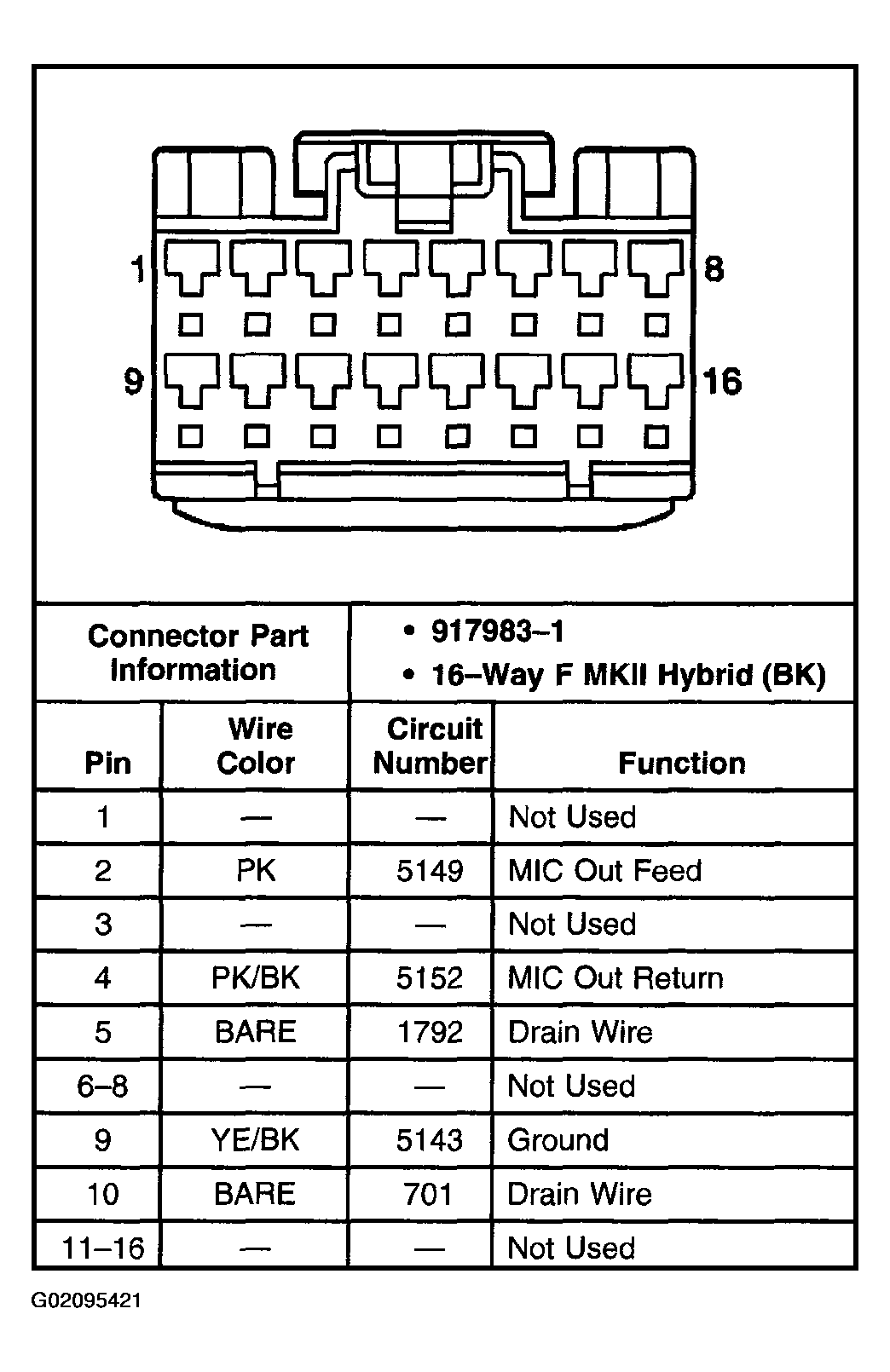

Fig 1: Vehicle Communication Interface Module C3

G02095421

Courtesy of GENERAL MOTORS CORP.
