Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine protection shield.

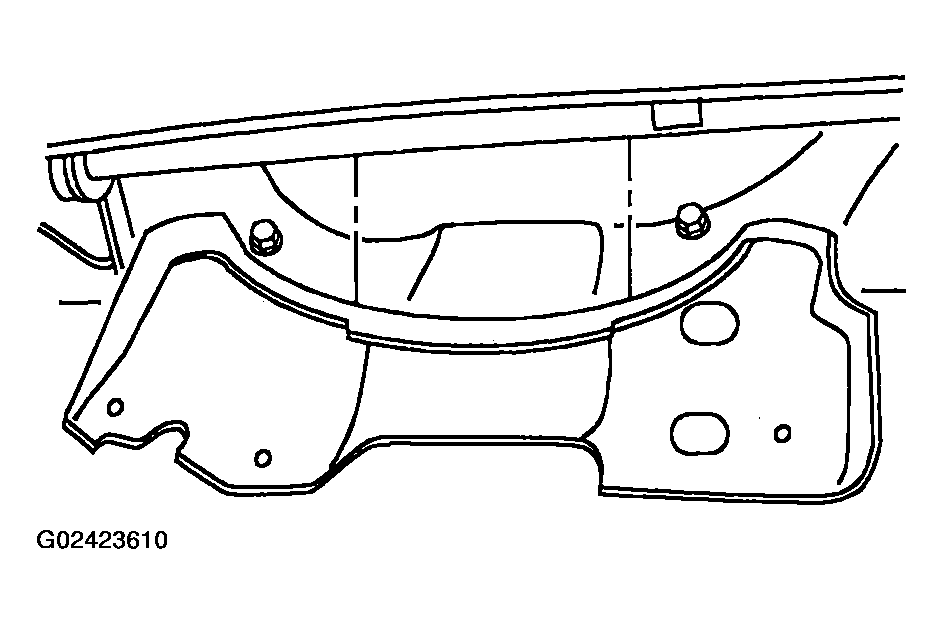

    Fig 1: Installing Engine Protection Shield
    G02423610Courtesy of GENERAL MOTORS CORP.
  2. Install the engine protection shield mounting bolts, light duty shown, heavy duty similar.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

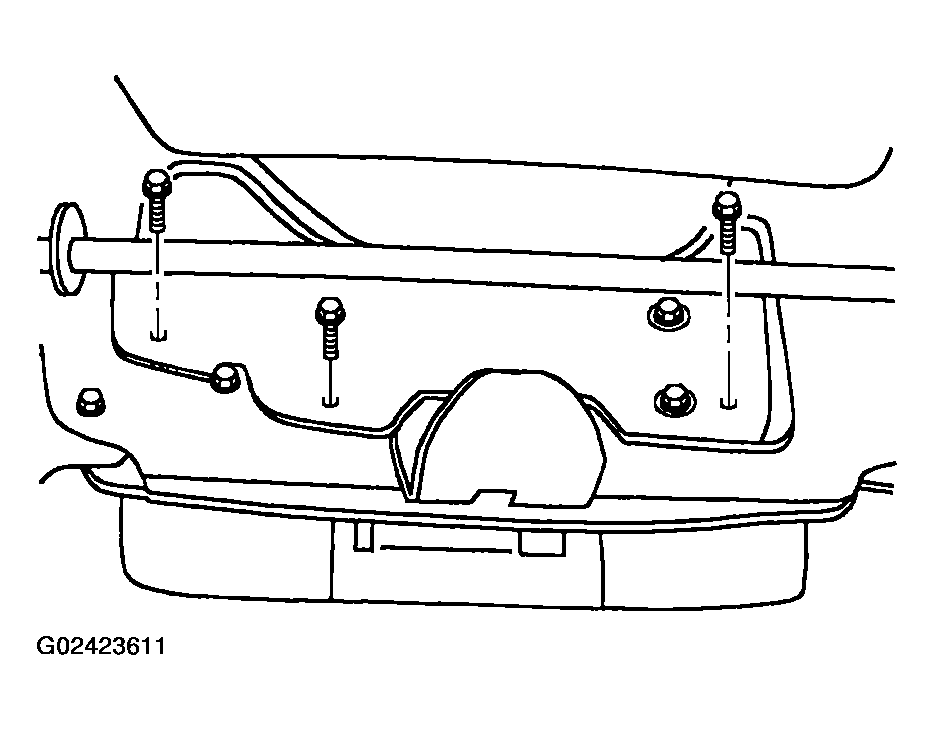

    Fig 2: Installing Engine Protection Shield Mounting Bolts
    G02423611Courtesy of GENERAL MOTORS CORP.
