Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the engine protection shield mounting bolts, light duty shown, heavy duty similar.

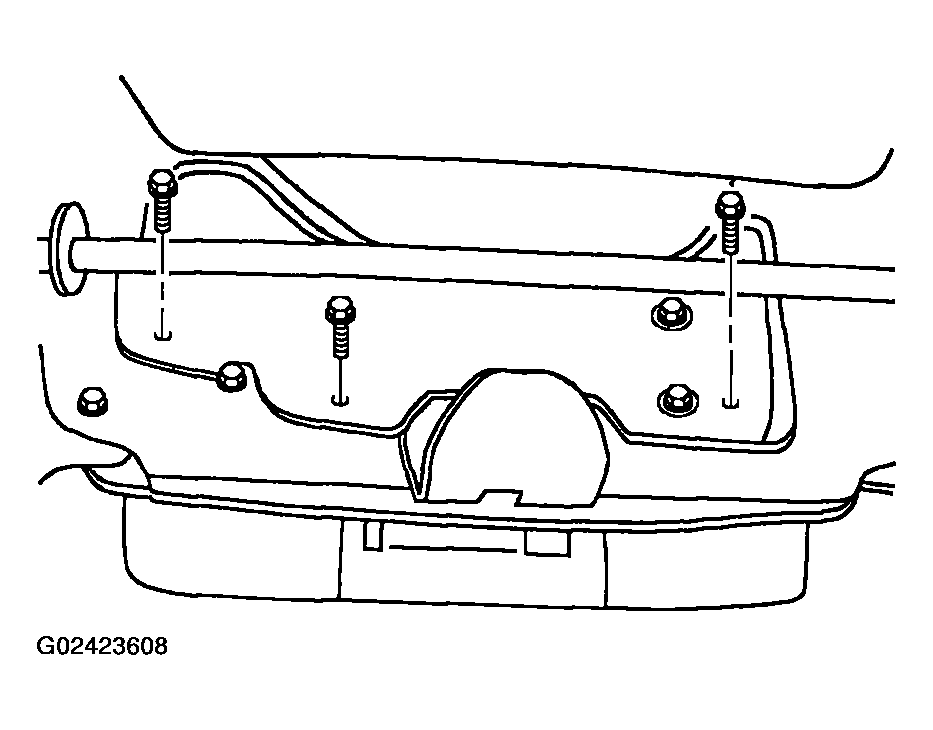

    Fig 1: Removing Engine Protection Shield Mounting Bolts
    G02423608Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine protection shield.

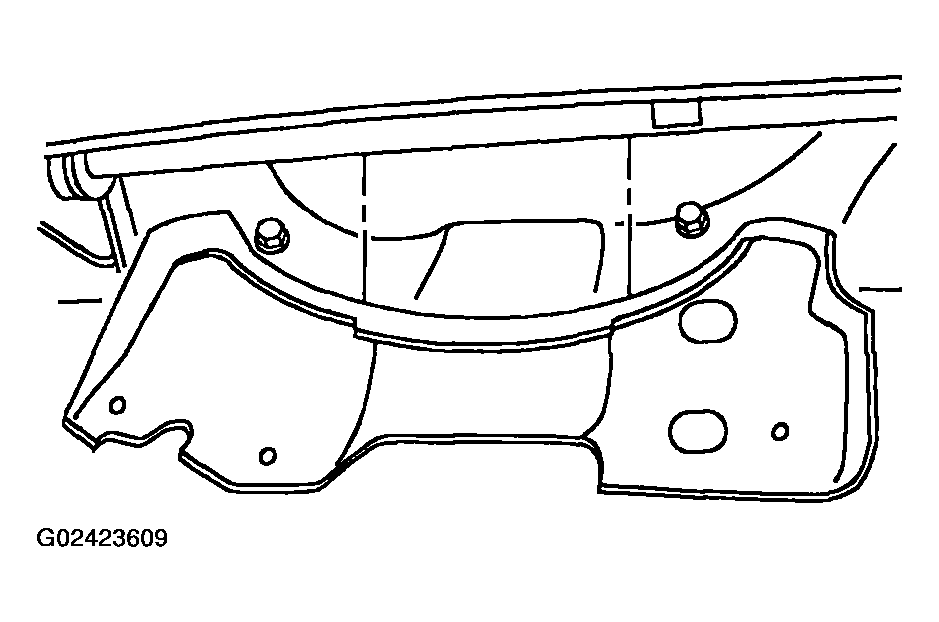

    Fig 2: Removing Engine Protection Shield
    G02423609Courtesy of GENERAL MOTORS CORP.
