ABS Component Views

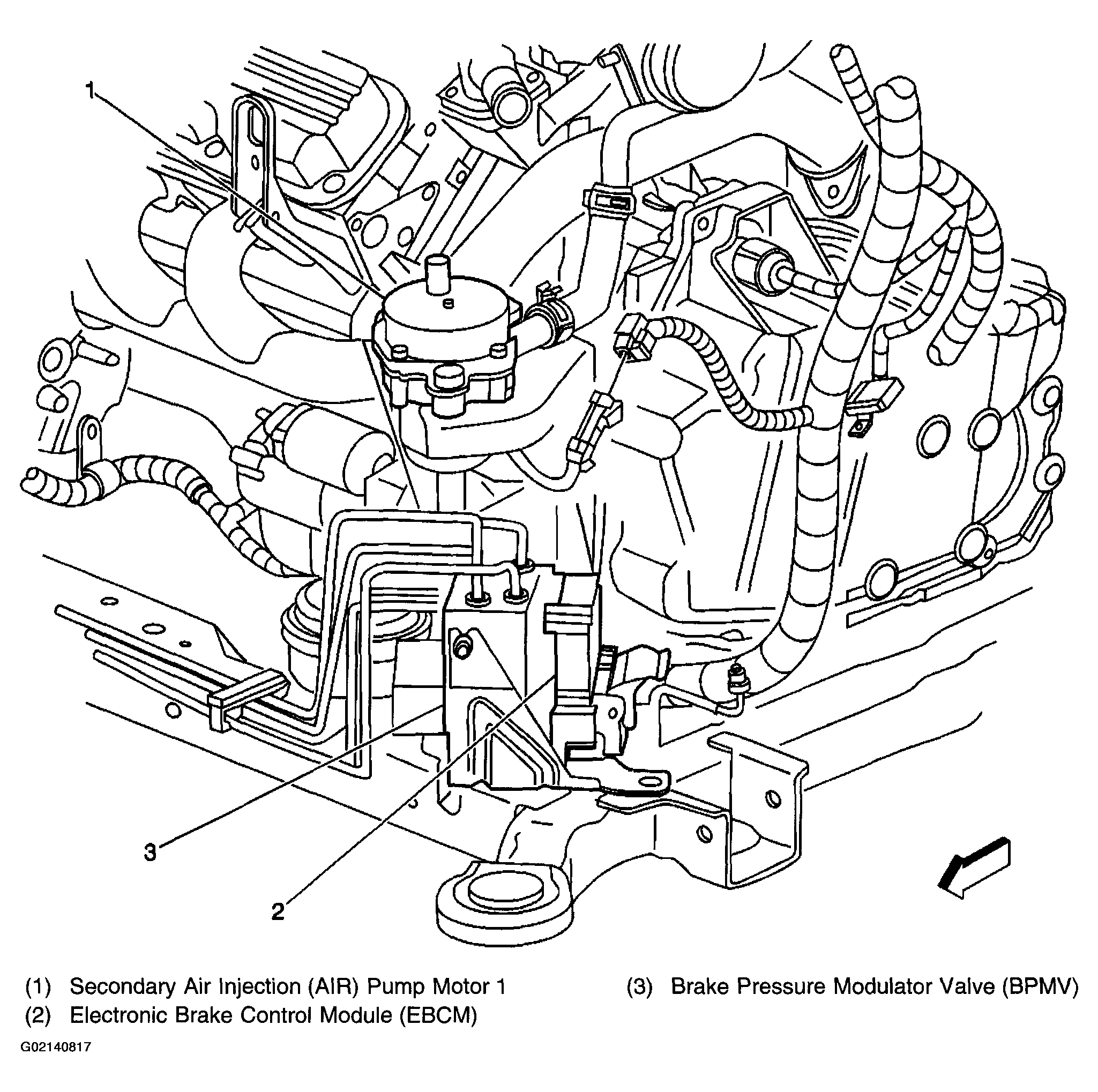

Fig 1: Left Front Of Engine Compartment, On Frame Rail

Courtesy of GENERAL MOTORS CORP.

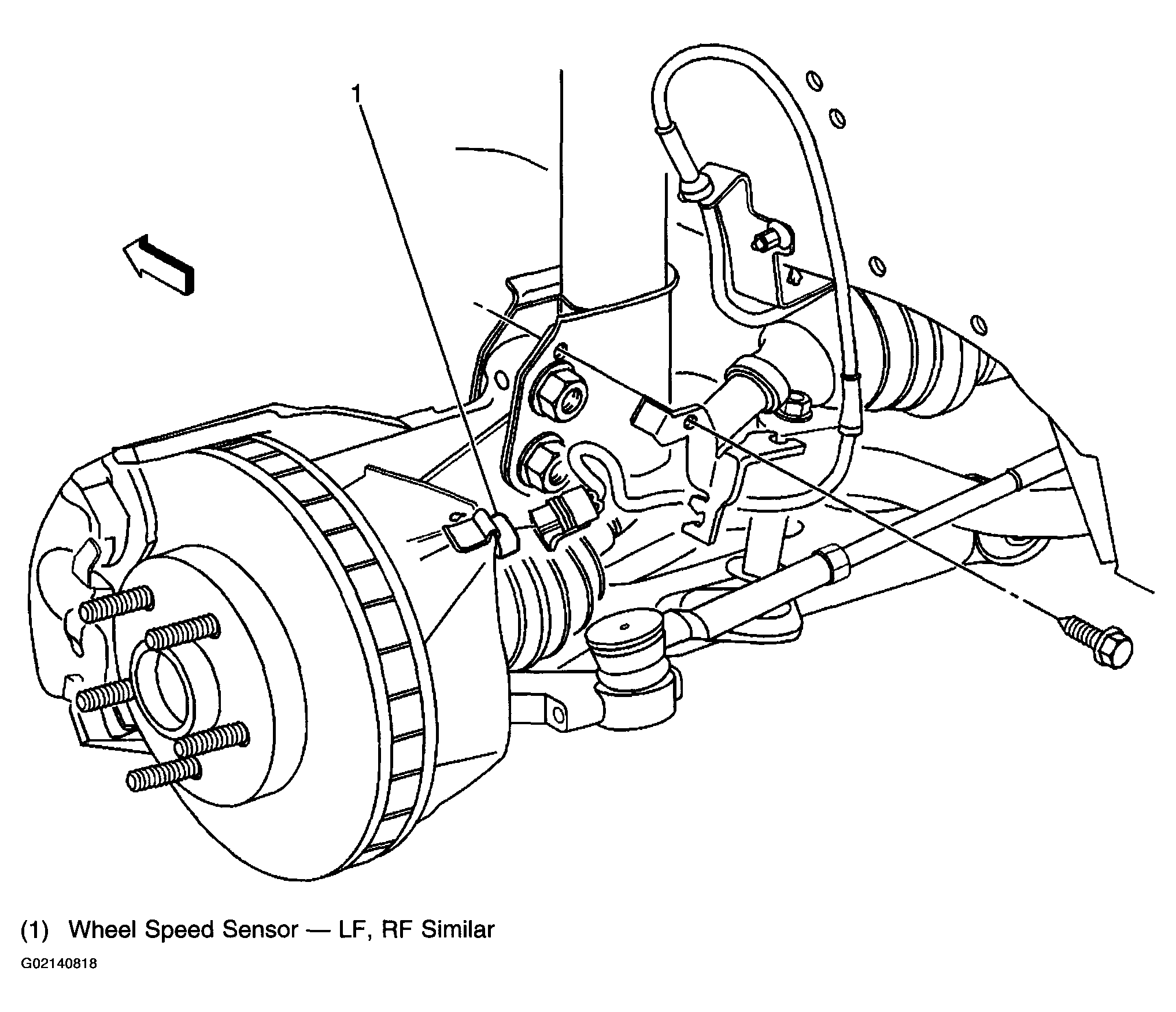

Fig 2: Front Wheel Speed Sensor, Under Left Front Of Vehicle, Above Front Axle

Courtesy of GENERAL MOTORS CORP.

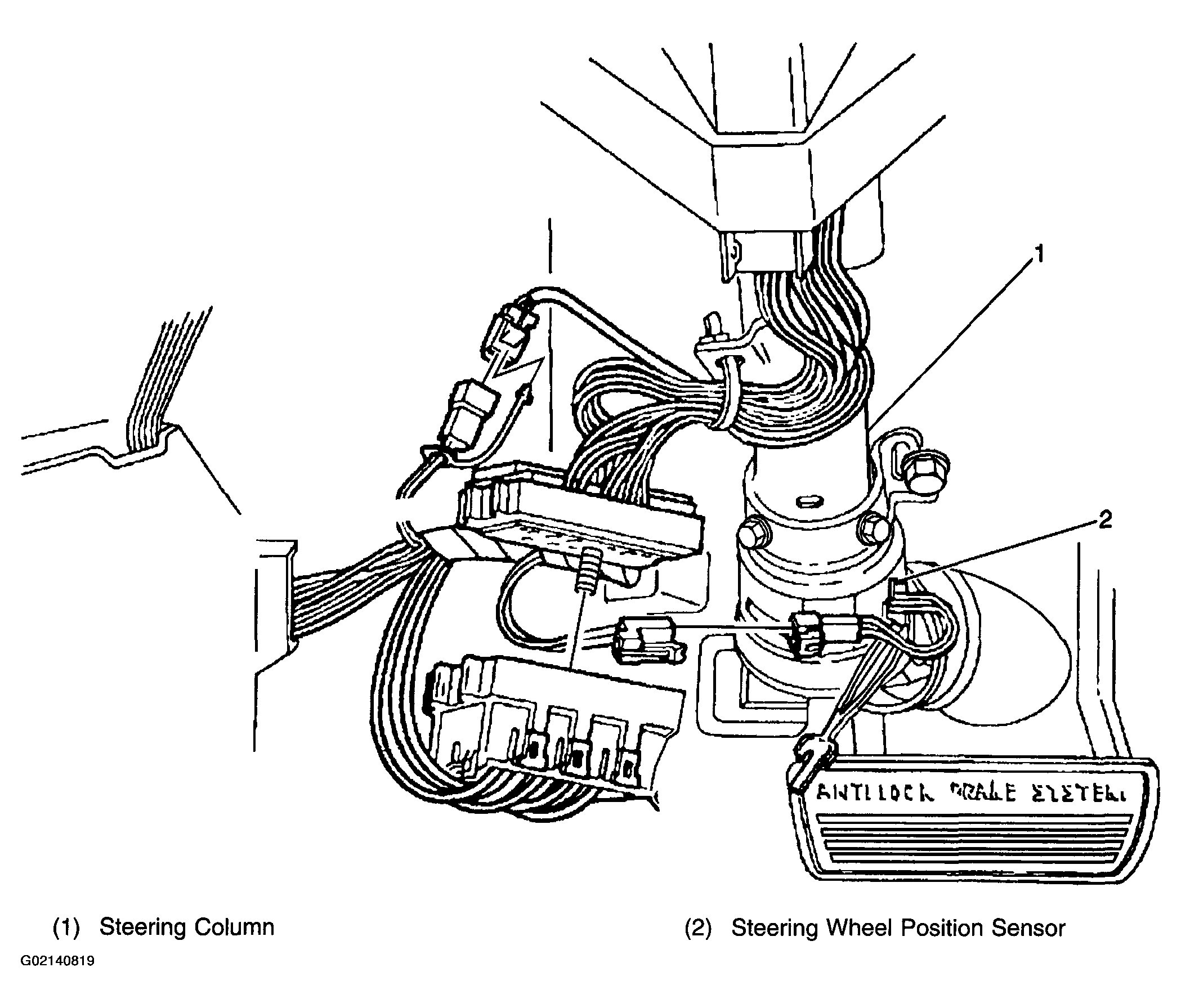

Fig 3: Below Left Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

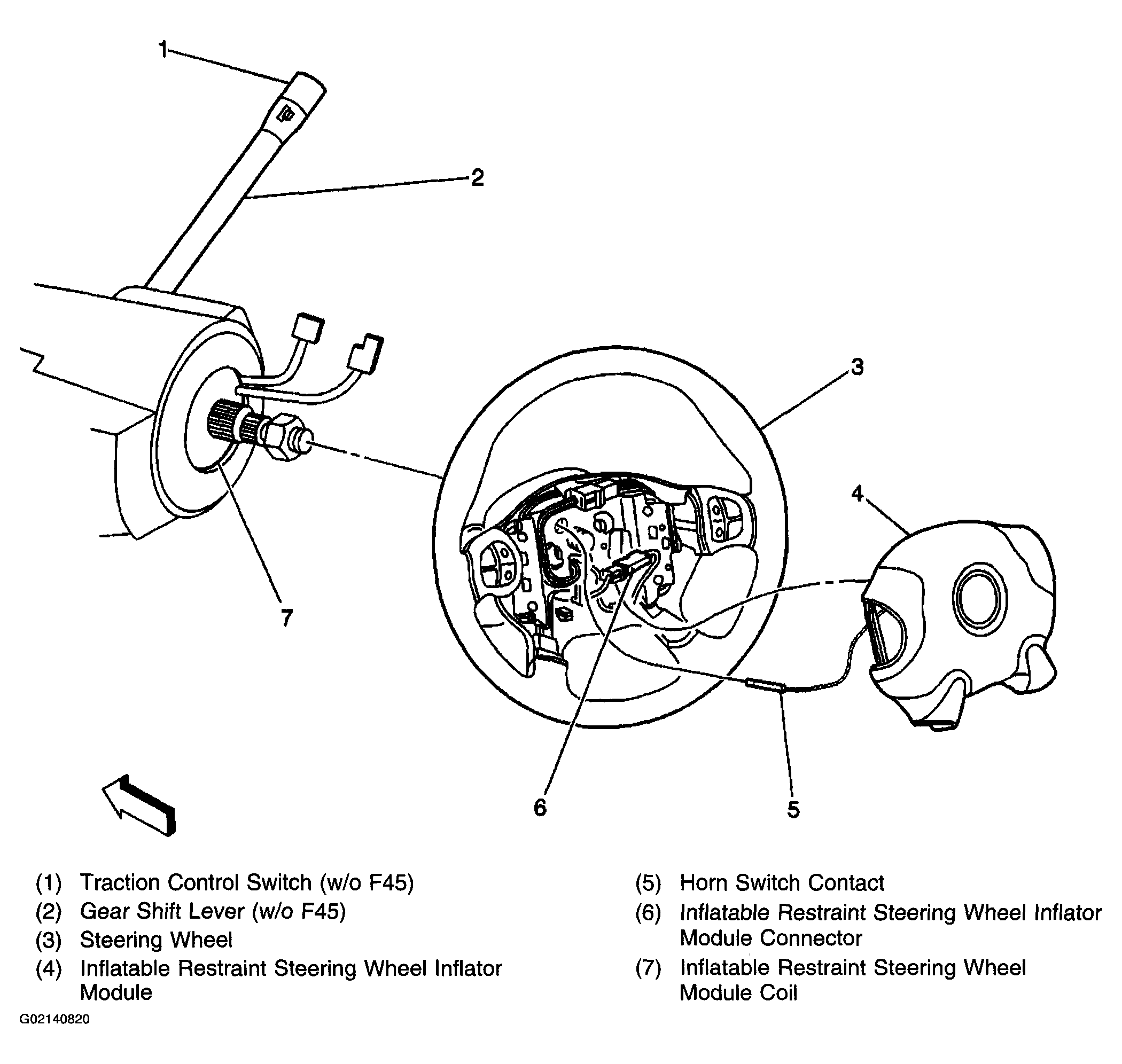

Fig 4: Steering Wheel And Inflator Module

Courtesy of GENERAL MOTORS CORP.

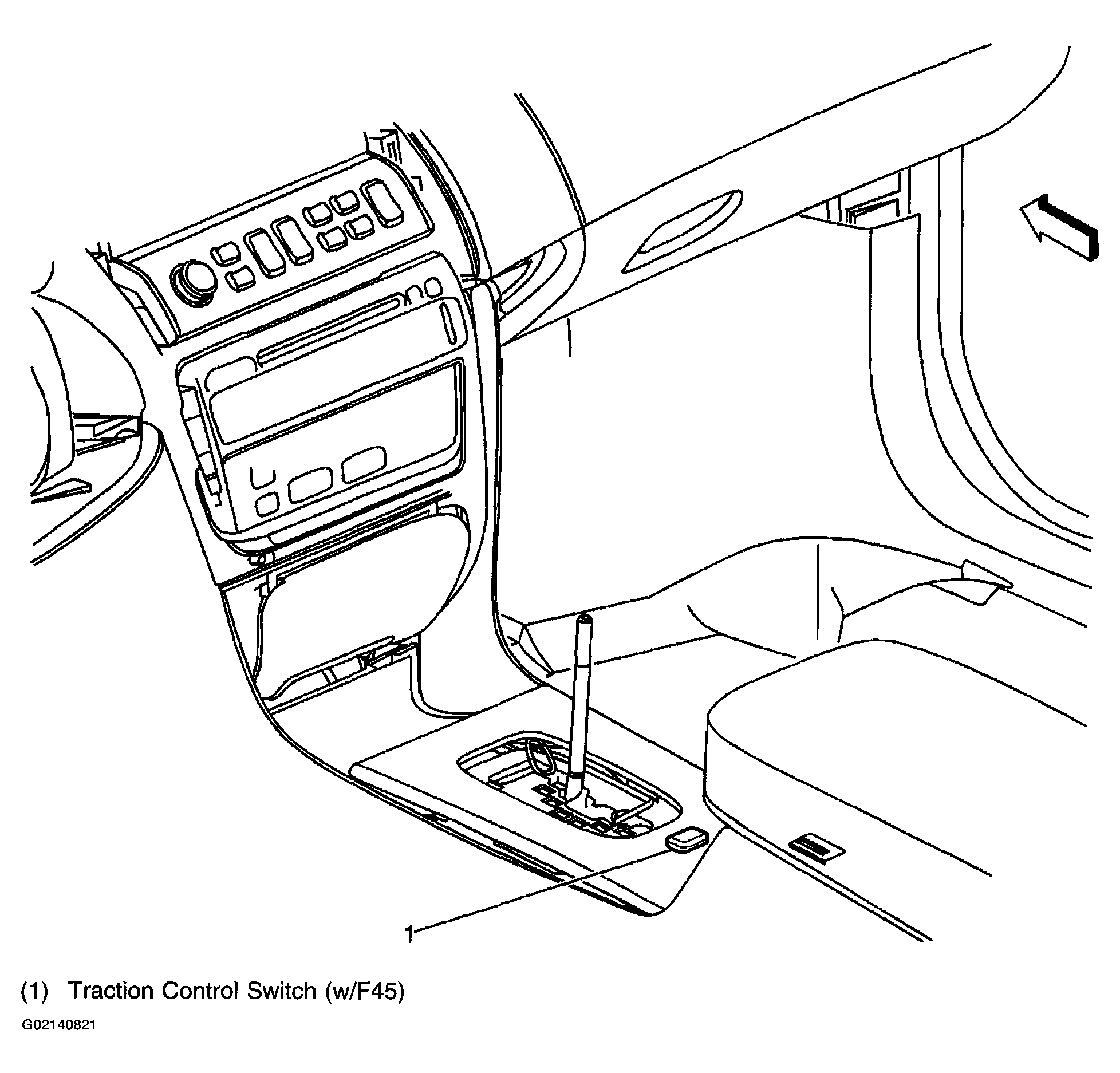

Fig 5: Front Center Of Passenger Compartment, On Console

Courtesy of GENERAL MOTORS CORP.

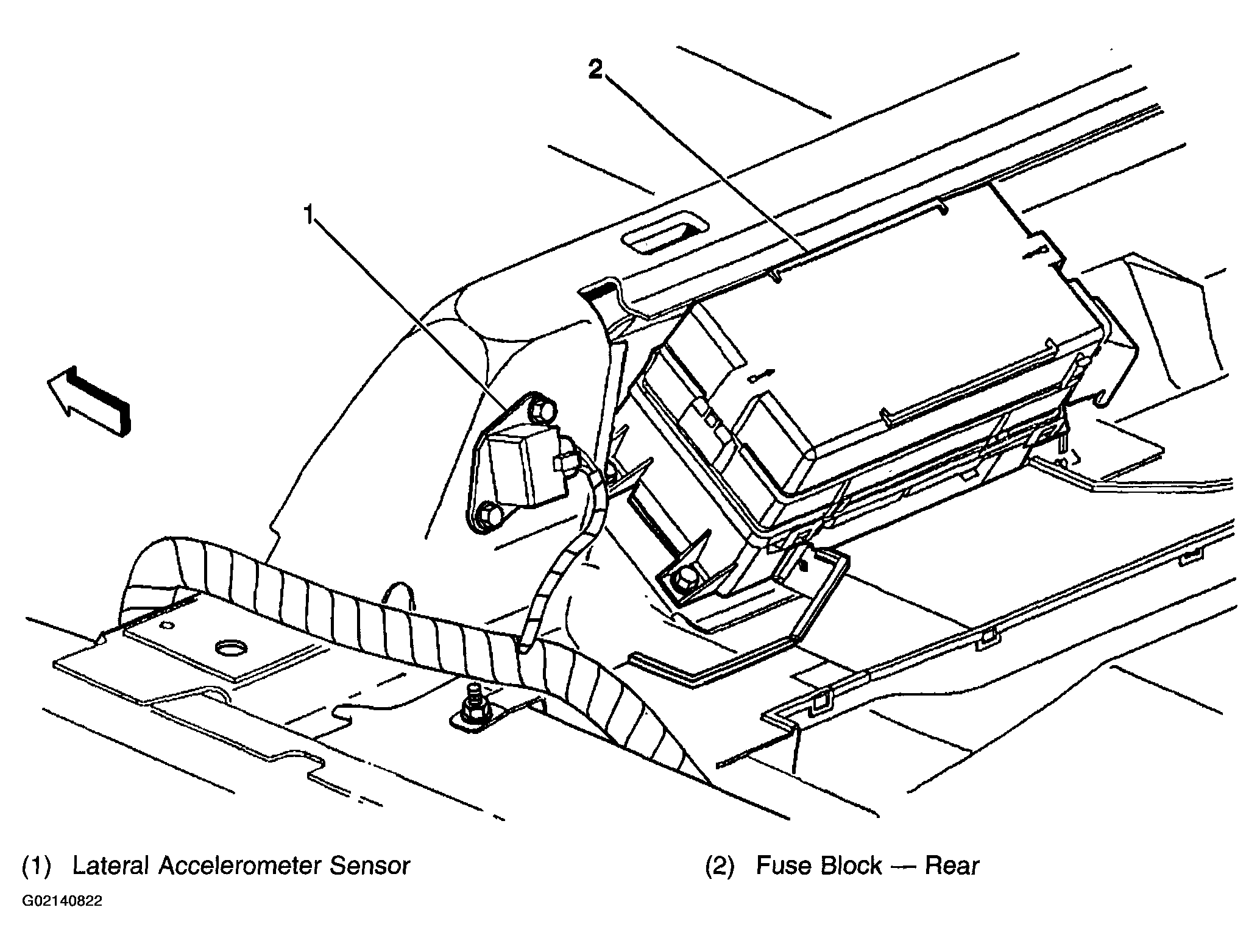

Fig 6: Left Rear Of Passenger Compartment, Under Rear Seat

Courtesy of GENERAL MOTORS CORP.

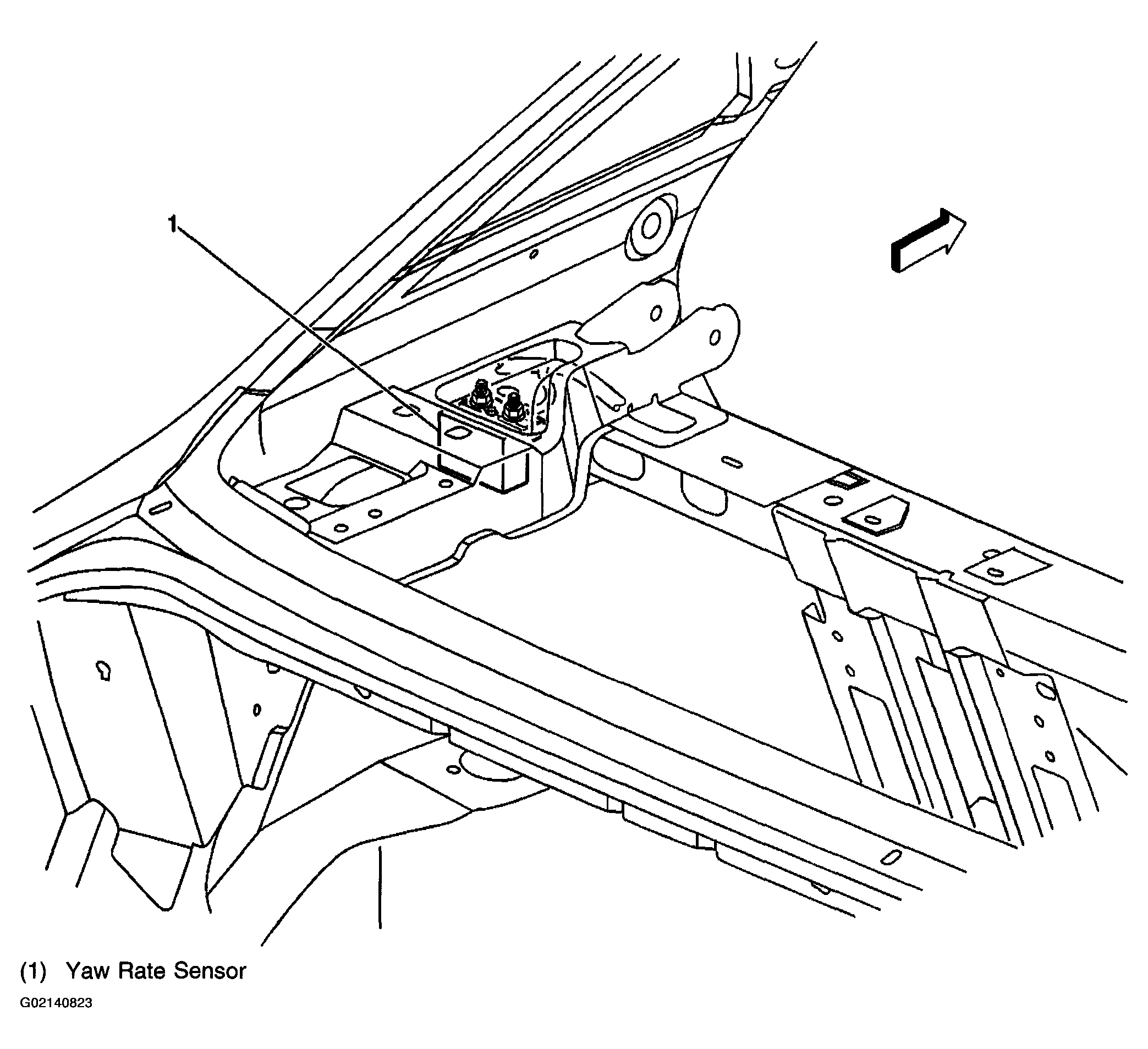

Fig 7: Left Corner Of Rear Compartment, In Rear Shelf

Courtesy of GENERAL MOTORS CORP.

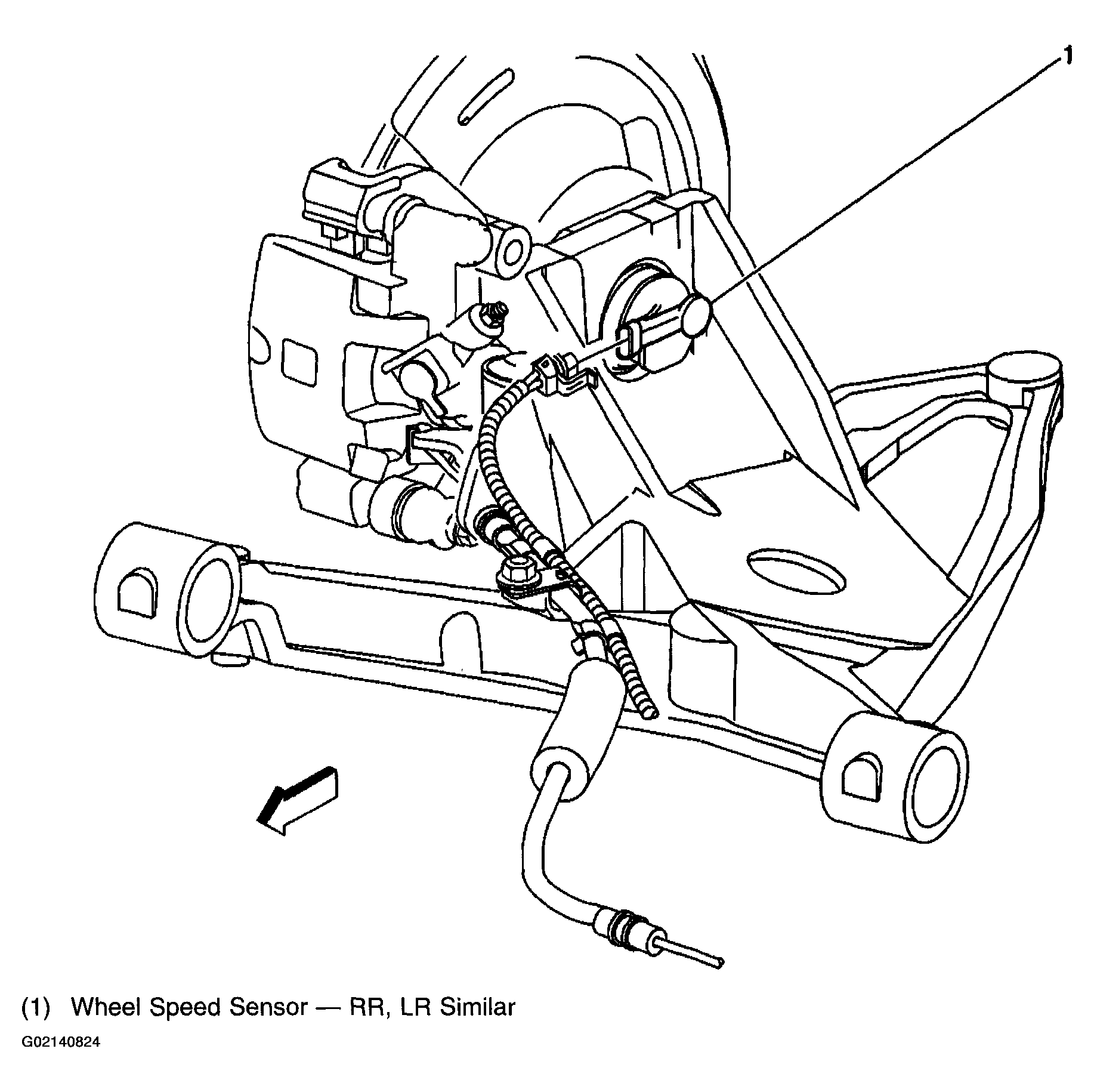

Fig 8: Under Right Rear Of Vehicle, Above Rear Axle

Courtesy of GENERAL MOTORS CORP.
