Installation Procedure

  1. Install the battery.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery retainer and bolt.

    Tighten

    Tighten the battery retainer bolt to 17 N.m (13 lb ft).

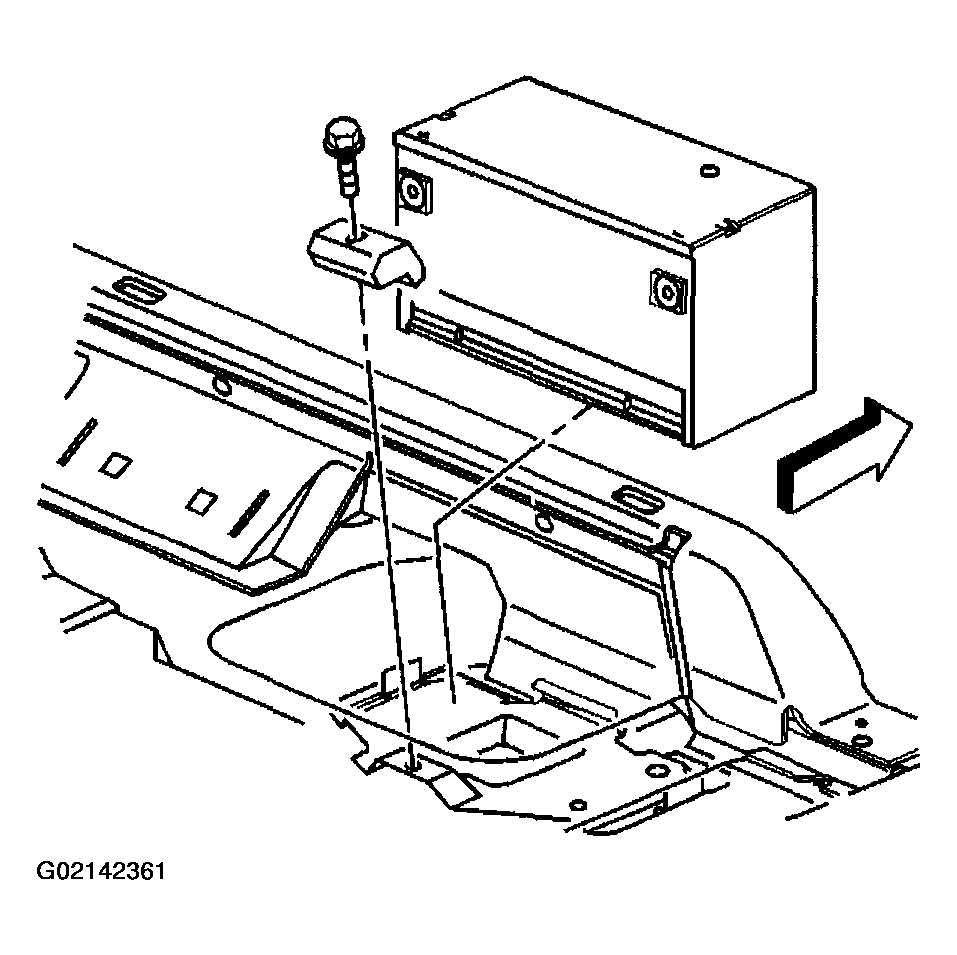

    Fig 1: Installing Battery Retainer & Bolt
    G02142361Courtesy of GENERAL MOTORS CORP.

    Important:  Ensure the vent tube (1) is properly routed through the floor pan grommet.

  3. Install the battery vent tube (1) to the battery.

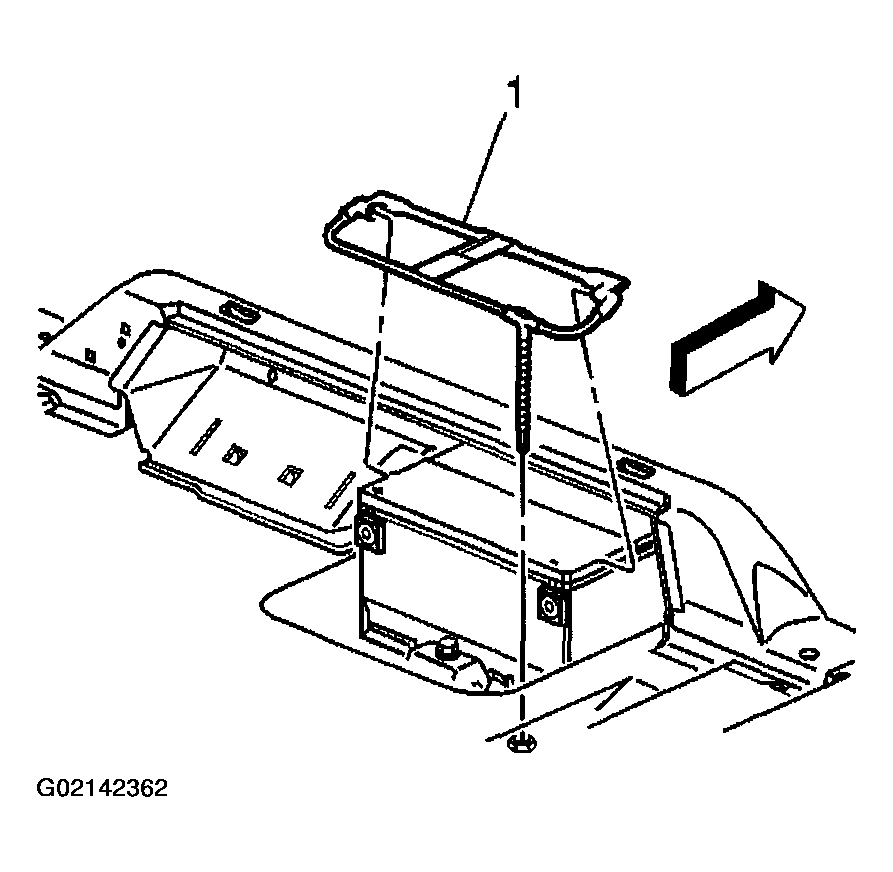

    Fig 2: Installing Battery Vent Tube To Battery
    G02142362Courtesy of GENERAL MOTORS CORP.
  4. Connect the battery positive cable (1) to the battery.

    Tighten

    Tighten the battery cable bolt to 17 N.m (13 lb ft).

  5. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

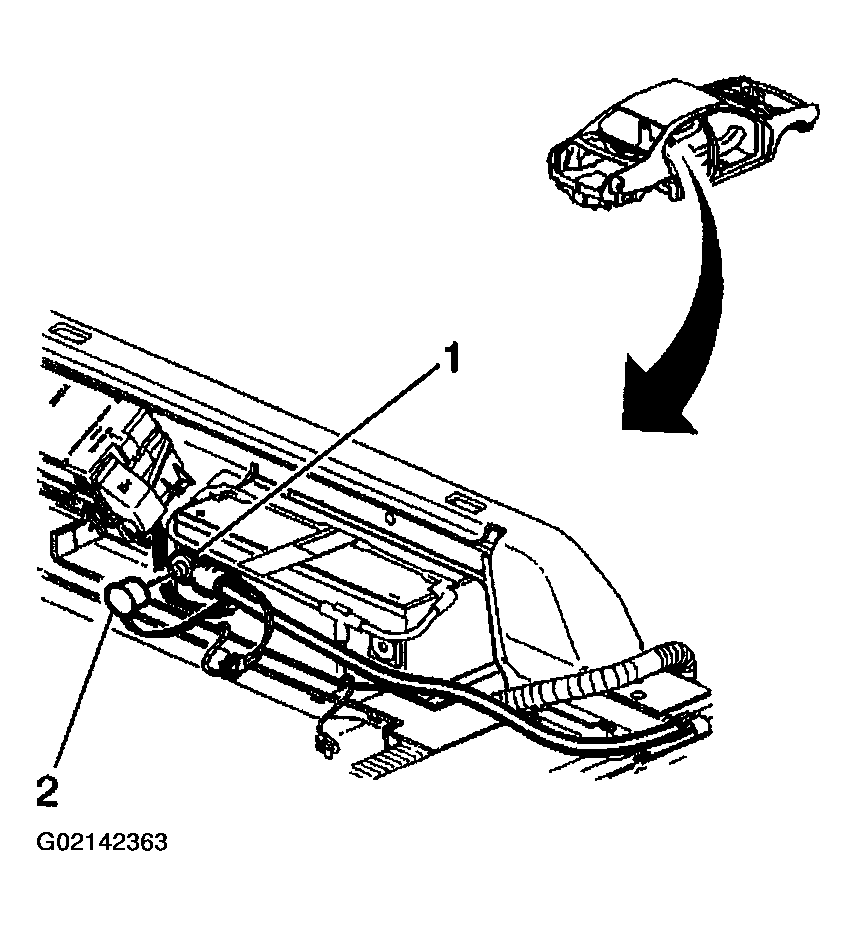

    Fig 3: Connecting Battery Positive Cable
    G02142363Courtesy of GENERAL MOTORS CORP.
