Home >> Cadillac >> 2003 >> Escalade EXT >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Controls - System & Component Testing - 4.8L, 5.3L & 6.0L - Flex Fuel & Gasoline >> Computerized Engine Controls >> Powertrain Control Module >> Notes

Powertrain Control Module: Notes

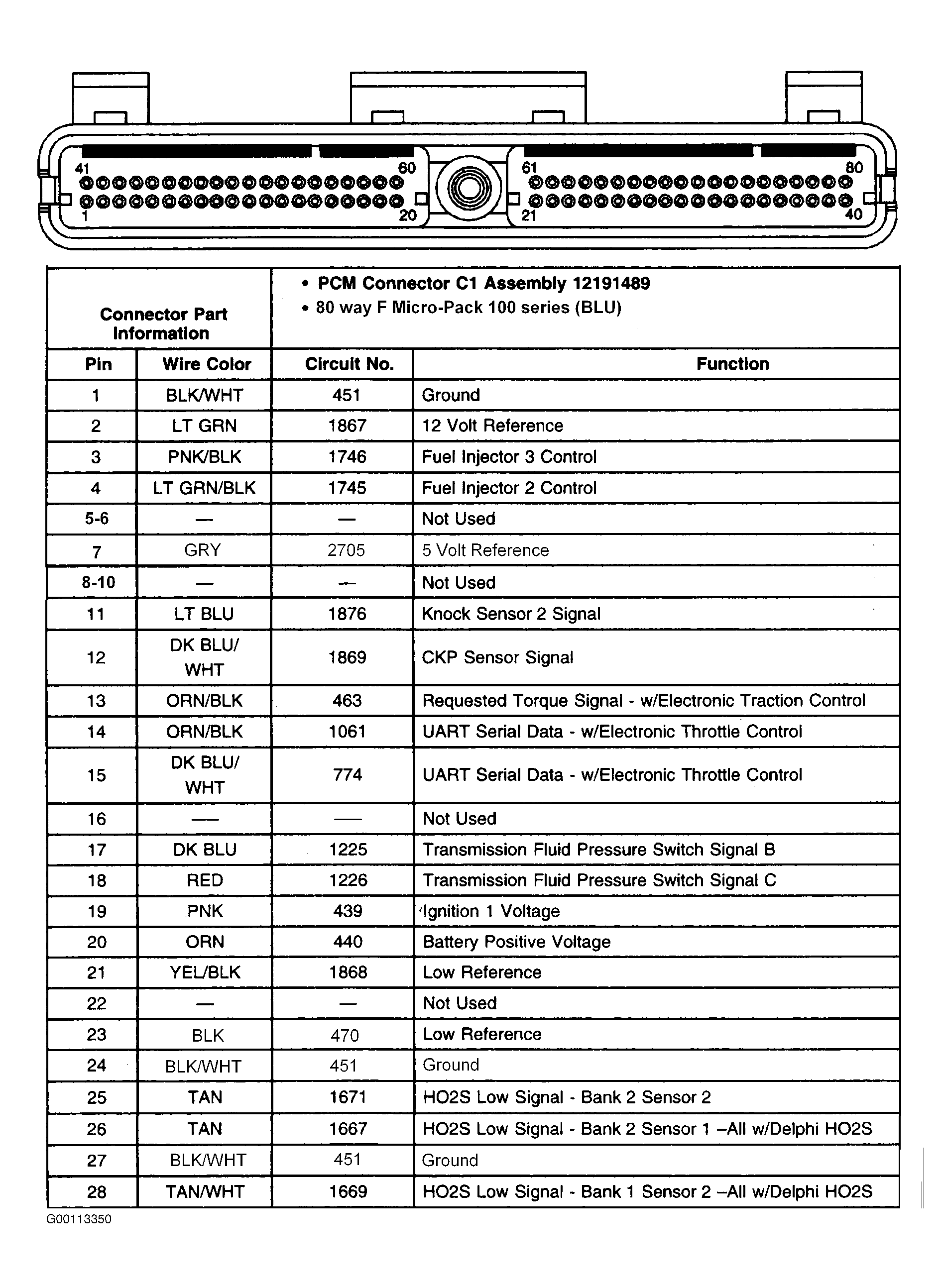

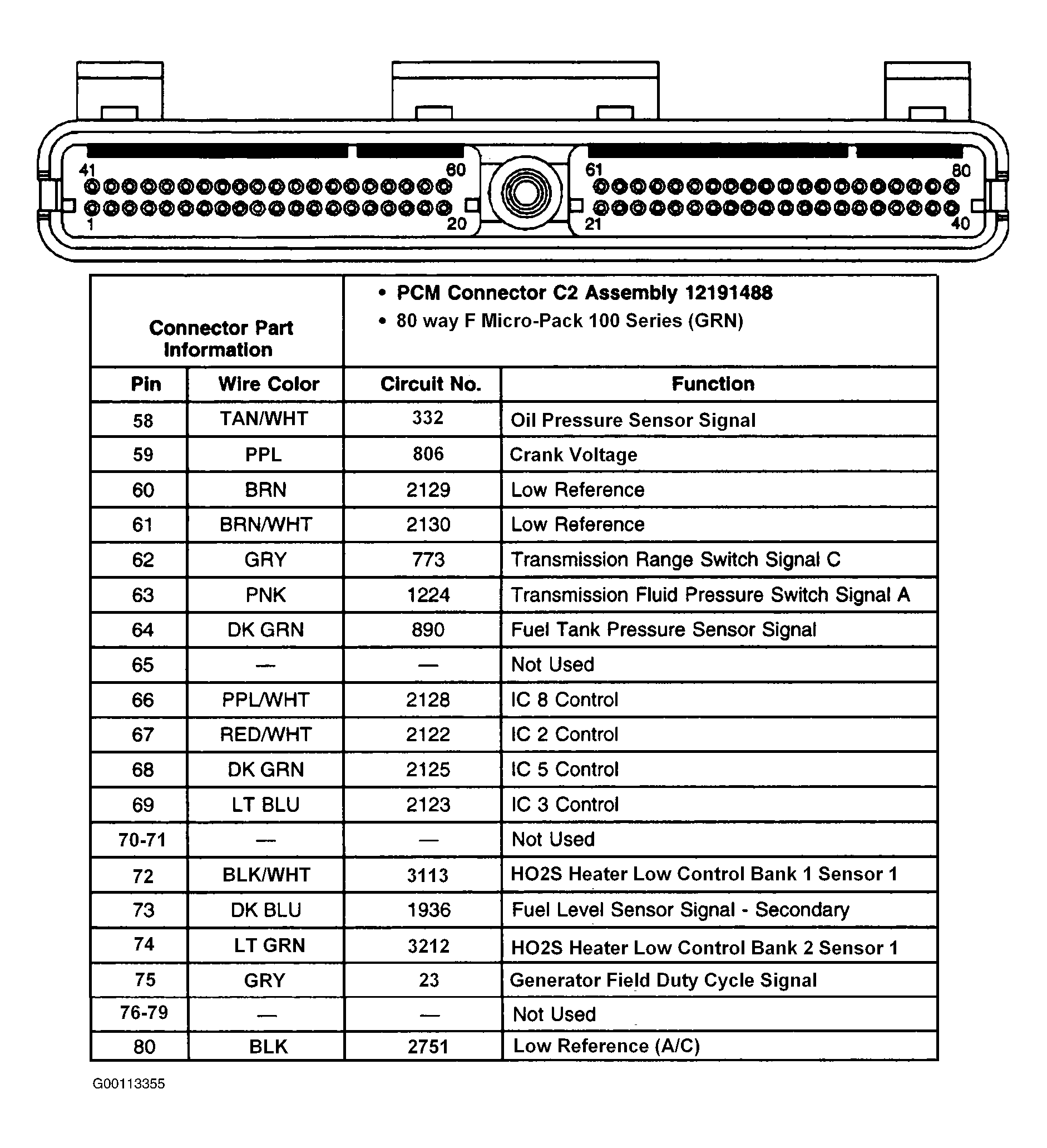

NOTE: To identify circuits referenced in the following ground and power tests, see Figure -Figure . See WIRING DIAGRAMS .
