Power Door Systems Component Views

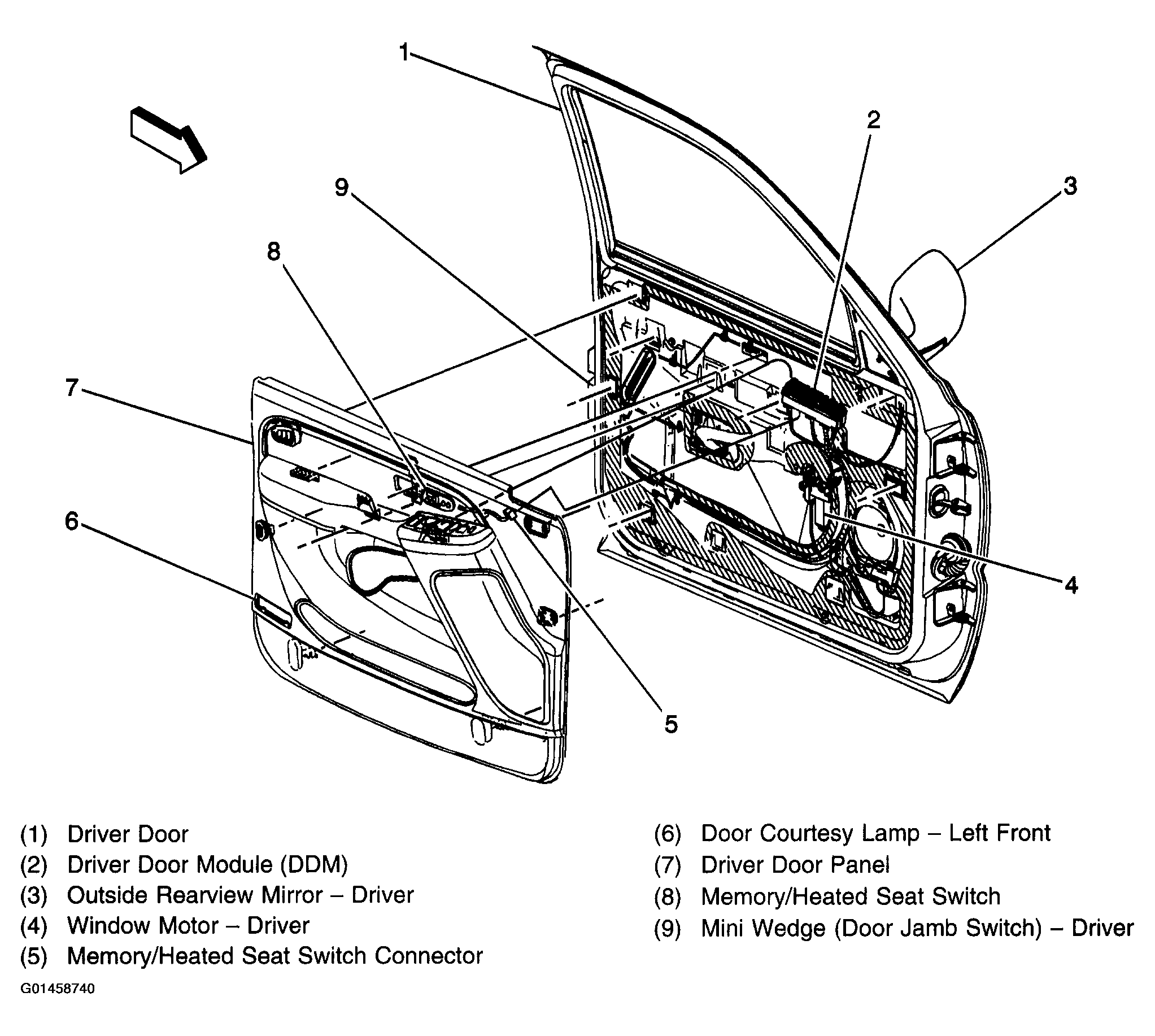

Fig 1: Components Location Of Driver Door

Courtesy of GENERAL MOTORS CORP.

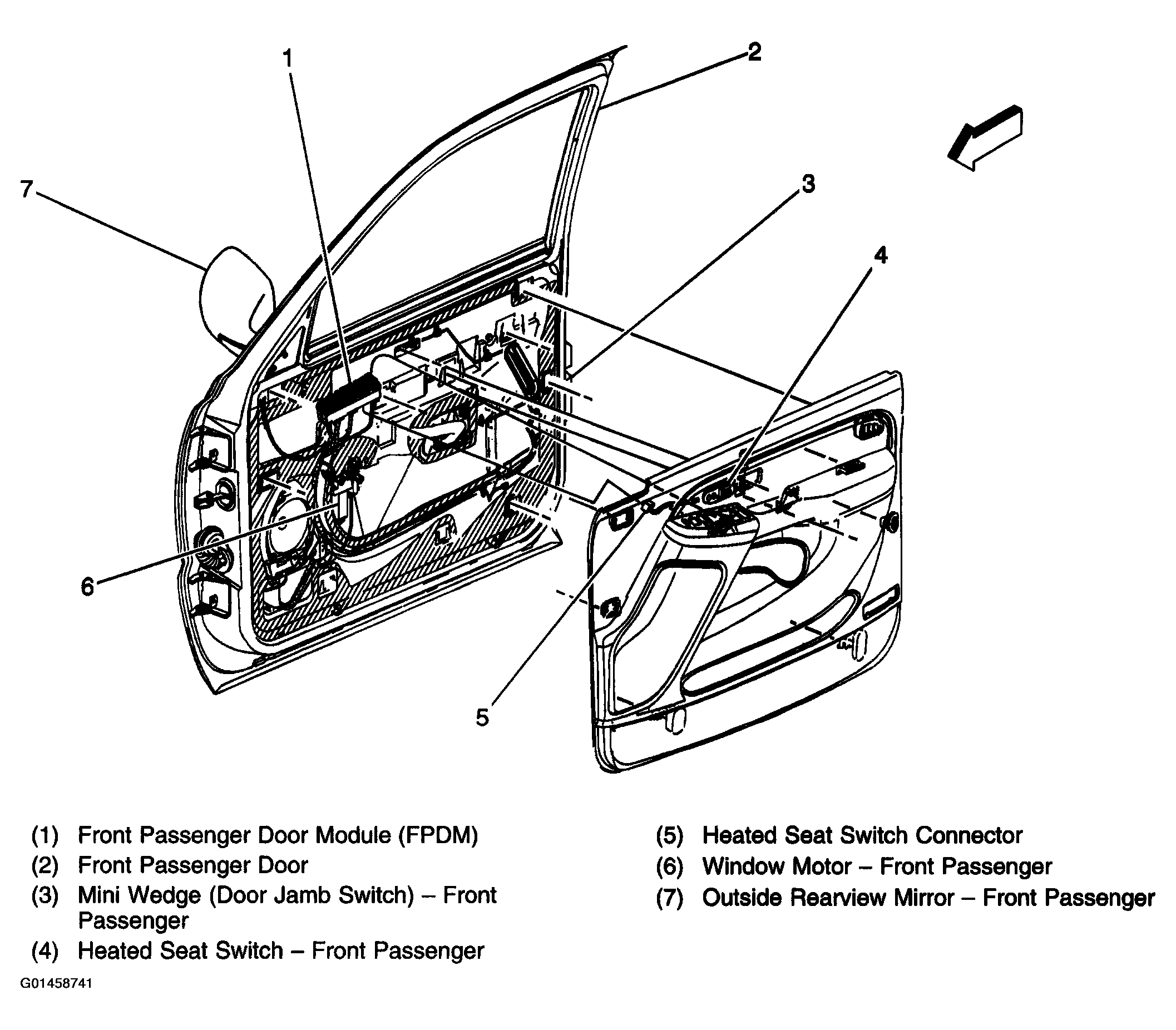

Fig 2: Components Location Of Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

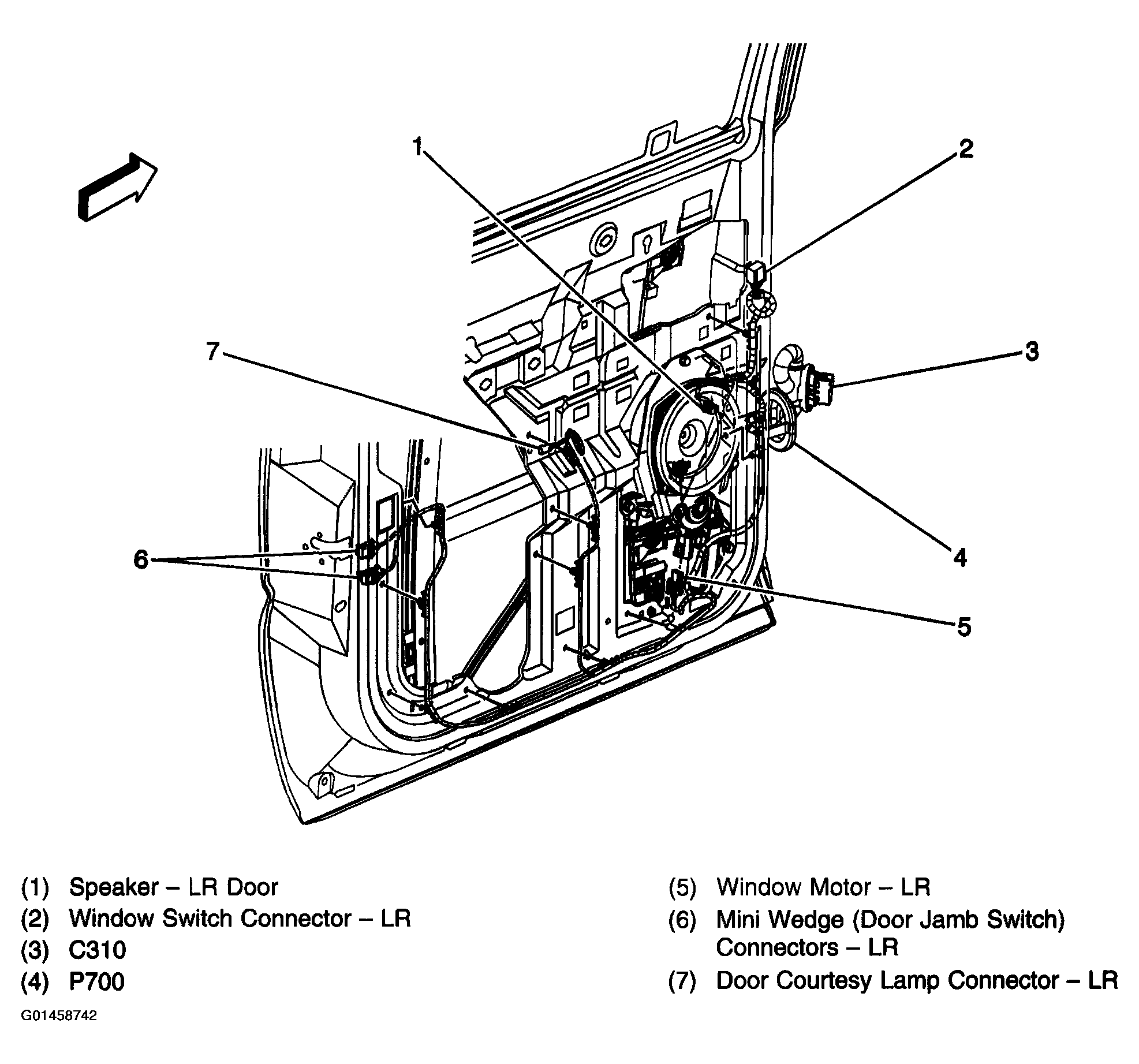

Fig 3: Components Location LR Passenger Side Door

Courtesy of GENERAL MOTORS CORP.

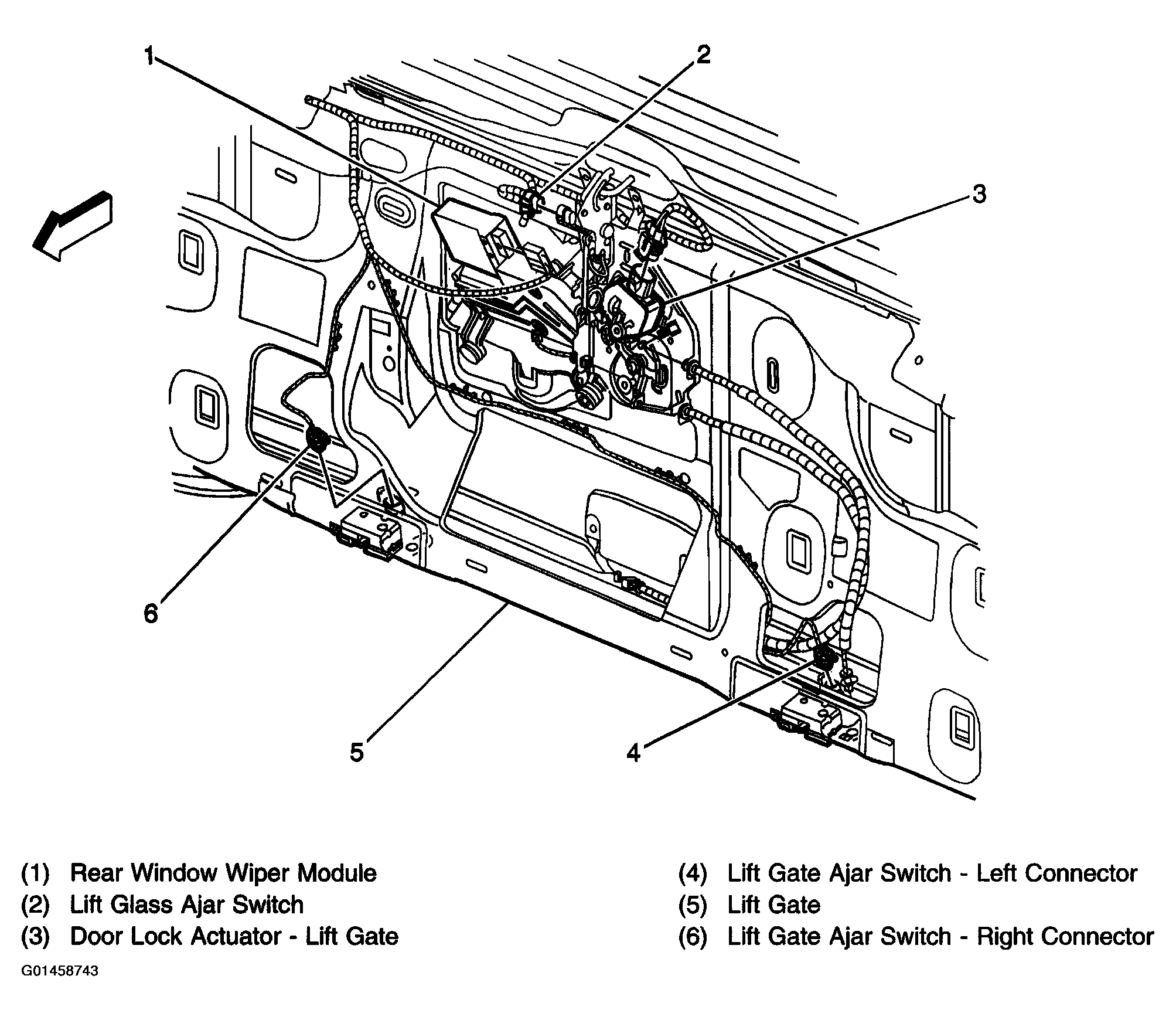

Fig 4: Components Location Lift Gate (E52)

Courtesy of GENERAL MOTORS CORP.

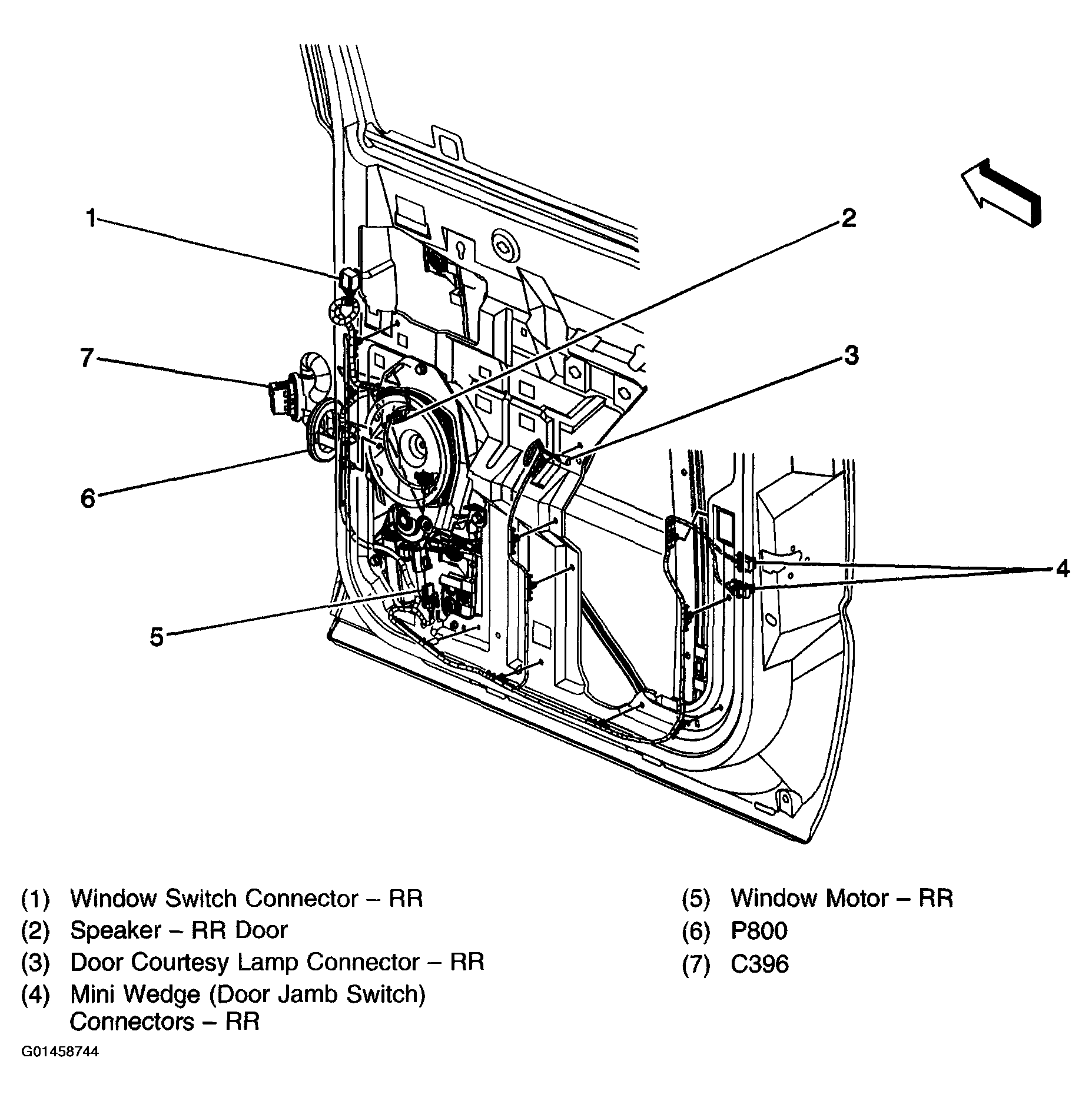

Fig 5: Components Location RR Passenger Side Door

Courtesy of GENERAL MOTORS CORP.

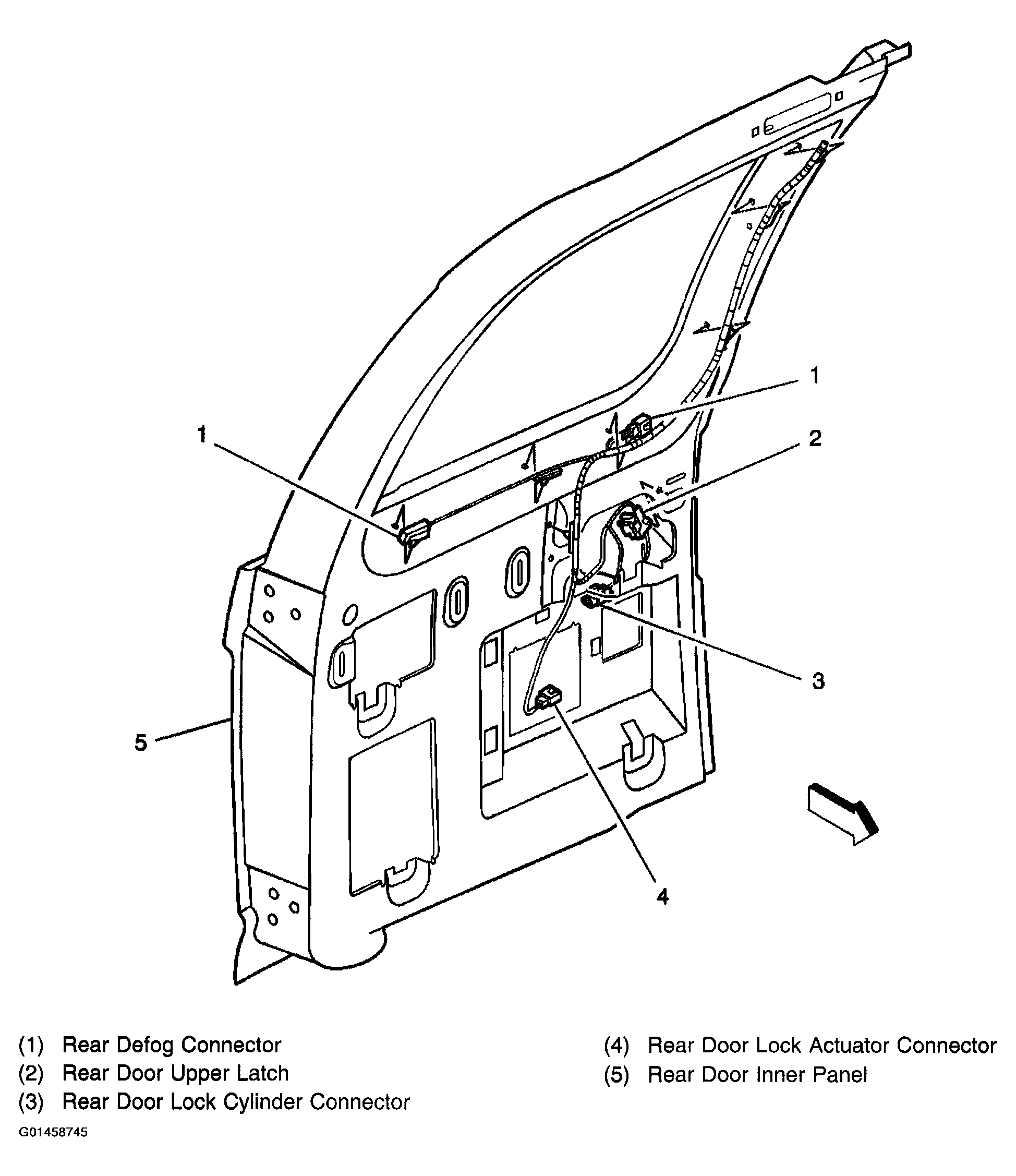

Fig 6: Components Location RR Cargo Door Components (Utility)

Courtesy of GENERAL MOTORS CORP.

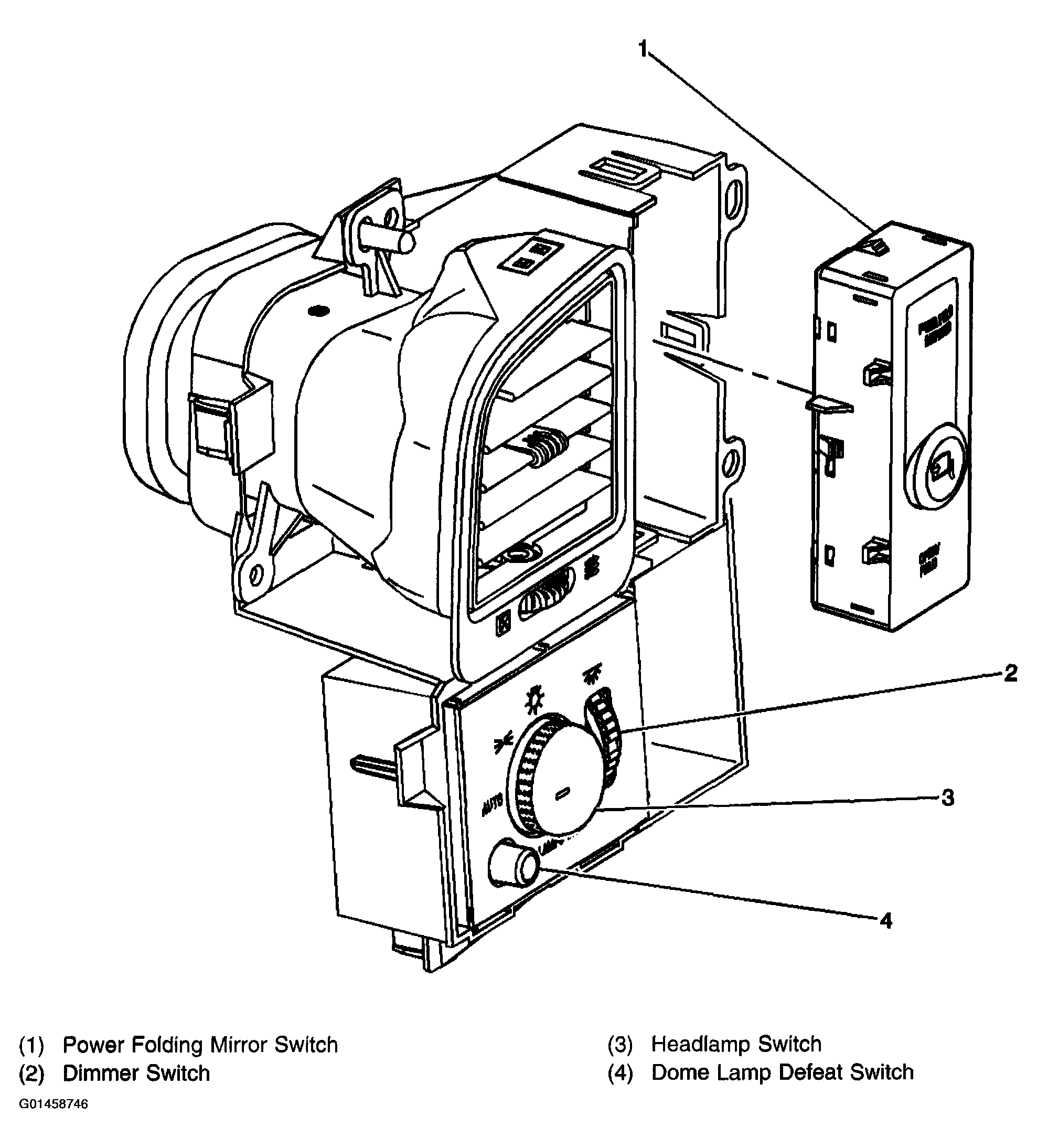

Fig 7: Components Location Power Folding Mirror Switch

Courtesy of GENERAL MOTORS CORP.
