Home >> Cadillac >> 2003 >> Escalade EXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Window Handle Replacement >> Removal Procedure

Removal Procedure

  1. Open the door.
  2. Remove the window crank handle using the J 9886-01.

    Be sure to retain the retainer clip on the back side of the handle.

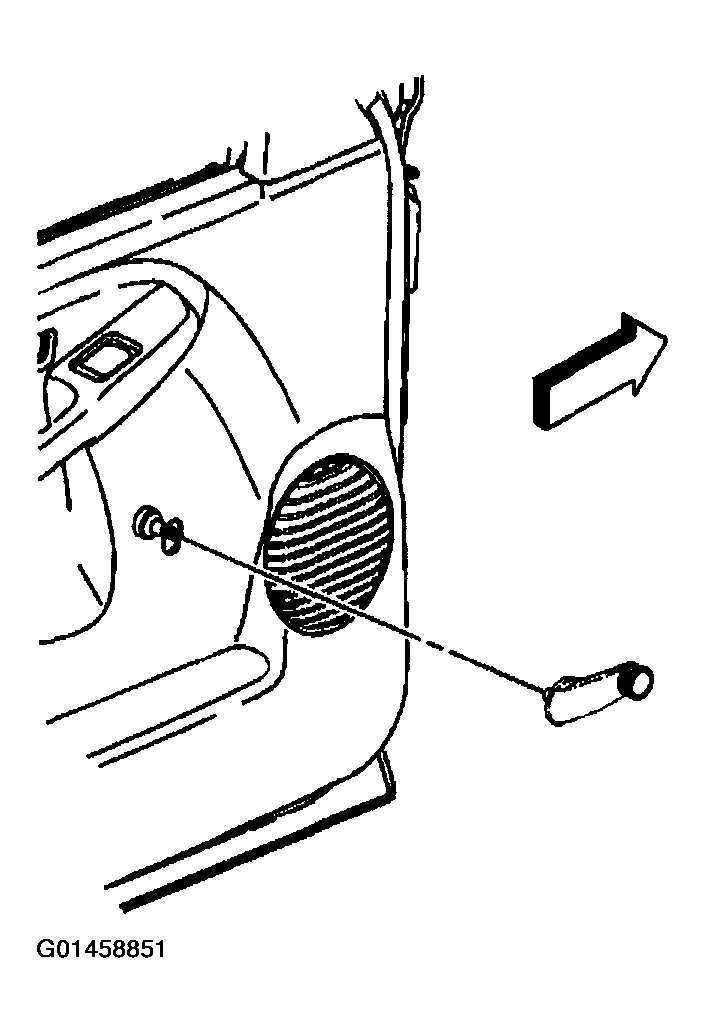

  3. Fig 1: Window Handle Replacement
    G01458851Courtesy of GENERAL MOTORS CORP.
