Installation Procedure

  1. Install the quarter window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS  .
  2. Install the right of left side applique.
  3. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  4. Close the liftgate window.

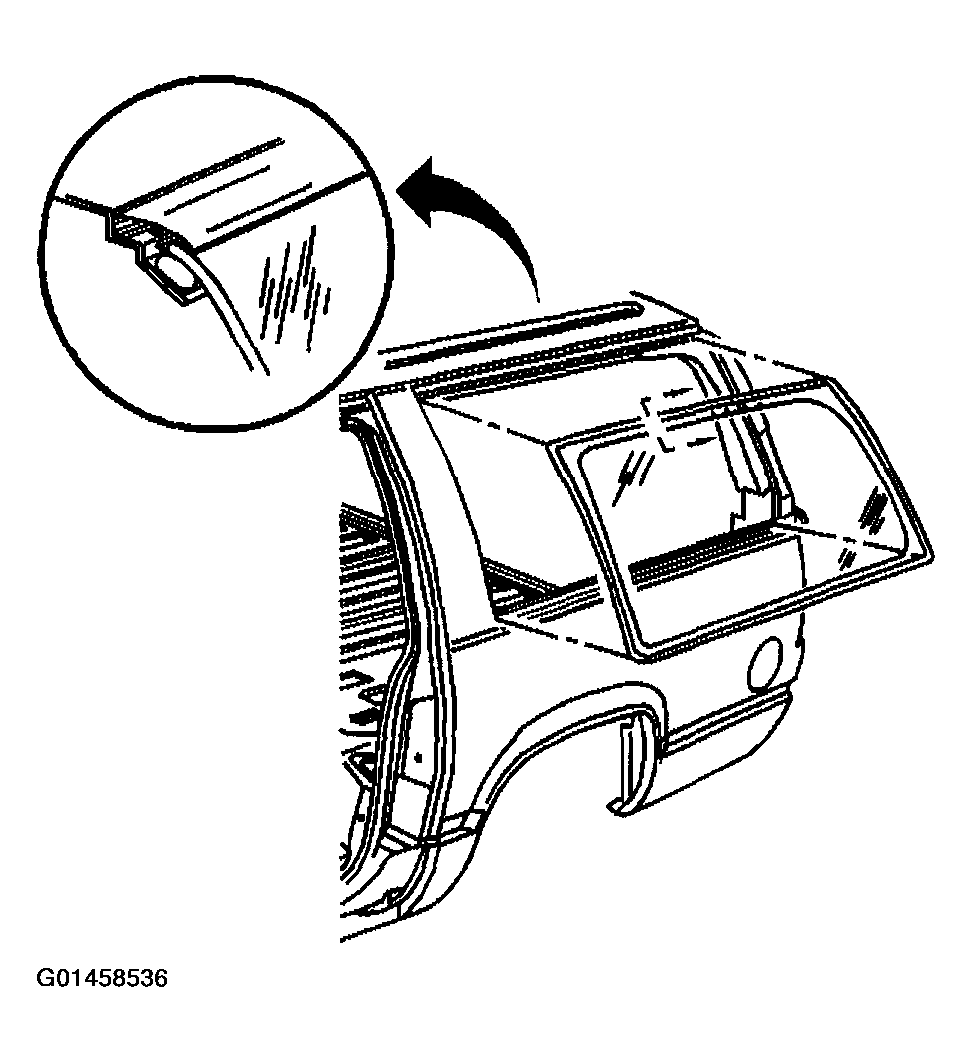

    Fig 1: Installing Quarter Window Into Opening
    G01458536Courtesy of GENERAL MOTORS CORP.
