Home >> Cadillac >> 2003 >> Escalade EXT >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Connector End View Of Windshield Wiper Motor Module

Connector End View Of Windshield Wiper Motor Module

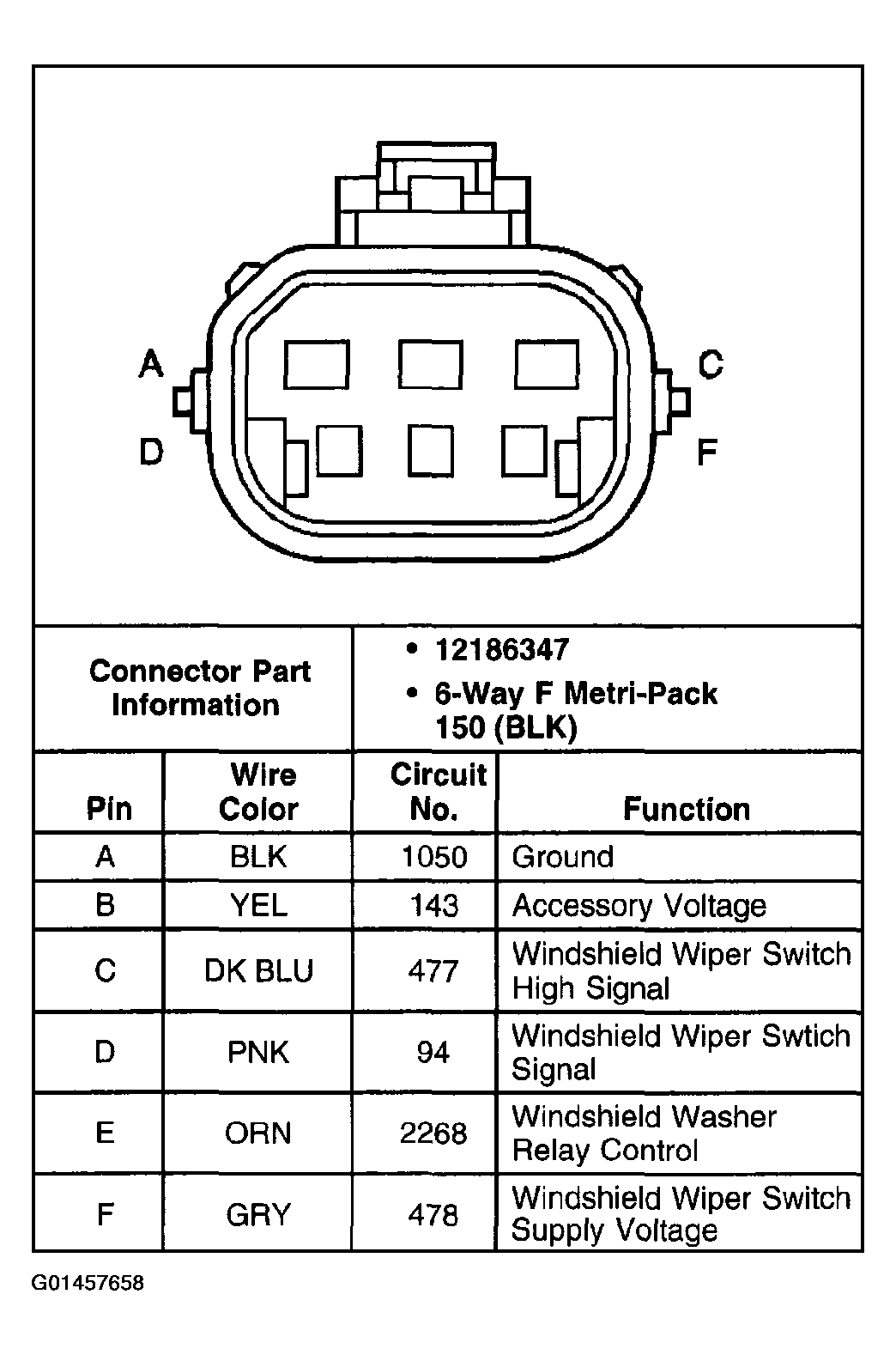

Fig 1: Connector End View Of Windshield Wiper Motor Module

G01457658

Courtesy of GENERAL MOTORS CORP.
