HVAC Control Module C2 Connector End View

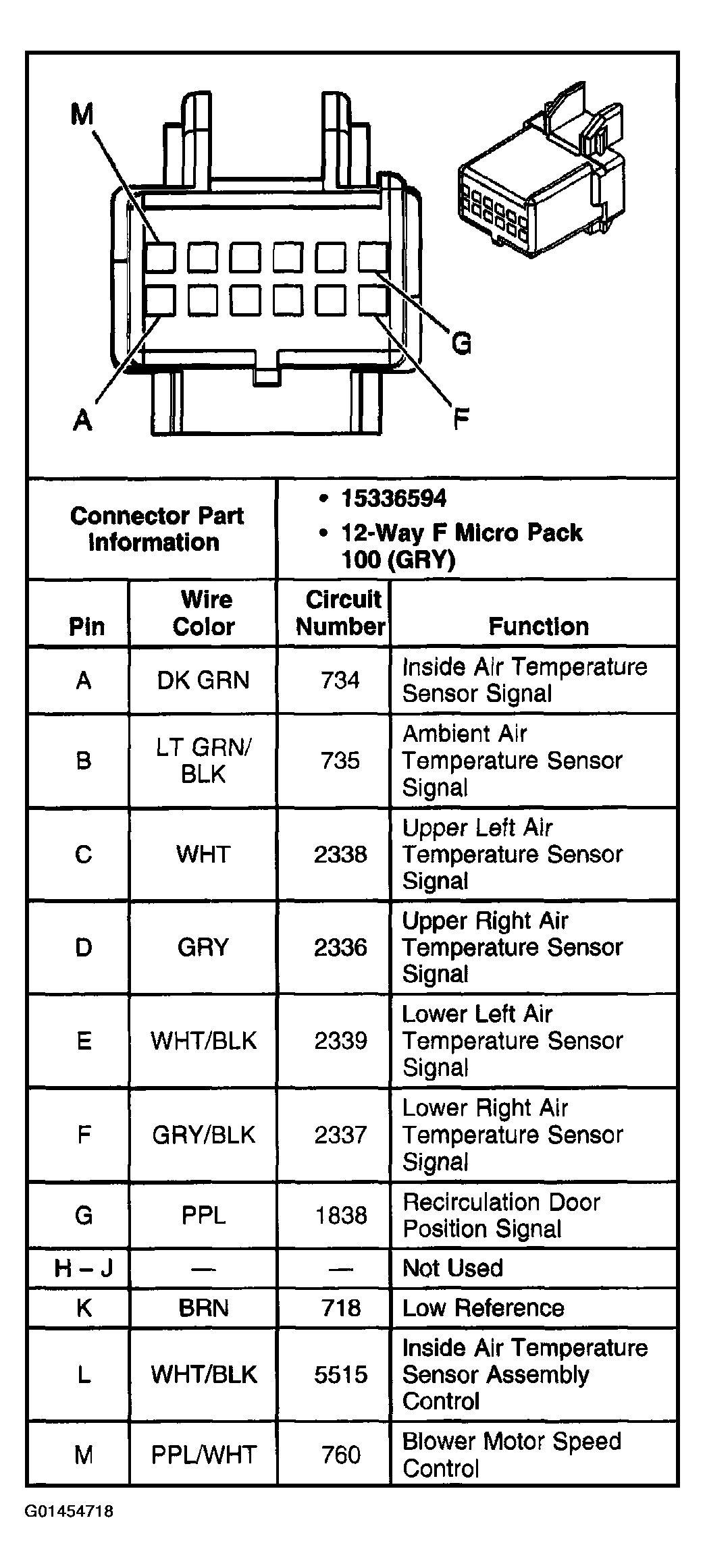

Fig 1: HVAC Control Module C2 Connector End View

G01454718

Courtesy of GENERAL MOTORS CORP.
