HVAC Control Module Connector End View - C2

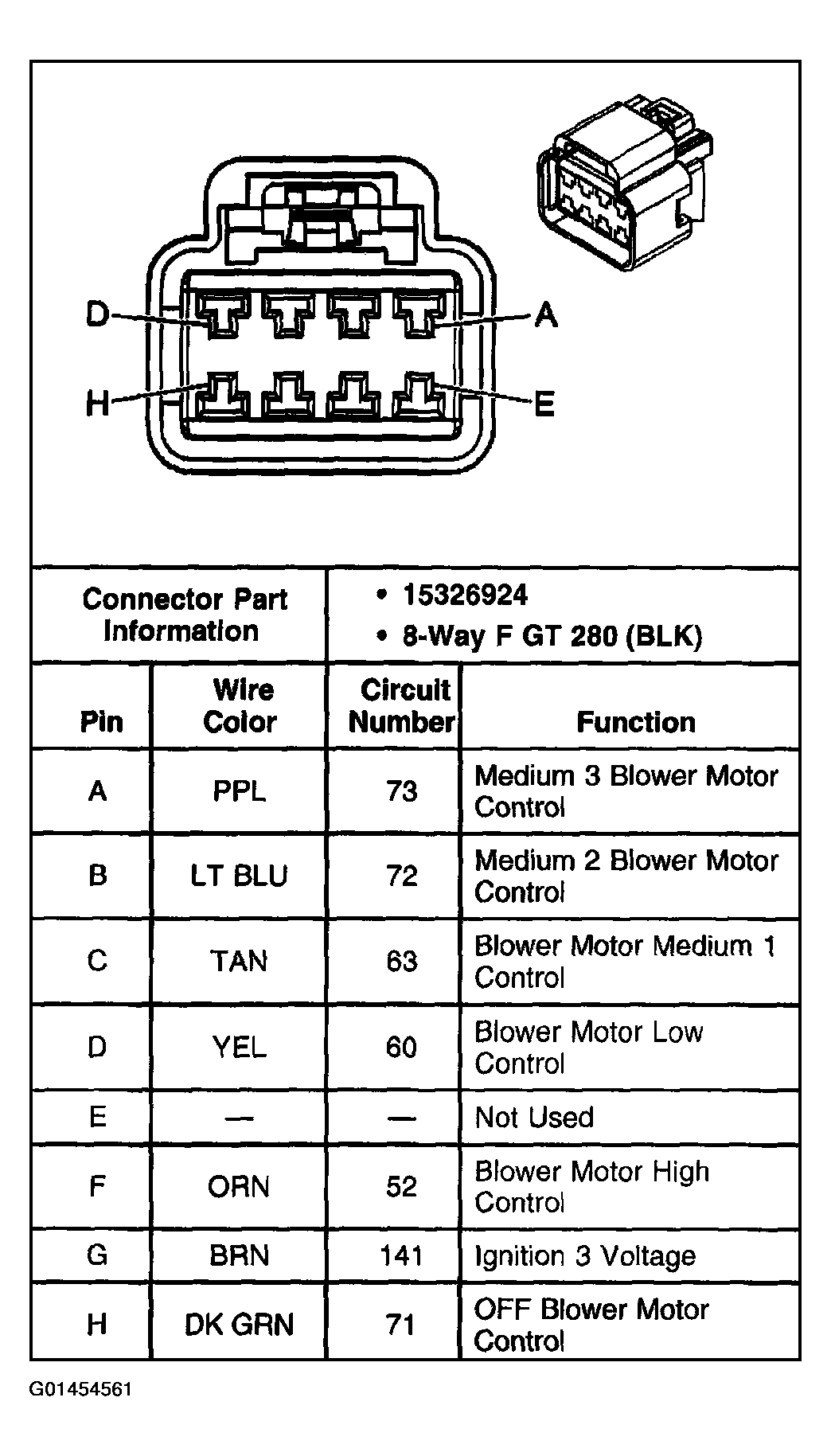

Fig 1: HVAC Control Module Connector End View - C2

G01454561

Courtesy of GENERAL MOTORS CORP.
