Transfer Case - Encoder Motor Pin Connector End View

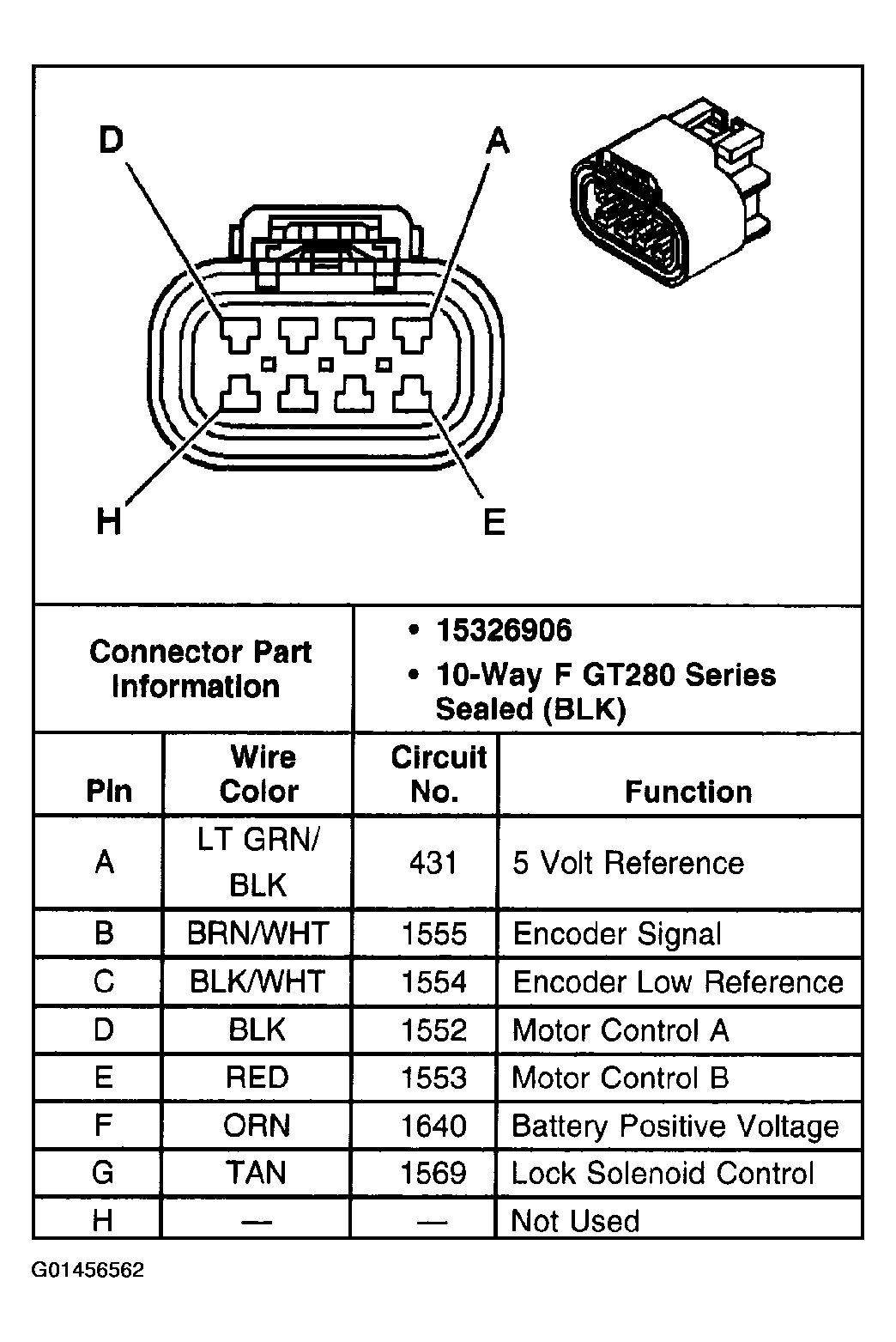

Fig 1: Transfer Case - Encoder Motor Pin Connector End View

G01456562

Courtesy of GENERAL MOTORS CORP.
