Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the RIM (1) to the electrical carrier.

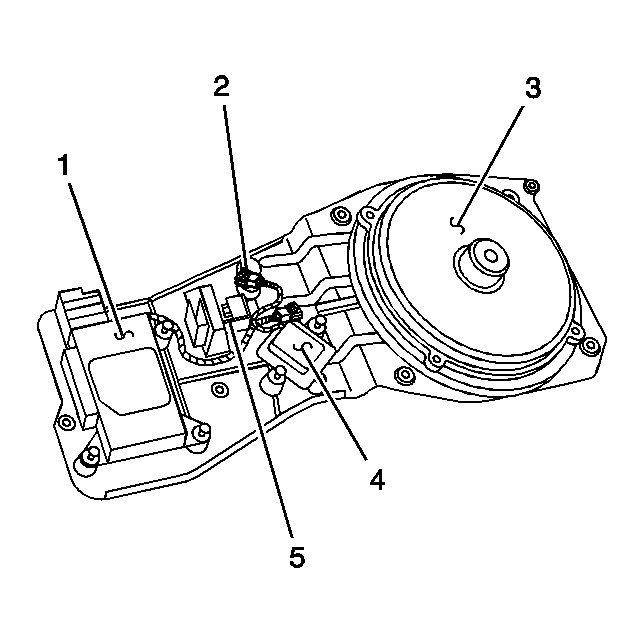

    Fig 1: Identifying Rear Integration Module
    GM802377Courtesy of GENERAL MOTORS CORP.
  2. Reinstall the push pin fasteners.
  3. Reinstall the rear shelf. Refer to Shelf Carrier Replacement - Rear
  4. Program the module. Refer to Body Control Module (BCM) Programming/RPO Configuration (RIM)  or Body Control Module (BCM) Programming/RPO Configuration (DIM) .
