Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Sunroof Control Module Electrical Connectors
    GM107180Courtesy of GENERAL MOTORS CORP.
  1. Connect the 2 electrical connectors to the sunroof control module.

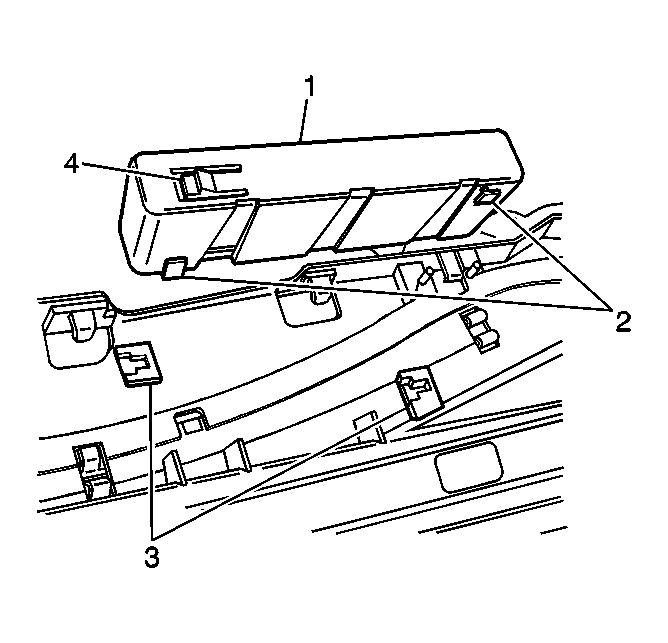

    2. Fig 2: Installing Sunroof Control Module
    GM468361Courtesy of GENERAL MOTORS CORP.
  2. Position the sunroof control module tabs (2) into the sunroof module assembly slots (3).
  3. Slide the sunroof control module away from the sunroof actuator until the lock tab is fully engaged.
  4. An audible click should be heard when the control module is secure to the sunroof module assembly.
  5. Secure the electrical harness to the drive cable tube with a new tie strap.
    6. IMPORTANT: Test for proper operation of the sunroof before installing the headliner.
  6. Install the headliner. Refer to Headliner Replacement in Interior Trim.
