Dash Integration Module (DIM) C2

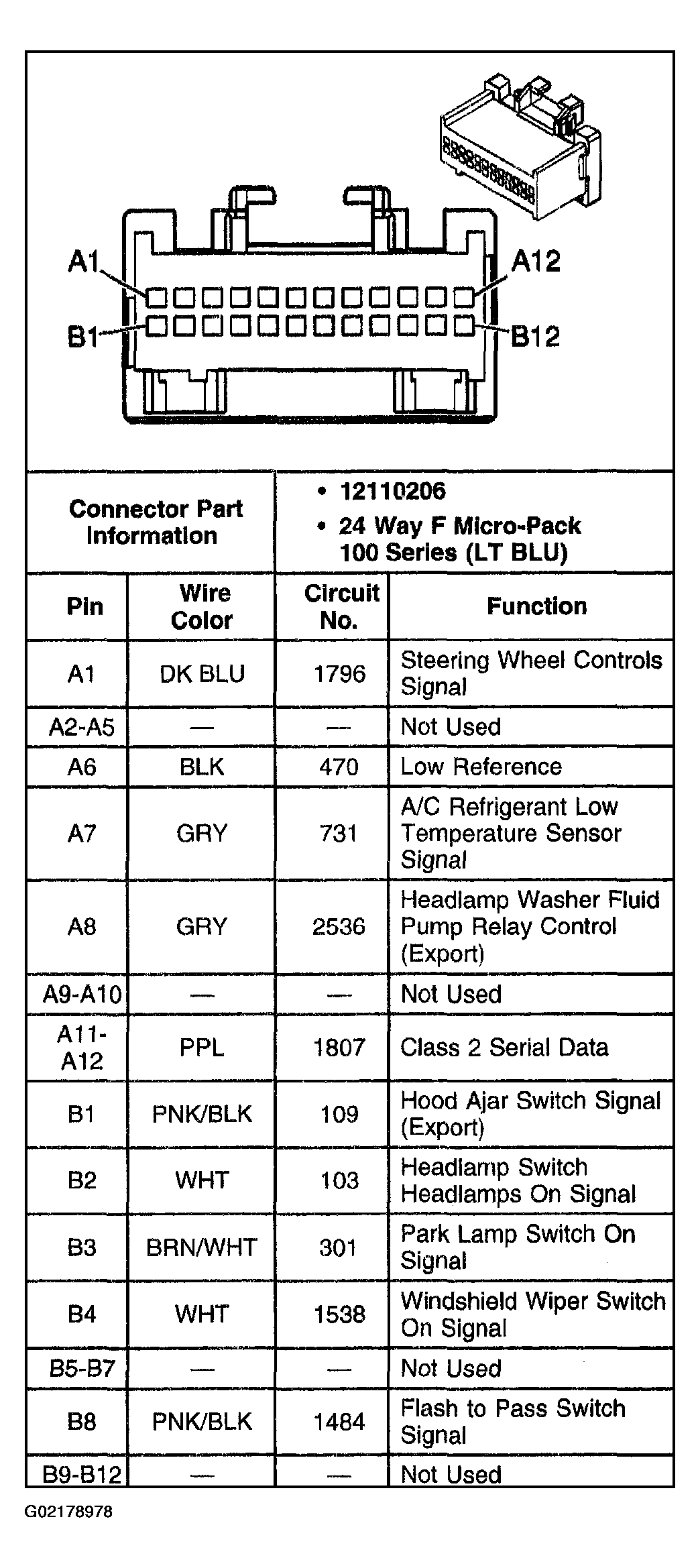

Fig 1: Dash Integration Module Connector End View (DIM) C2

G02178978

Courtesy of GENERAL MOTORS CORP.
