Instrument Panel Integration Module (IPM) C1

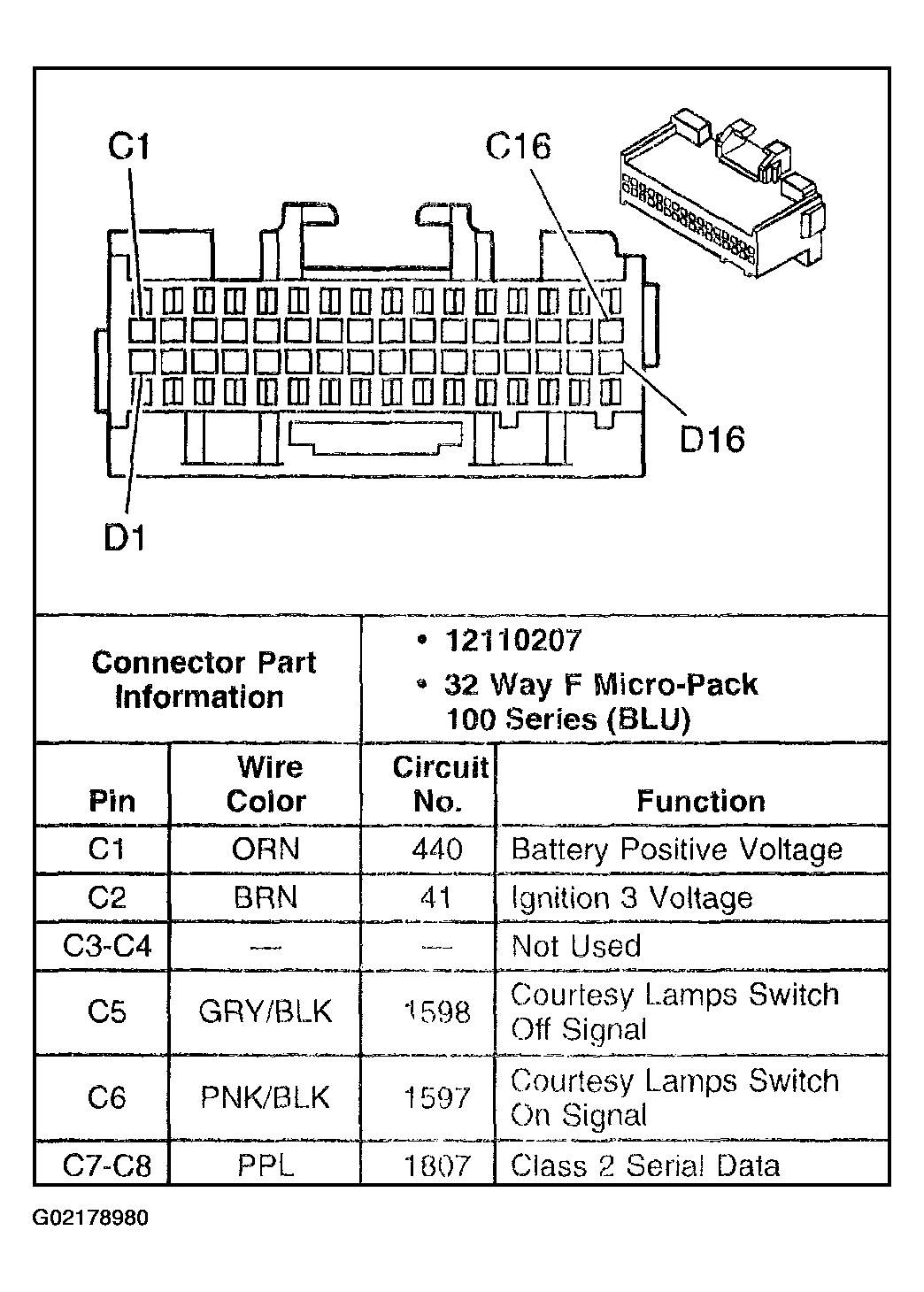

Fig 1: Instrument Panel Integration Module Connector End View (IPM) C1 (1 Of 2)
G02178980Courtesy of GENERAL MOTORS CORP.

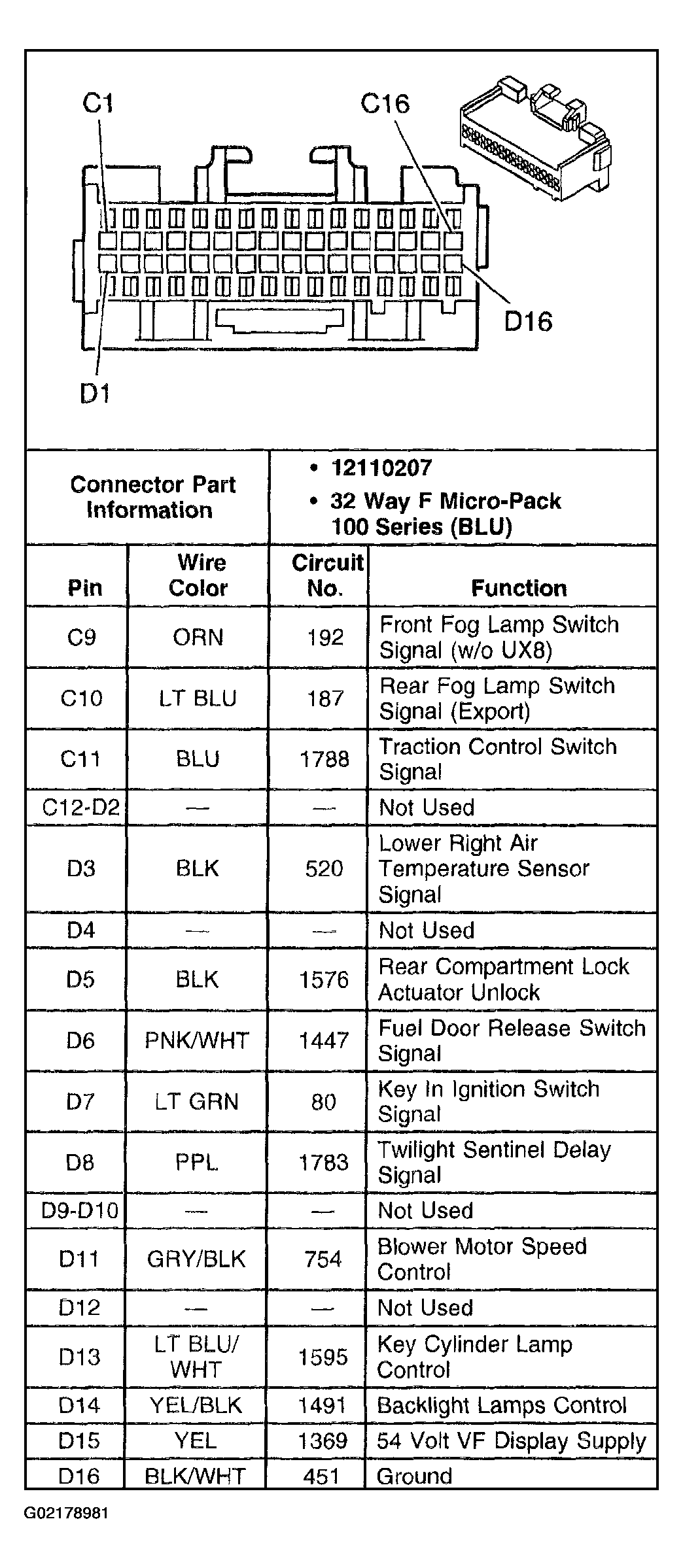

Fig 2: Instrument Panel Integration Module Connector End View (IPM) C1 (2 Of 2)
G02178981Courtesy of GENERAL MOTORS CORP.
