Installation Procedure

  1. Install the RIM (1) to the electrical component mounting panel.
  2. Push the RIM (1) into the opening on the electrical component mounting panel, until an audible click is heard, indicating the Rim (1) is secured to the electrical component mounting panel.
  3. Connect the electrical connections to the RIM (1).

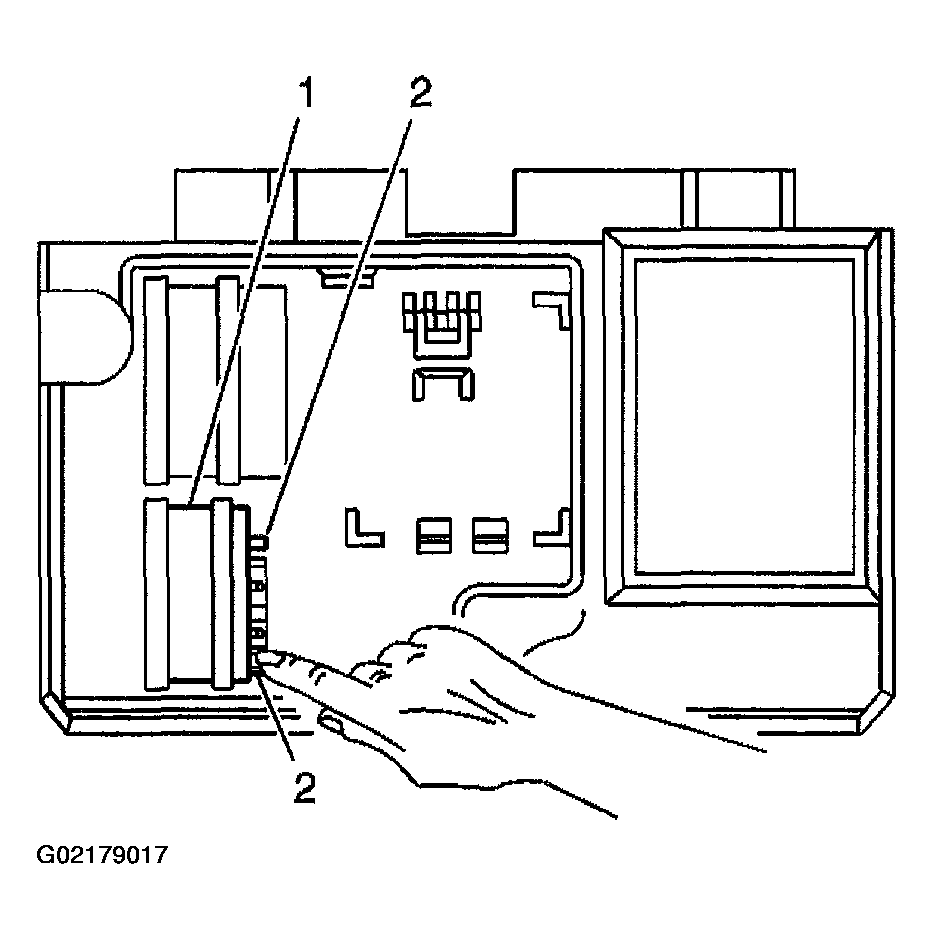

    Fig 1: Installing Rear Integration Module (RIM)
    G02179017Courtesy of GENERAL MOTORS CORP.
  4. Install the electrical component mounting panel (1) to the vehicle body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the electrical component mounting panel nuts (2).

    Tighten

    Tighten the nuts (2) to 9 N.m (80 lb in).

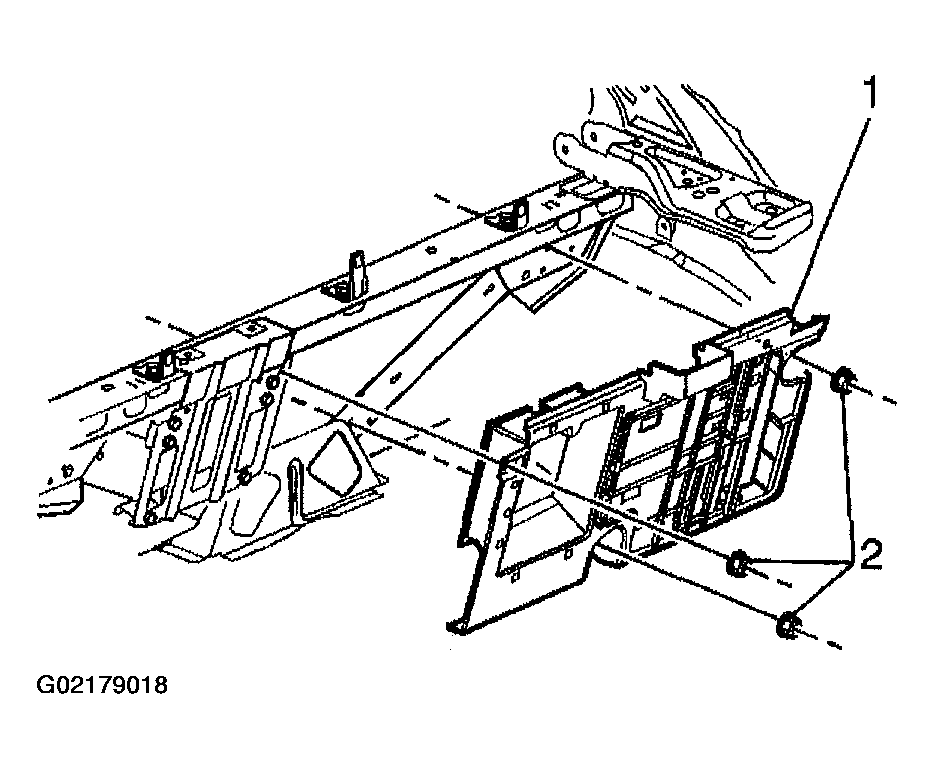

    Fig 2: Installing Electrical Component Mounting Panel & Retaining Nuts
    G02179018Courtesy of GENERAL MOTORS CORP.
  6. Install the rear storage compartment trim. Refer to BODY REAR END  in Body Rear End.
  7. Restore the drivers personalization settings. Refer to DRIVER PERSONALIZATION  in Personalization.
