Removal Procedure

IMPORTANT: Before replacing the RIM module, record the personalization settings in order to restore the settings after the new module is installed.
  1. Record the Rear Integration Module (RIM) personalization settings. Refer to DRIVER PERSONALIZATION  in Personalization.
  2. Remove the rear storage compartment trim. Refer to BODY REAR END  in Body Rear End.
  3. Remove the electrical component mounting panel nuts (2).
  4. Pull the electrical component mounting panel (1) away from the body and place the panel (1) module side up in the rear compartment.

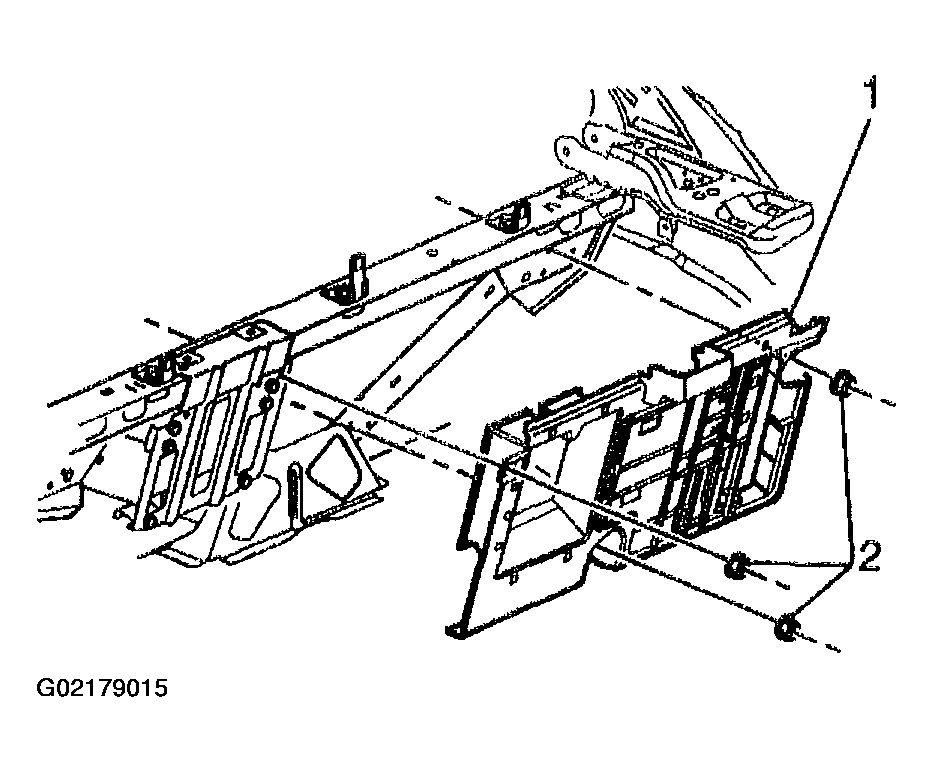

    Fig 1: Removing Electrical Component Mounting Panel & Retaining Nuts
    G02179015Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the RIM electrical connectors.
  6. Remove the RIM (1) by depressing the locking tabs (2) inward, in order to release the RIM (1) from the electrical component mounting panel.

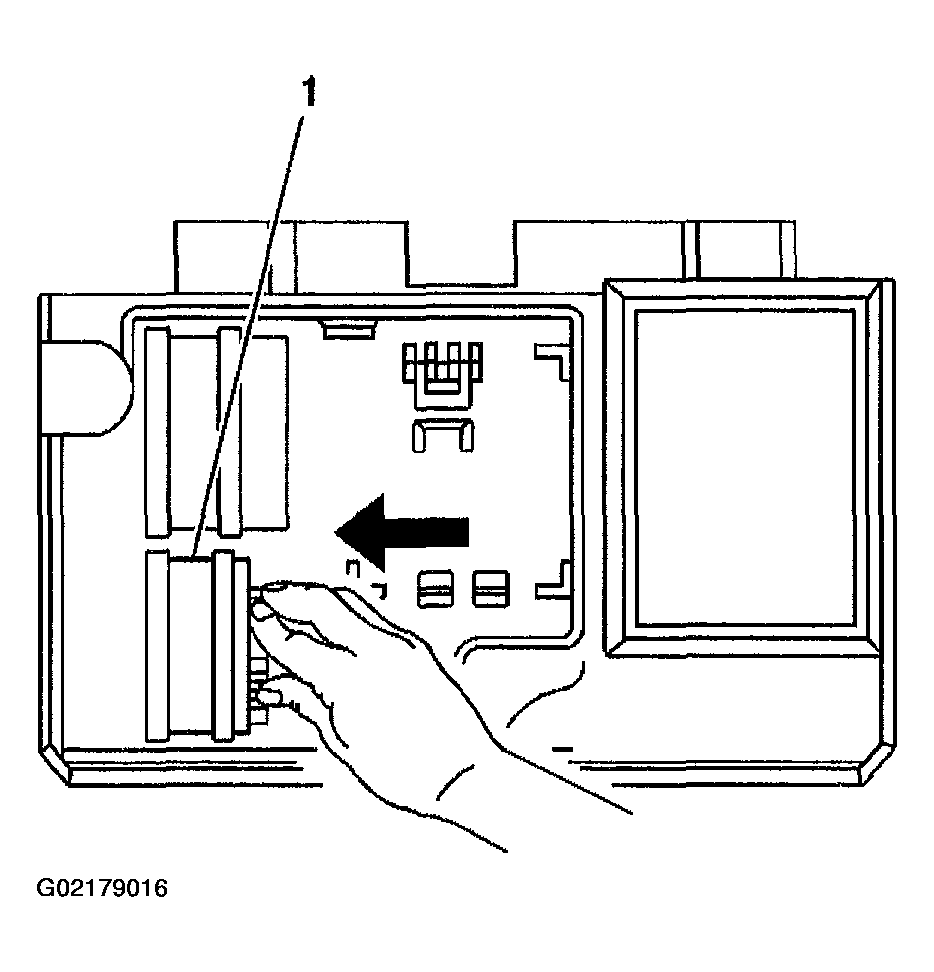

    Fig 2: Removing Rear Integration Module (RIM)
    G02179016Courtesy of GENERAL MOTORS CORP.
