Installation Procedure

  1. Install the remote control door lock receiver (1) to the bracket (2).

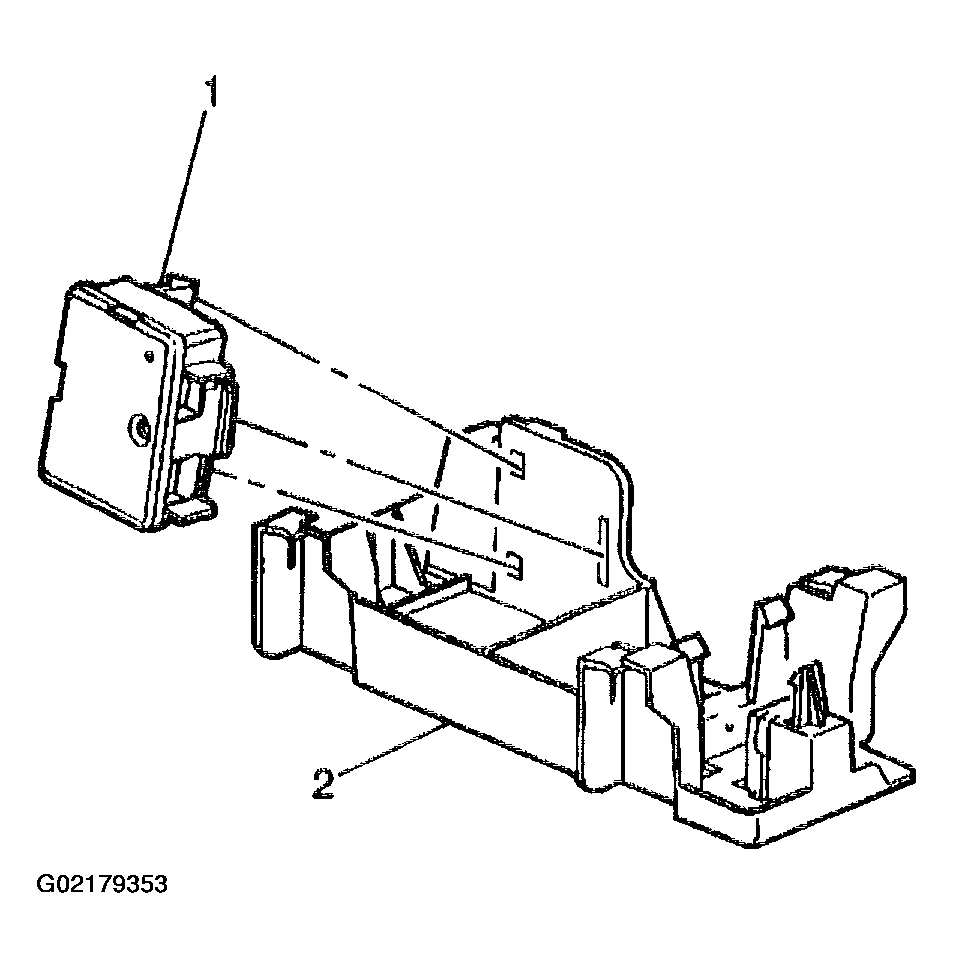

    Fig 1: Installing Remote Control Door Lock Receiver From Bracket
    G02179353Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Install bracket to rear shelf.
  4. Install rear storage compartment trim. Refer to BODY REAR END  in Body Rear End.
  5. Program the transmitters to the receiver. Refer to TRANSMITTER PROGRAMMING   .
