Installation Procedure

  1. Install the battery (2) with the positive (+) side up.

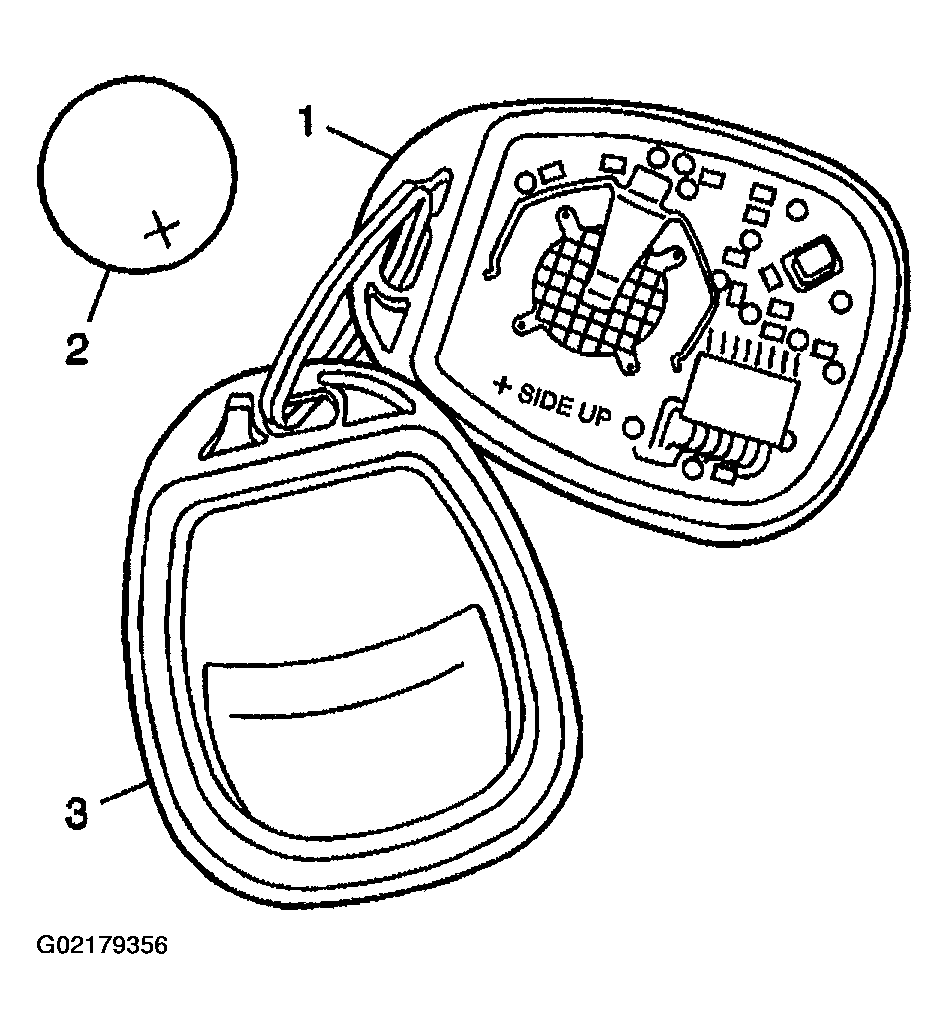

    Fig 1: View Of Battery With Positive (+) Side Up
    G02179356Courtesy of GENERAL MOTORS CORP.
  2. Align both halves (1, 3) of the transmitter.
  3. Ensure that the seal is positioned correctly.
  4. Close the transmitter case.
  5. Synchronize the transmitter. Refer to TRANSMITTER PROGRAMMING   .

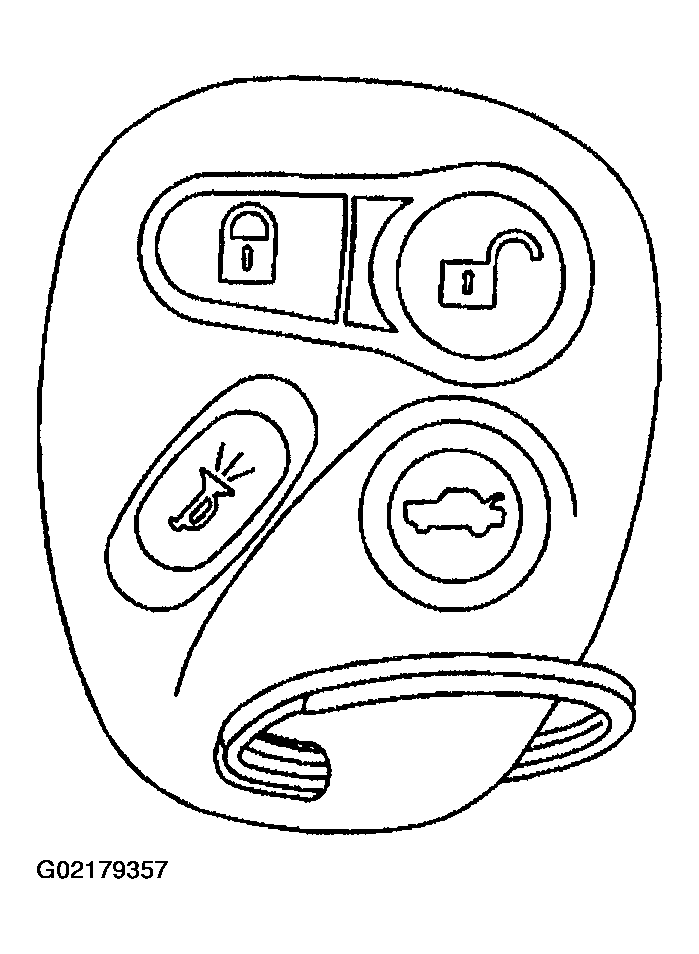

    Fig 2: View Of Transmitter Case
    G02179357Courtesy of GENERAL MOTORS CORP.
