Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the lateral accelerometer sensor (1) onto the mounting studs.

    Tighten

    Tighten the 2 lateral accelerometer sensor nuts to 2.4 N.m (21 lb in).

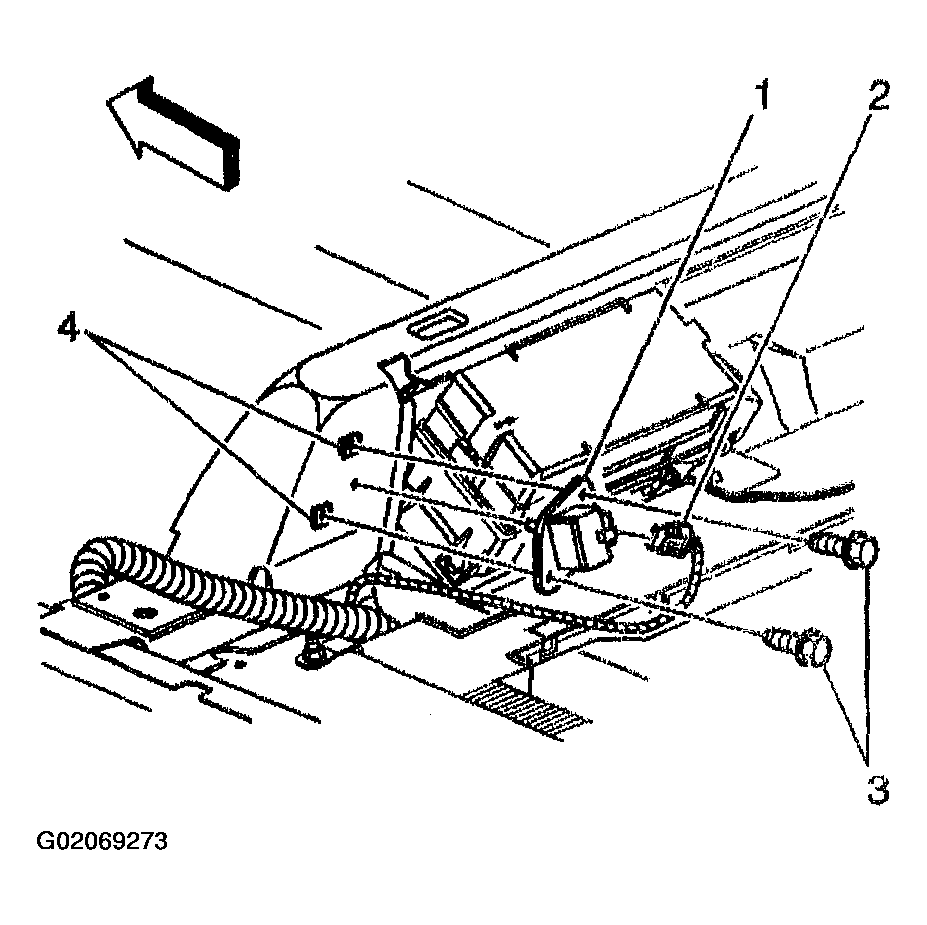

    Fig 1: Installing Lateral Accelerometer Sensor & Electrical Connector
    G02069273Courtesy of GENERAL MOTORS CORP.
  2. Connect the lateral accelerometer sensor electrical connector (2).
  3. Install the rear seat cushion. Refer to SEAT SYSTEM  in Seats.
  4. Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS   .
