Installation Procedure

  1. Align the traction control switch (2) to the console trim plate.
  2. Install the traction control switch mounting screws.
  3. Install the console trim plate (1). Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.

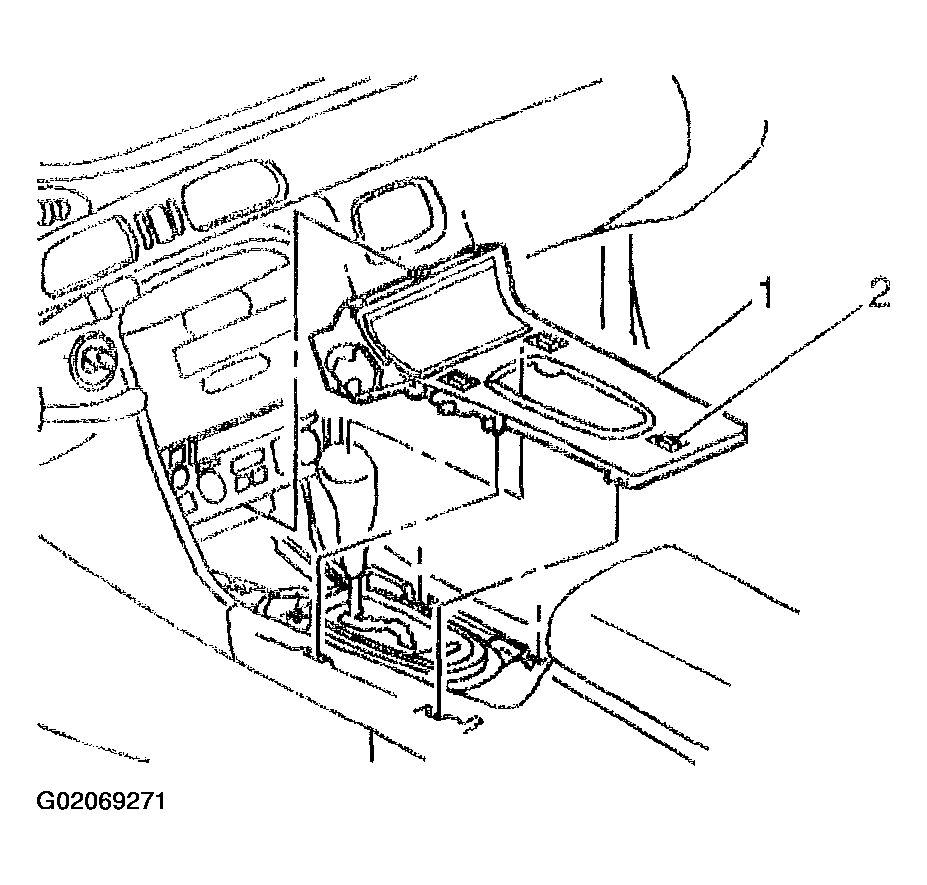

    Fig 1: Installing Traction Control Switch To Console Trim Plate
    G02069271Courtesy of GENERAL MOTORS CORP.
