Engine Electrical Connector End Views: Generator

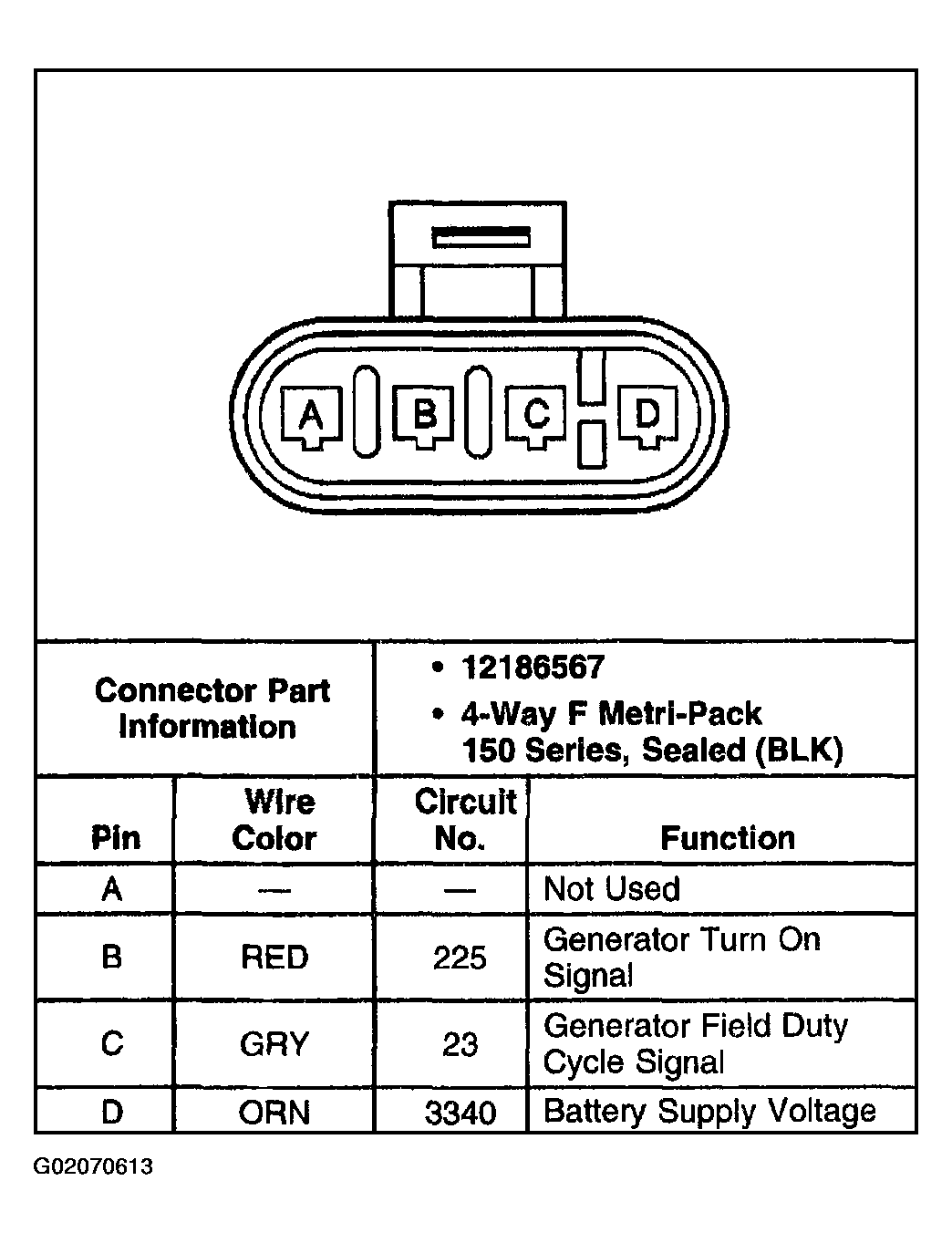

Fig 1: Identifying Generator Connector Terminal Connector End View

G02070613

Courtesy of GENERAL MOTORS CORP.
