COMPONENT LOCATIONS

Component

Location

Engine In-Line Harness Connector C107

Starter Harness To Engine Harness, Right Rear Corner Of Engine Near Rear Cam Cover

Powertrain Control Module

Left Front Corner Of Engine Compartment, Below Air Cleaner

START 1 Relay

In Underhood Fuse Block

START Circuit Breaker

In Underhood Fuse Block

Starter Motor ⁽¹⁾

Center Of Engine, Under Intake Manifold

Starter Solenoid ⁽¹⁾

Center Of Engine, Under Intake Manifold On Starter Motor

⁽¹⁾	See Fig 1.

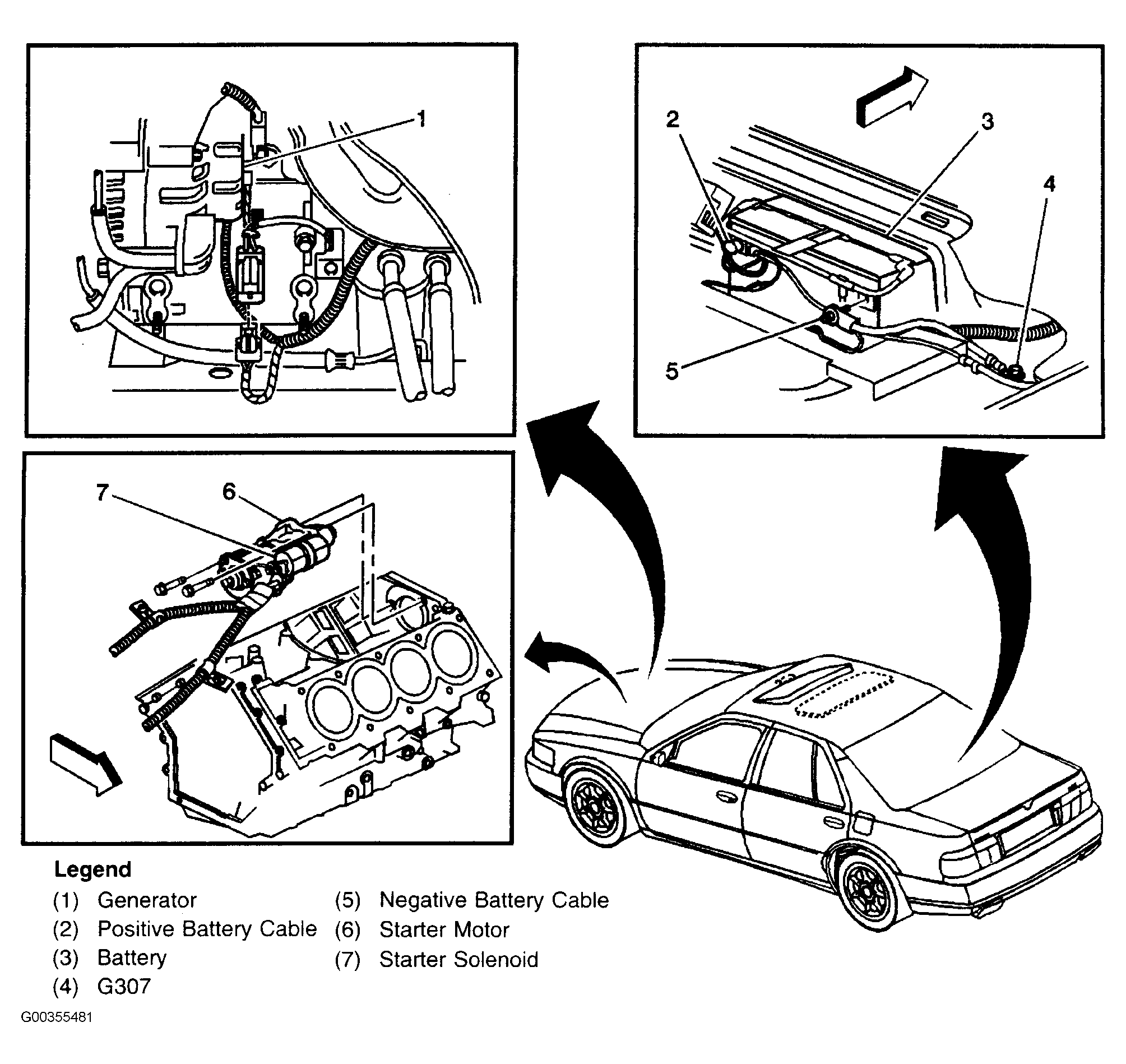

Fig 1: Locating Starter

Courtesy of GENERAL MOTORS CORP.
