Power Outlet Component Views

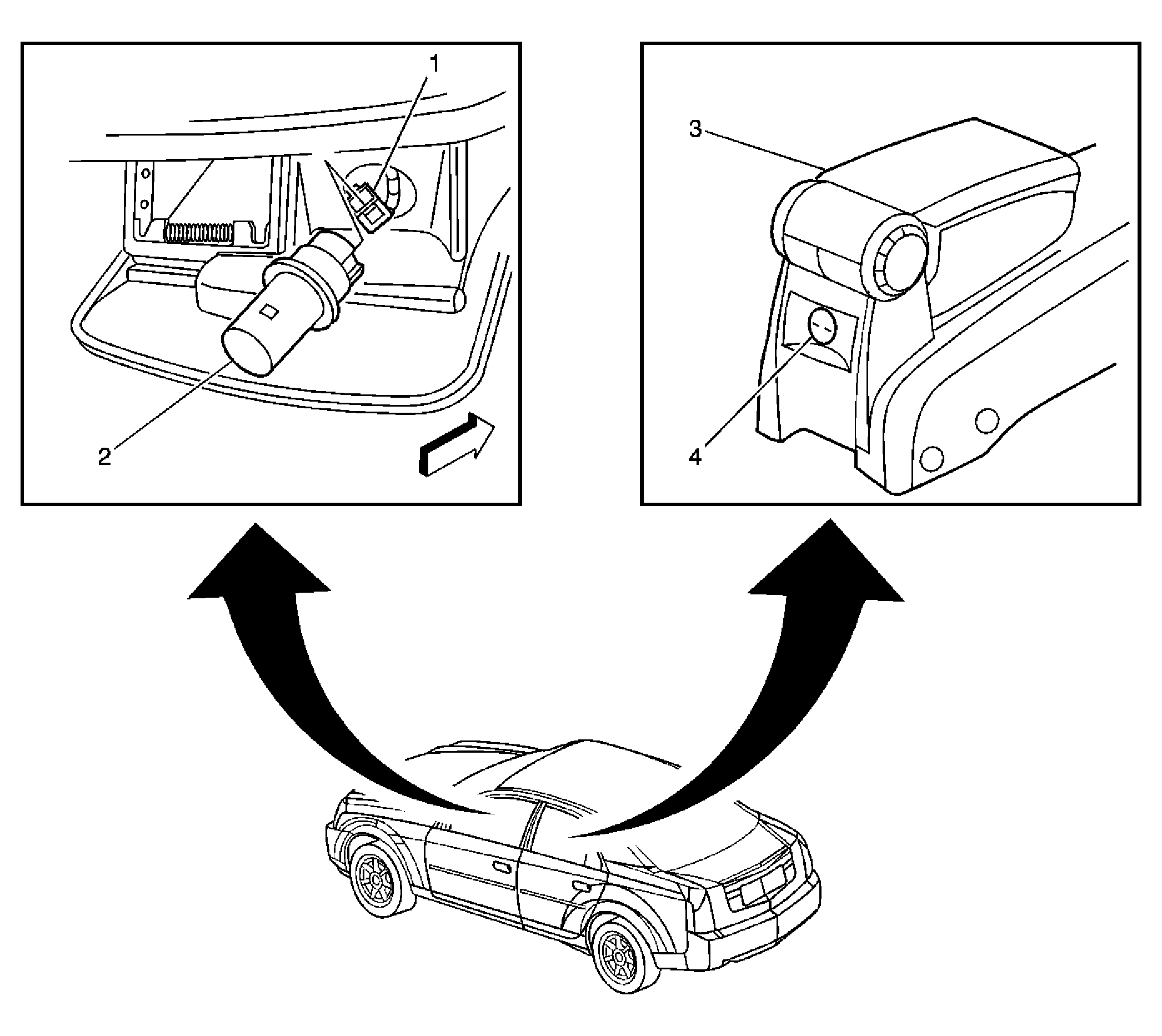

Fig 1: Cigar Lighter and Auxiliary Power Outlet Components
GM1369760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter Connector
2 Cigar Lighter
3 Console Assembly
4 Auxiliary Power Outlet
