Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

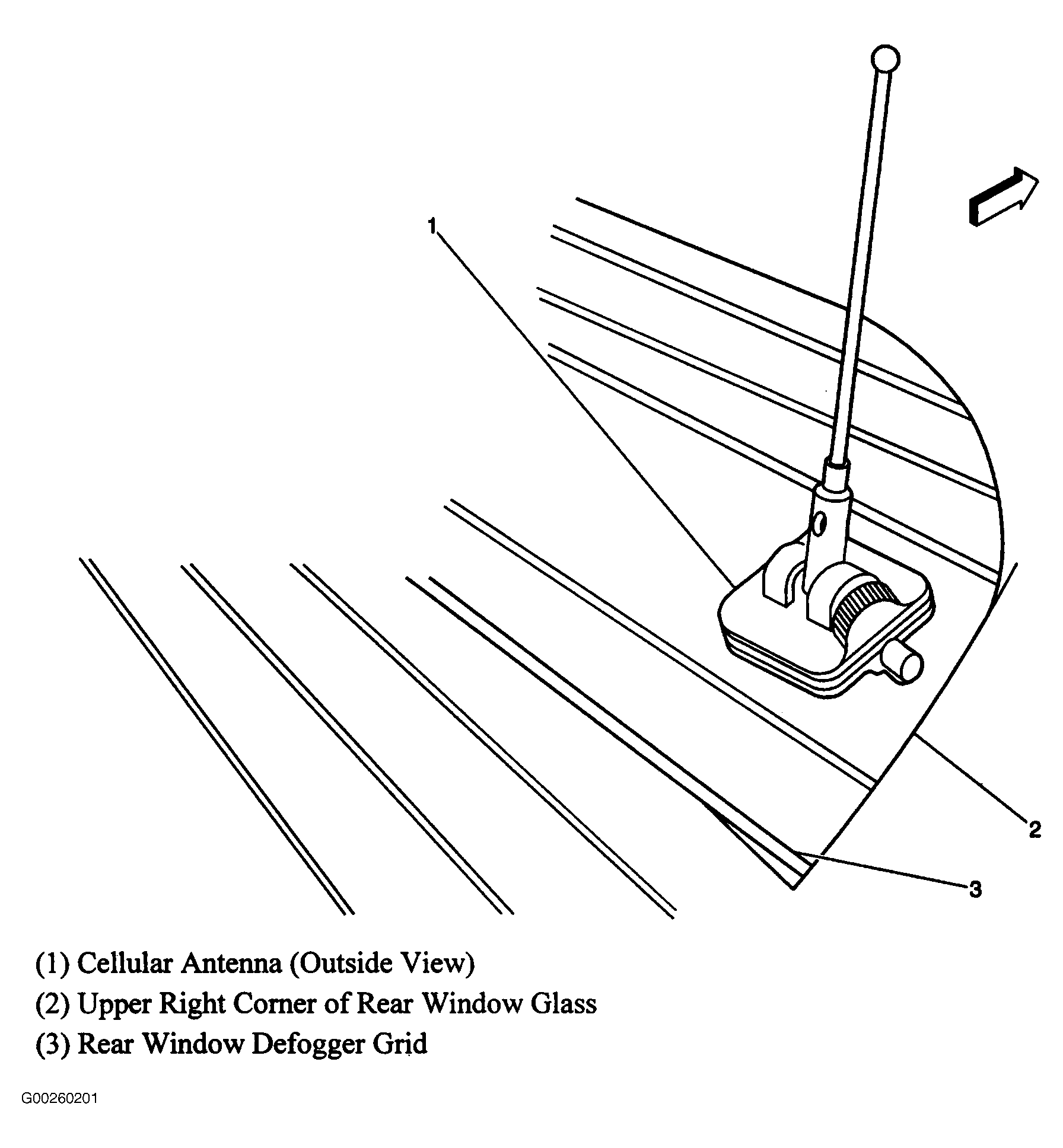

Fig 1: Cellular Communications Components
Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Window Glass
Courtesy of GENERAL MOTORS CORP.
Fig 3: Cruise Control Components
Courtesy of GENERAL MOTORS CORP.

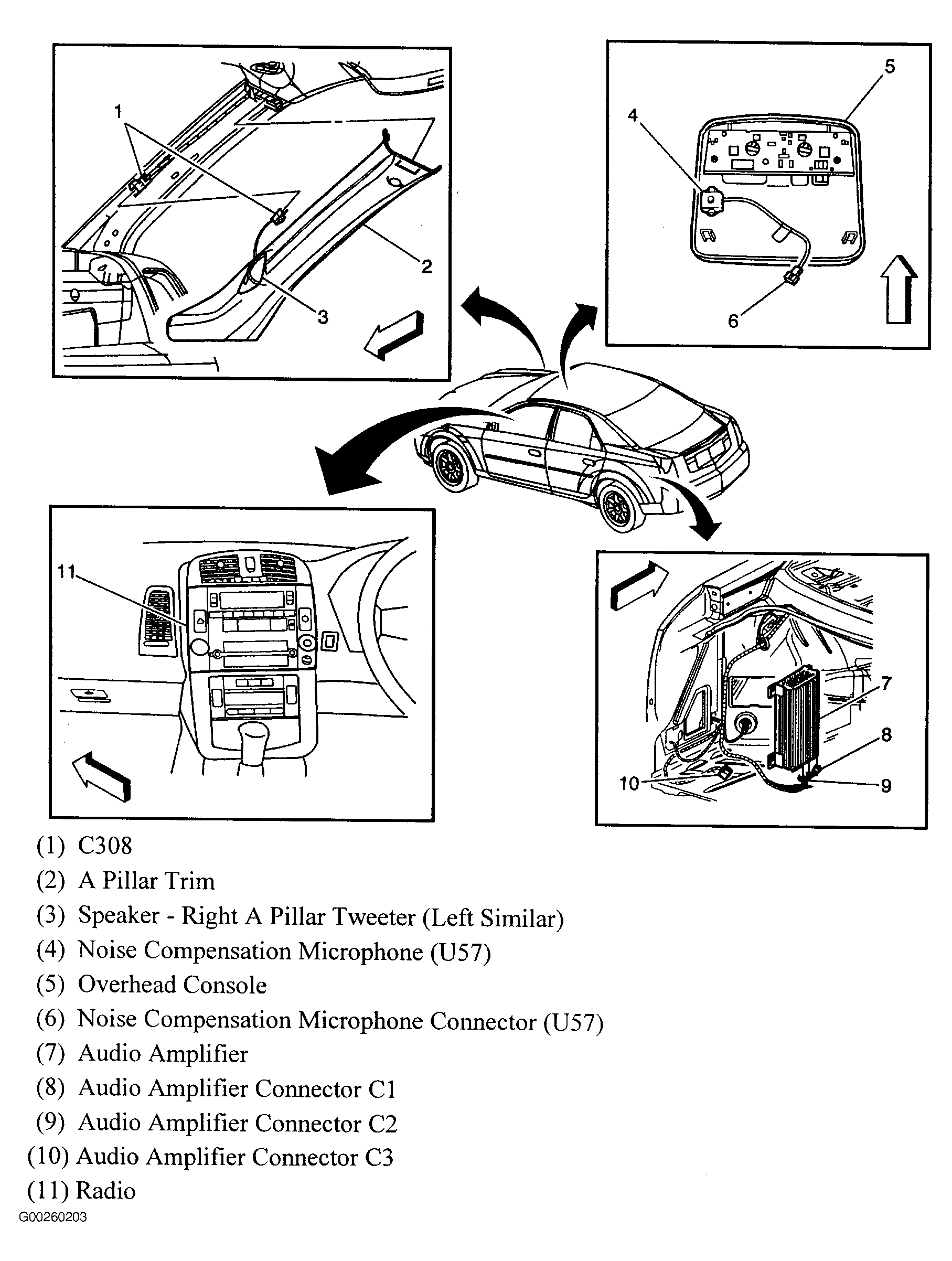

Fig 4: Audio Components
Courtesy of GENERAL MOTORS CORP.
Fig 5: Digital Radio Components
Courtesy of GENERAL MOTORS CORP.

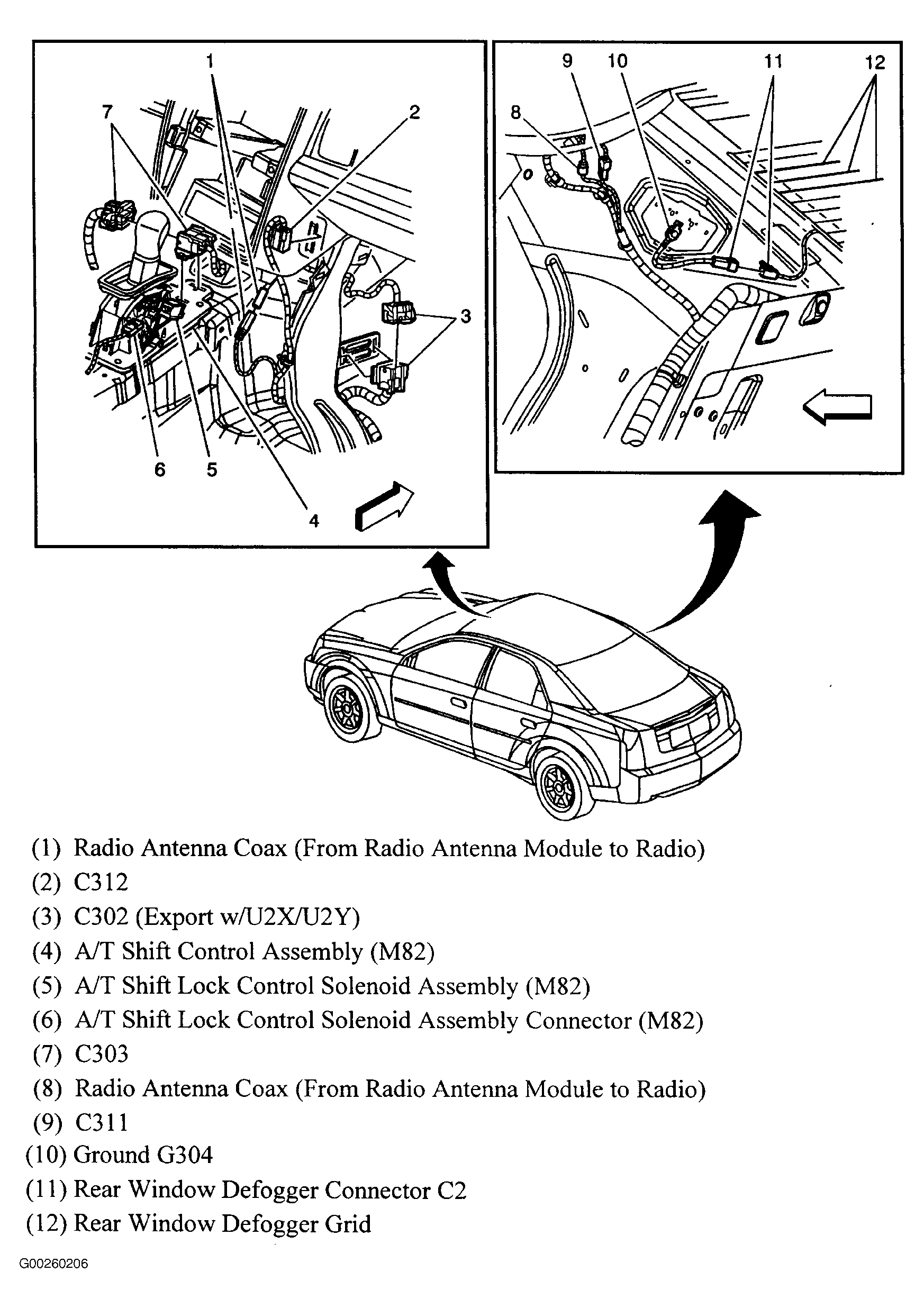

Fig 6: Center Console & Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 7: Theft Deterrent Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 8: Seat Belt Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 9: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 10: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 11: SIR Roof Rail Module
Courtesy of GENERAL MOTORS CORP.

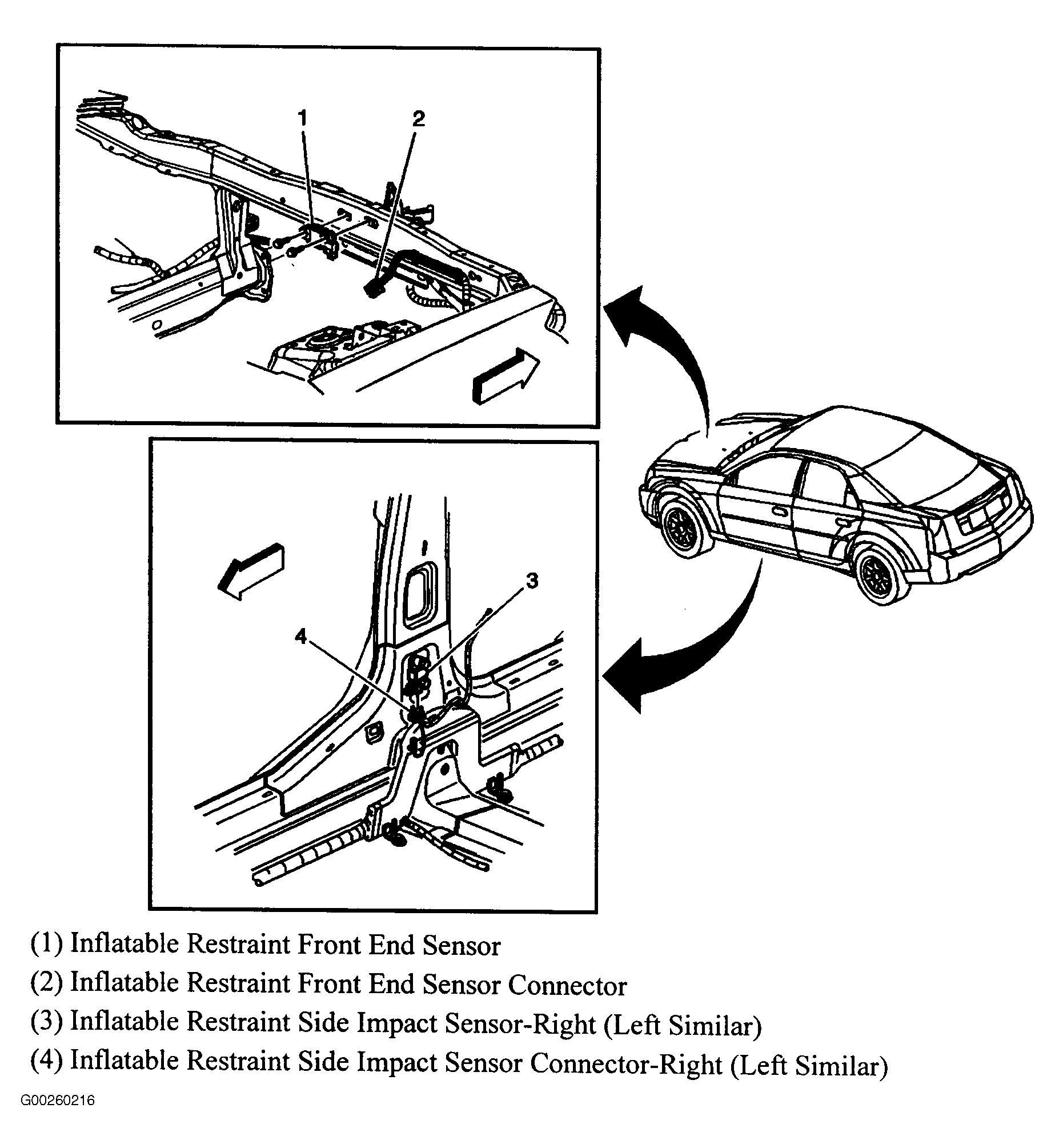

Fig 12: SIR Sensors
Courtesy of GENERAL MOTORS CORP.

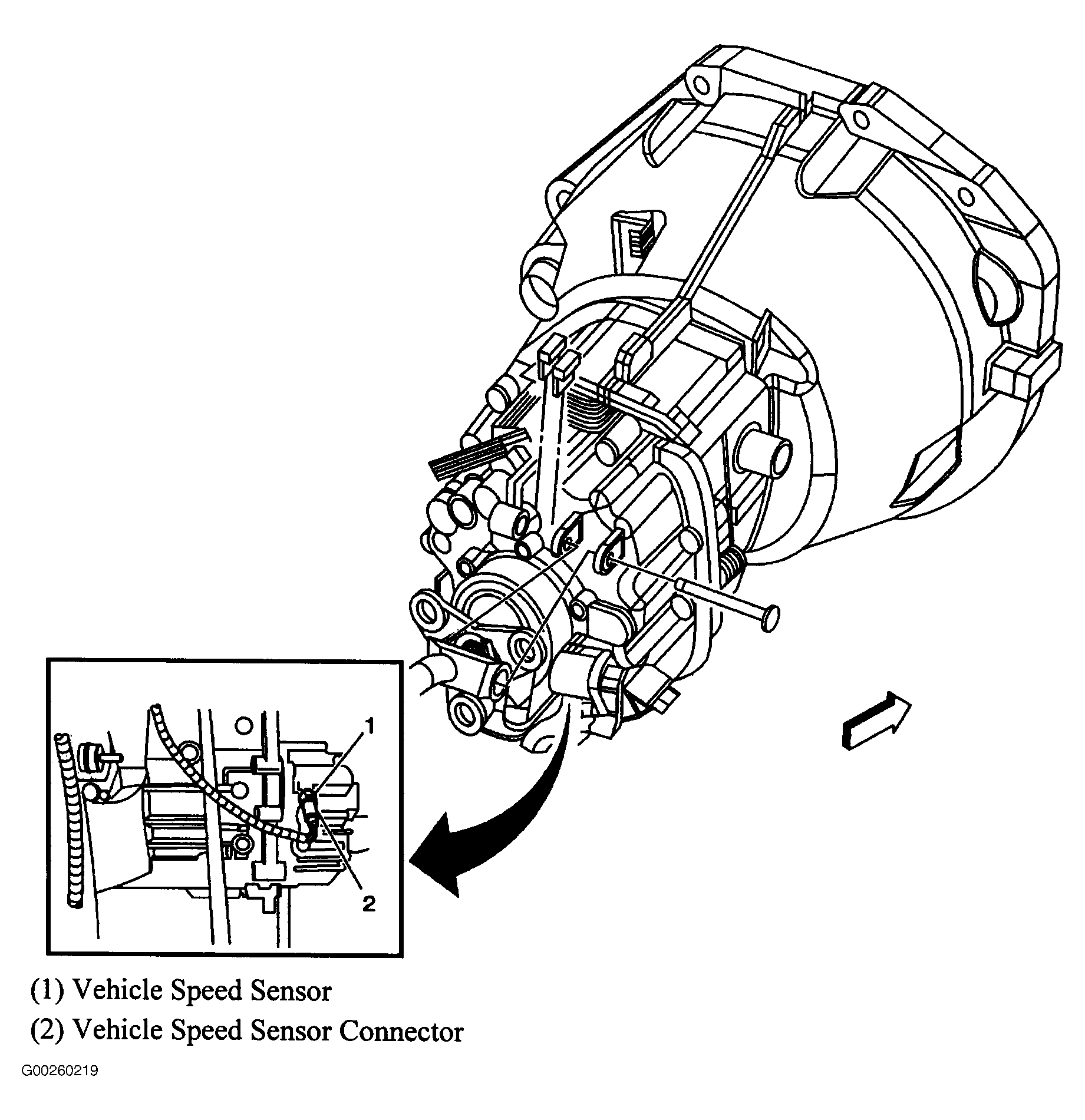

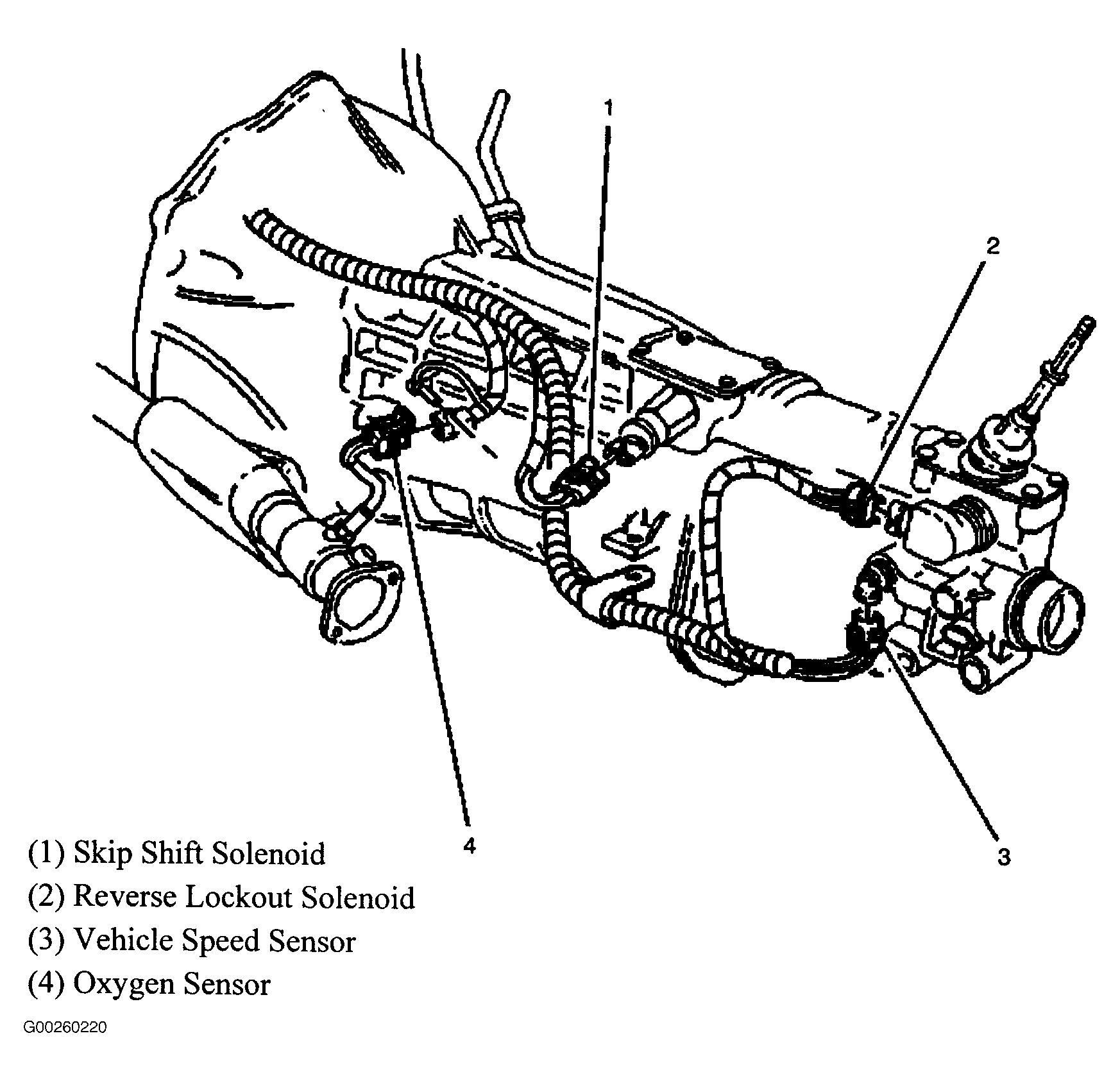

Fig 13: Manual Transmission Components (5 Speed)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Manual Transmission Components (6 Speed)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.

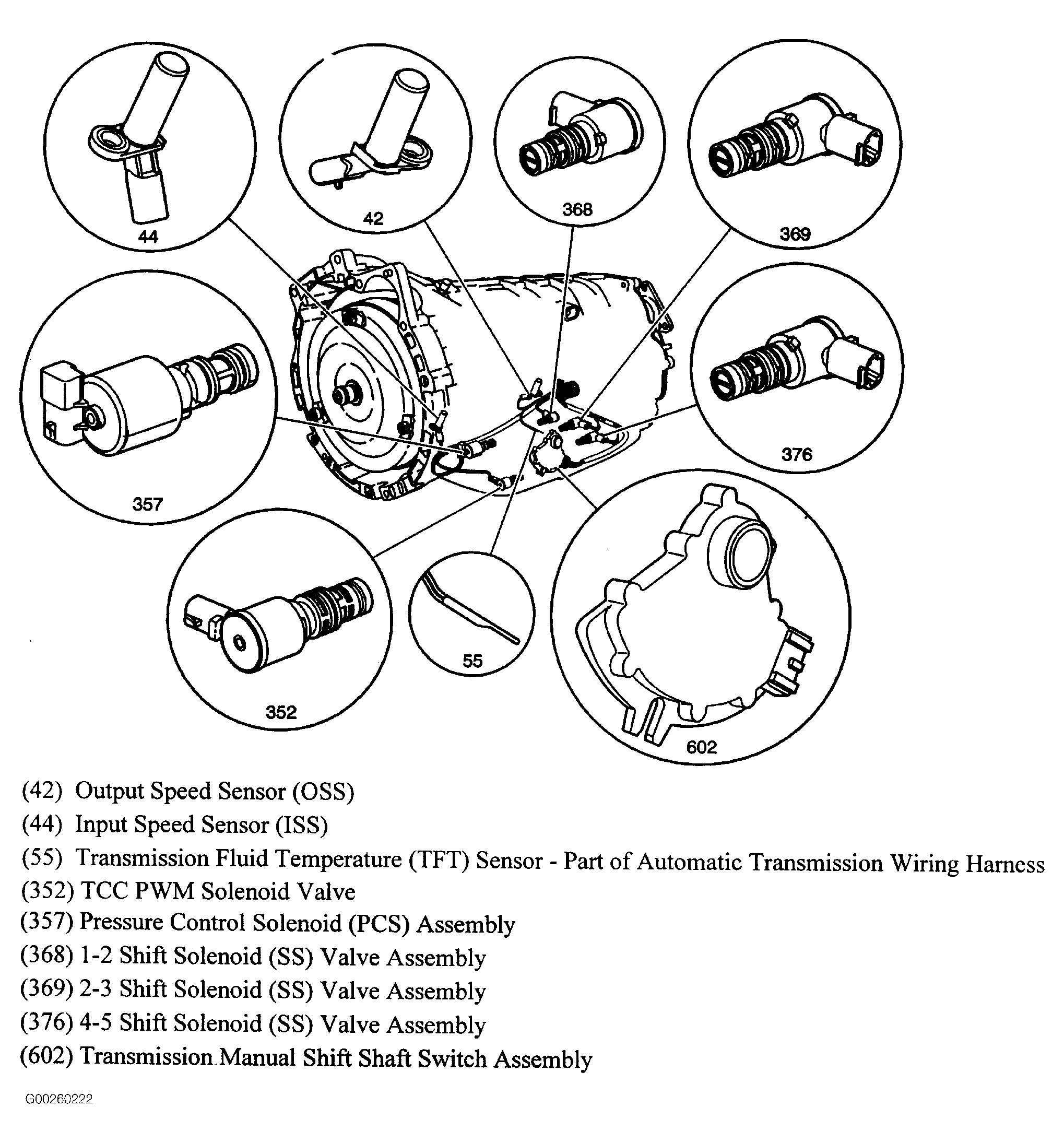

Fig 16: Automatic Transmission Electronic Controls
Courtesy of GENERAL MOTORS CORP.

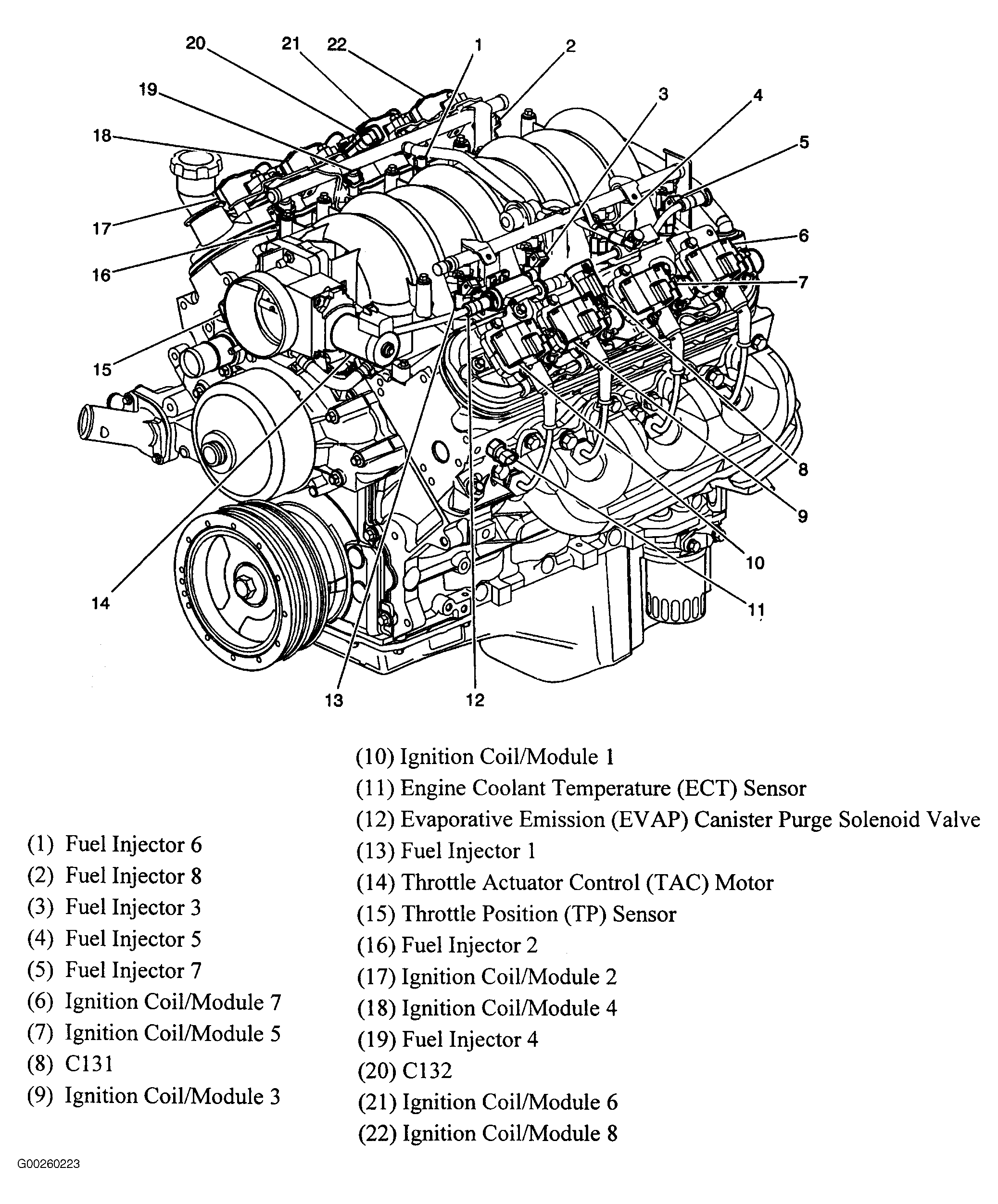

Fig 17: Left Front Of Engine (5.7L)
Courtesy of GENERAL MOTORS CORP.

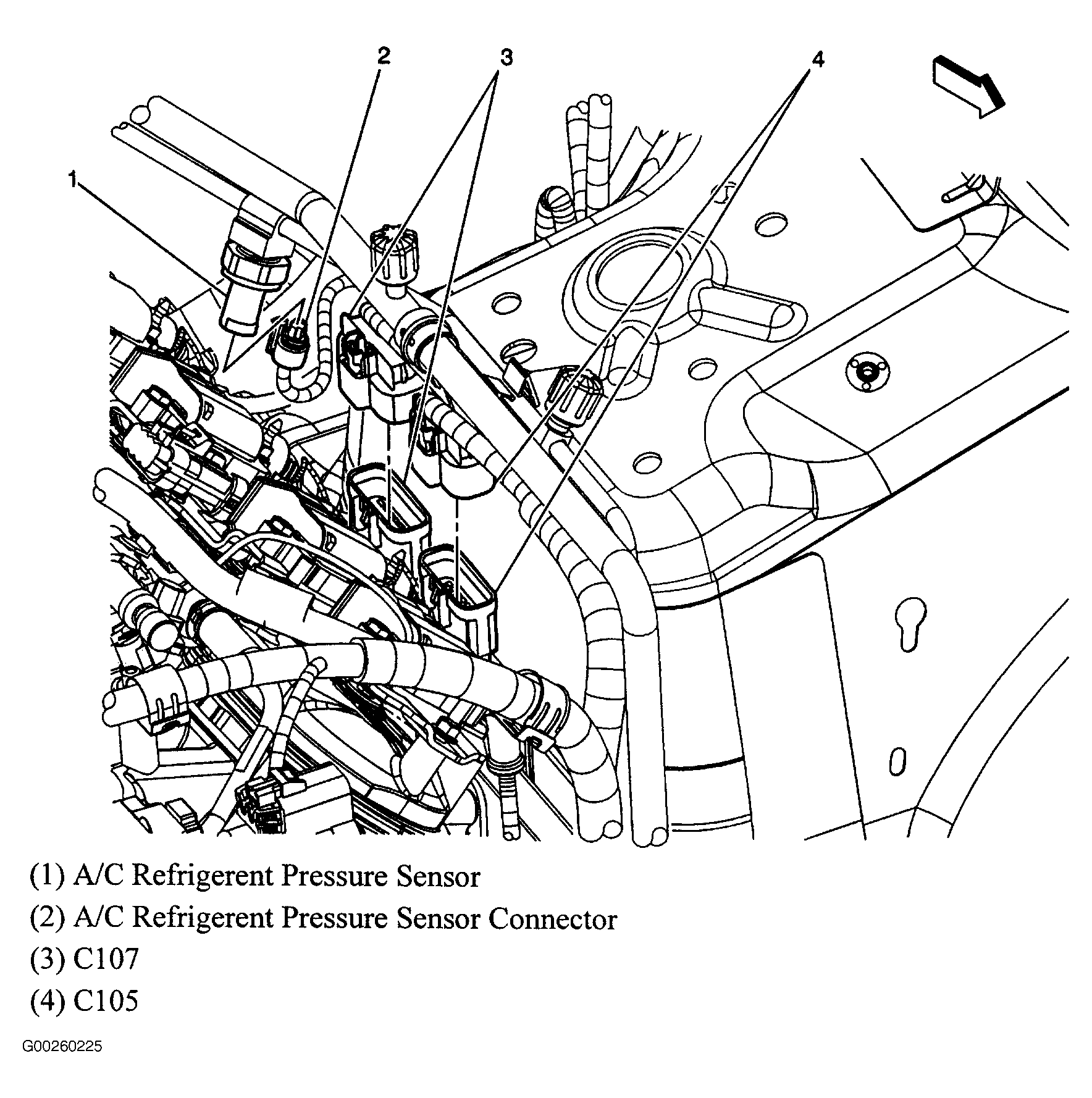

Fig 18: Right Front Of Engine Compartment (5.7L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Side Of Engine Compartment (5.7L)
Courtesy of GENERAL MOTORS CORP.

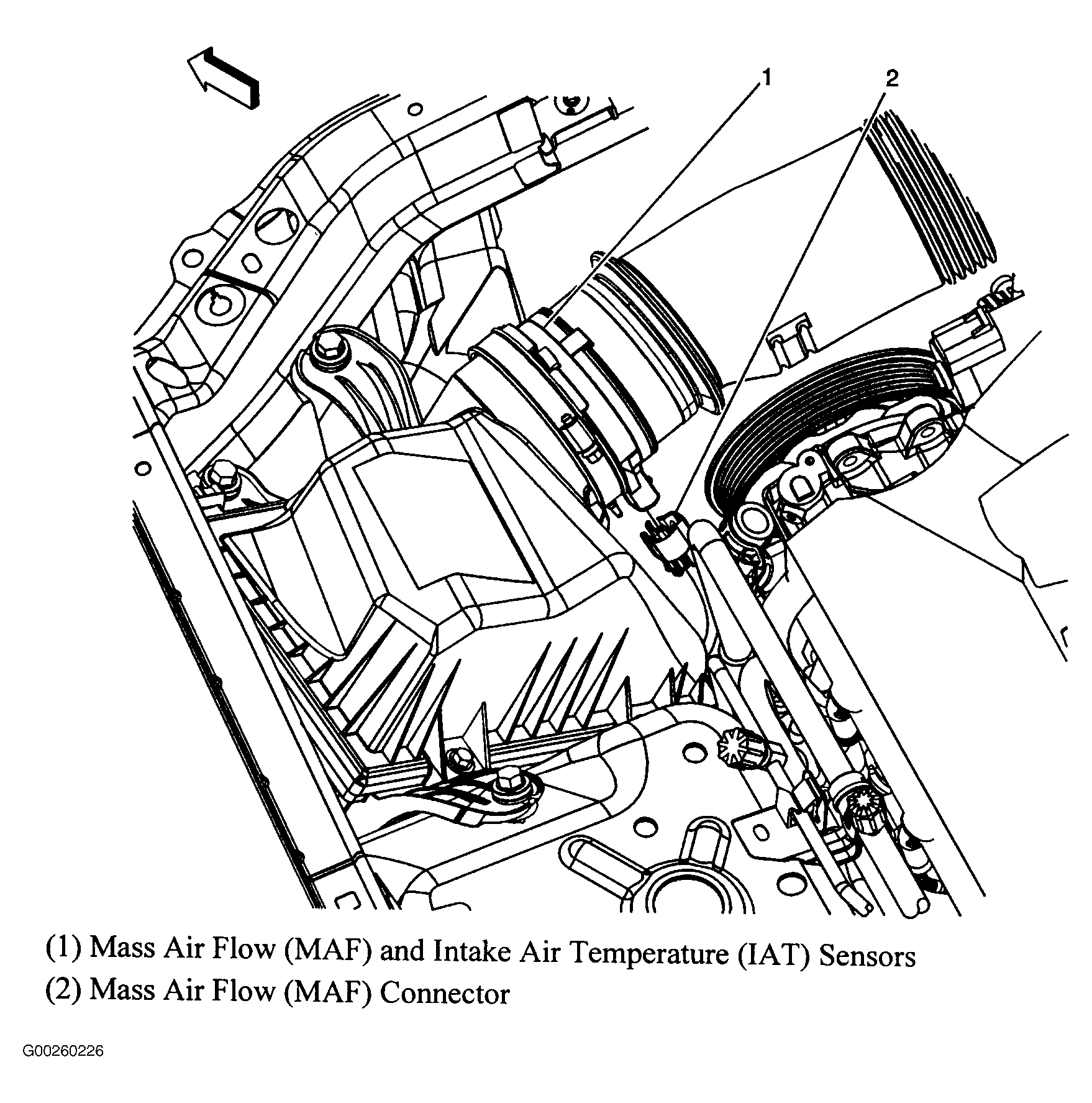

Fig 20: Air Intake Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Engine (5.7L)
Courtesy of GENERAL MOTORS CORP.

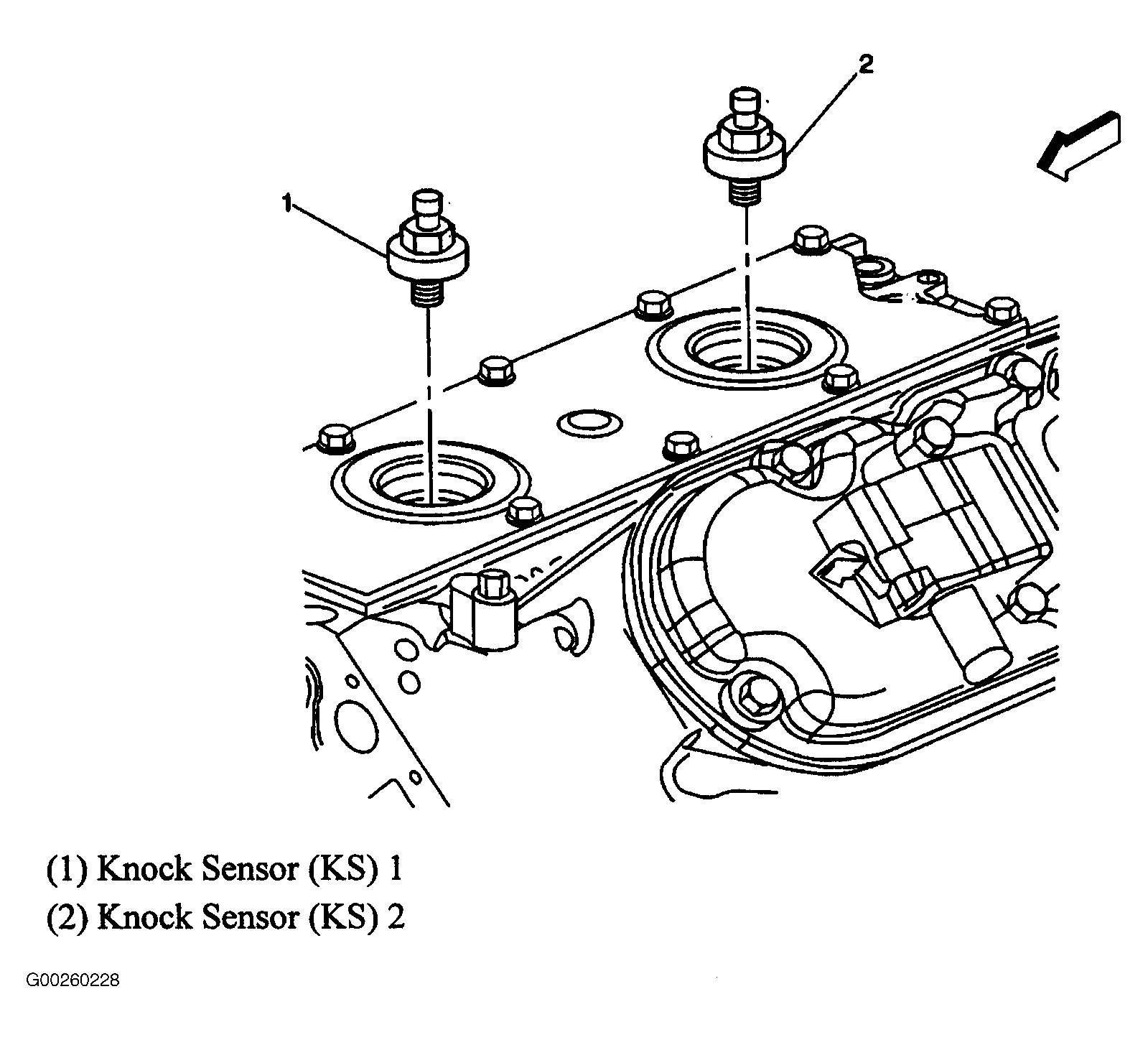

Fig 22: Knock Sensors (5.7L)
Courtesy of GENERAL MOTORS CORP.

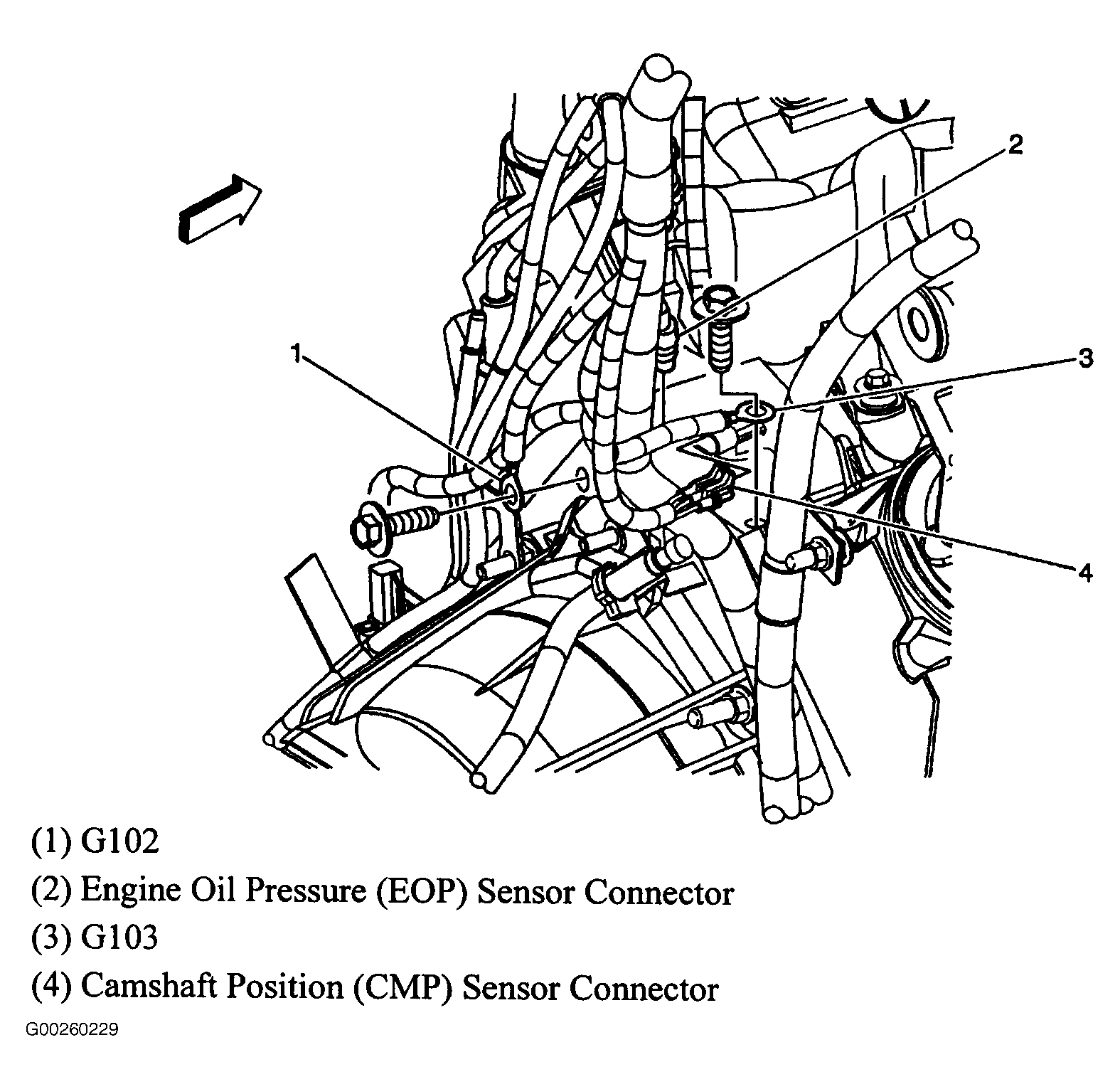

Fig 23: Rear Of Engine (5.7L)
Courtesy of GENERAL MOTORS CORP.

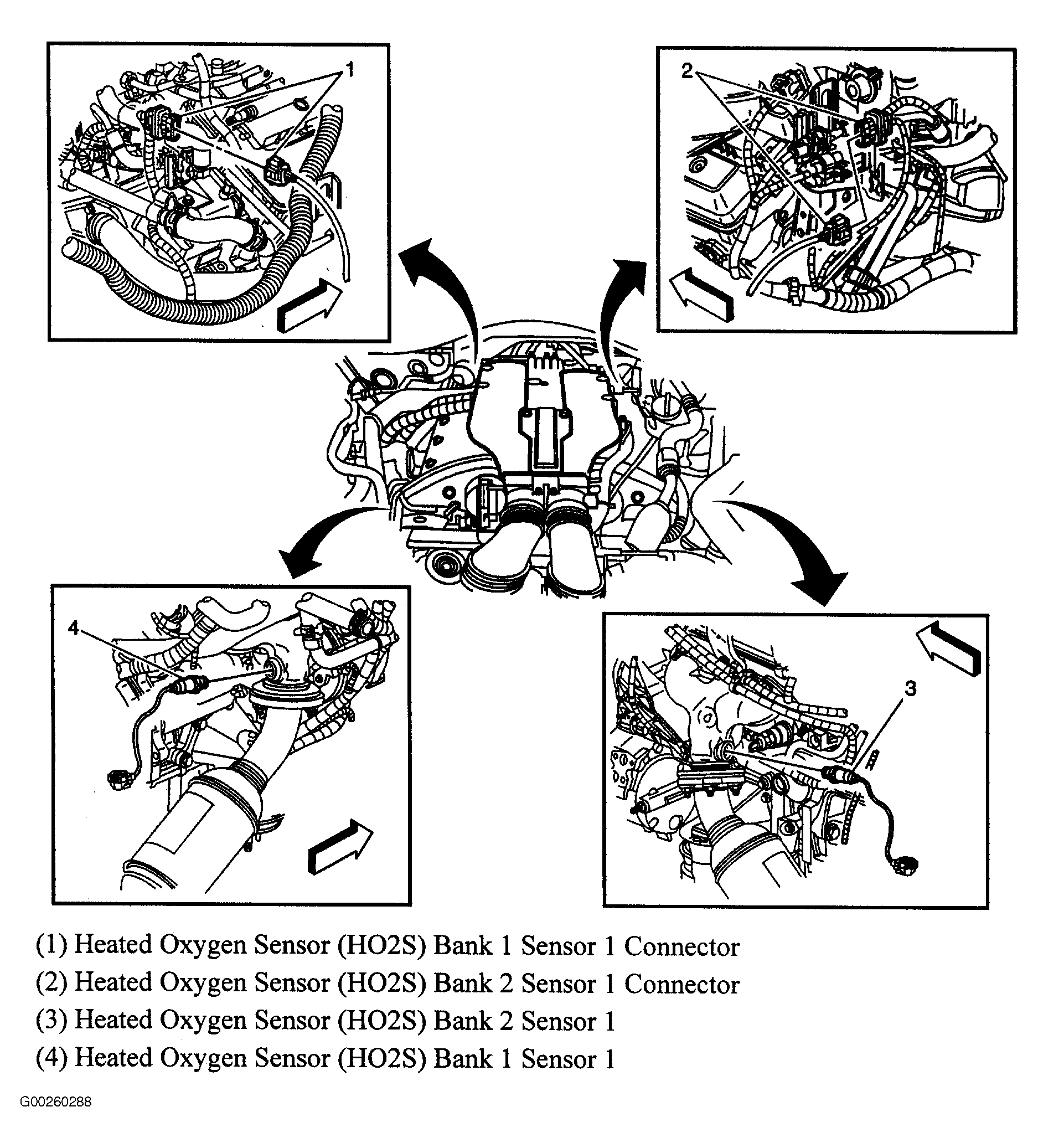

Fig 24: Heated Oxygen (HO2S) Sensors (5.7L)
Courtesy of GENERAL MOTORS CORP.

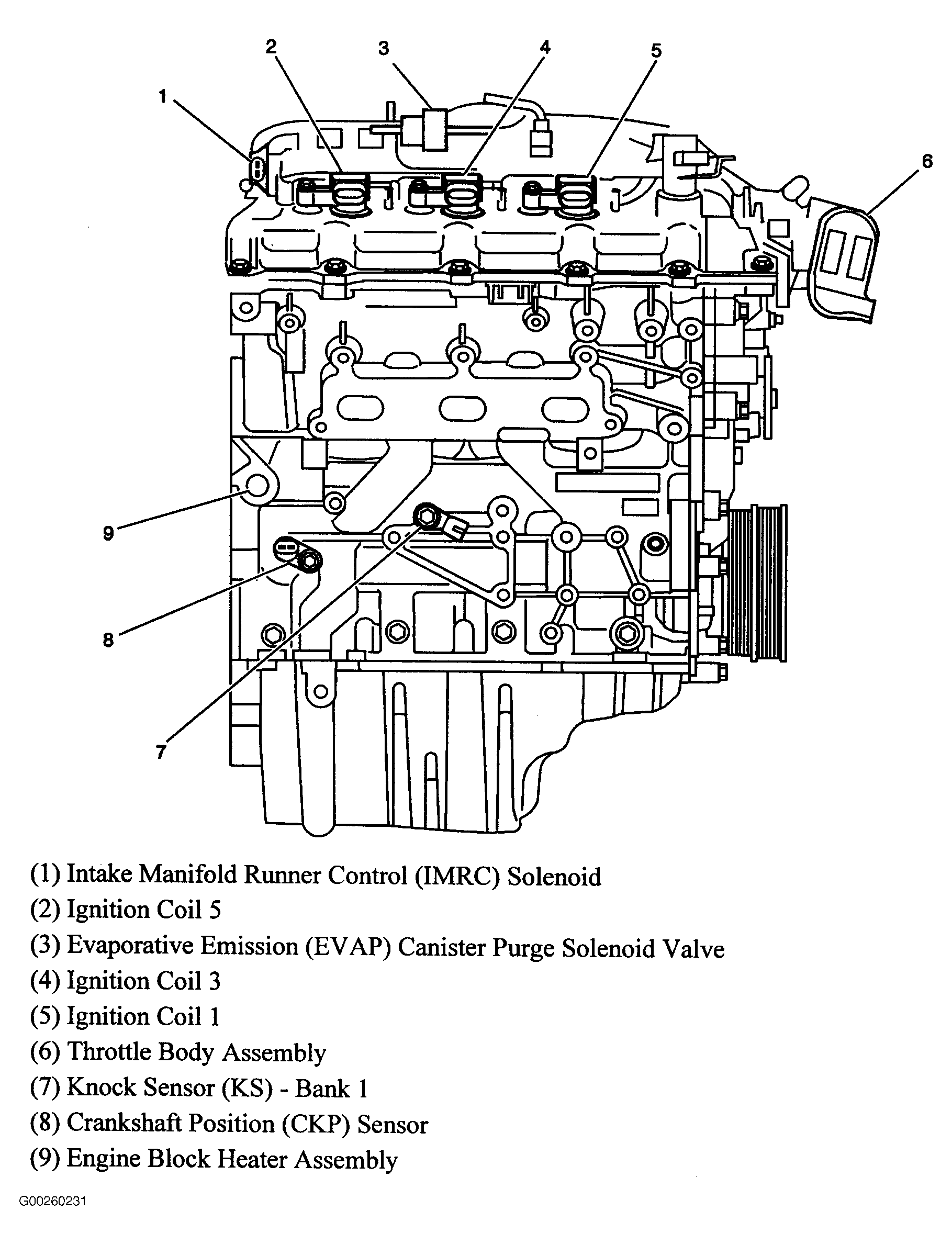

Fig 25: Right Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

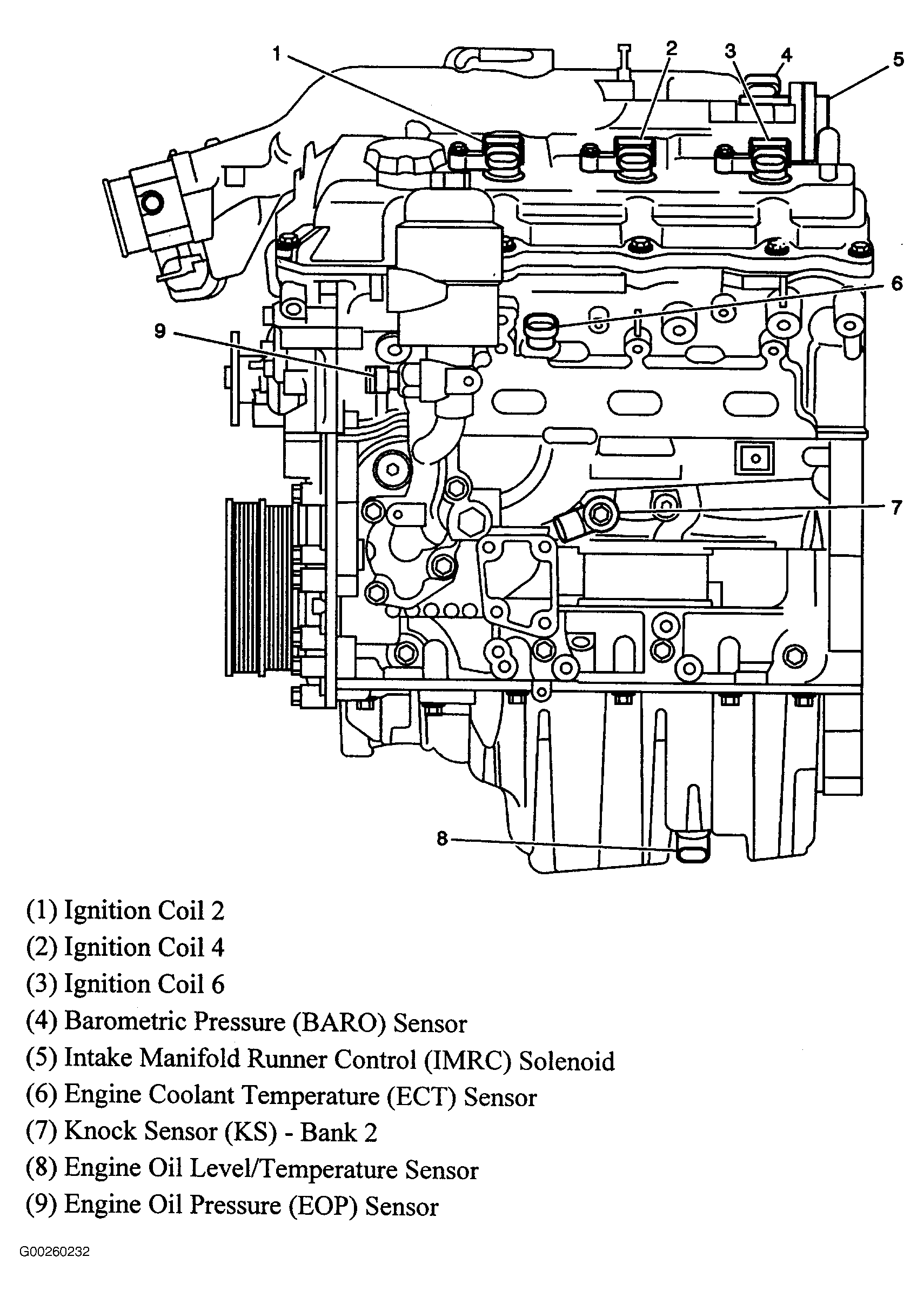

Fig 26: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Top Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

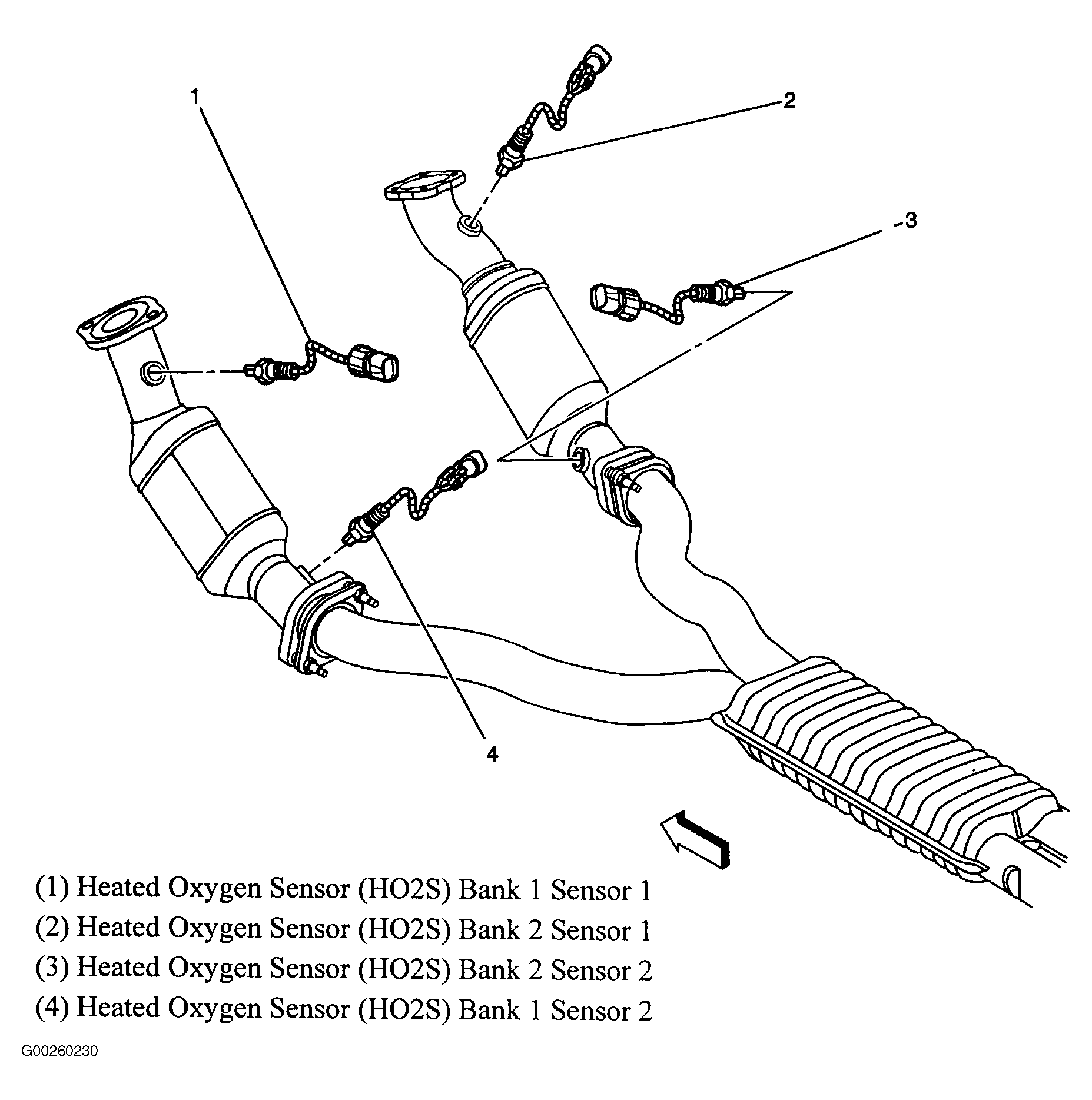

Fig 29: Heated Oxygen (HO2S) Sensors (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Battery & Fuse Blocks
Courtesy of GENERAL MOTORS CORP.

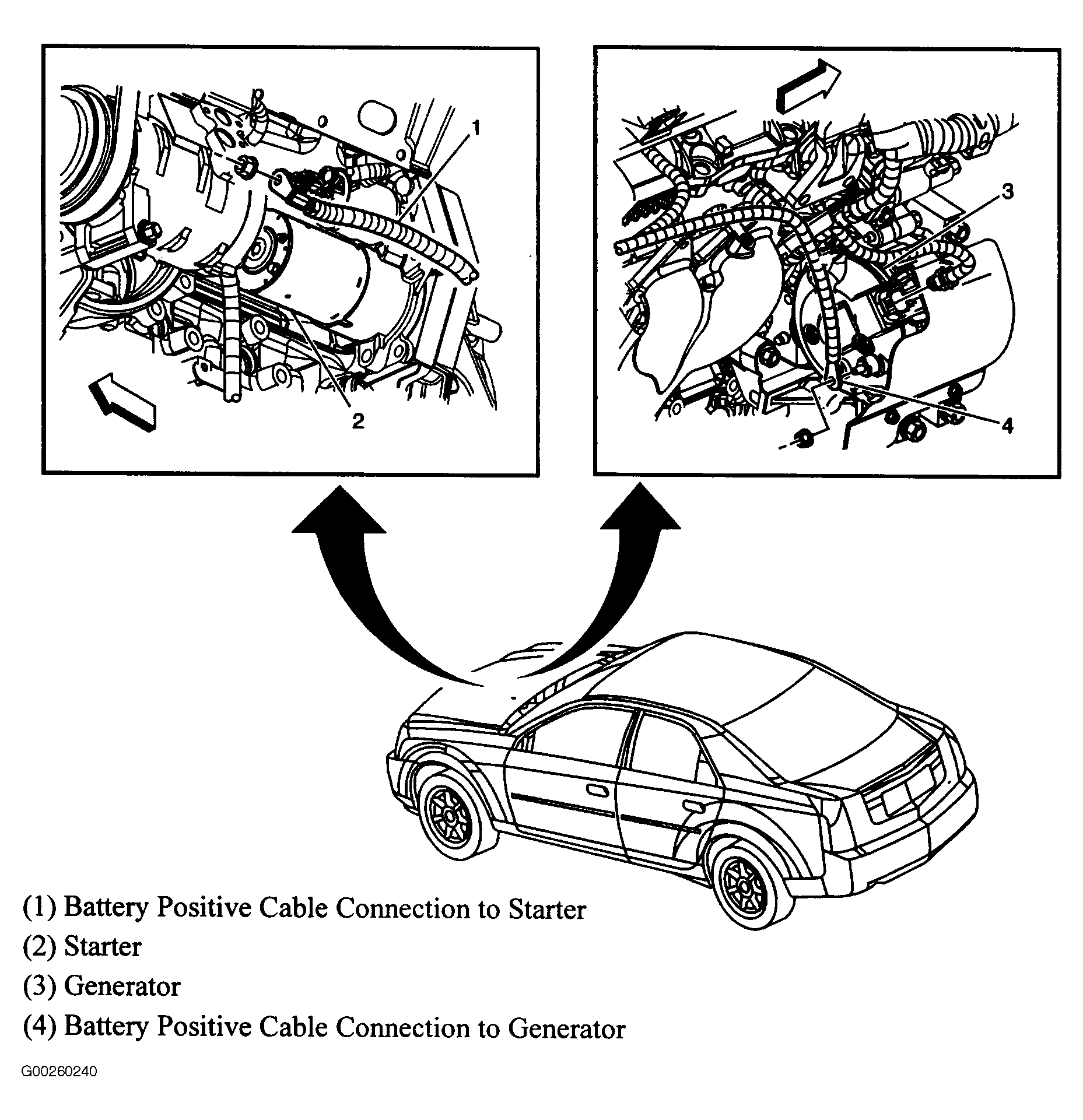

Fig 31: Starter & Generator (3.2L)
Courtesy of GENERAL MOTORS CORP.

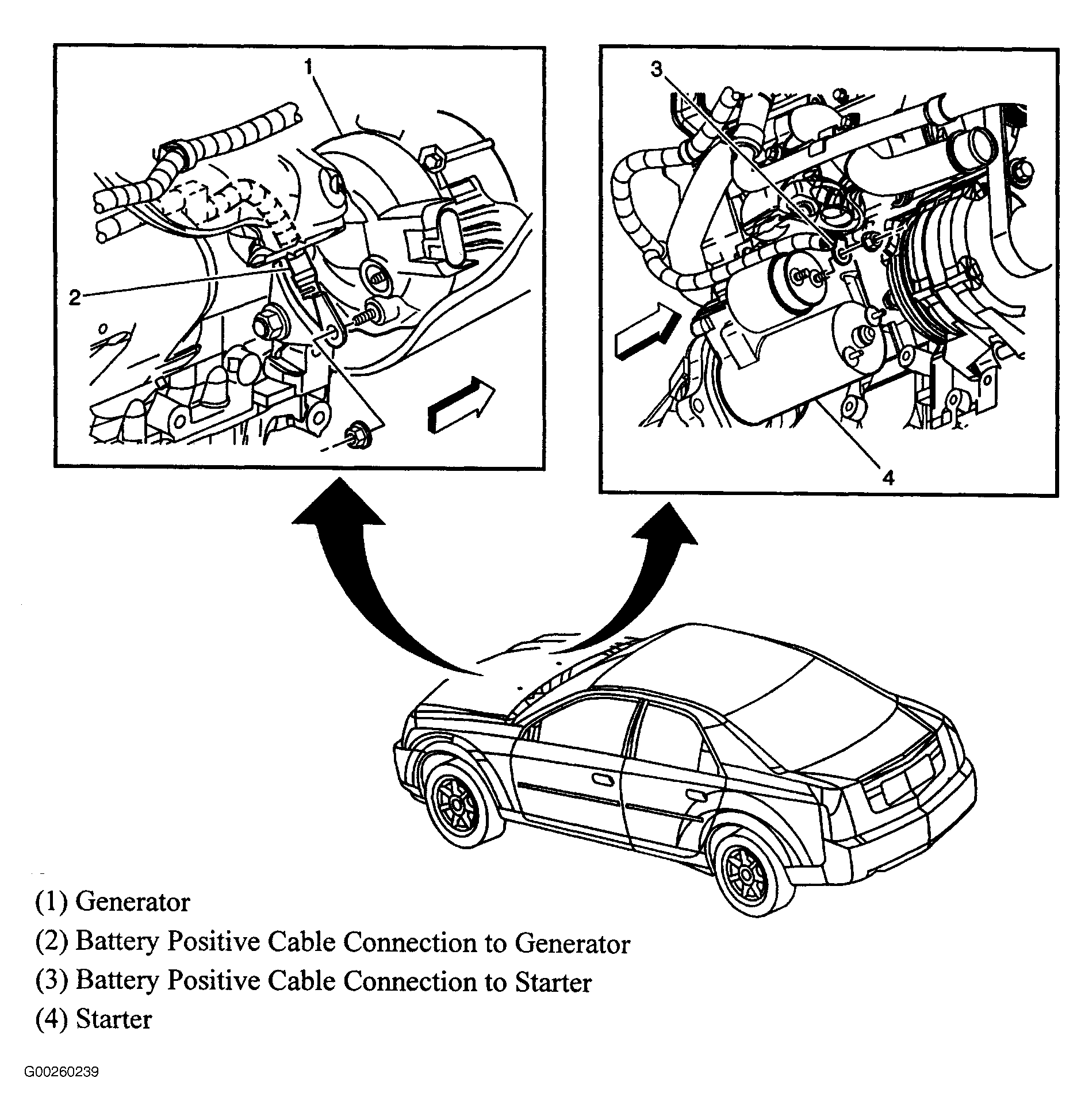

Fig 32: Starter & Generator (3.6L)
Courtesy of GENERAL MOTORS CORP.

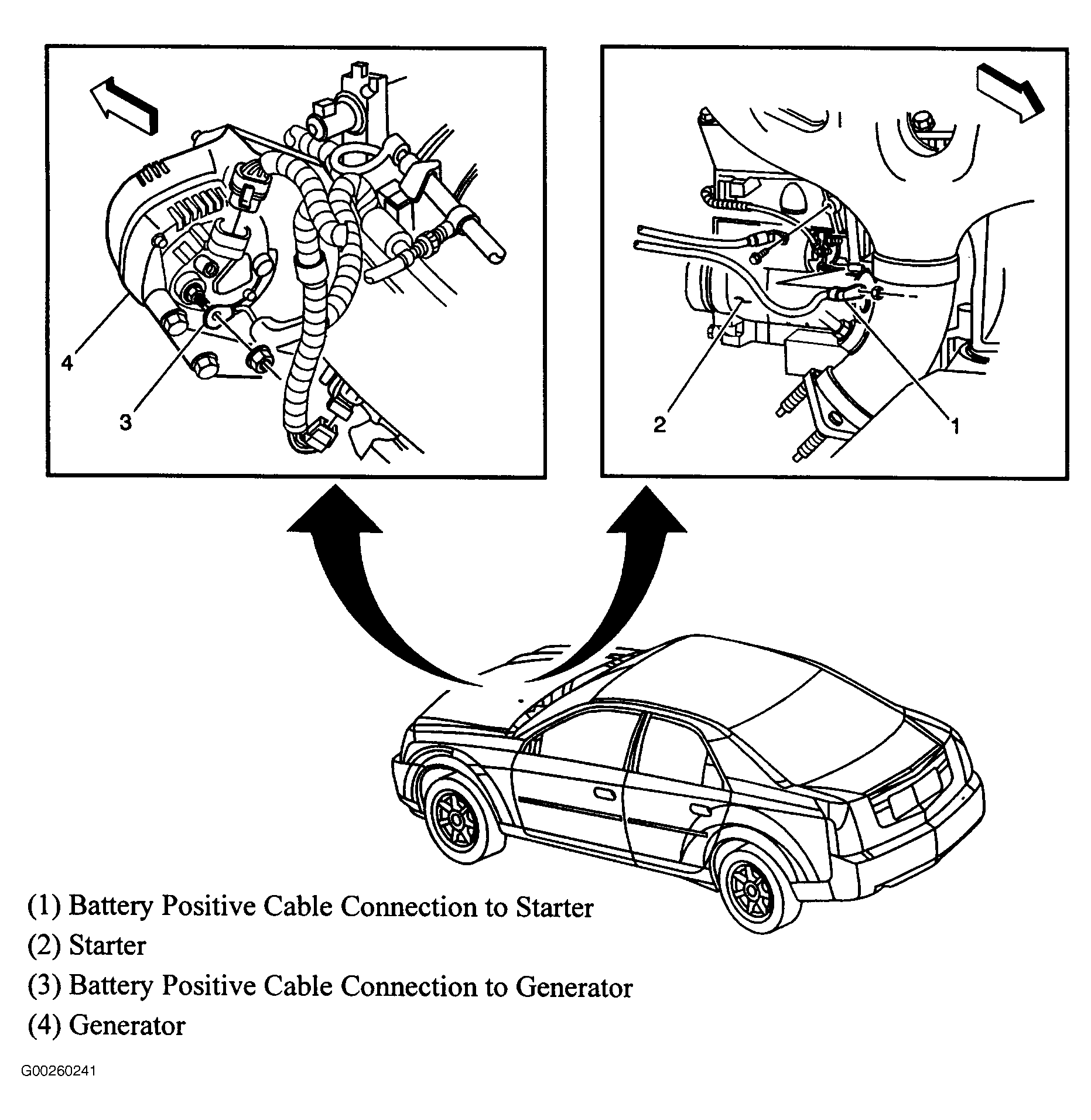

Fig 33: Starter & Generator (5.7L)
Courtesy of GENERAL MOTORS CORP.

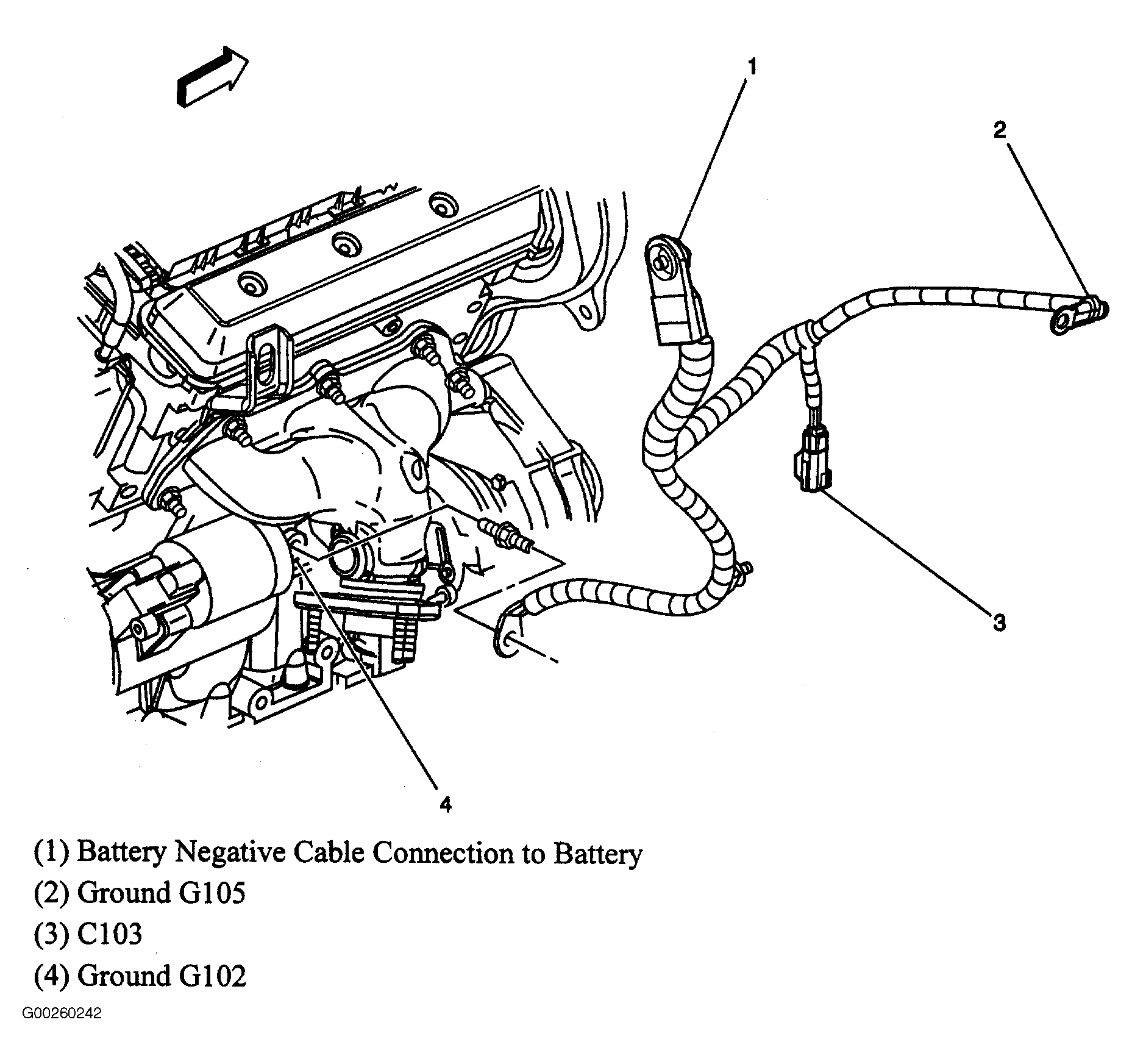

Fig 34: Negative Battery Cable (3.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Negative Battery Cable (3.6L)
Courtesy of GENERAL MOTORS CORP.

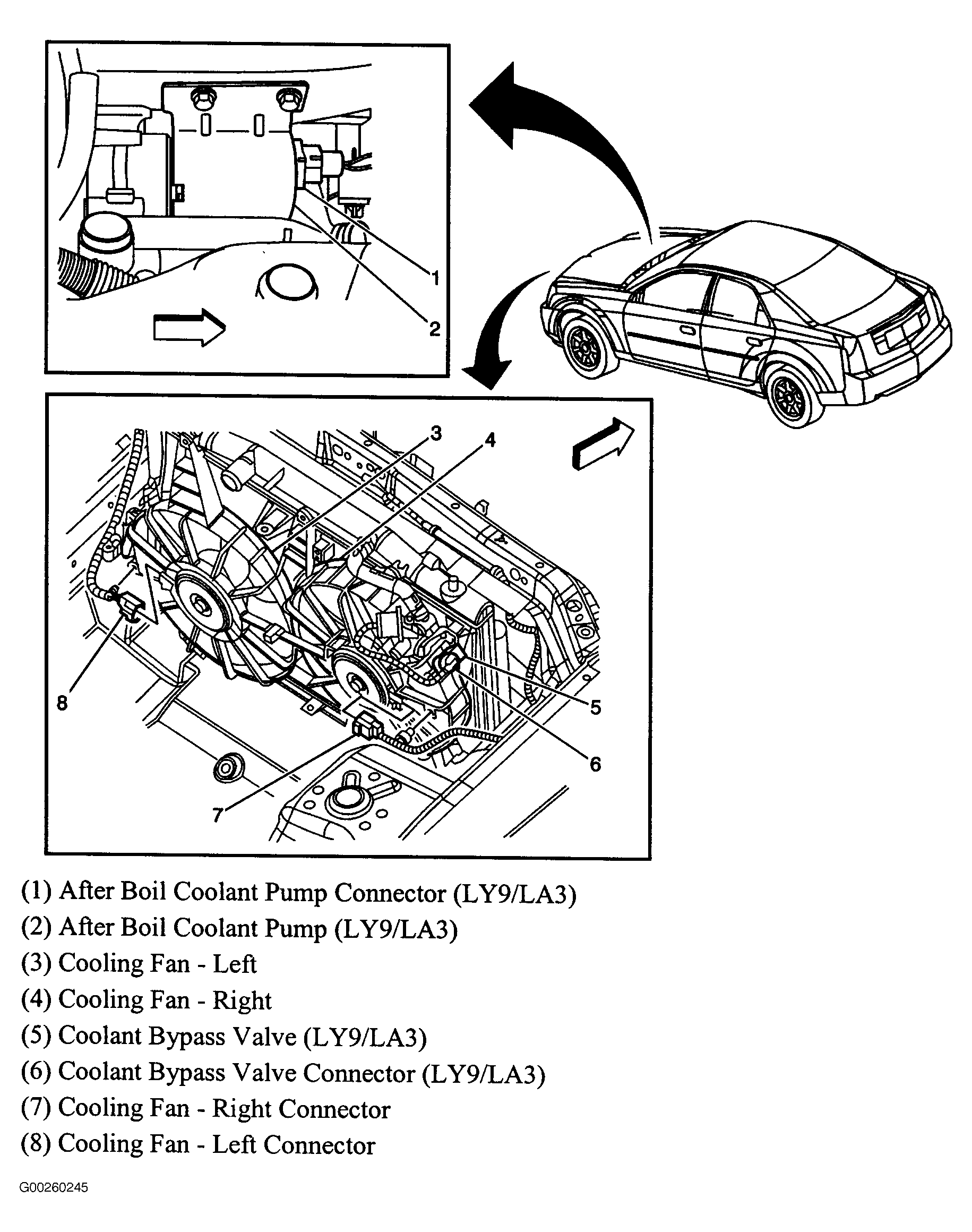

Fig 36: Cooling Fans
Courtesy of GENERAL MOTORS CORP.

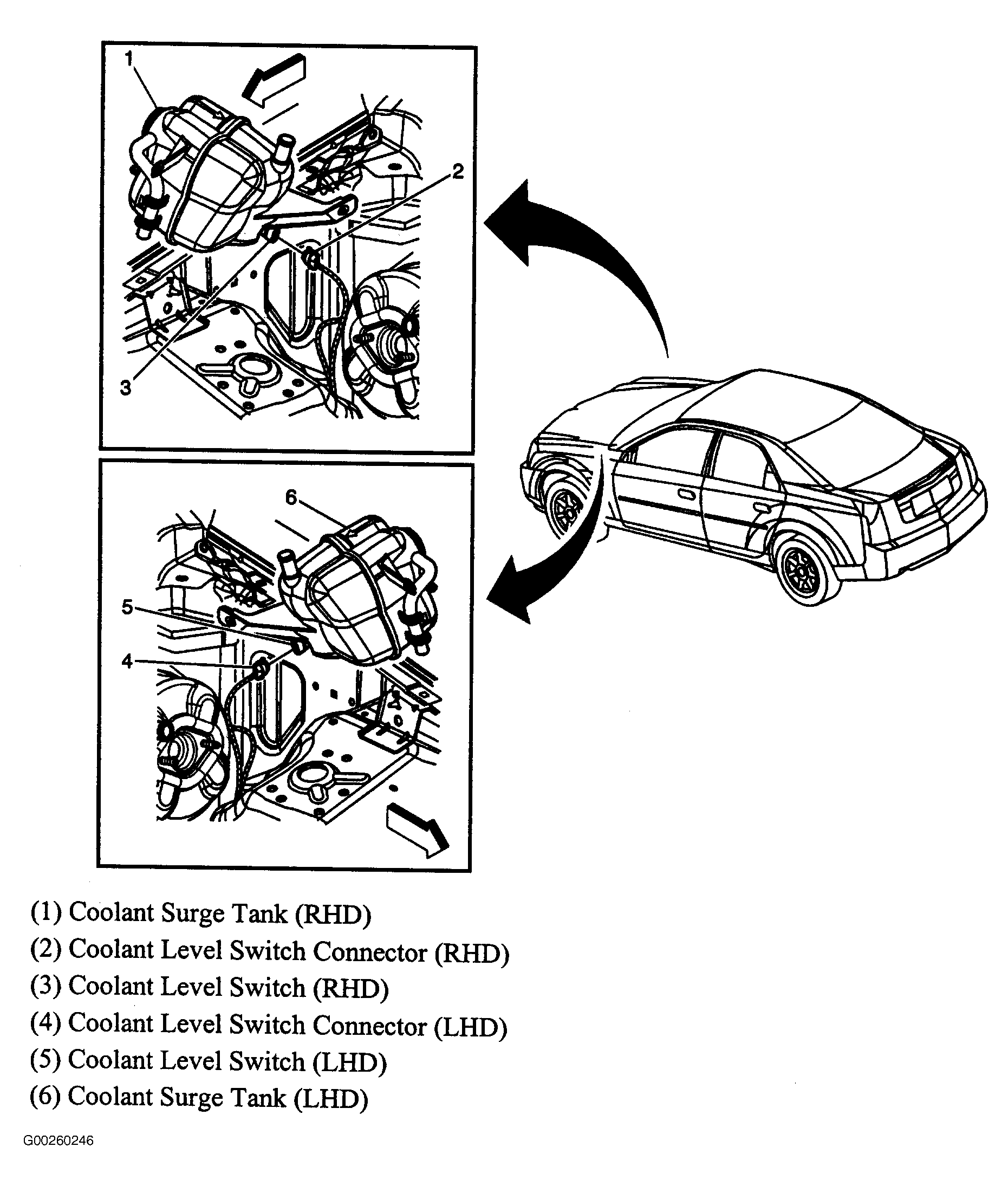

Fig 37: Coolant Surge Tank Components
Courtesy of GENERAL MOTORS CORP.

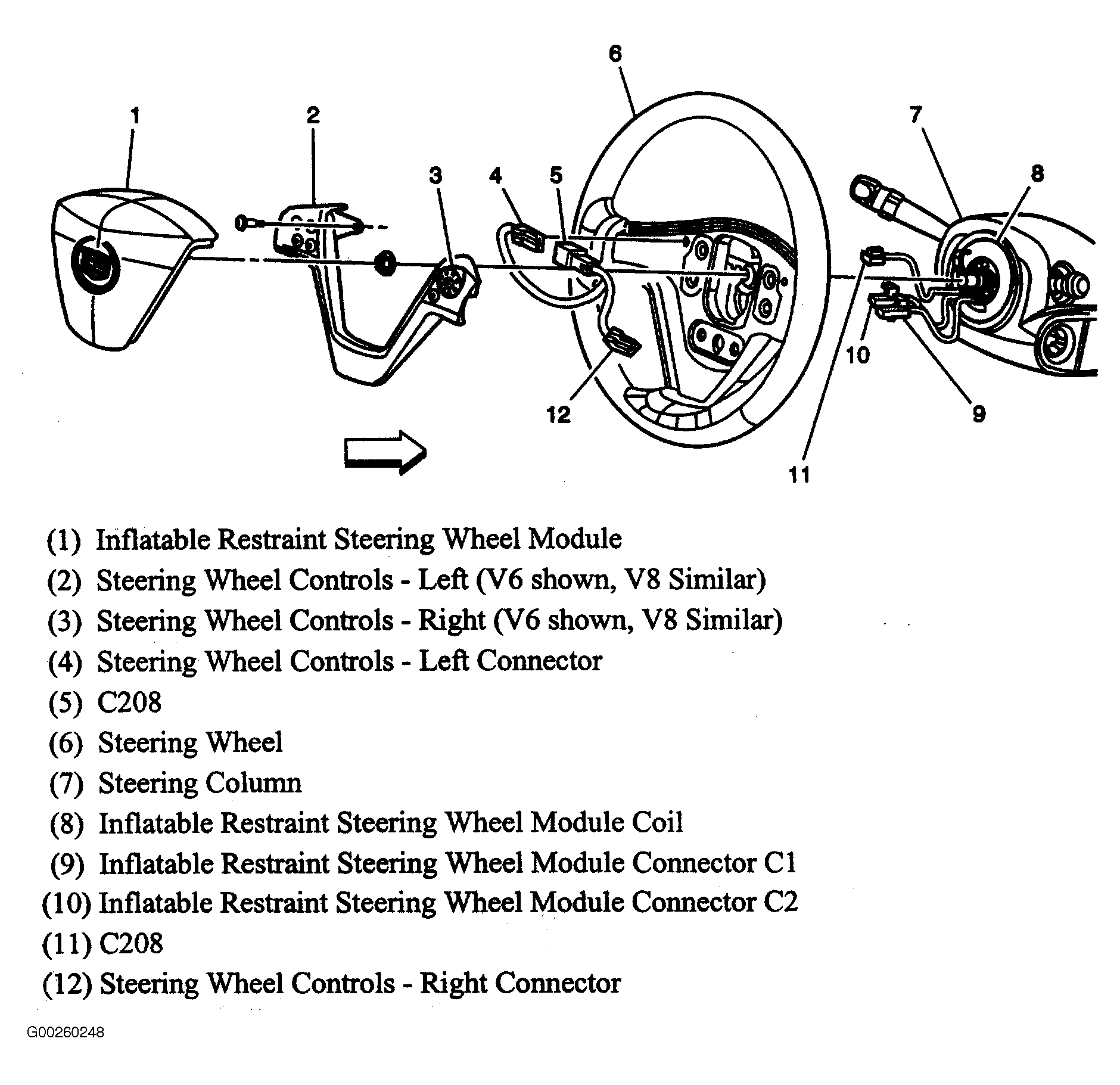

Fig 38: Steering Wheel Components
Courtesy of GENERAL MOTORS CORP.

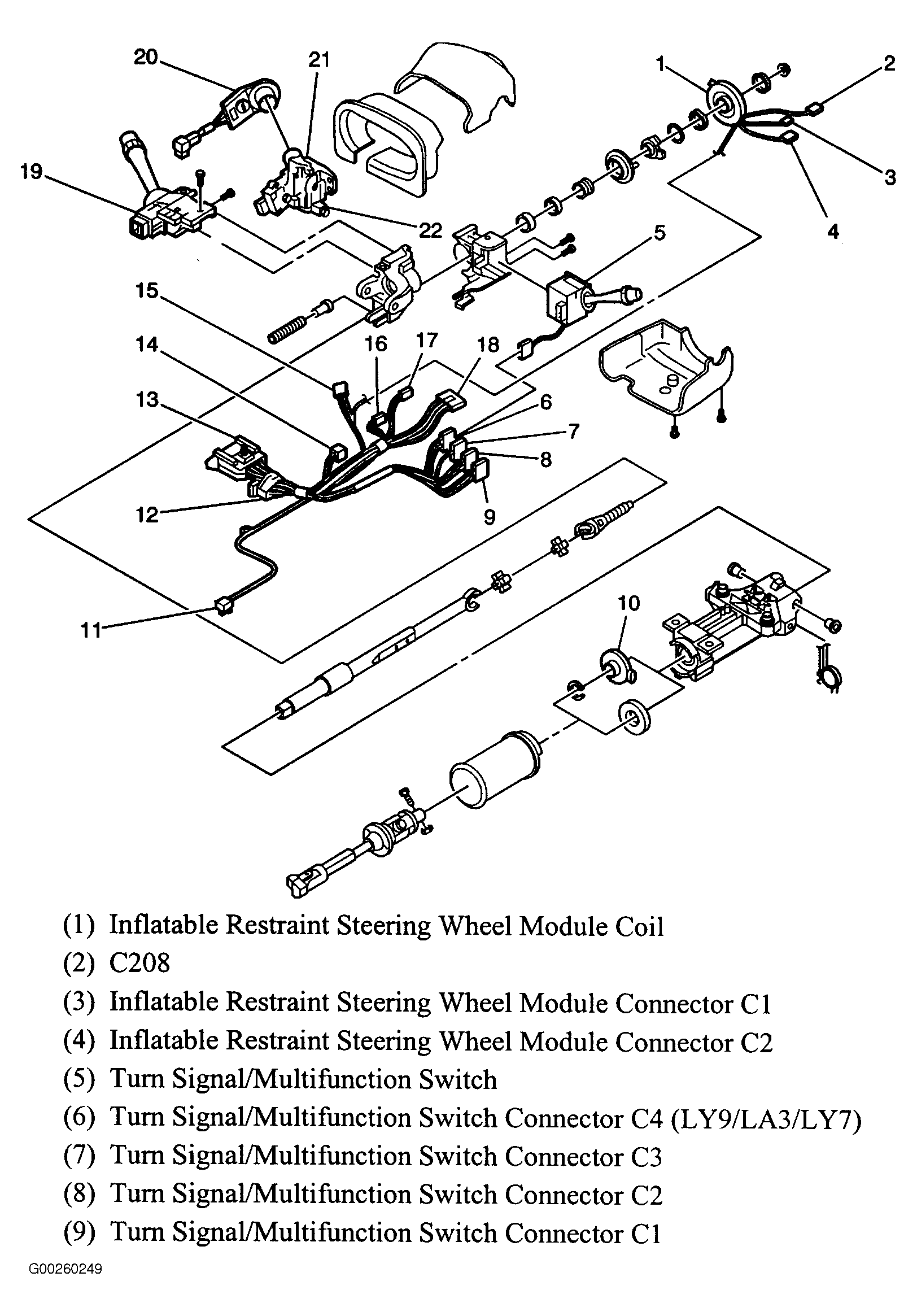

Fig 39: Steering Column Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Steering Column Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

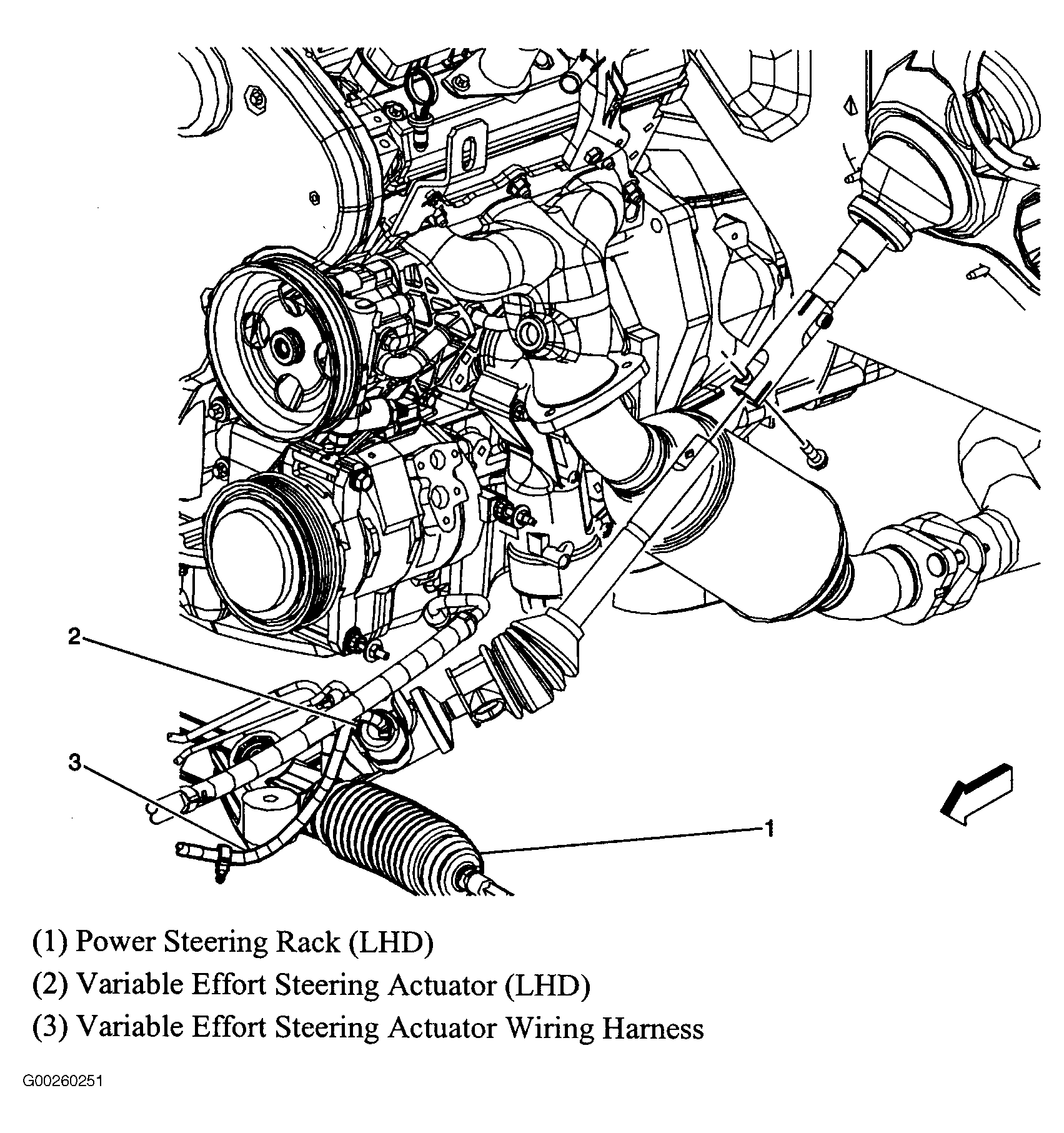

Fig 41: Variable Effort Steering Components
Courtesy of GENERAL MOTORS CORP.

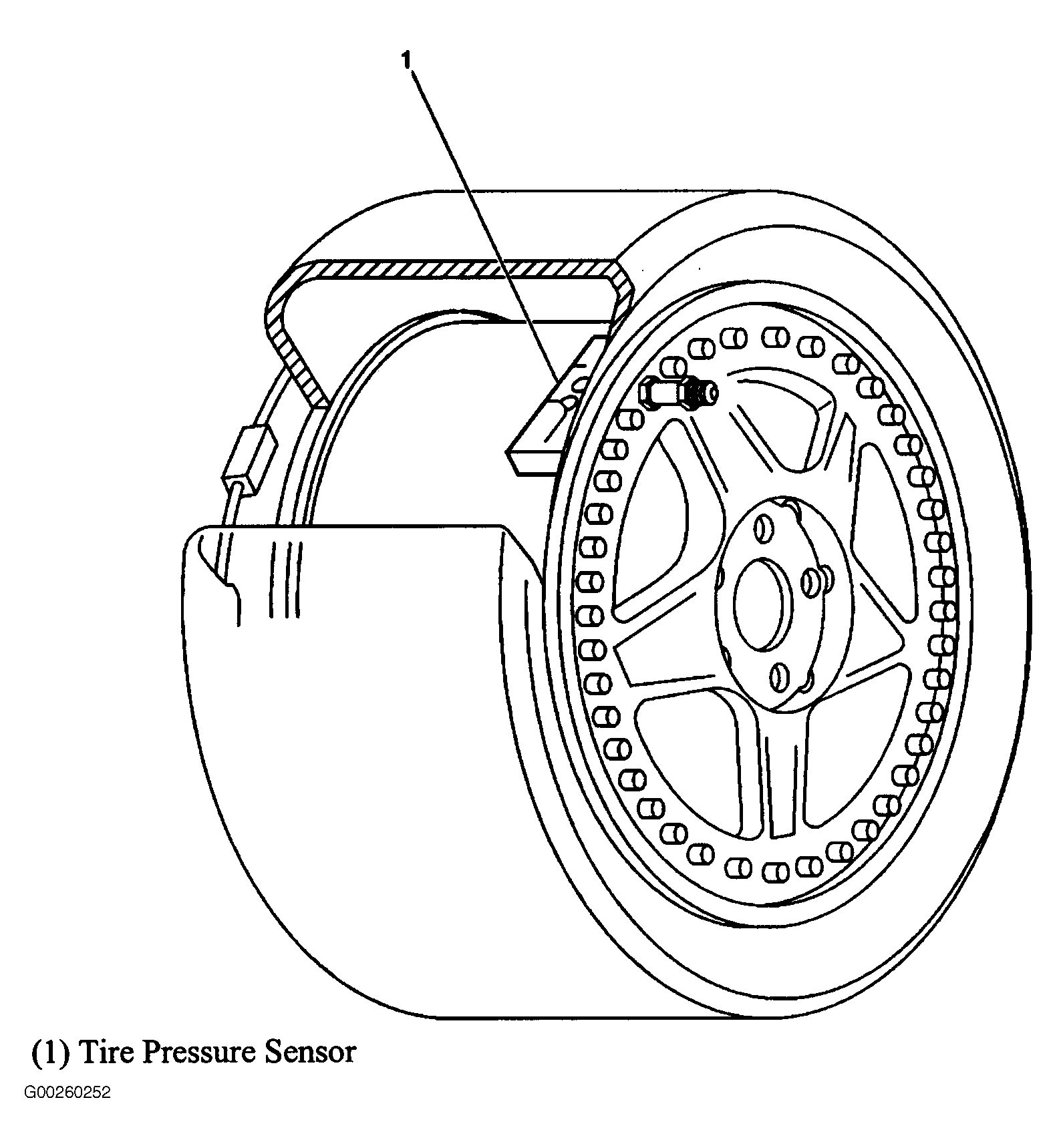

Fig 42: Tire Pressure Sensor
Courtesy of GENERAL MOTORS CORP.

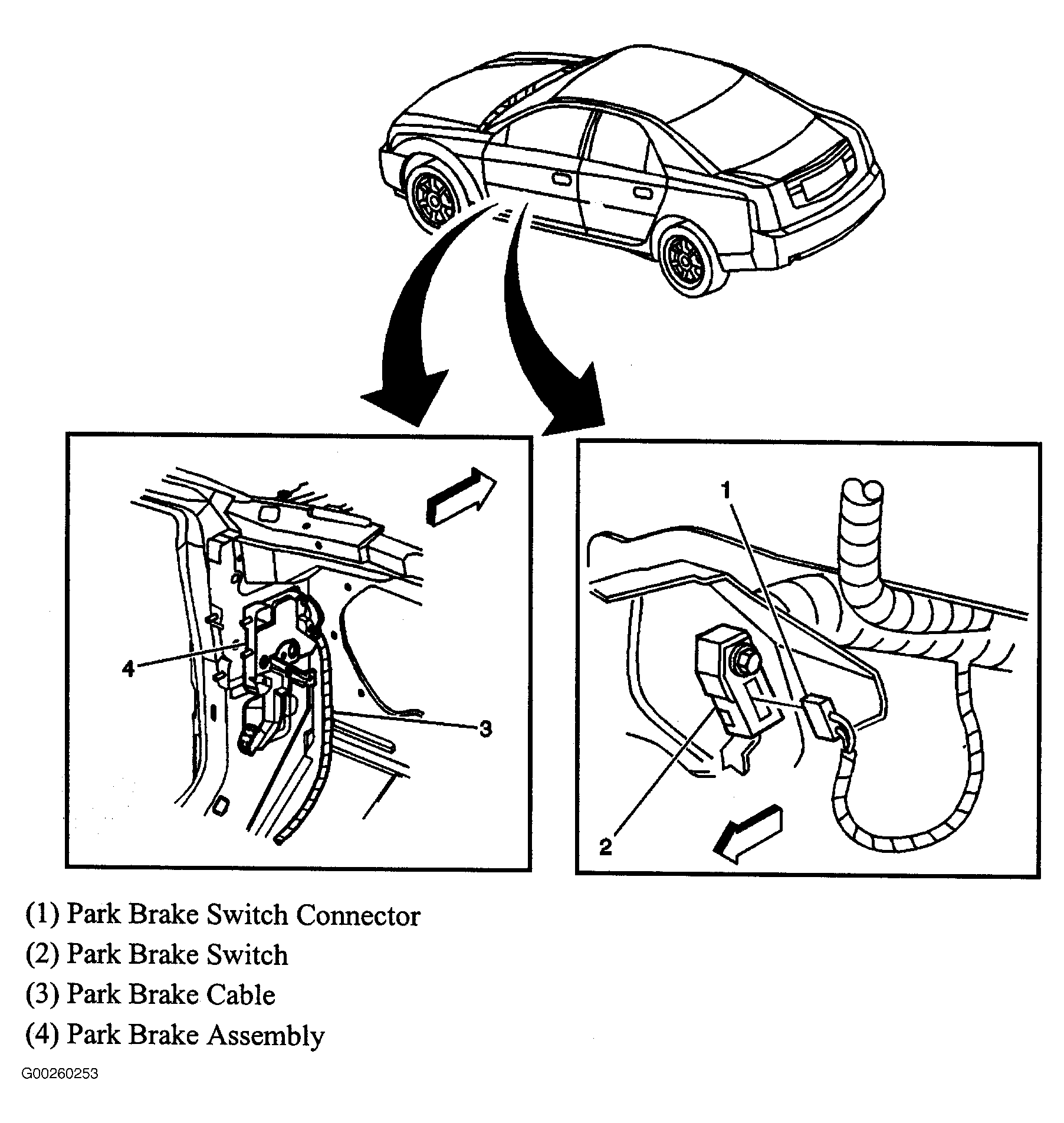

Fig 43: Parking Brake Components
Courtesy of GENERAL MOTORS CORP.

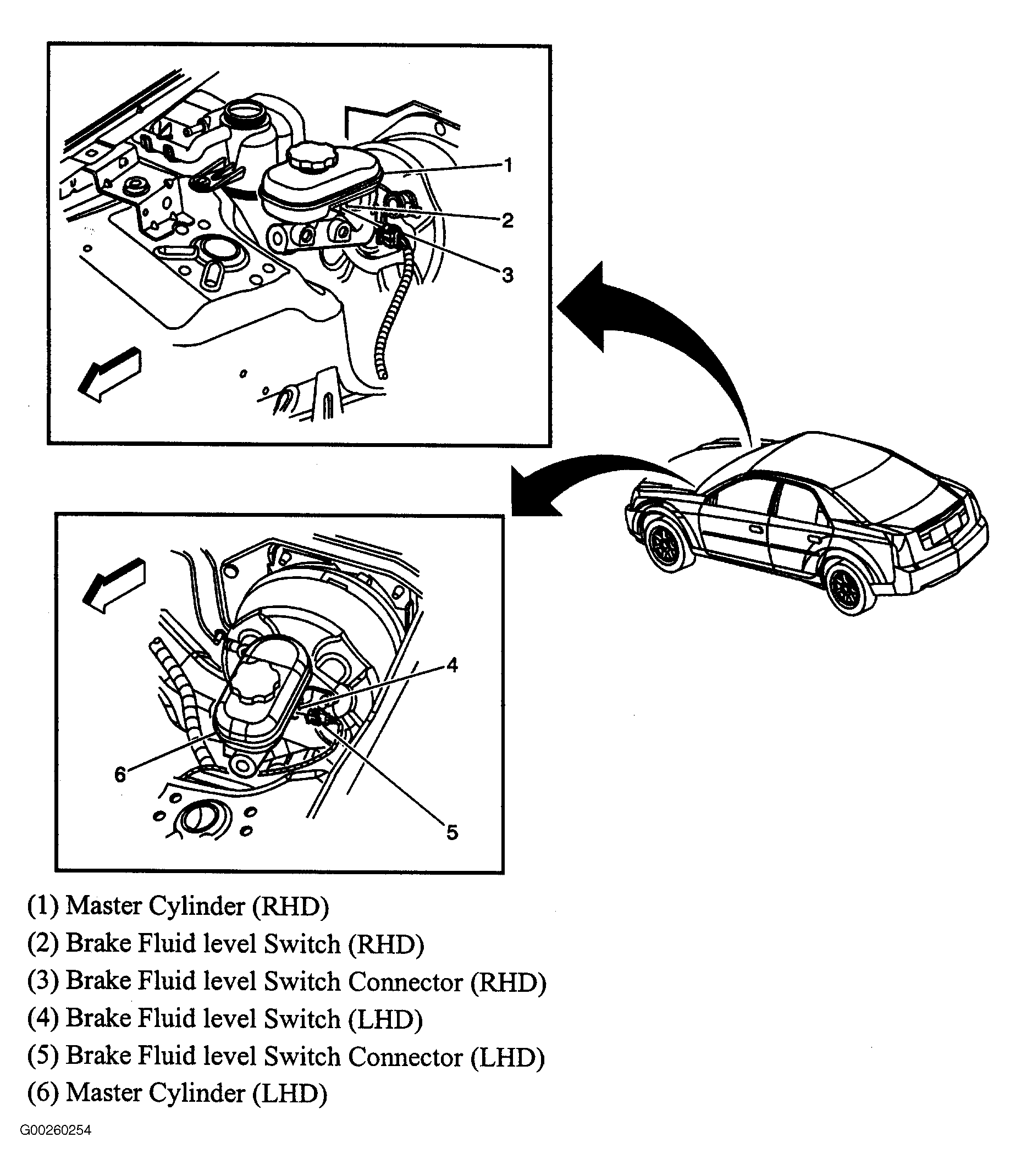

Fig 44: Brake Master Cylinder Components
Courtesy of GENERAL MOTORS CORP.
Fig 45: ABS Components
Courtesy of GENERAL MOTORS CORP.

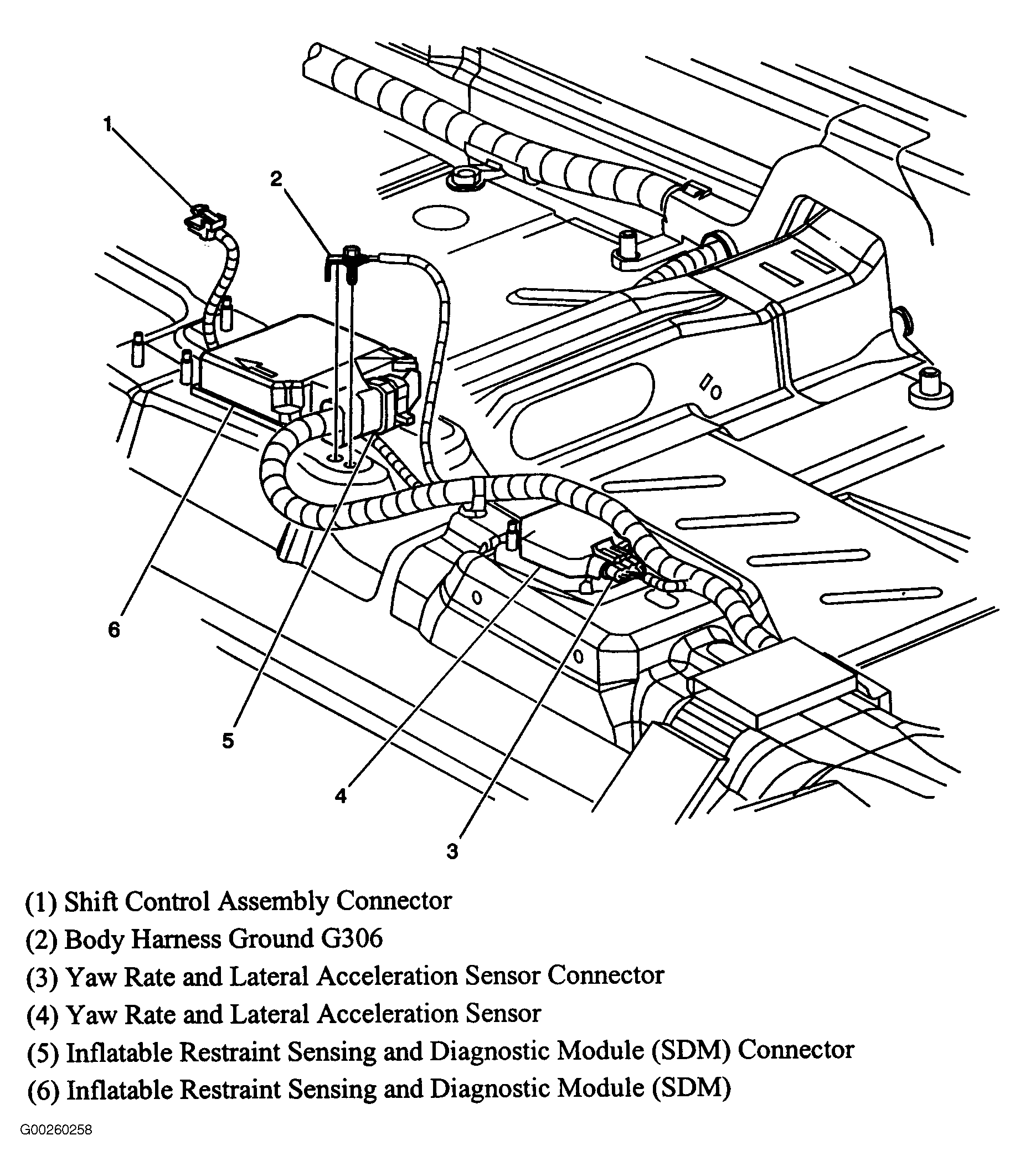

Fig 46: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 47: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 48: HVAC Components
Courtesy of GENERAL MOTORS CORP.

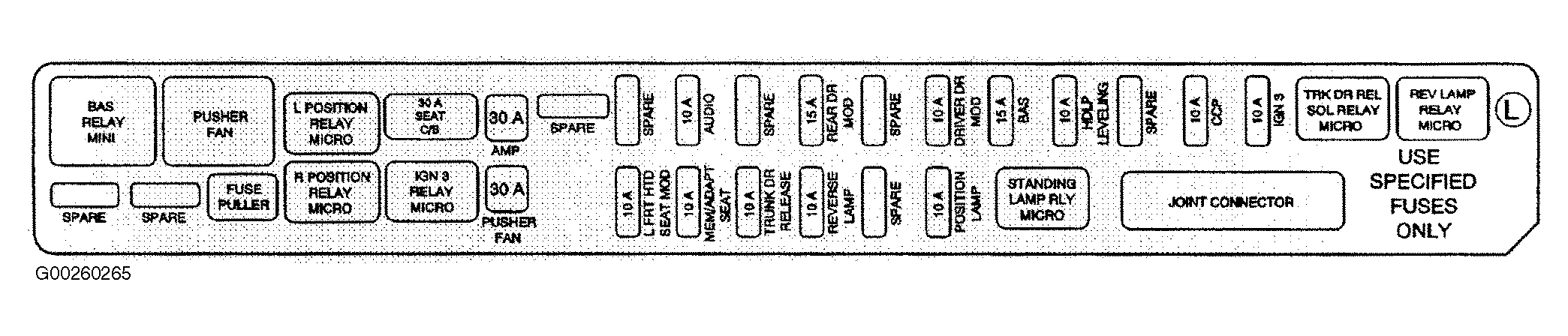

Fig 49: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

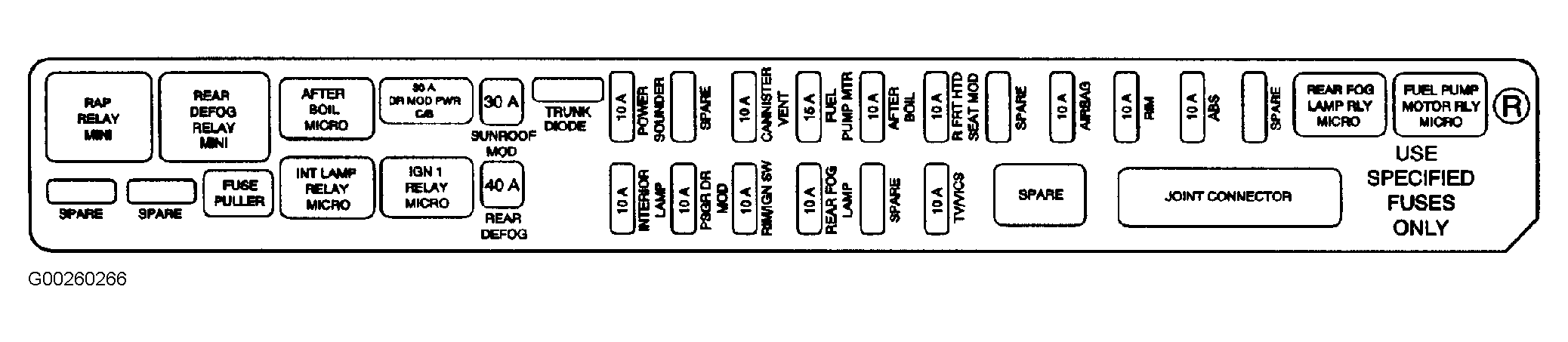

Fig 50: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

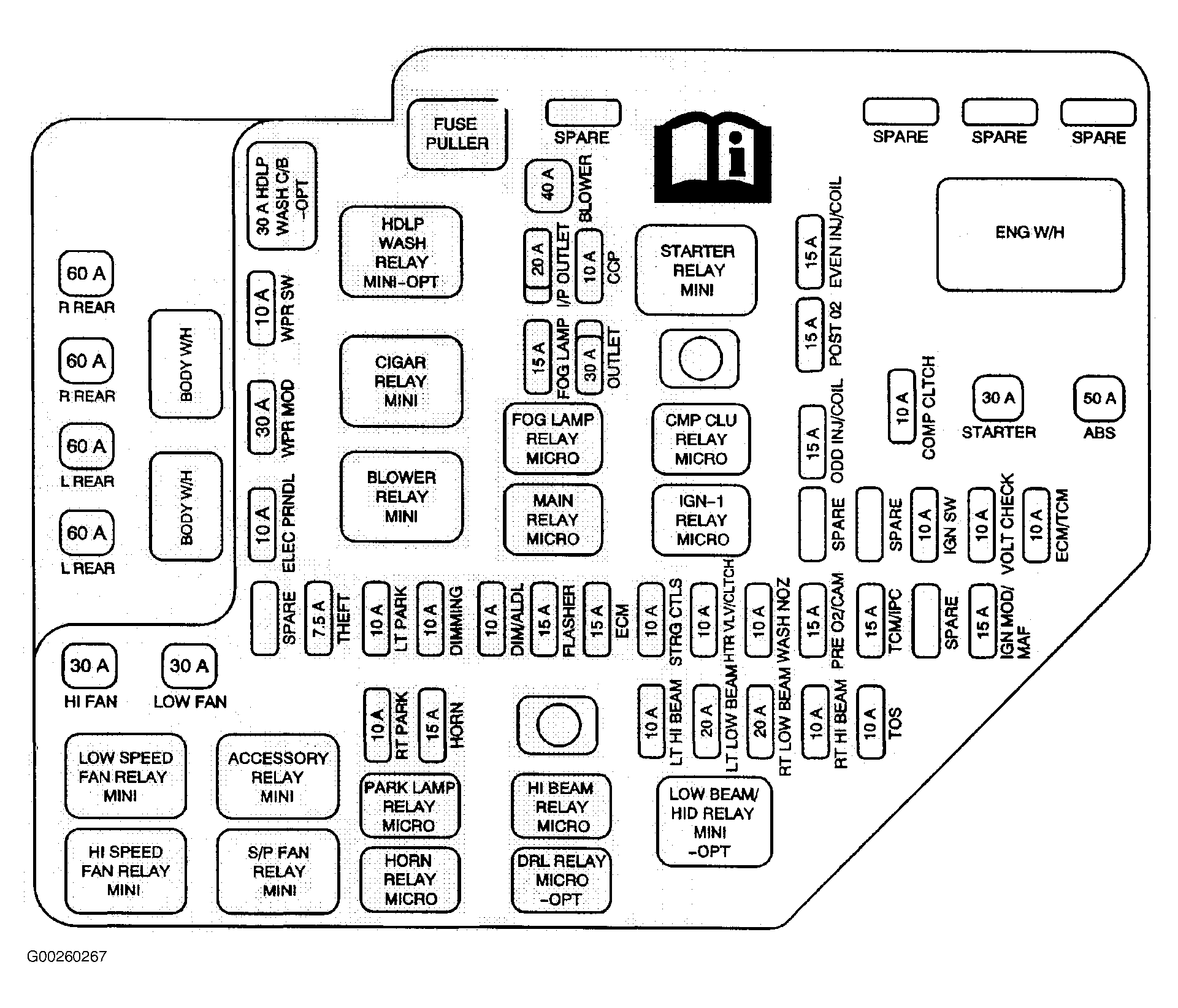

Fig 51: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

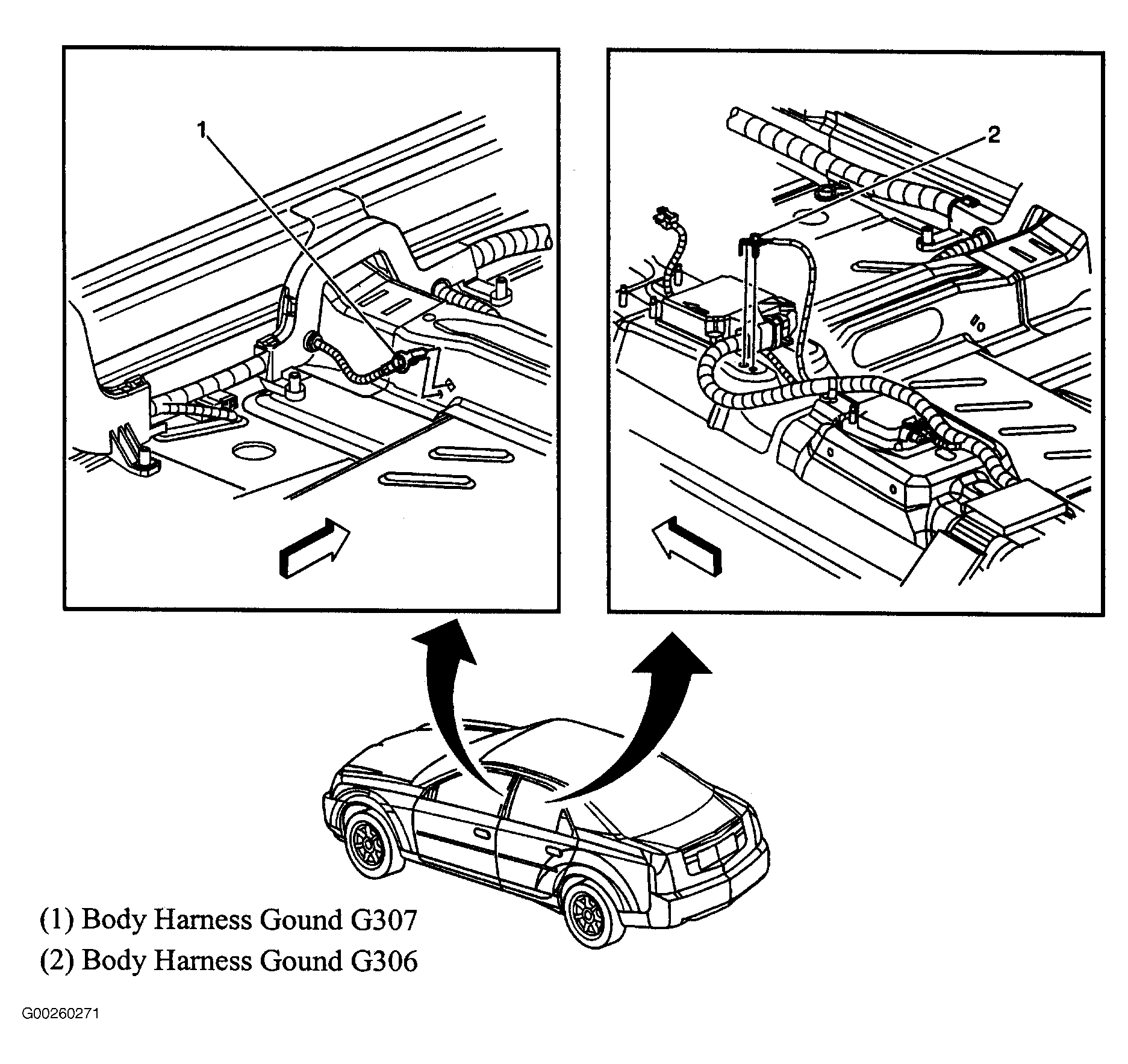

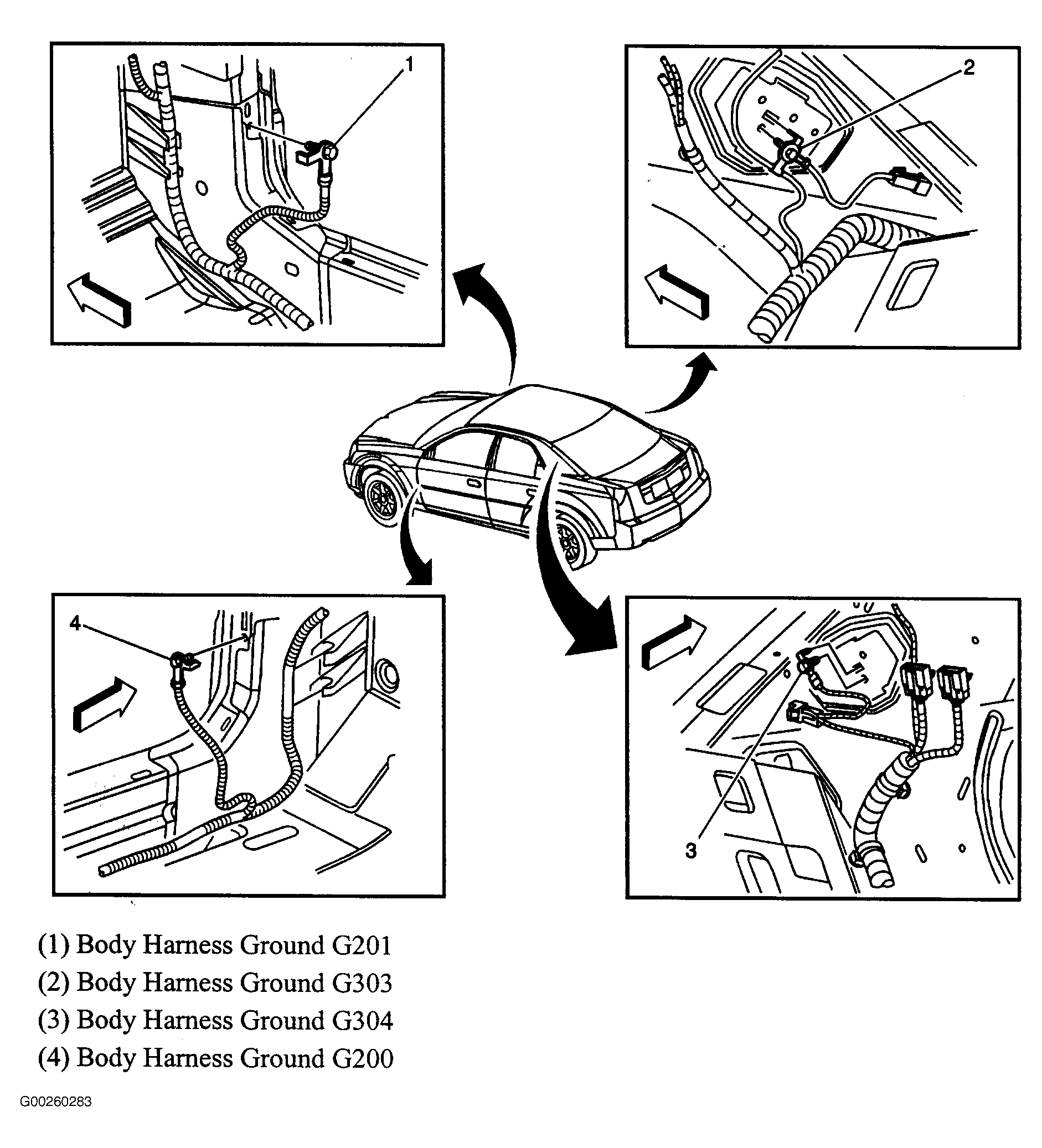

Fig 52: Passenger Compartment Grounds
Courtesy of GENERAL MOTORS CORP.

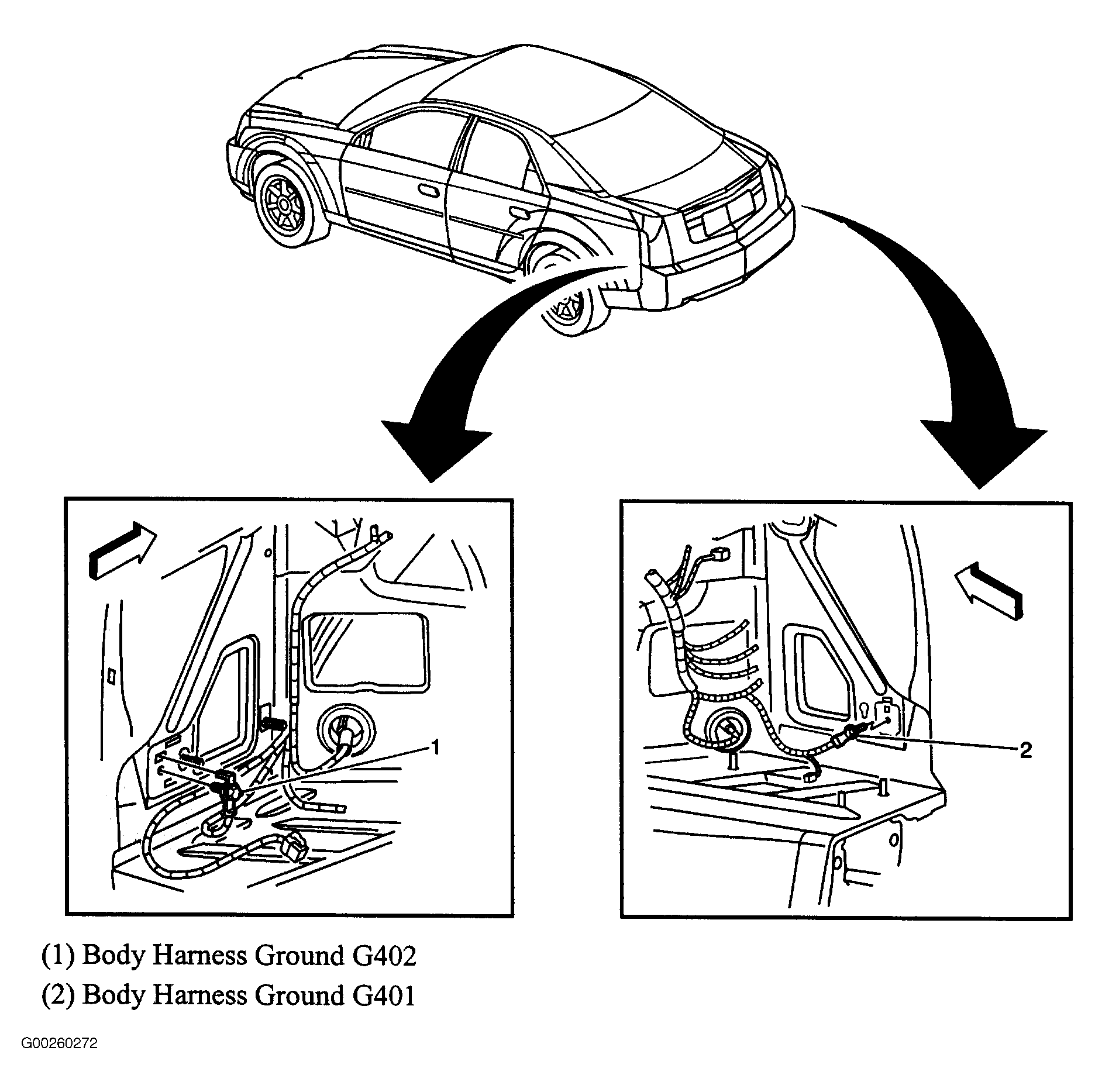

Fig 53: Rear Compartment Grounds
Courtesy of GENERAL MOTORS CORP.

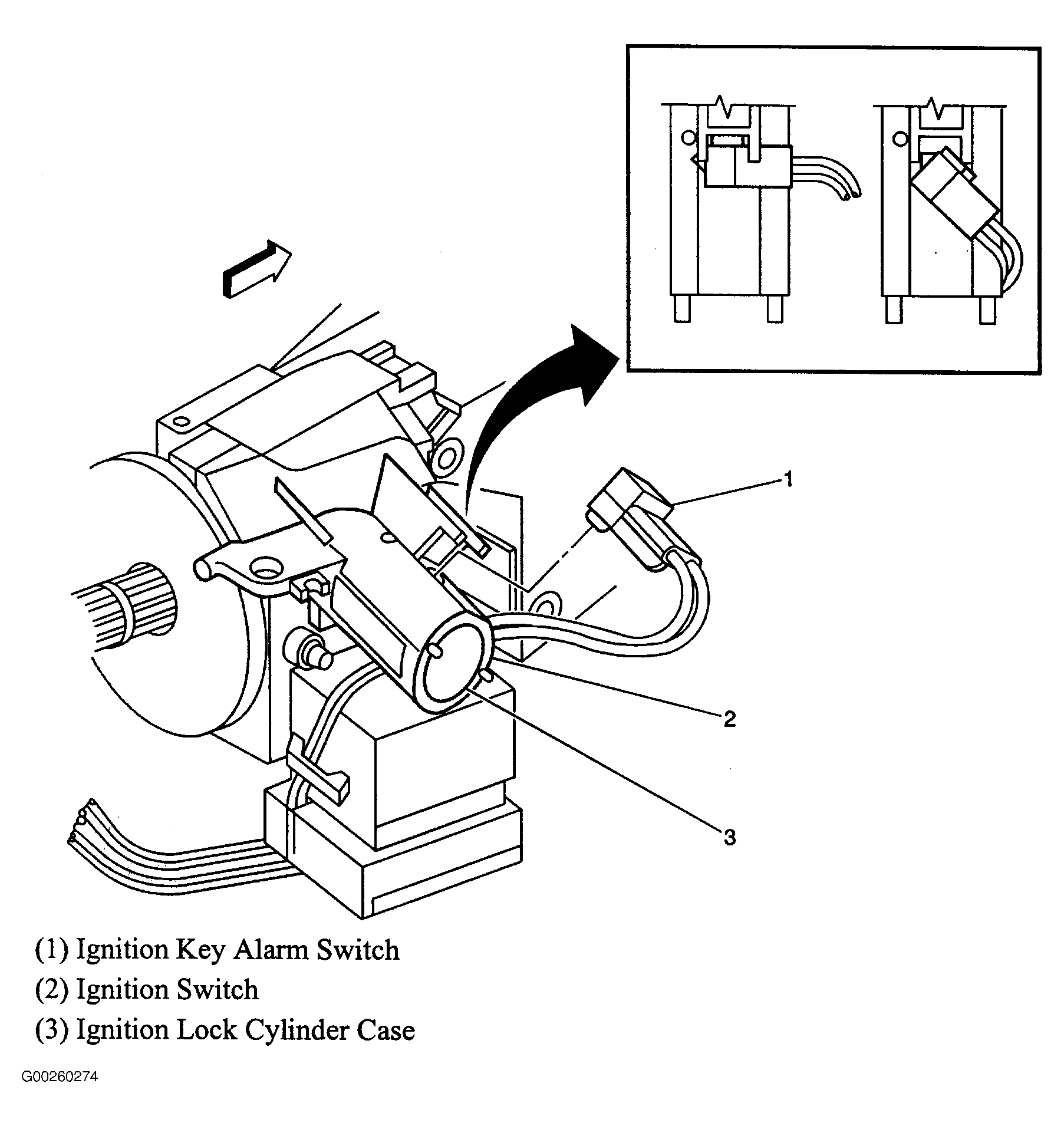

Fig 54: Ignition Switch
Courtesy of GENERAL MOTORS CORP.

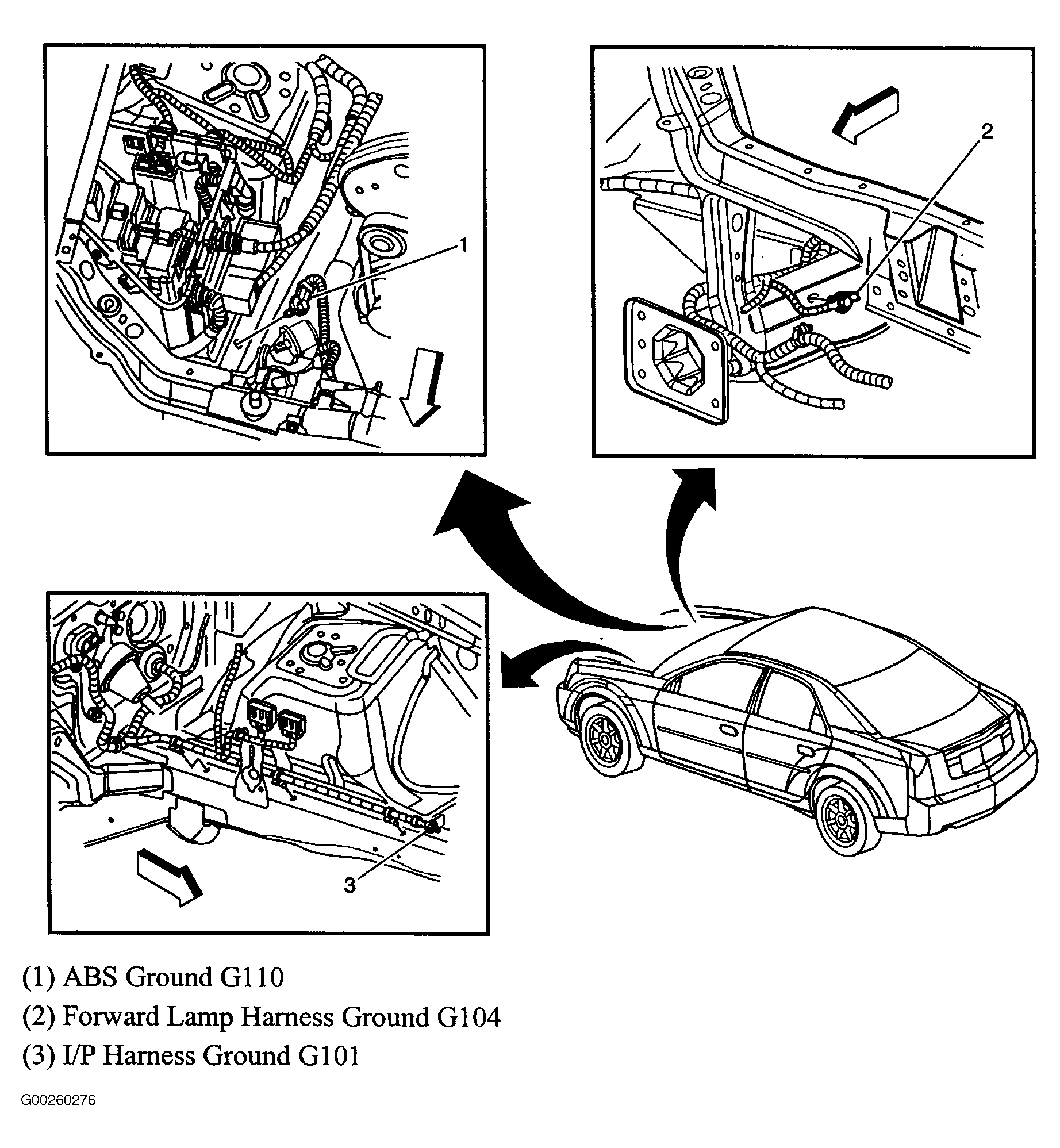

Fig 55: Forward Lamp, Dash & ABS Ground
Courtesy of GENERAL MOTORS CORP.

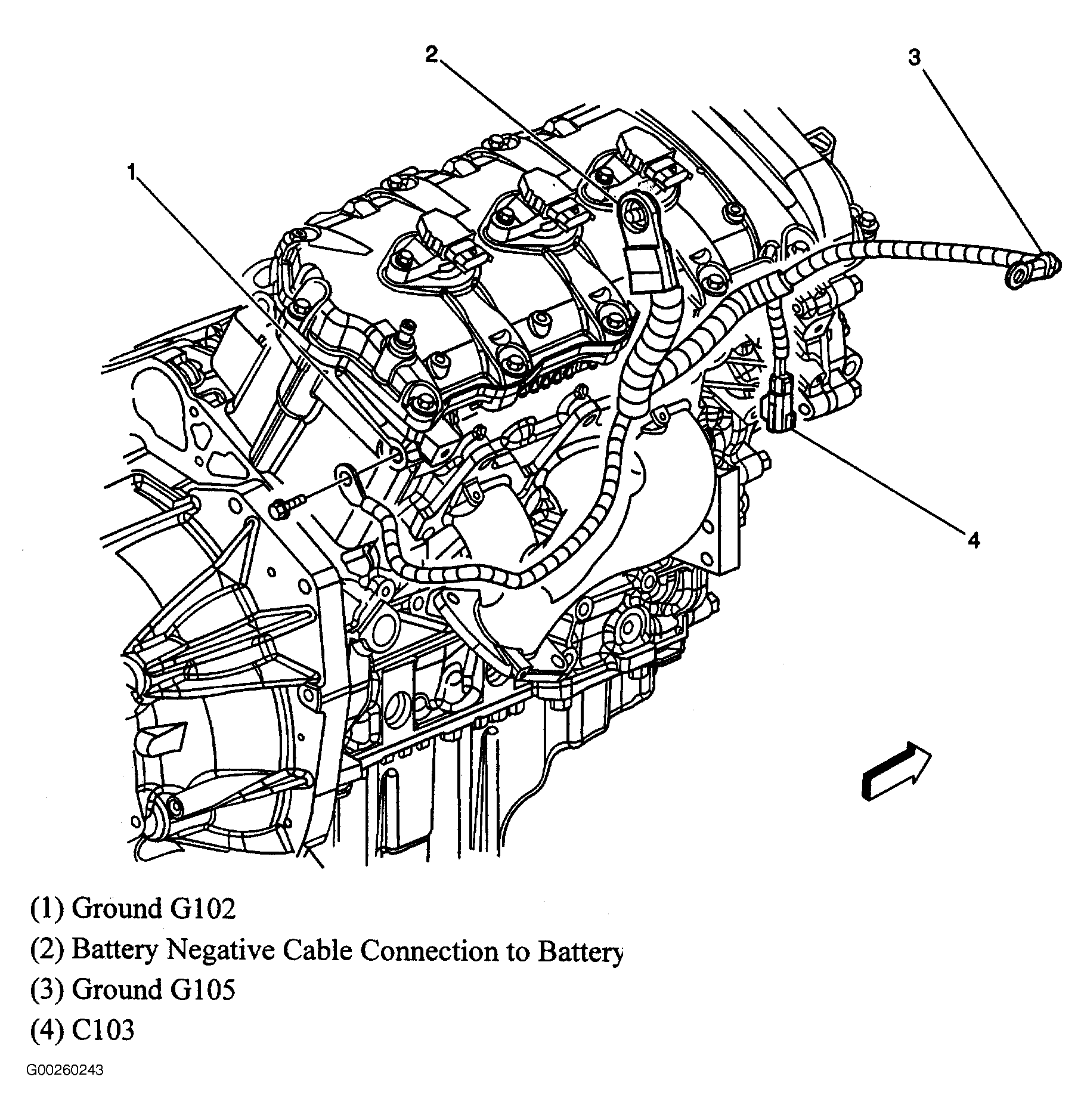

Fig 56: Engine Grounds (3.2L)
Courtesy of GENERAL MOTORS CORP.

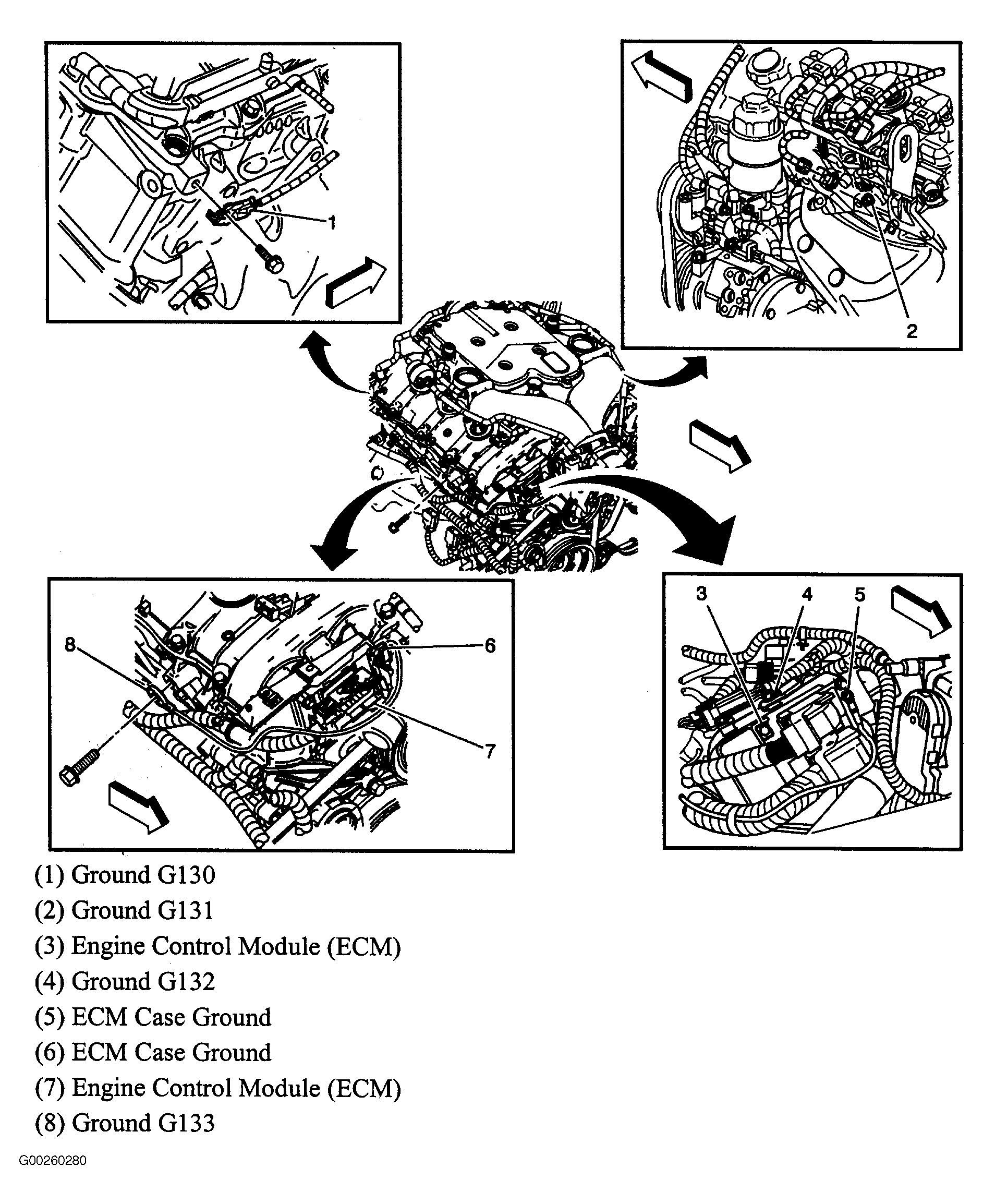

Fig 57: Engine Grounds (3.6L)
Courtesy of GENERAL MOTORS CORP.

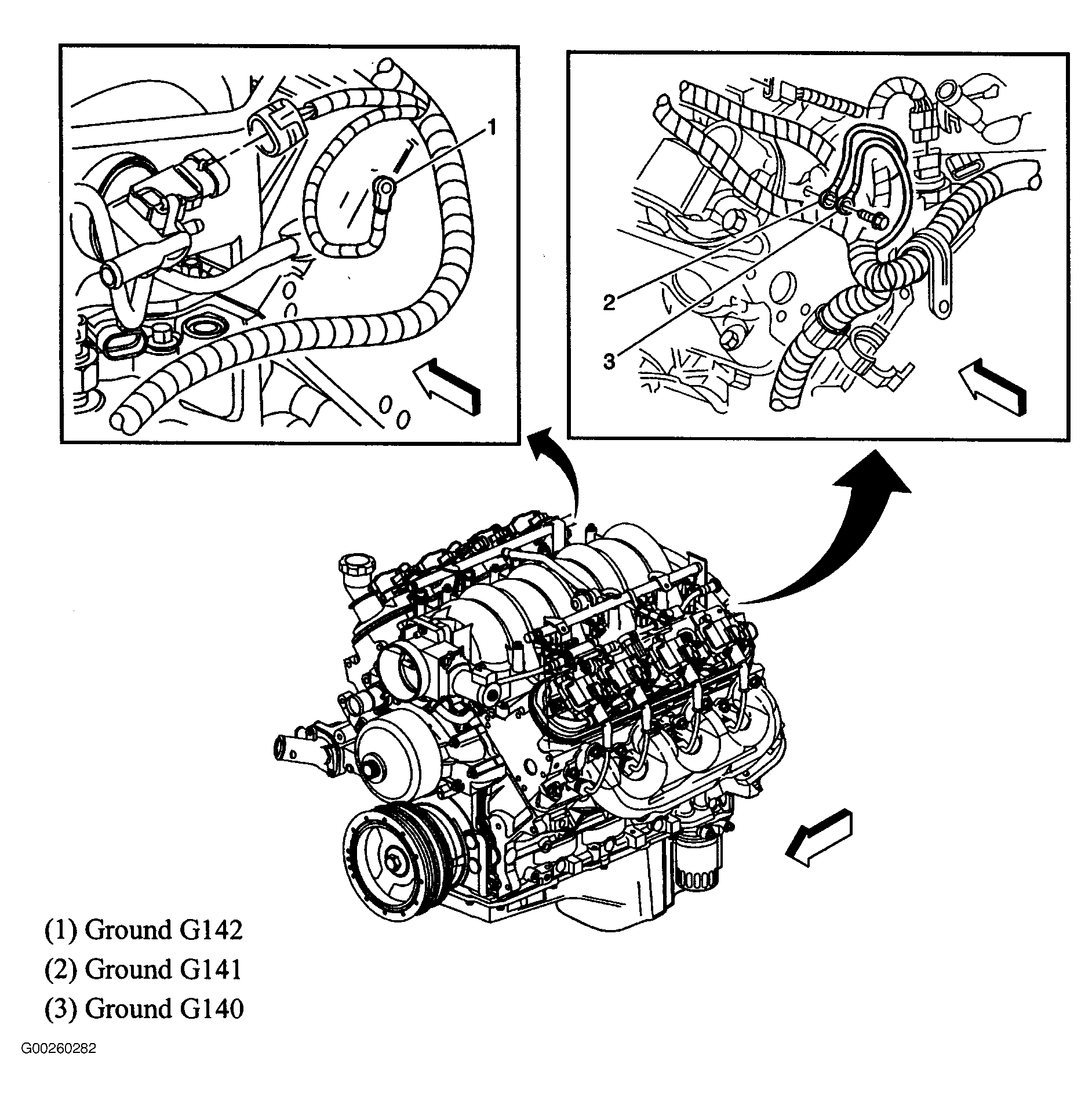

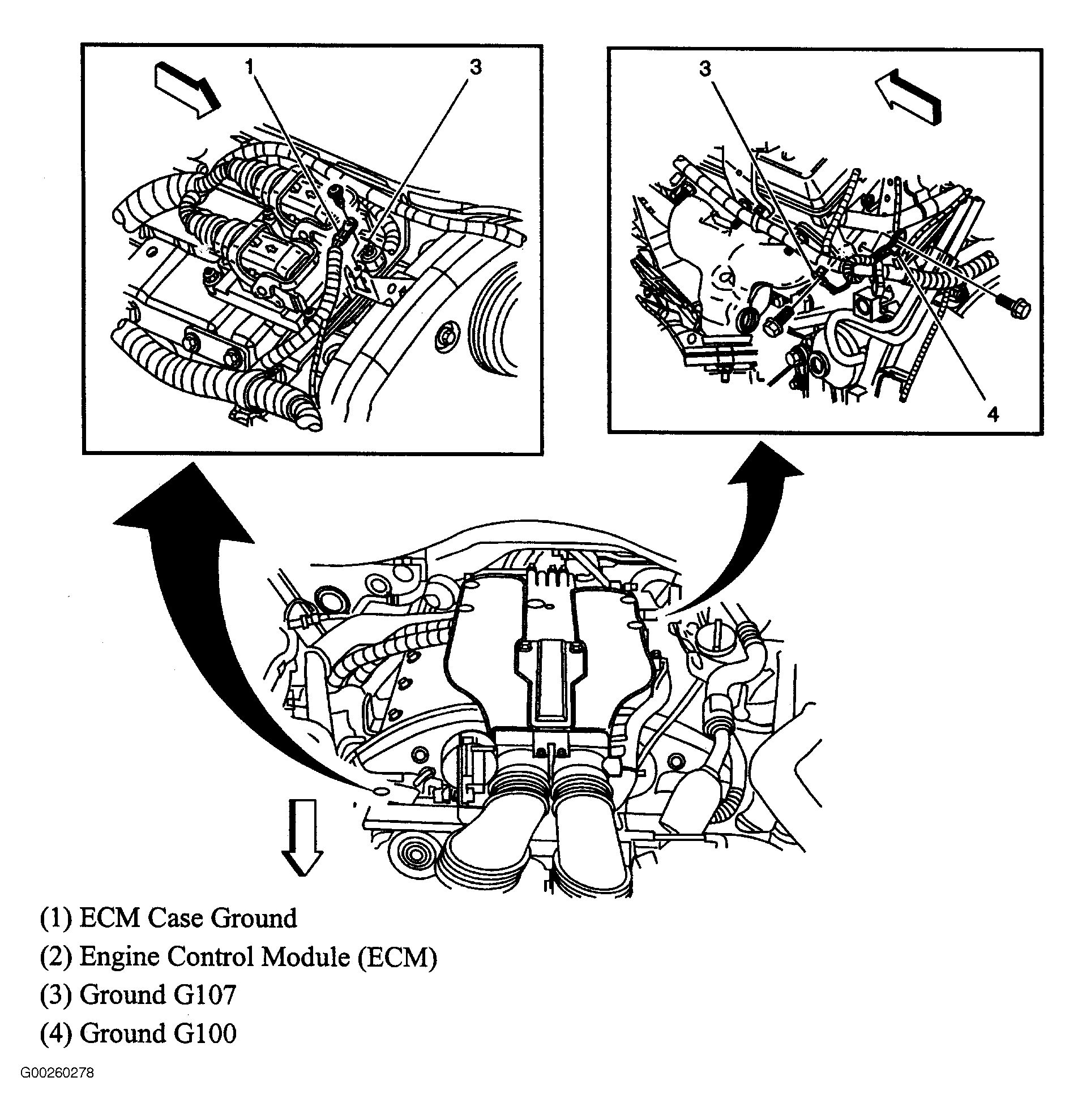

Fig 58: Engine Grounds (5.7L)
Courtesy of GENERAL MOTORS CORP.
Fig 59: Passenger Compartment Grounds
Courtesy of GENERAL MOTORS CORP.

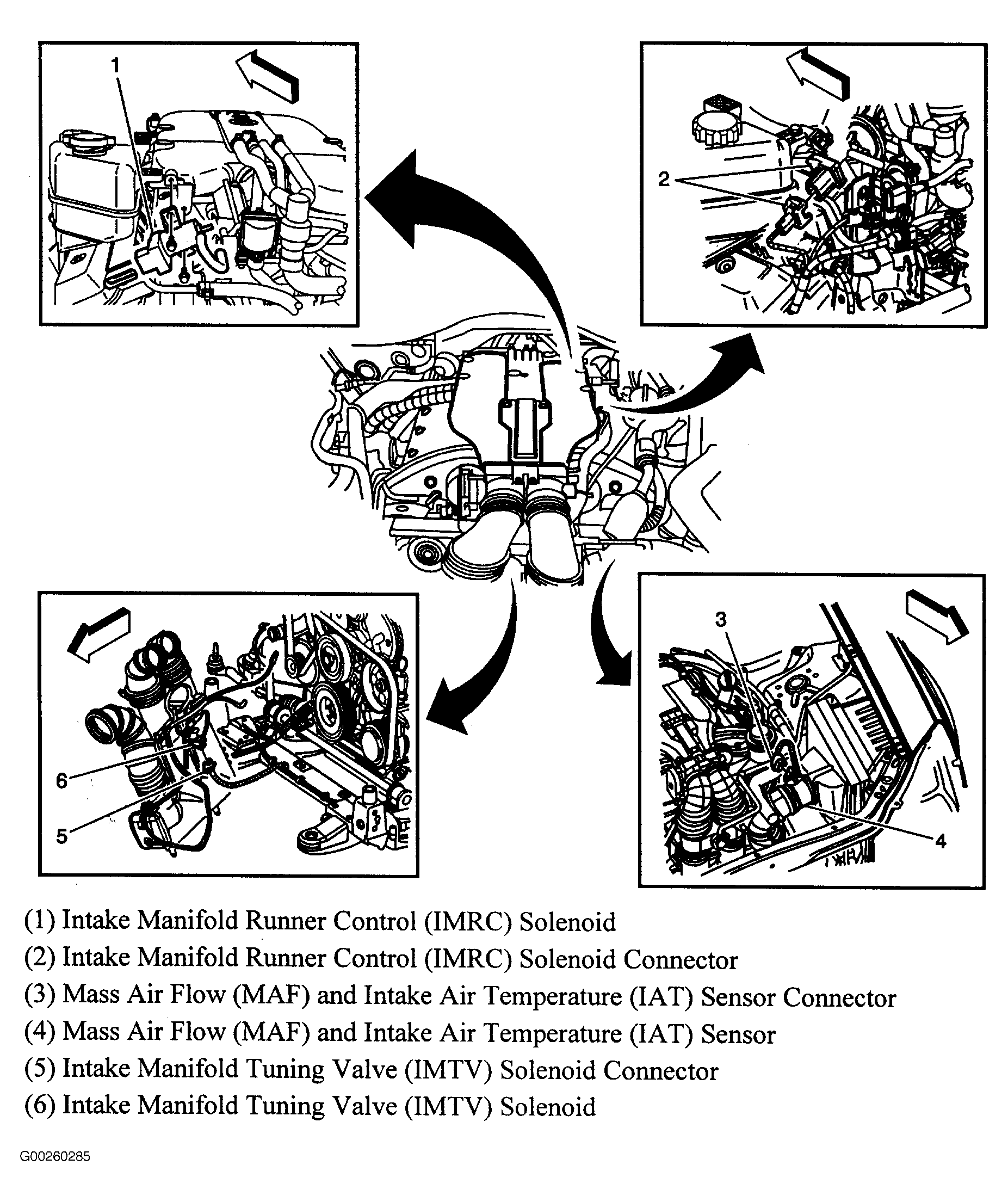

Fig 60: IMRC & IMTV Solenoids (3.2L)
Courtesy of GENERAL MOTORS CORP.

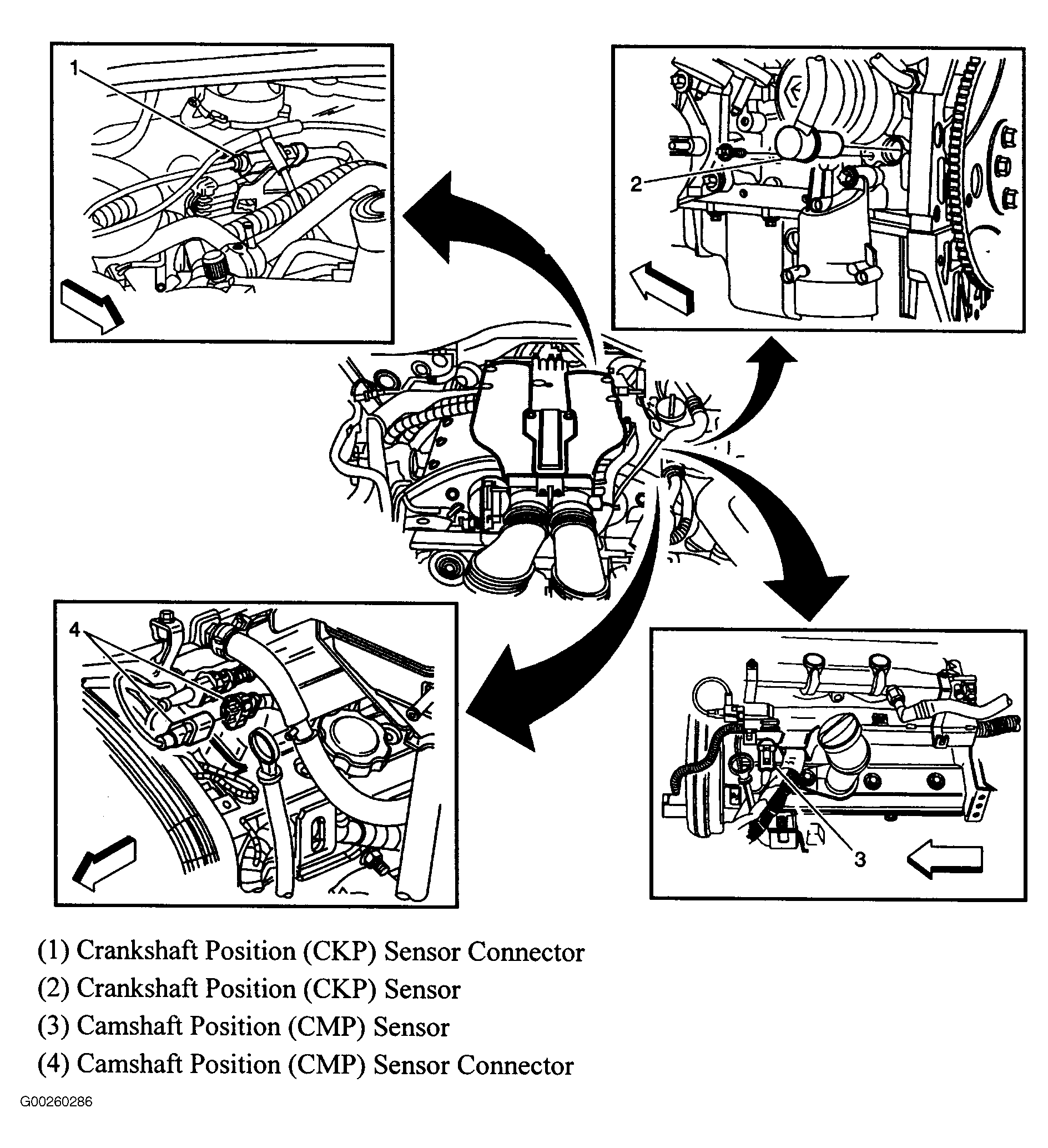

Fig 61: Crankshaft Position (CKP) & Camshaft Position (CMP) Sensors (3.2L)
Courtesy of GENERAL MOTORS CORP.

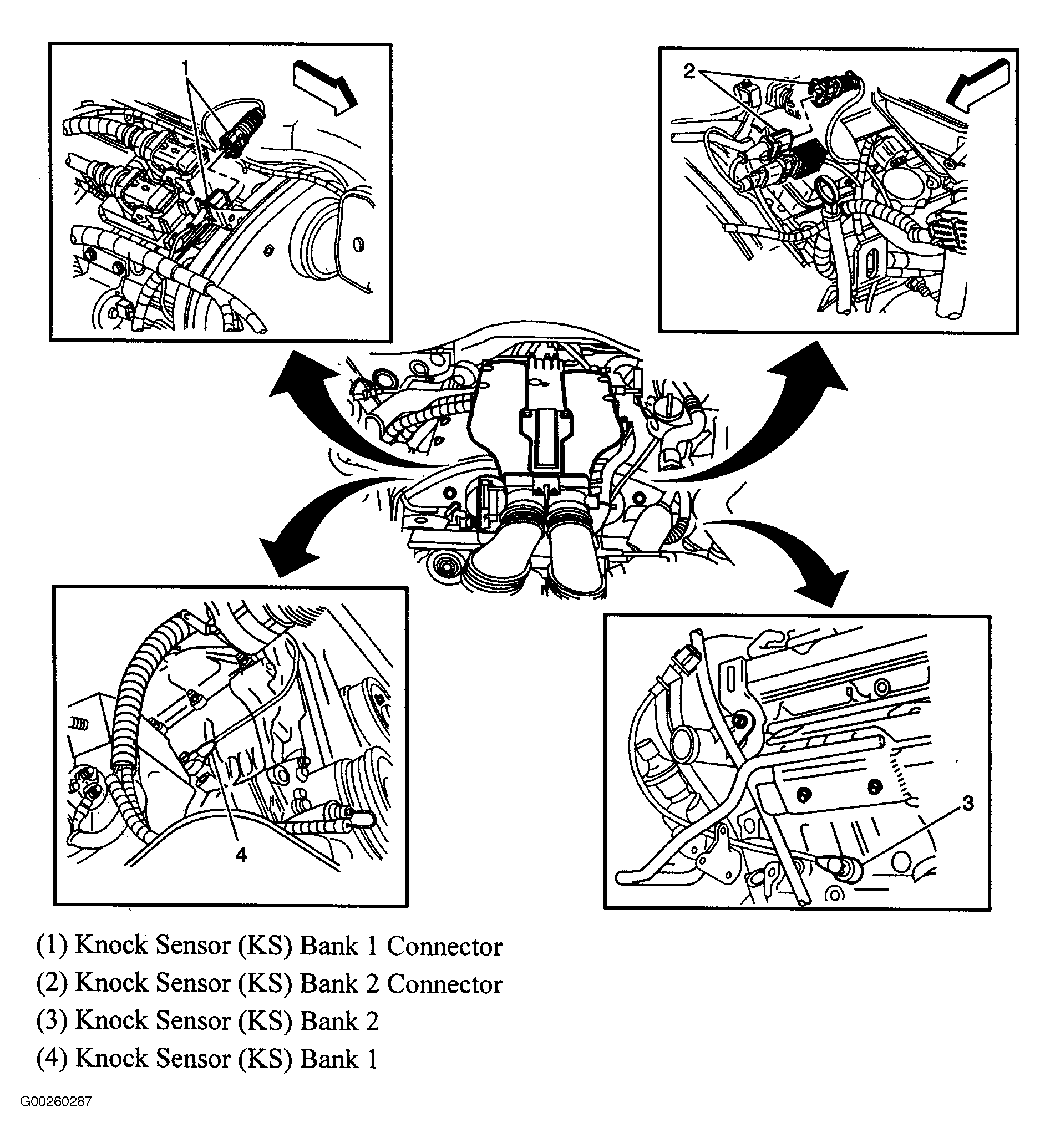

Fig 62: Knock Sensors (3.2L)
Courtesy of GENERAL MOTORS CORP.

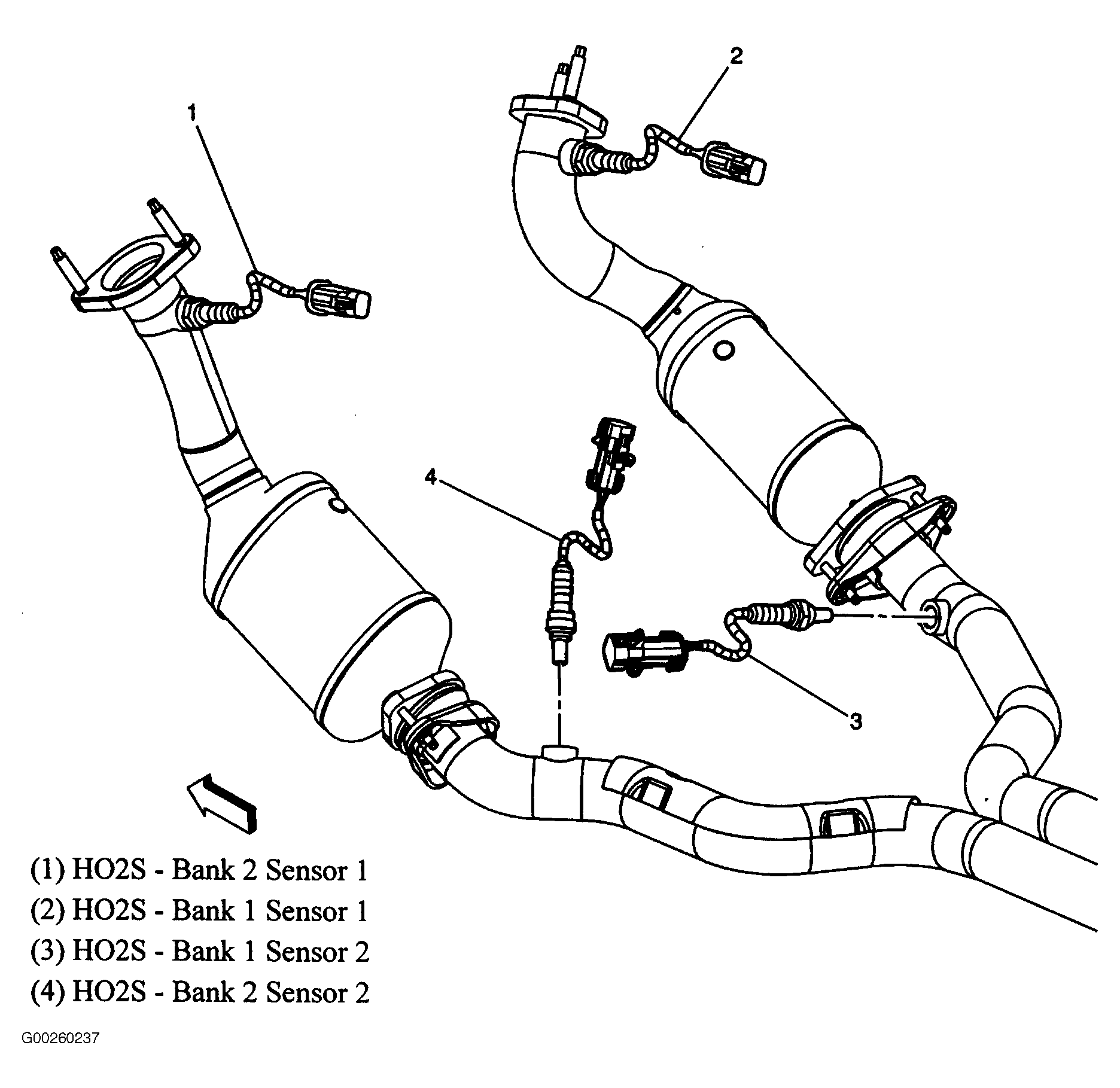

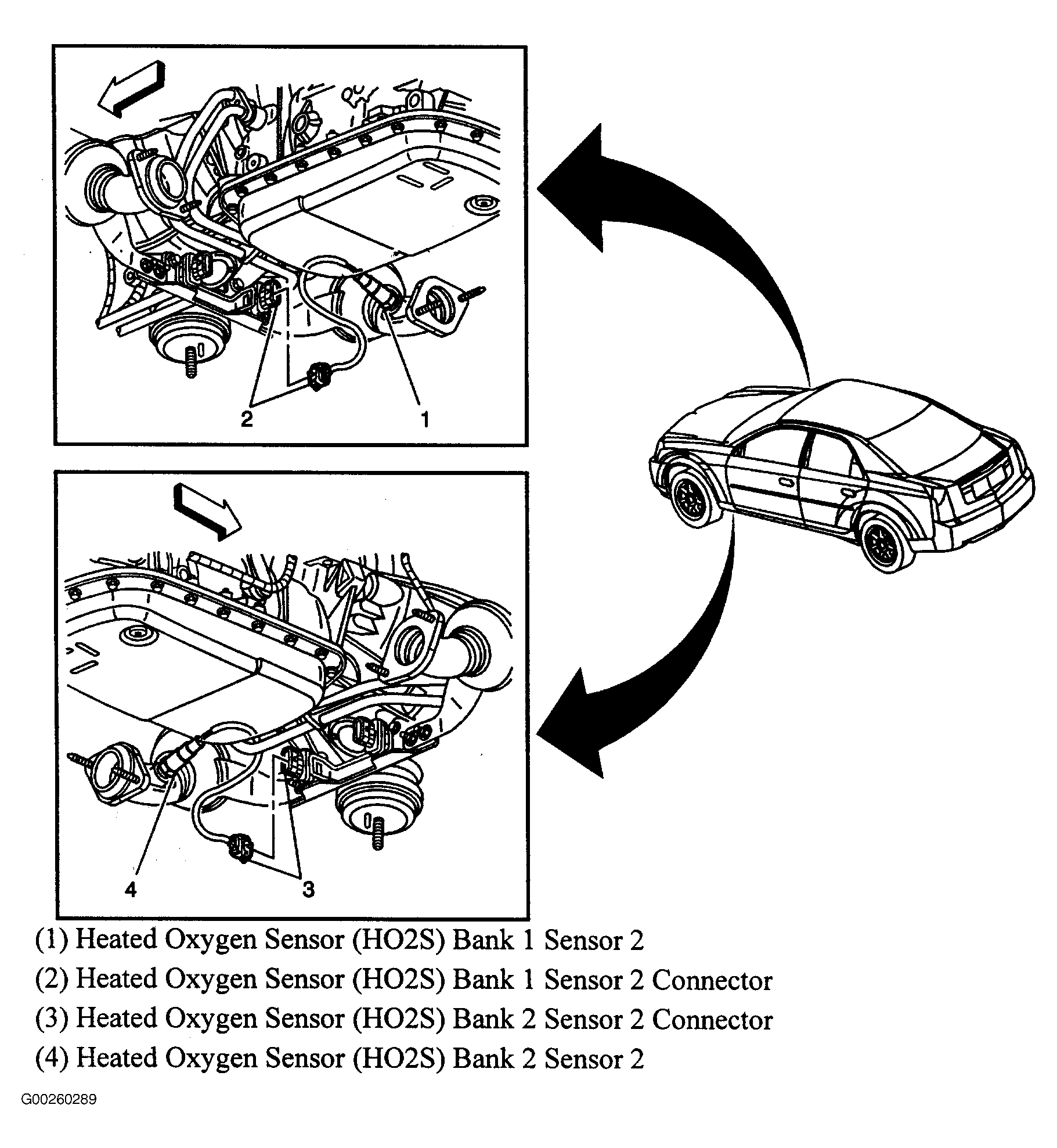

Fig 63: Heated Oxygen (HO2S) Sensors (3.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Heated Oxygen (HO2S) Sensors (3.2L)
Courtesy of GENERAL MOTORS CORP.

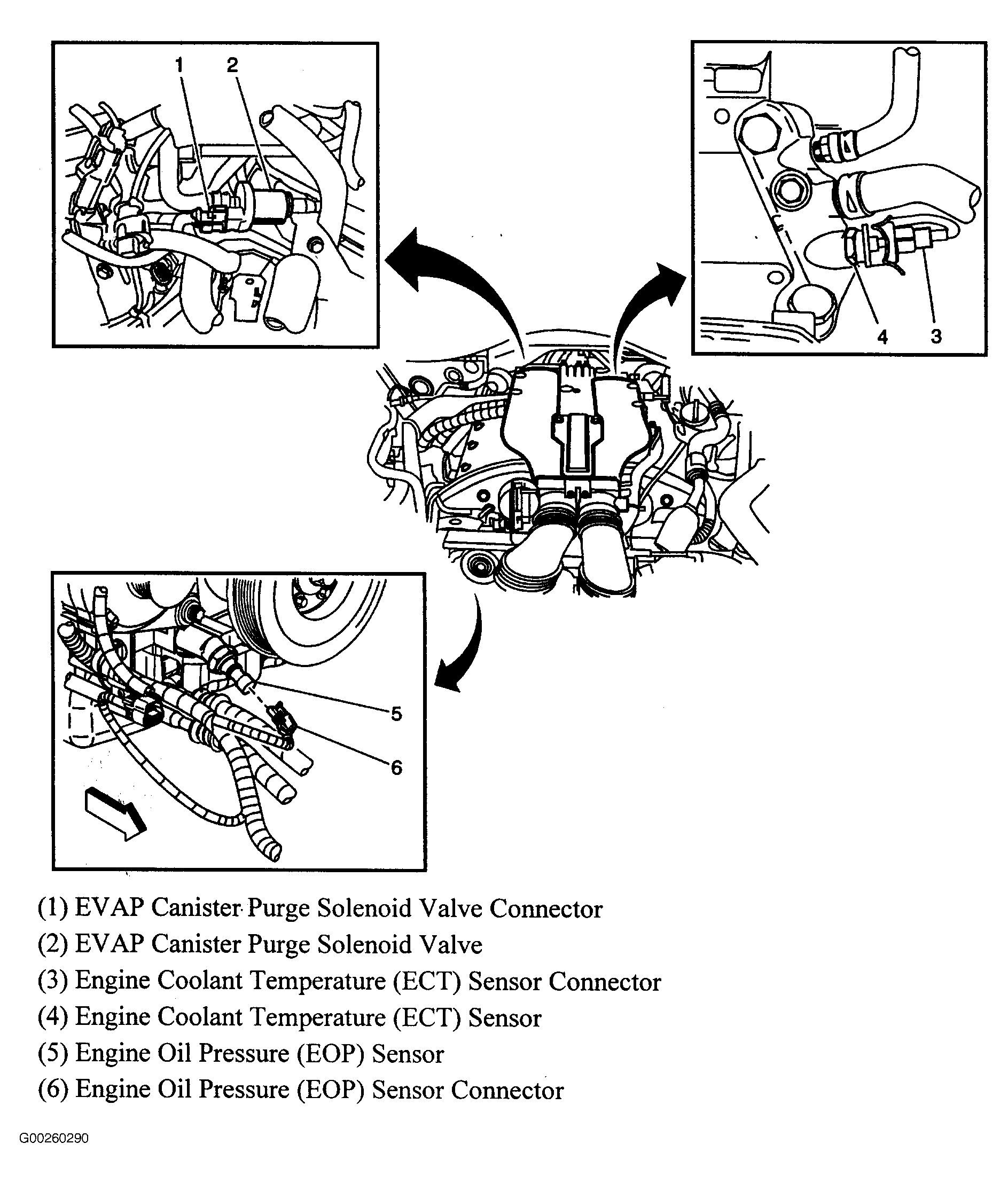

Fig 65: EVAP Canister Purge Solenoid Valve, ECT & EOP Sensors (3.2L)
Courtesy of GENERAL MOTORS CORP.

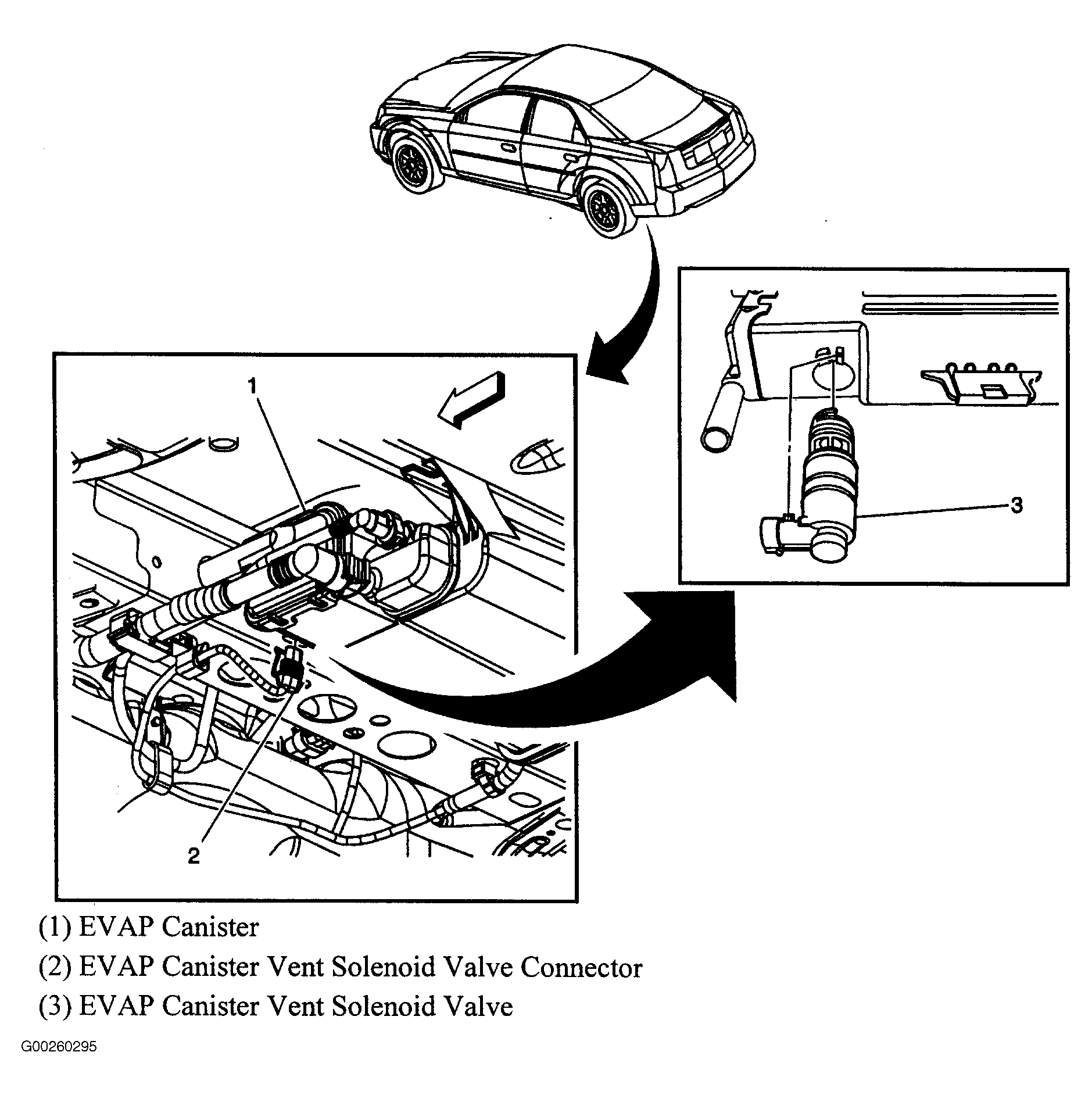

Fig 66: EVAP Canister Vent Solenoid
Courtesy of GENERAL MOTORS CORP.

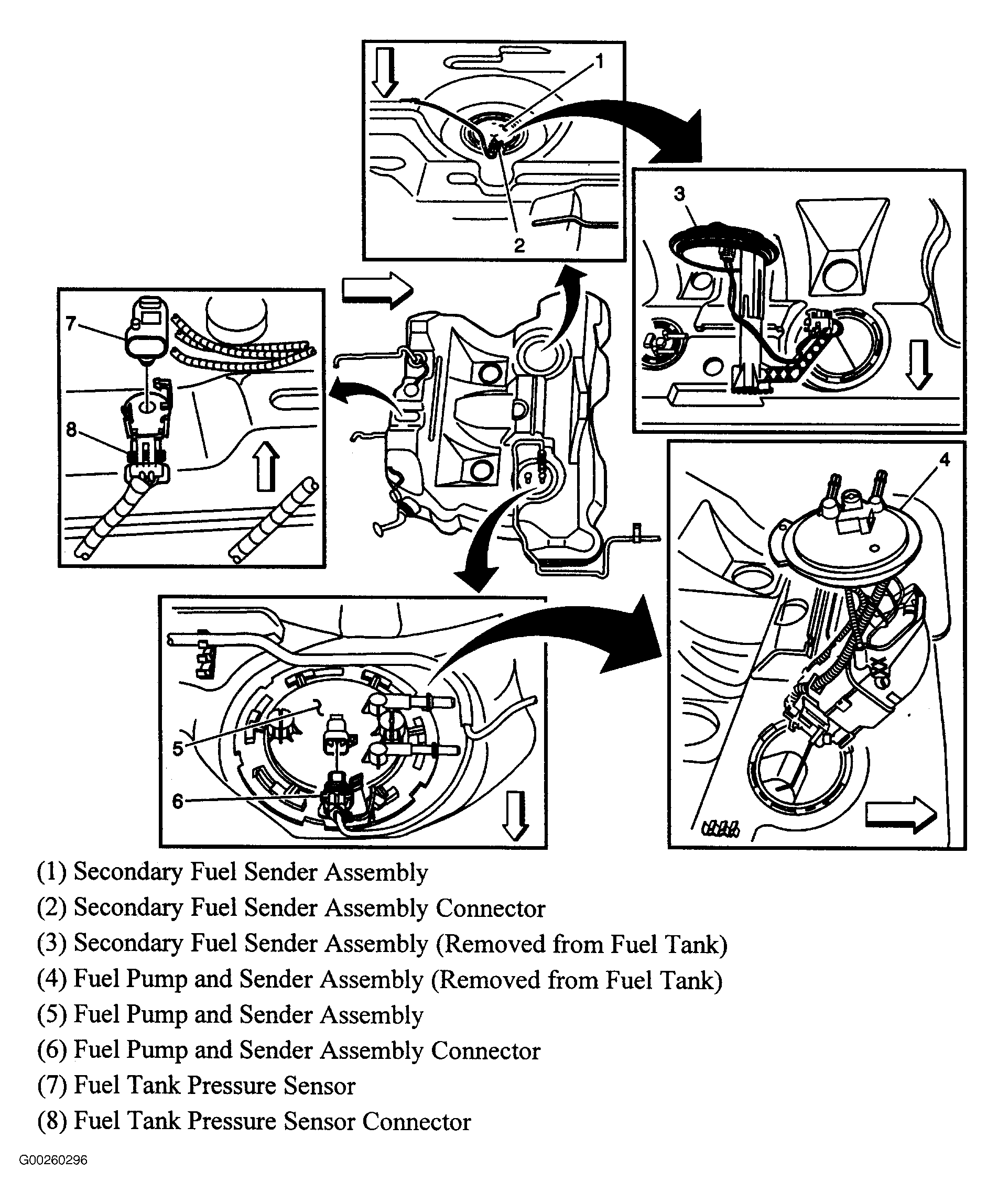

Fig 67: Fuel Tank Components
Courtesy of GENERAL MOTORS CORP.

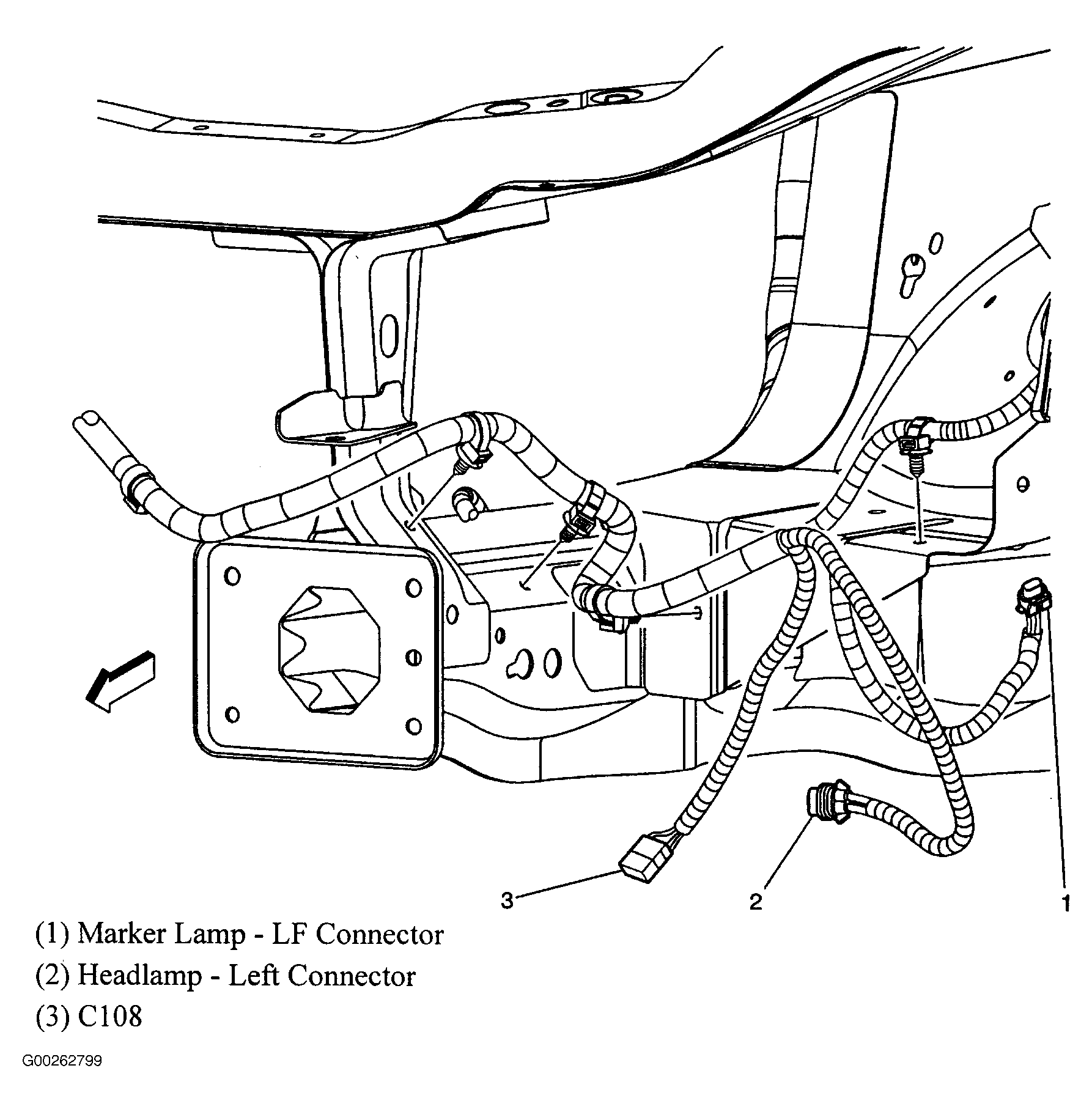

Fig 68: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

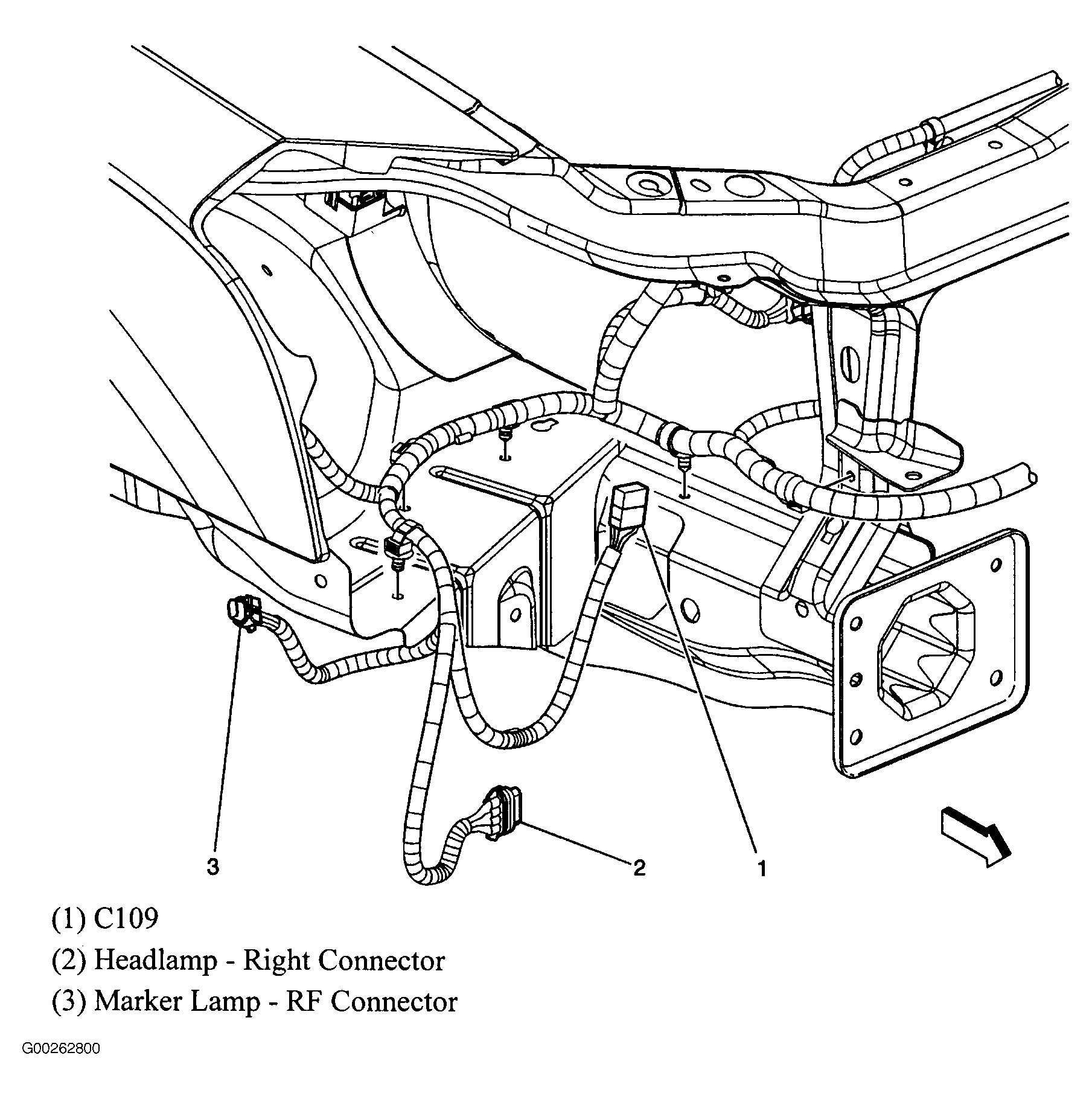

Fig 69: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

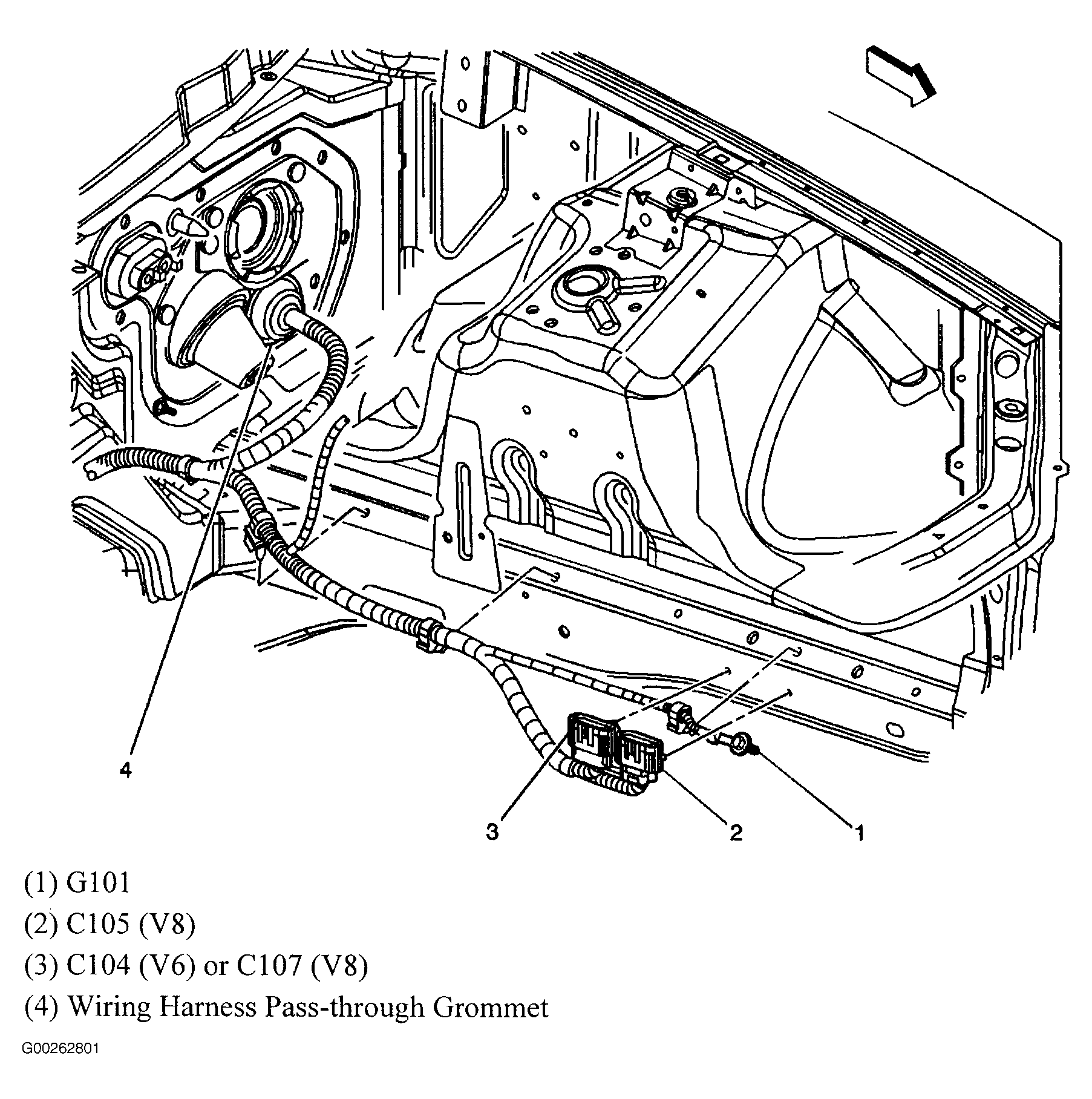

Fig 70: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Dash Harness
Courtesy of GENERAL MOTORS CORP.

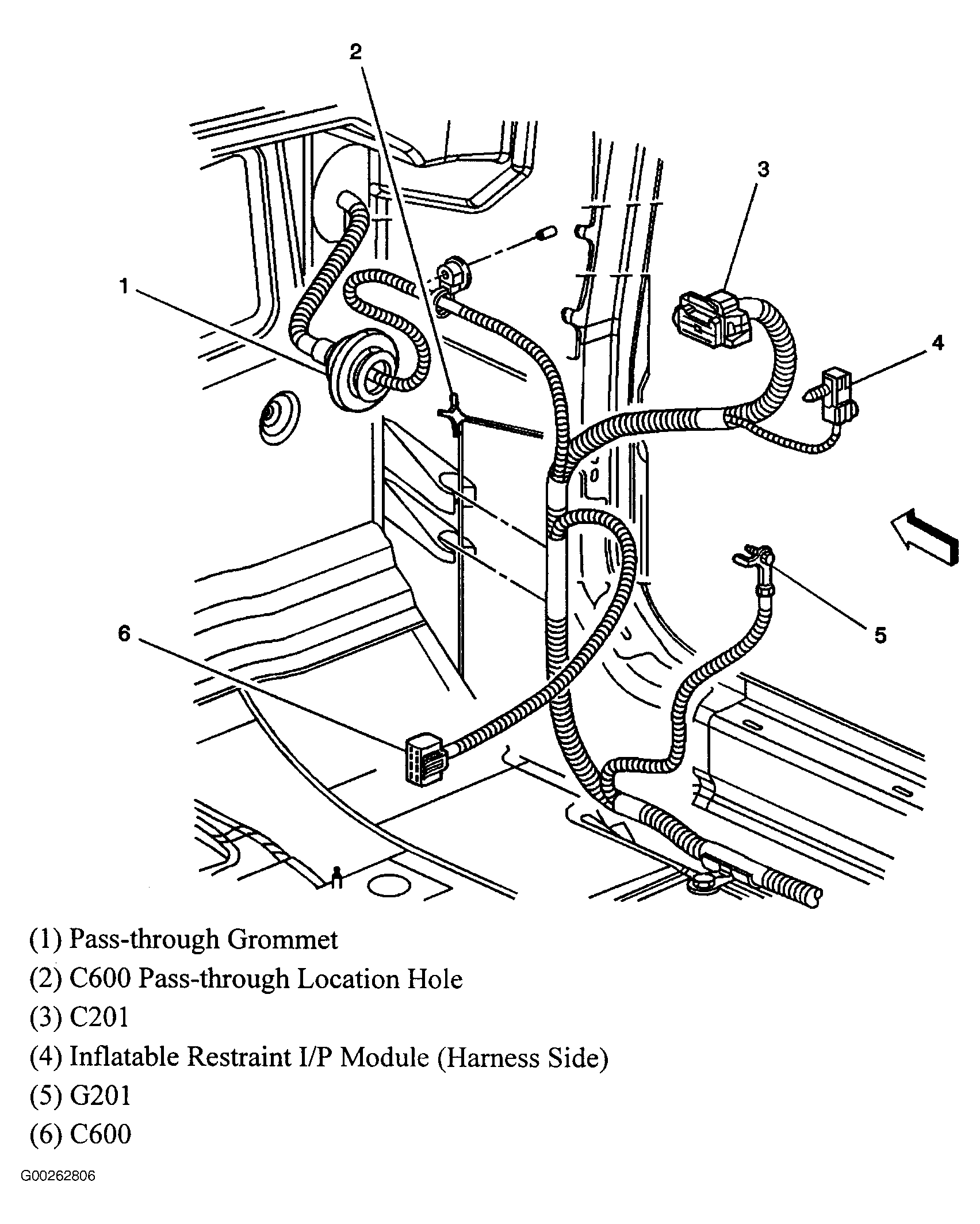

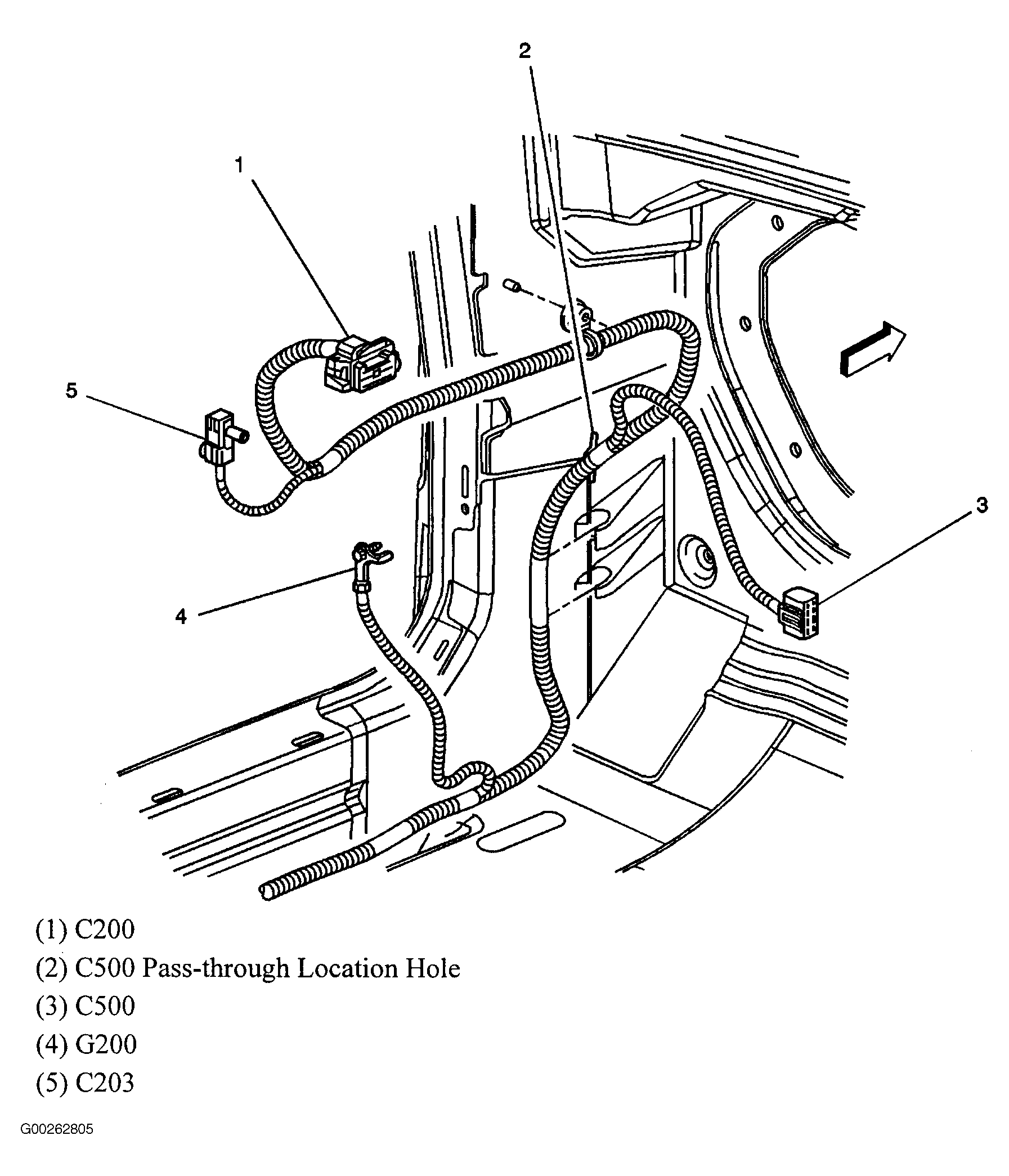

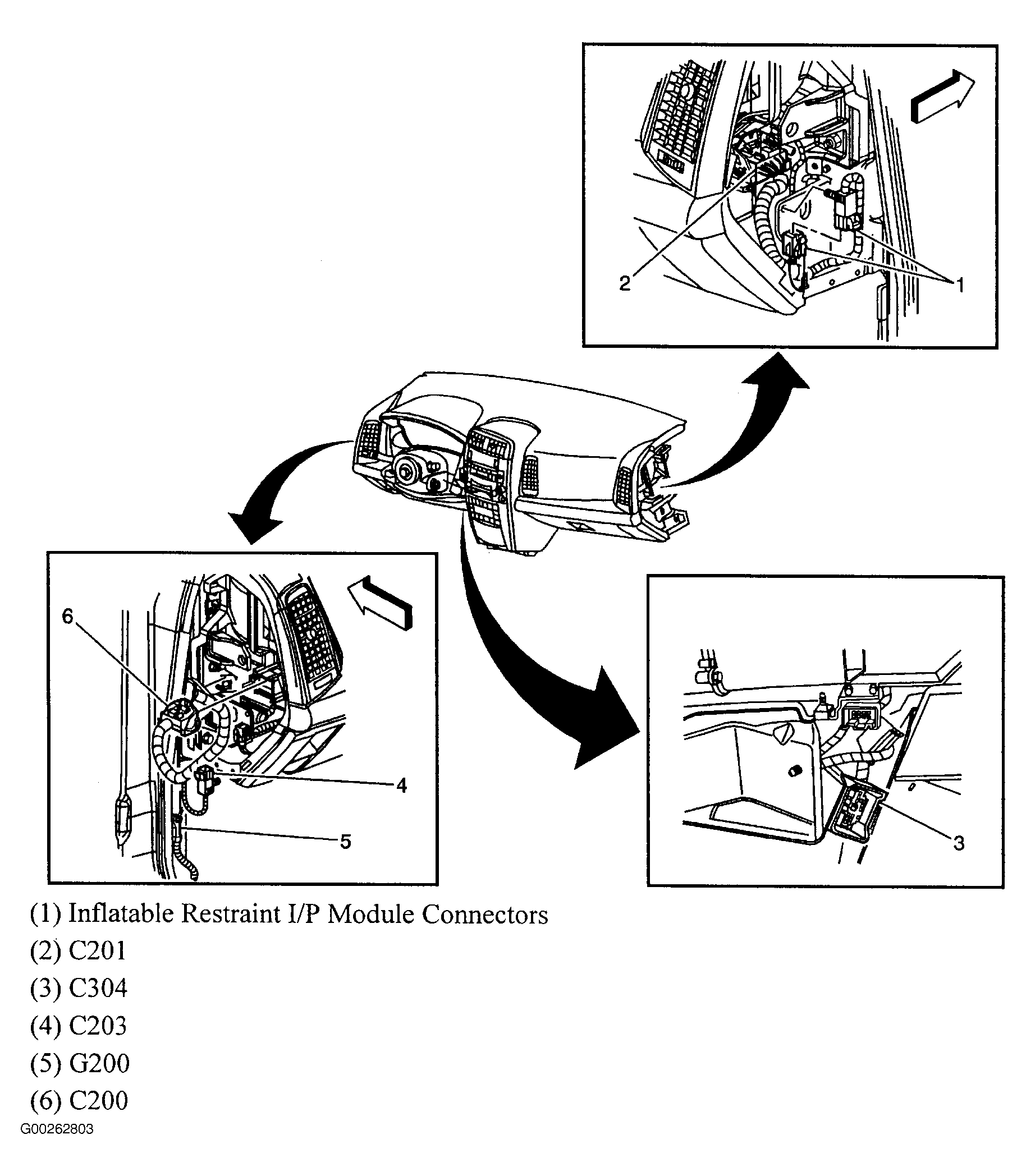

Fig 72: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 73: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 74: Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 75: Body Harness
Courtesy of GENERAL MOTORS CORP.

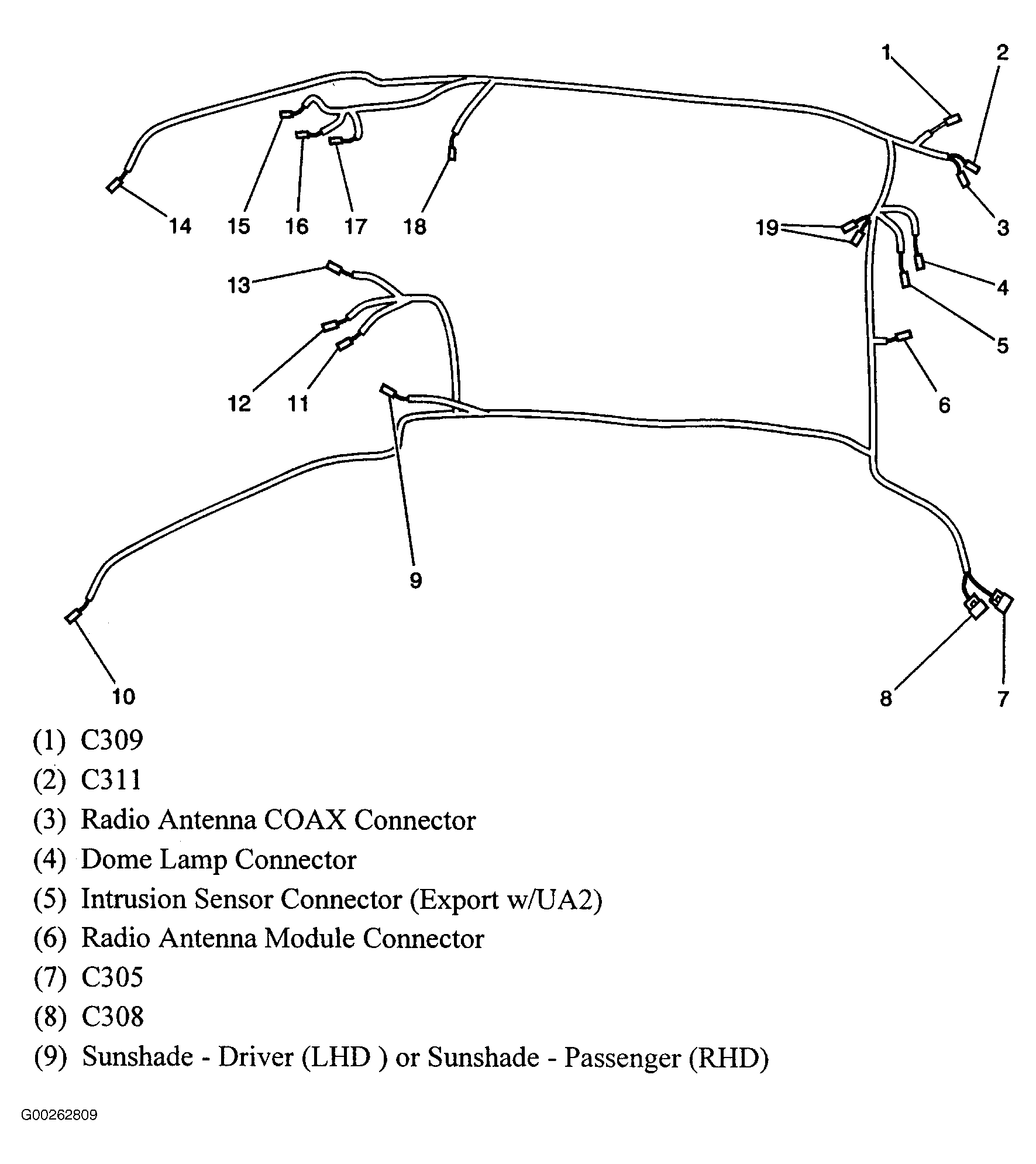

Fig 76: Headliner Harness
Courtesy of GENERAL MOTORS CORP.

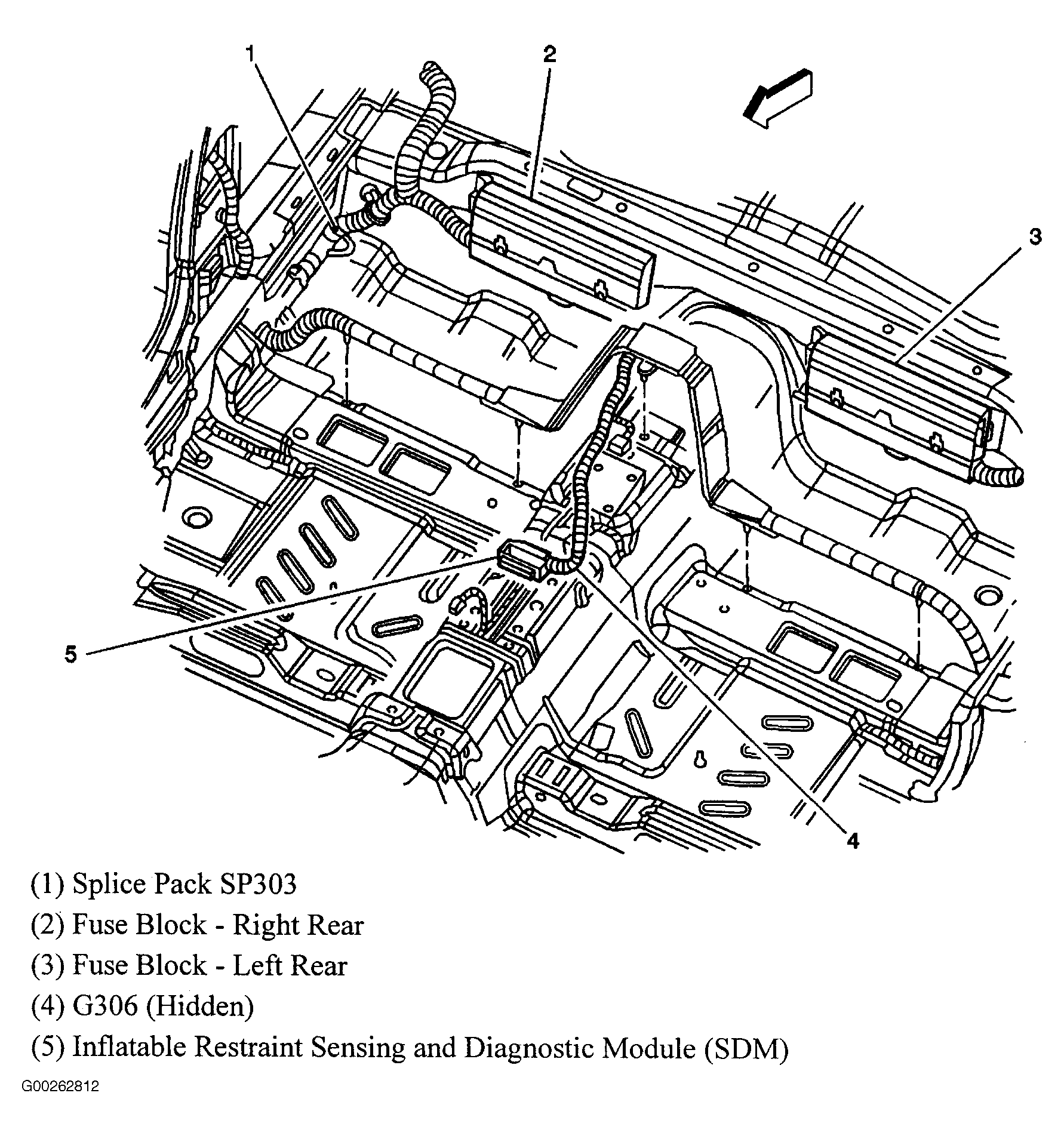

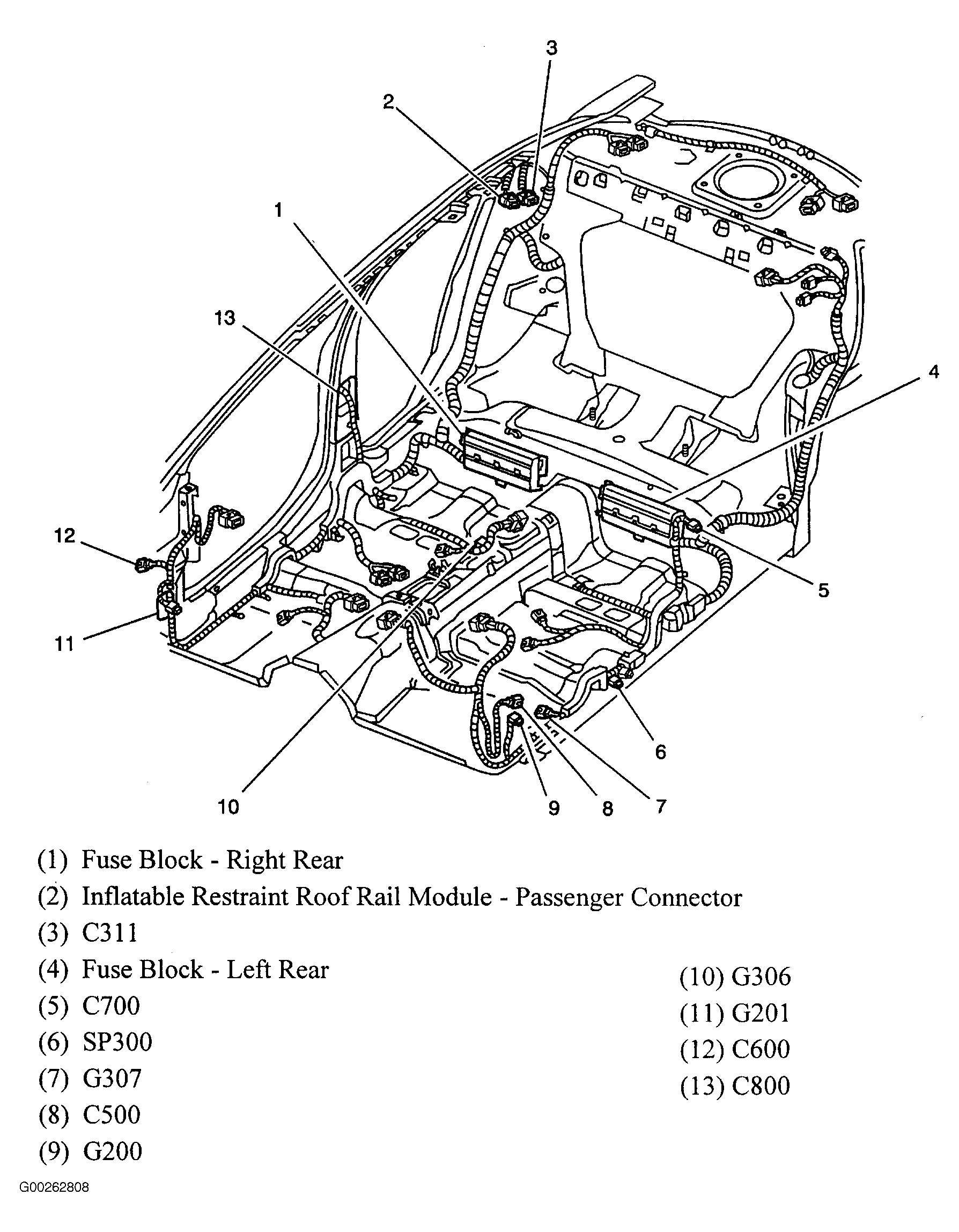

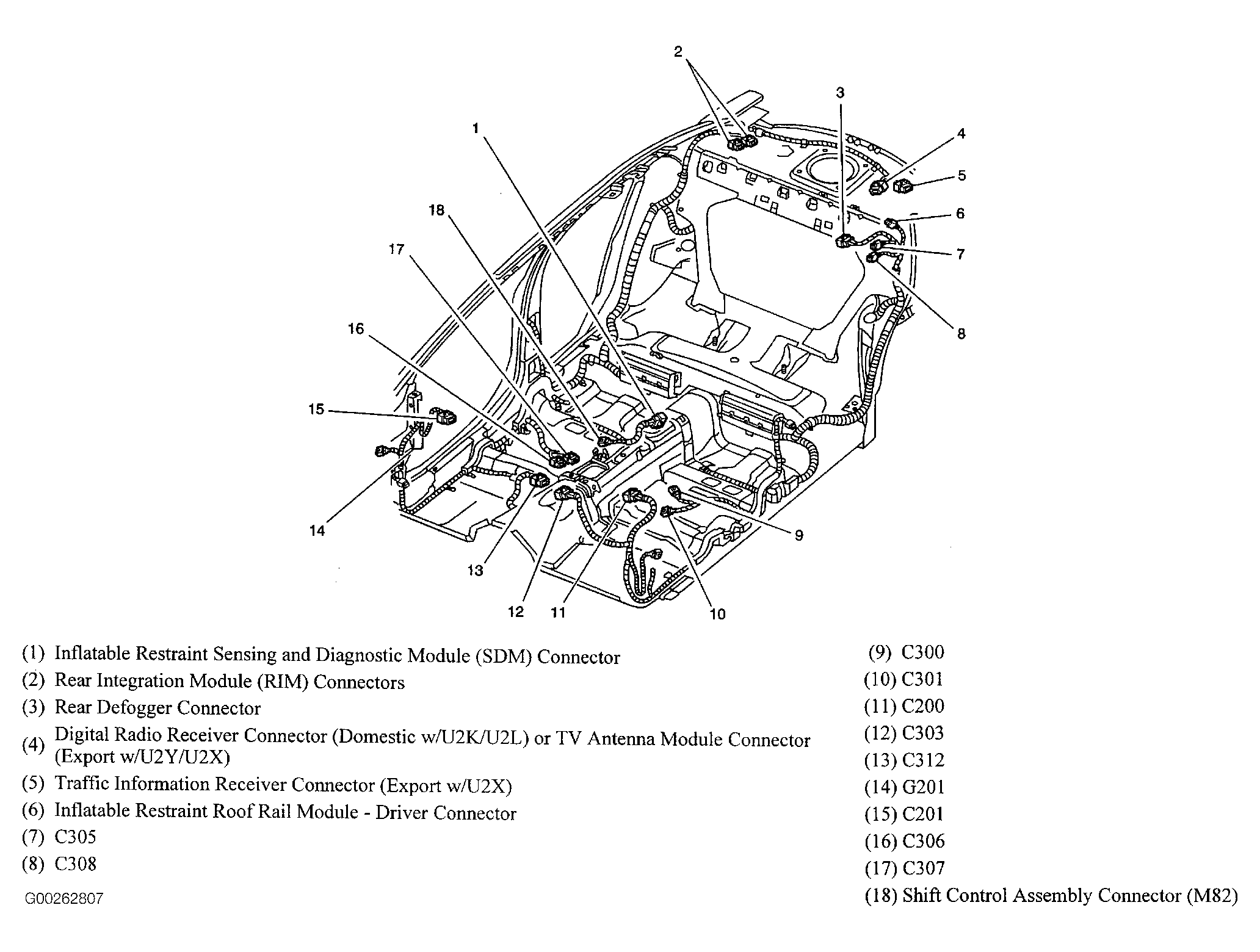

Fig 77: Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.

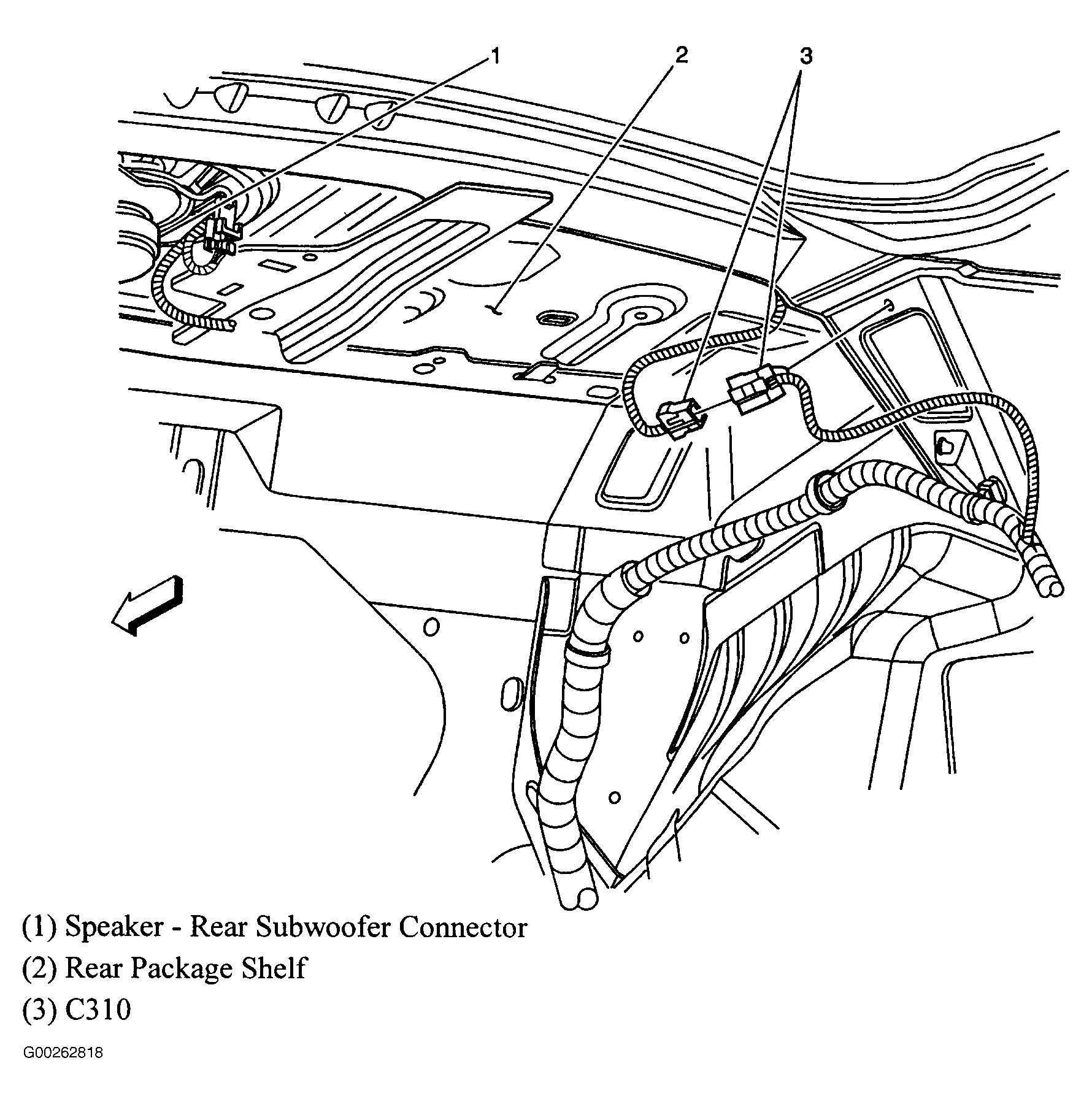

Fig 78: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 79: Below Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

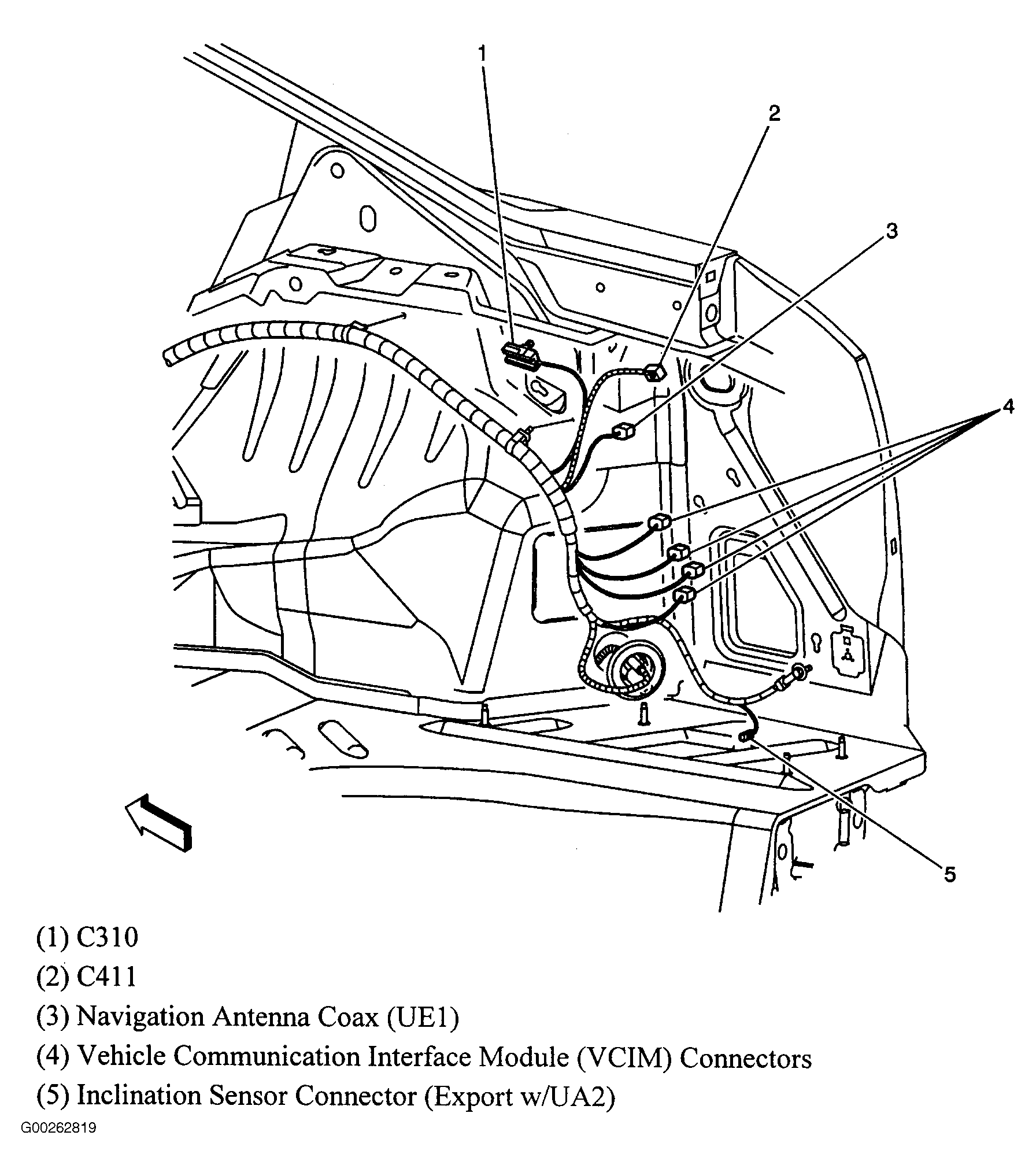

Fig 80: Right Side Of Trunk
Courtesy of GENERAL MOTORS CORP.

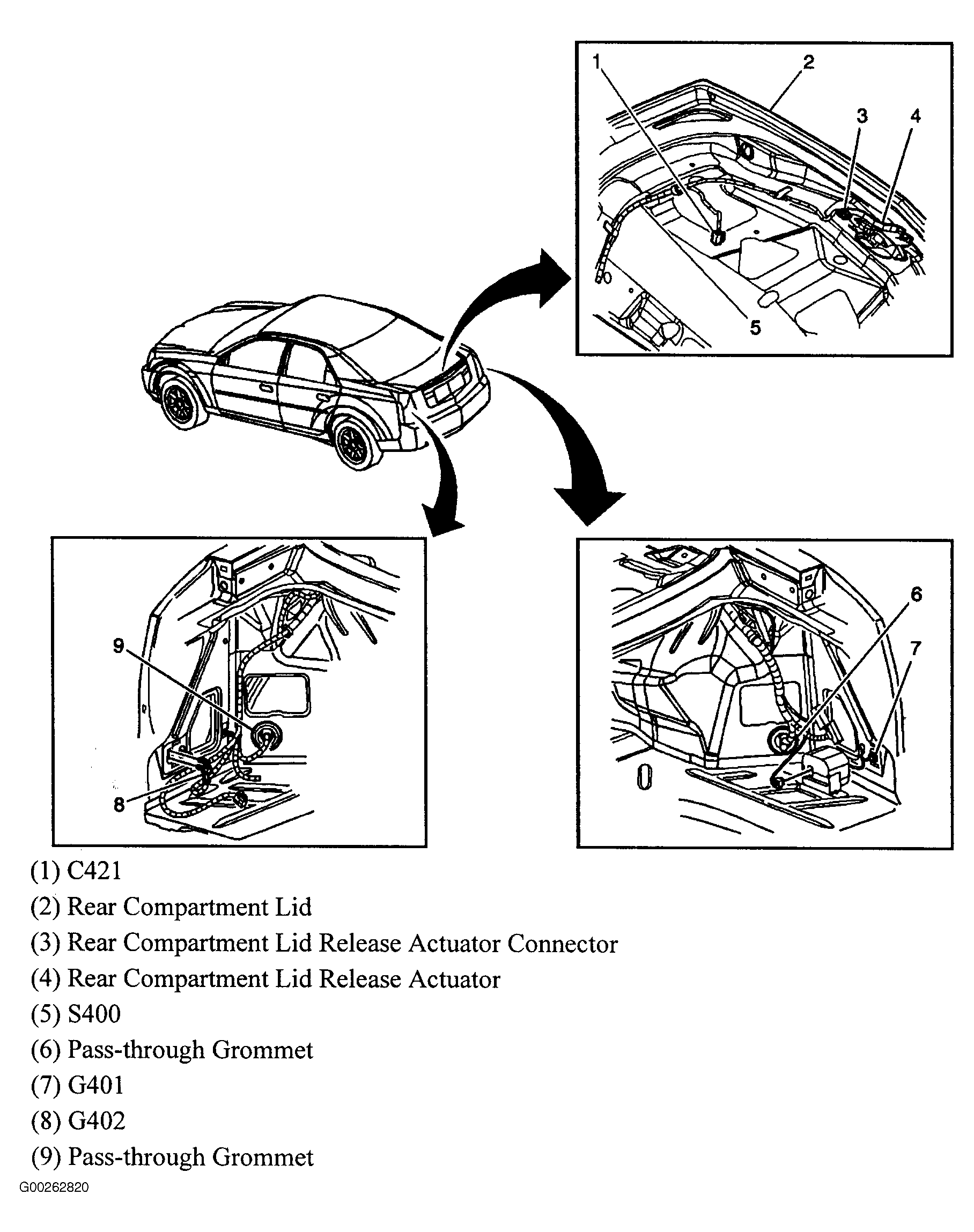

Fig 81: Trunk Area
Courtesy of GENERAL MOTORS CORP.
Fig 82: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
