Home >> Cadillac >> 2004 >> DeVille Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System >> Repair Instructions >> Remote Control Door Lock Receiver Replacement >> Installation Procedure

Installation Procedure

  1. Install the remote control door lock receiver (1) to the rear shelf.

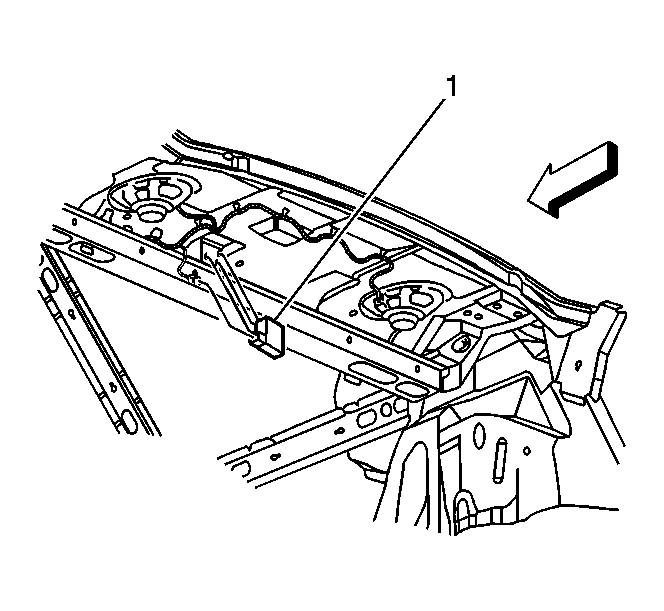

    2. Fig 1: View Of Remote Control Door Lock Receiver
    GM573363Courtesy of GENERAL MOTORS CORP.
  2. Reconnect all electrical connectors.
  3. Install the rear storage compartment trim. Refer to Compartment Front Trim Panel Replacement - Rear in Body Rear End.
  4. Program the new remote control door lock receiver to recognize the transmitters for the vehicle. Refer to Transmitter Programming .
