Installation Procedure

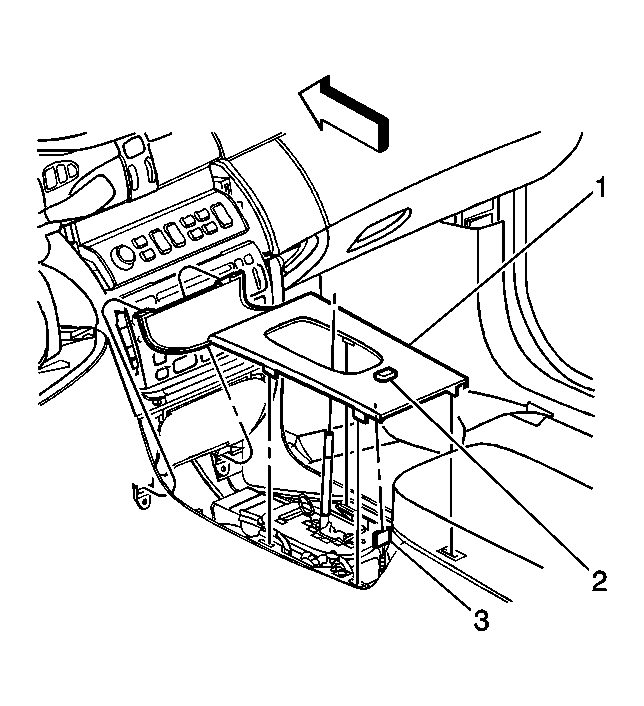

    Fig 1: View Of Trim Plate, Traction Control Switch & Electrical Connector
    GM498469Courtesy of GENERAL MOTORS CORP.
  1. Install the traction control switch (2).
  2. Install the traction control switch electrical connector (3).
  3. Install the center console trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) in Instrument Panel, Gages and Console (1).
