Power Outlet Component Views

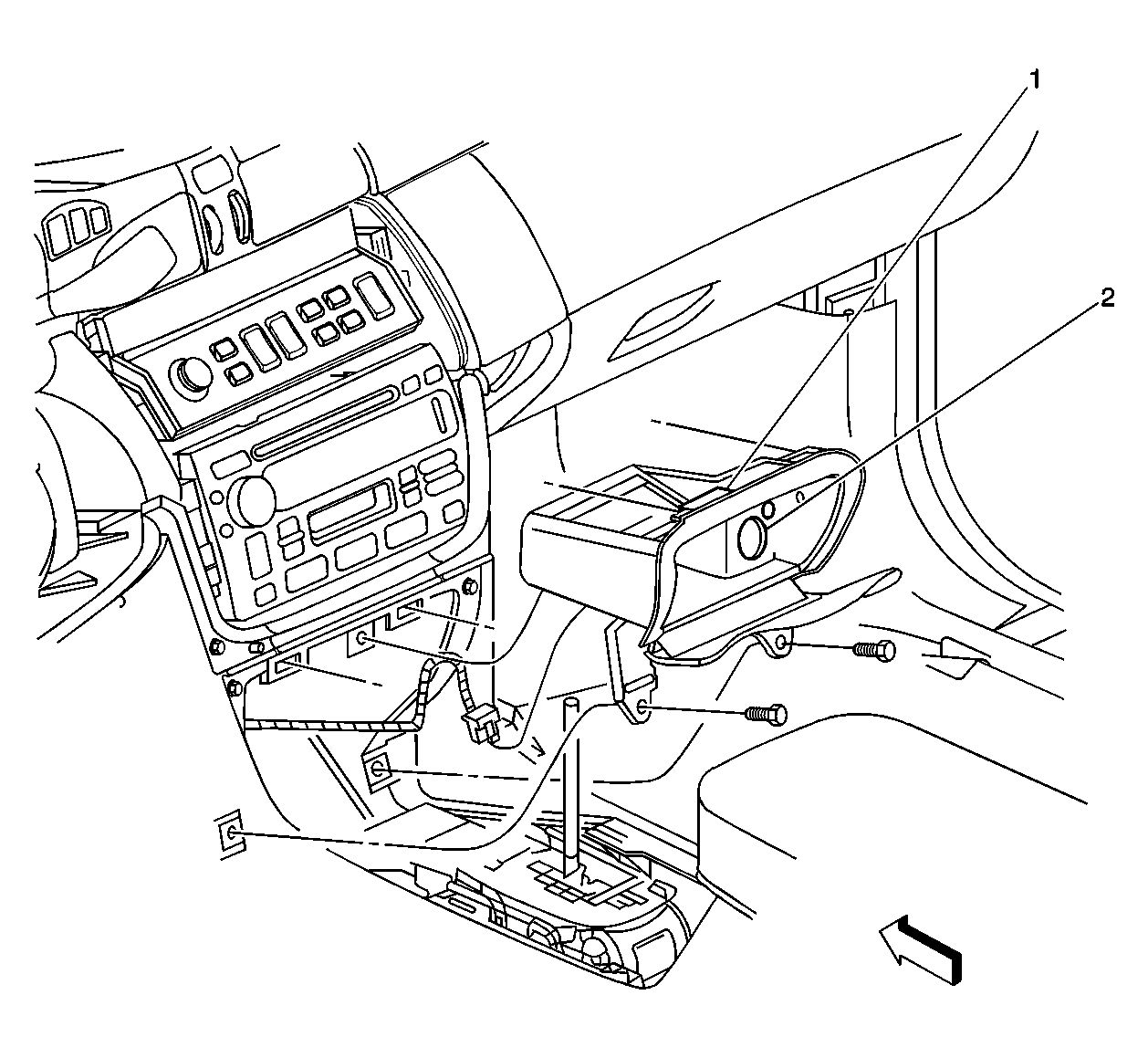

Fig 1: Center Front of the Passenger Compartment, Front of the Center Console, in the Ashtray Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ashtray Lamp
2	Cigar Lighter Front

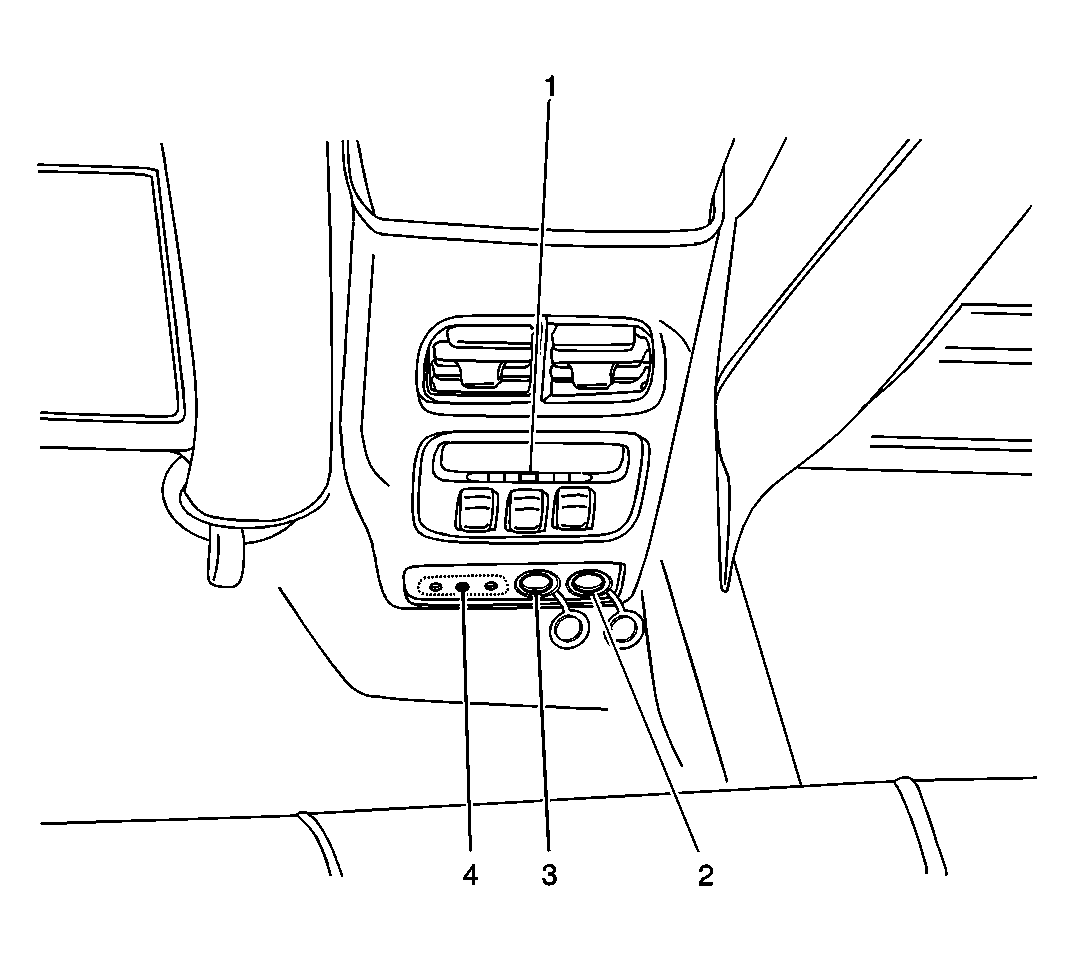

Fig 2: Center of the Passenger Compartment, Behind the Center Console Storage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module - Auxiliary
2	Right Rear Auxiliary Outlet
3	Left Rear Auxiliary Outlet
4	Audio/Video Harness

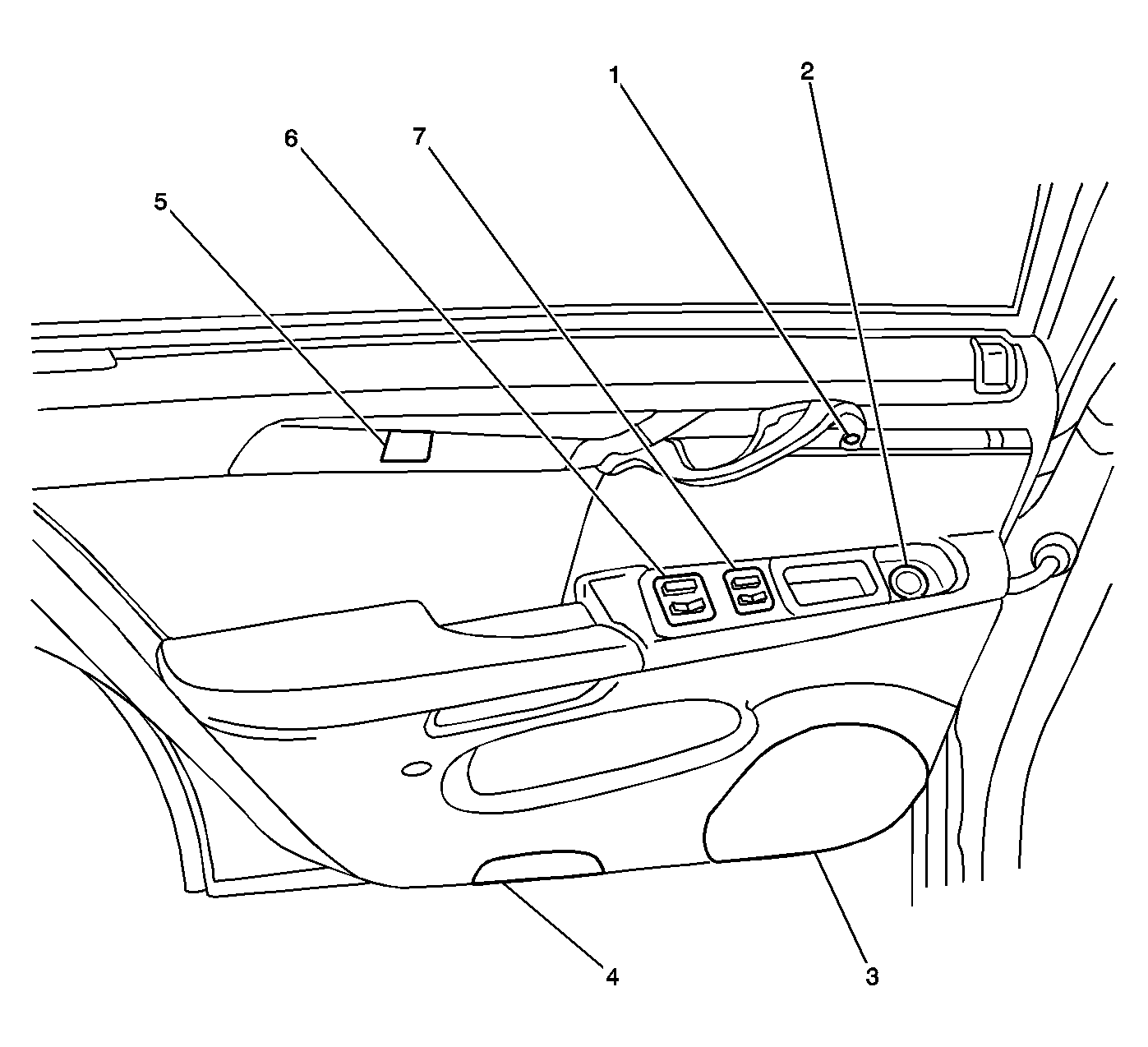

Fig 3: Front of the Left Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - LR, RR Similar
2	Cigar Lighter - LR, RR Similar
3	Speaker - LR Door, RR Similar
4	Door Courtesy Lamp - LR Door, RR Similar
5	Seat Lumbar Switch - LR, RR Similar
6	Heated Seat Switch - LR, RR Similar
7	Window Switch - LR, RR Similar
