Installation Procedure

  1. Position the center bottom of the mirror mount against the windshield at the top of the support button (1).
  2. Slide the base of the mirror onto the button.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Make sure the mirror is firmly seated on the windshield button by pushing down on the base of the mirror.

    Tighten:  Tighten the screw (3) to 1.8 N.m (16 lb in) in order to secure the mirror base to the button.

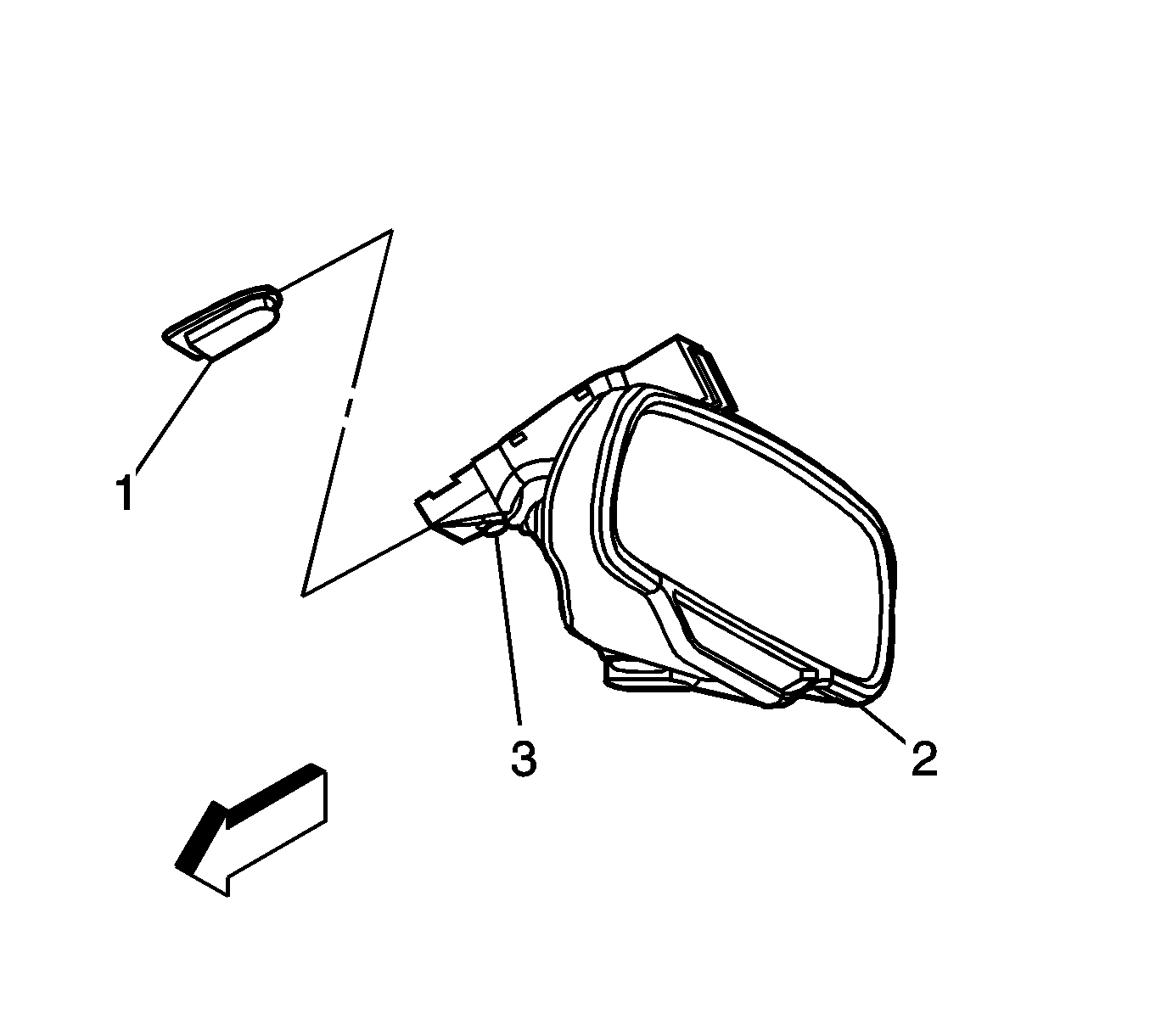

    4. Fig 1: View Of Rearview Mirror Mounting Components
    GM787028Courtesy of GENERAL MOTORS CORP.
  4. Install the base trim cover.
  5. Connect the electrical connector.

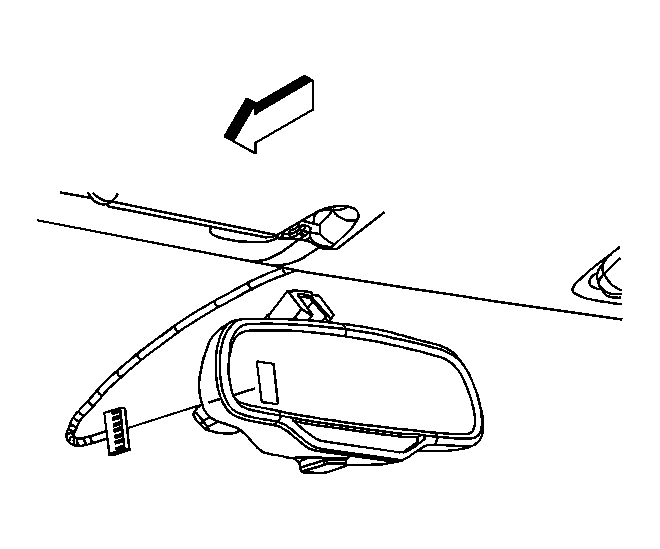

    6. Fig 2: Connecting Electrical Connector To Back Of Mirror
    GM787027Courtesy of GENERAL MOTORS CORP.
  6. Install the wire cover.
  7. Reposition the mirror assembly.
