Keyless Entry Component Views

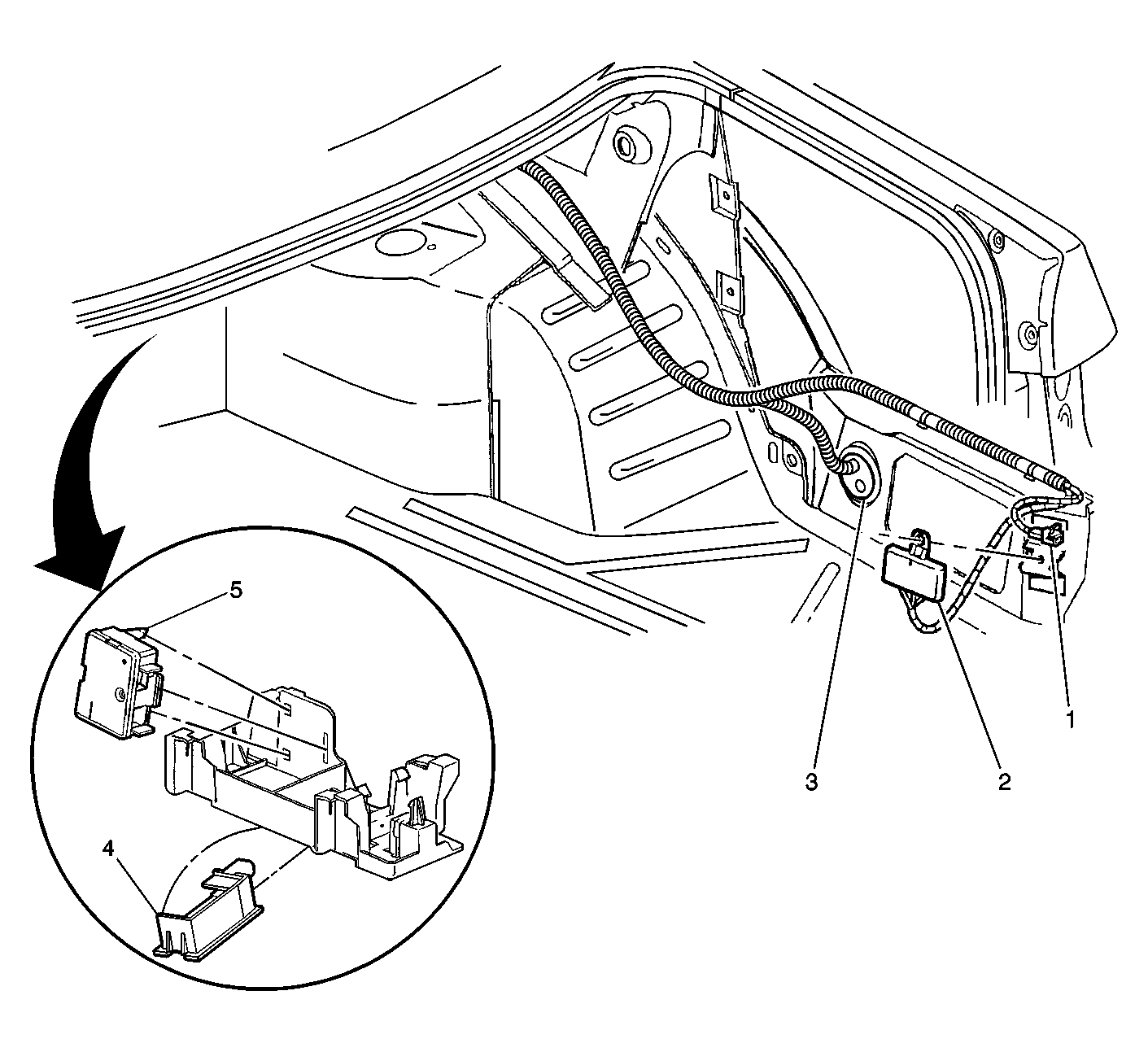

Fig 1: RCDLR, Rear Comp Lamp, C403, G401, and P400 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C403
2	G401
3	P400
4	Rear Compartment Lamp
5	Remote Control Door Lock Receiver (RCDLR)
