Home >> Cadillac >> 2004 >> Seville >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System >> Repair Instructions >> Transmitter Battery Replacement >> Installation Procedure

Installation Procedure

    Fig 1: View of Transmitter Case
    GM572512Courtesy of GENERAL MOTORS CORP.
  1. Install the battery (2) with the positive (+) side up.
  2. Align both halves (1, 3) of the transmitter.

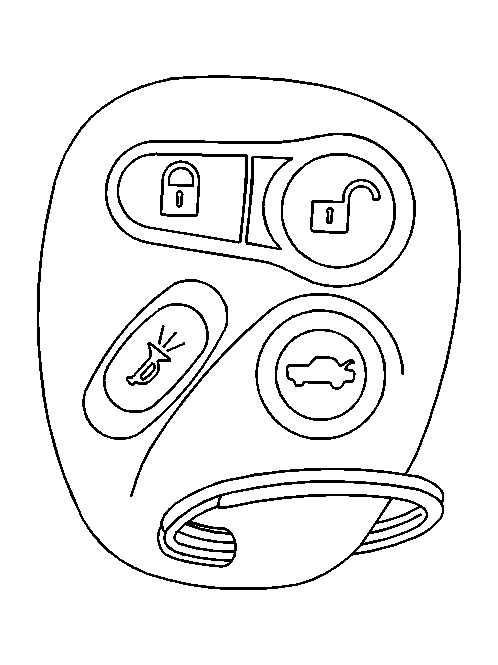

    3. Fig 2: View of Outside of Transmitter Case
    GM572438Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the seal is positioned correctly.
  4. Close the transmitter case.
  5. Synchronize the transmitter. Refer to Transmitter Programming .
