Installation Procedure

  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
    2. Fig 1: Locating Rear Window Defogger Electrical Connector
    GM401856Courtesy of GENERAL MOTORS CORP.
  2. Connect the rear window defogger left electrical connector.

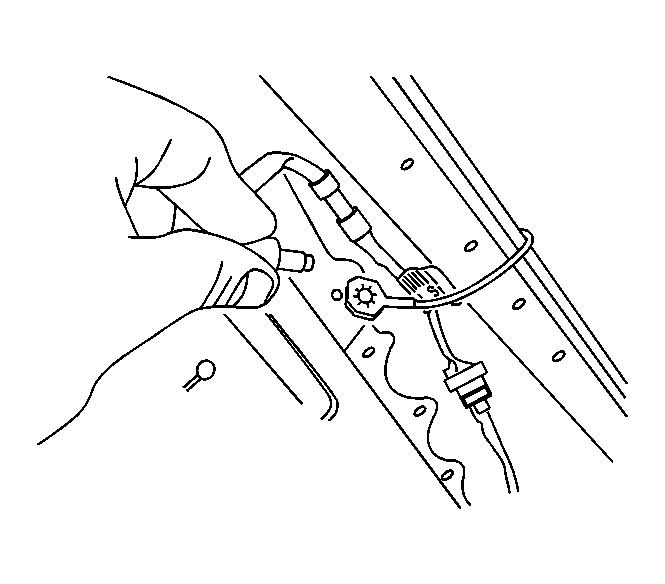

    3. Fig 2: View of Rear Window Defogger Right Electrical Connector
    GM401859Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear window defogger right electrical connector.
  4. Install the OnStar® antenna. Refer to Coupling Replacement - Antenna Outer and Coupling Replacement - Antenna Inner in Cellular Communication.
  5. Install the rear sail panels. Refer to Sail Panel Replacement (Standard) in Interior Trim.
    6. Fig 3: Identifying Rear Window Lower Reveal Molding to Body Fasteners
    GM105251Courtesy of GENERAL MOTORS CORP.
  6. Install the rear window lower reveal molding (2).
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install the four rear window lower reveal molding fasteners (1).

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

  8. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  9. Close the rear compartment lid.
