Installation Procedure

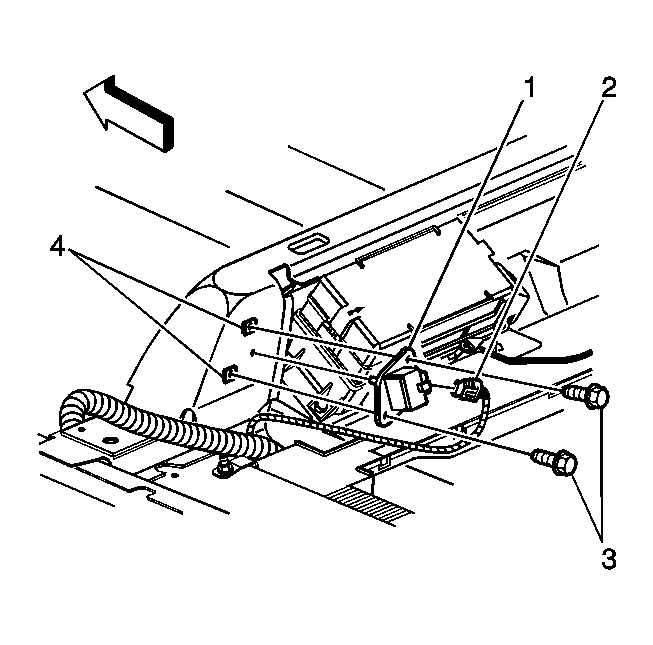

    Fig 1: Identifying Lateral Accelerometer Sensor & Electrical Connector
    GM332513Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the lateral accelerometer sensor (1) onto the mounting studs.

    Tighten:  Tighten the 2 lateral accelerometer sensor nuts to 2.4 N.m (21 lb in).

  2. Connect the lateral accelerometer sensor electrical connector (2).
  3. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
  4. Perform the ABS Diagnostic System Check. Refer to Diagnostic System Check - ABS .
