Installation Procedure

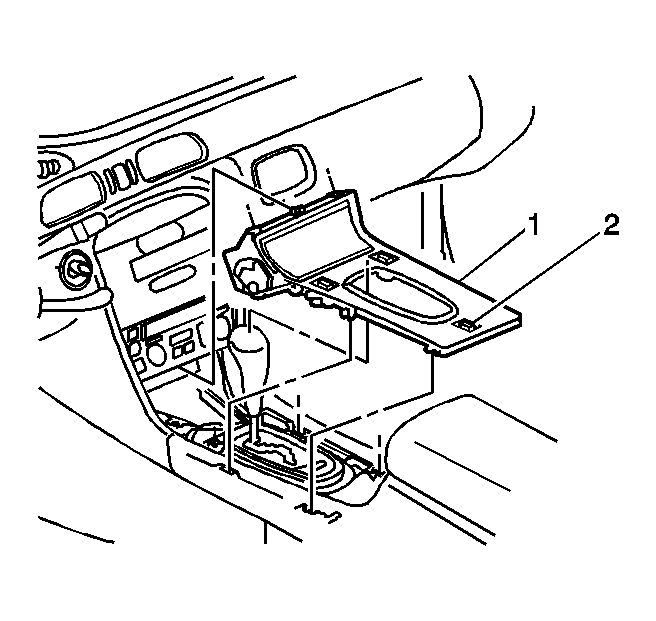

    Fig 1: Identifying Console Trim Plate & Traction Control Switch
    GM748490Courtesy of GENERAL MOTORS CORP.
  1. Align the traction control switch (2) to the console trim plate.
  2. Install the traction control switch mounting screws.
  3. Install the console trim plate (1). Refer to Trim Plate Replacement - Console in Instrument Panel, Gages and Console.
