Power Outlet Component Views

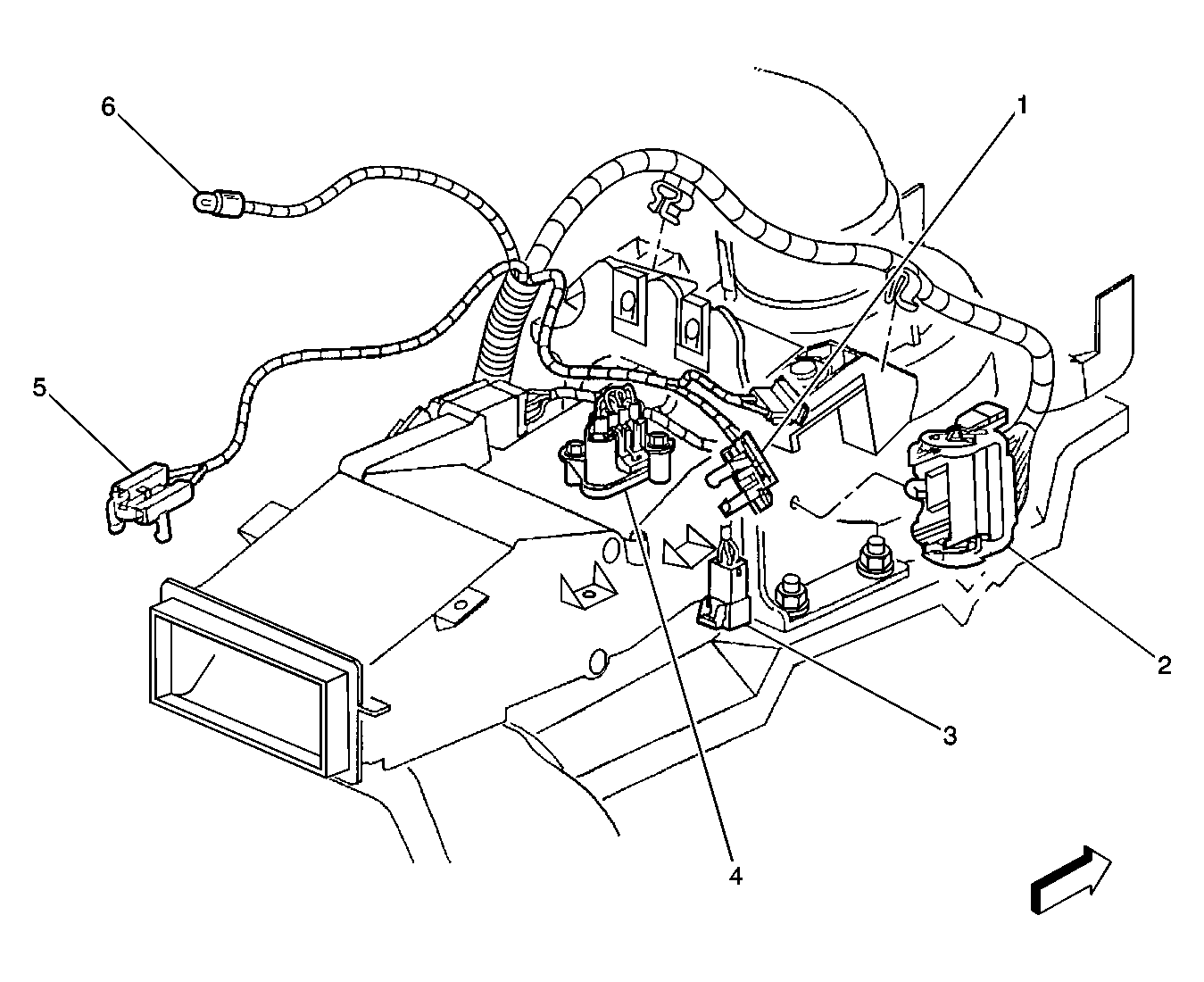

Fig 1: Passenger Compartment, Below the Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet
2	C304
3	C312
4	Blower Motor Resistor Assembly - Auxiliary
5	Cigar Lighter
6	Ashtray Lamp
