Engine Electrical Component Views

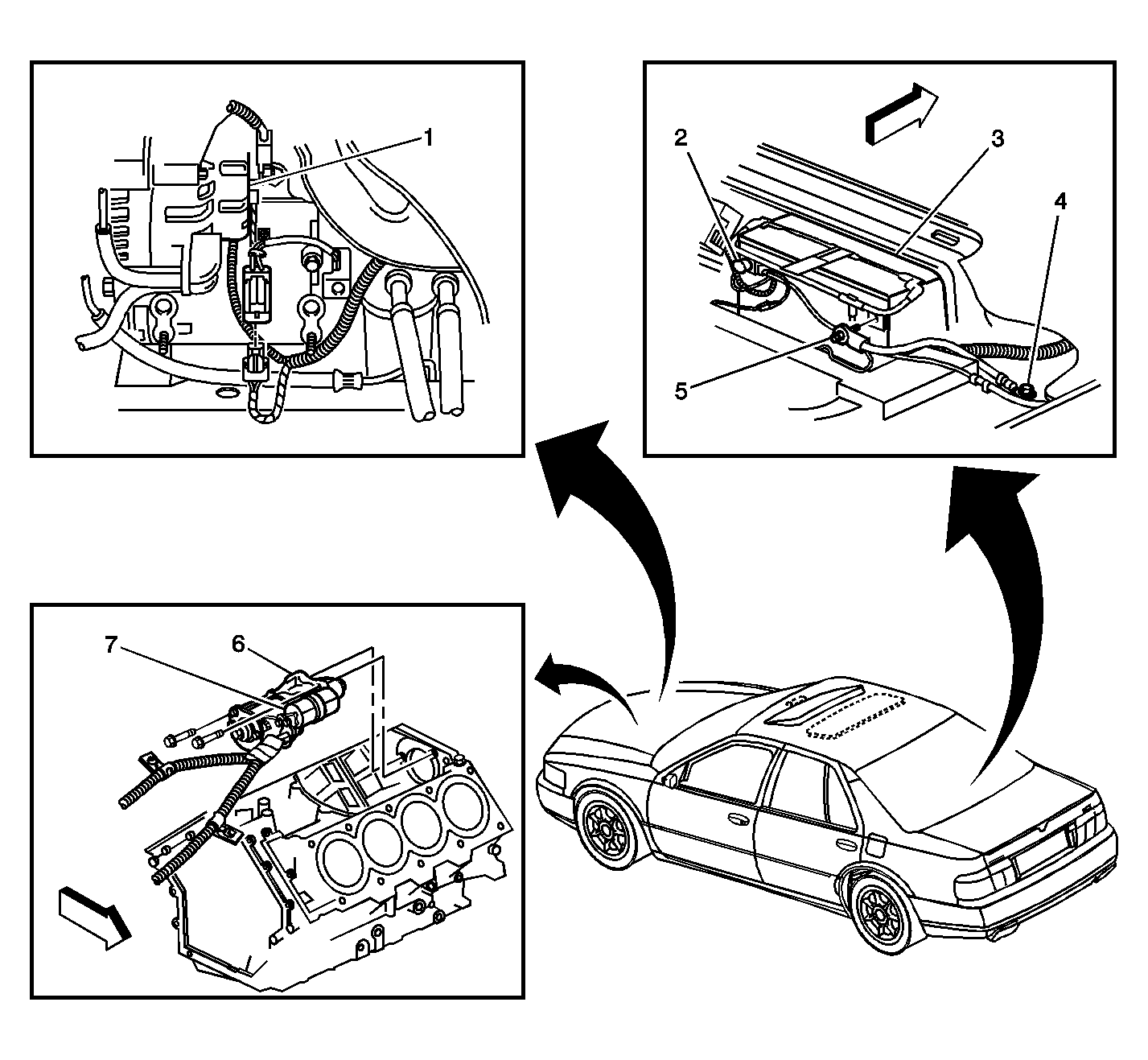

Fig 1: Engine Electrical Sub-System Component View
GM784825Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Positive Battery Cable
3 Battery
4 G307
5 Negative Battery Cable
6 Starter Motor
7 Starter Solenoid
