Power Steering Pump Disassembled View

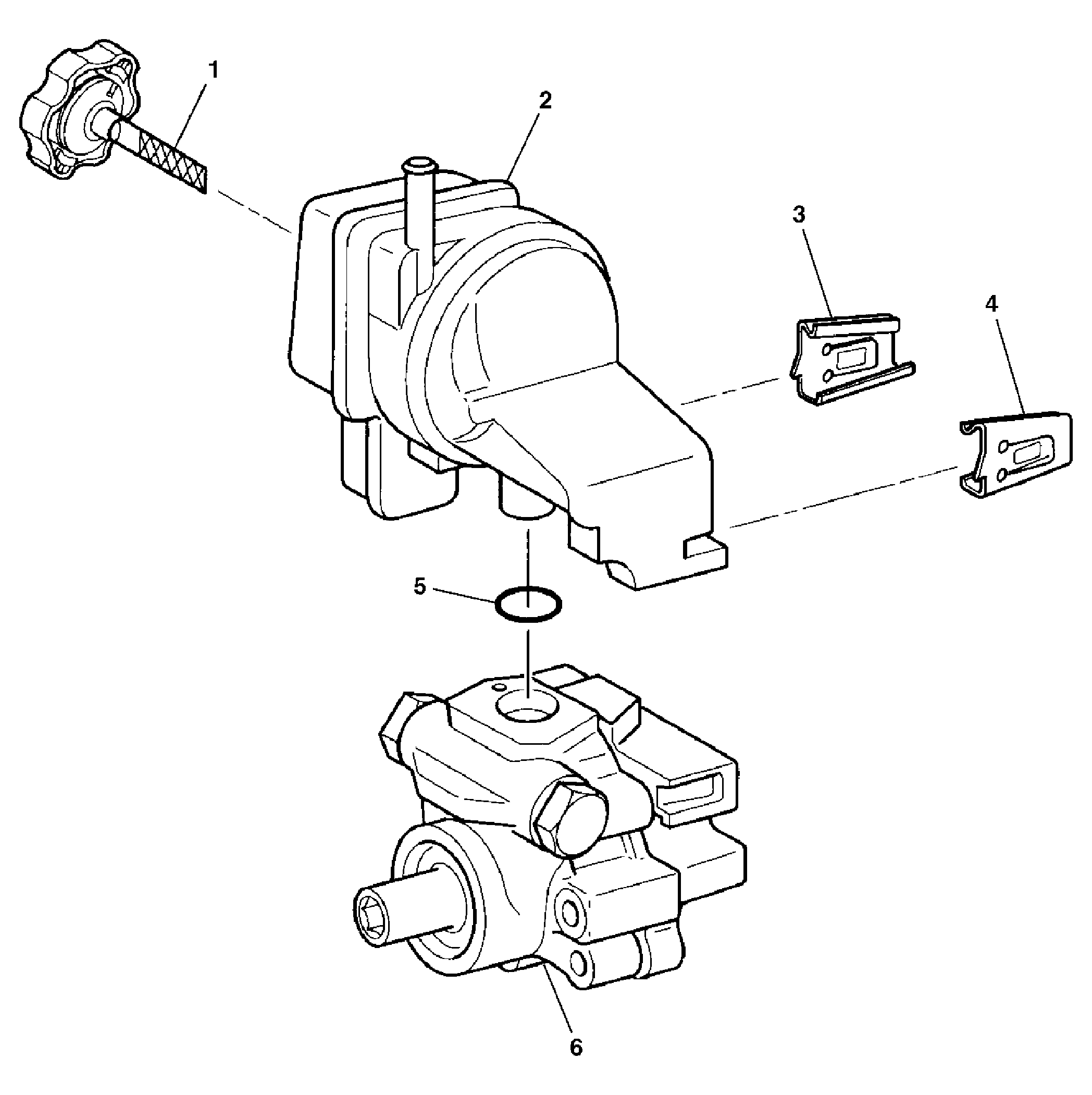

Fig 1: Power Steering Pump Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Reservoir Assembly Cap
2	Reservoir Assembly
3	Retaining Clip
4	Retaining Clip
5	O-ring Seal
6	Hydraulic Pump Assembly
