Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

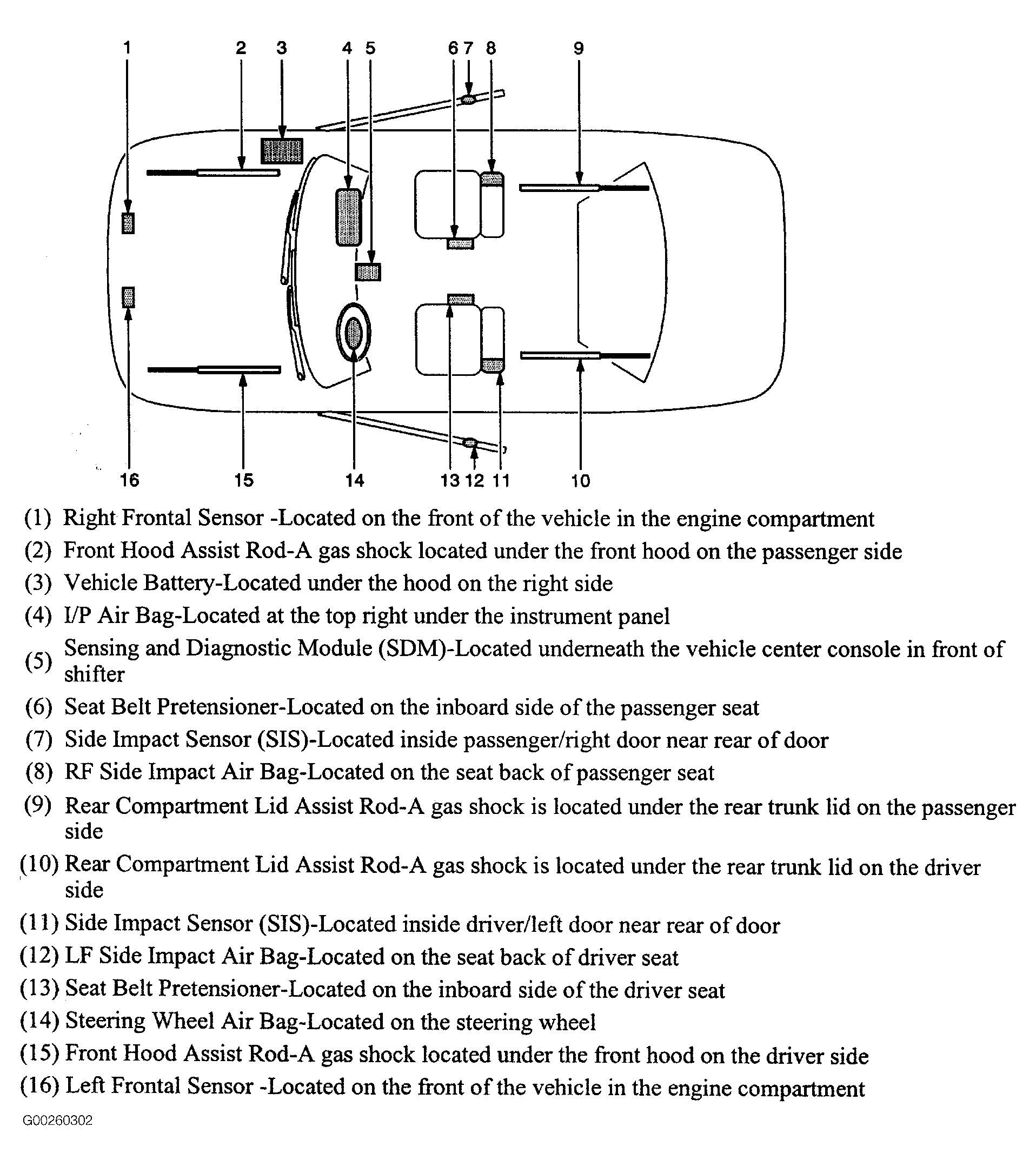

Fig 1: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

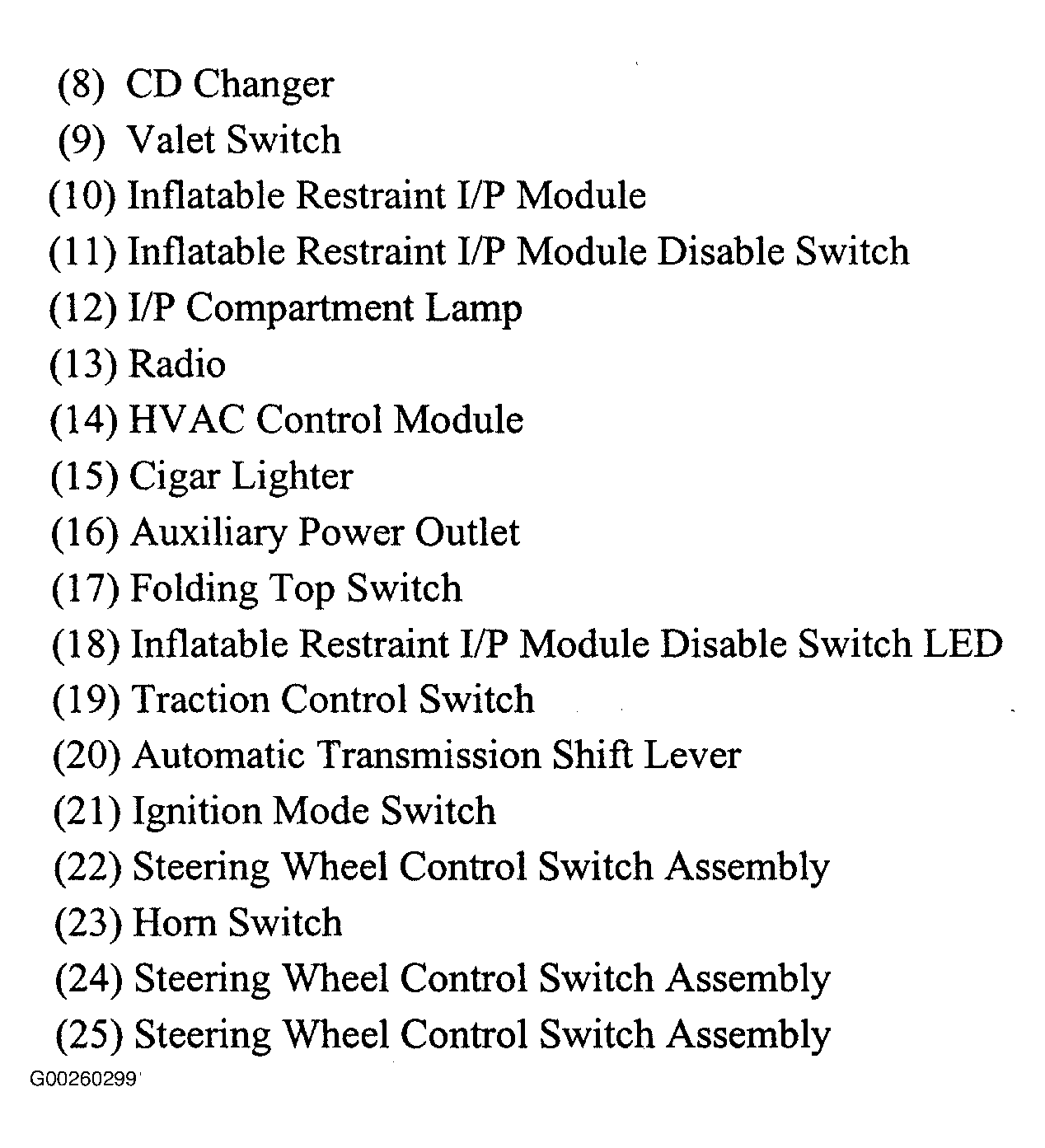

Fig 2: Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 5: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

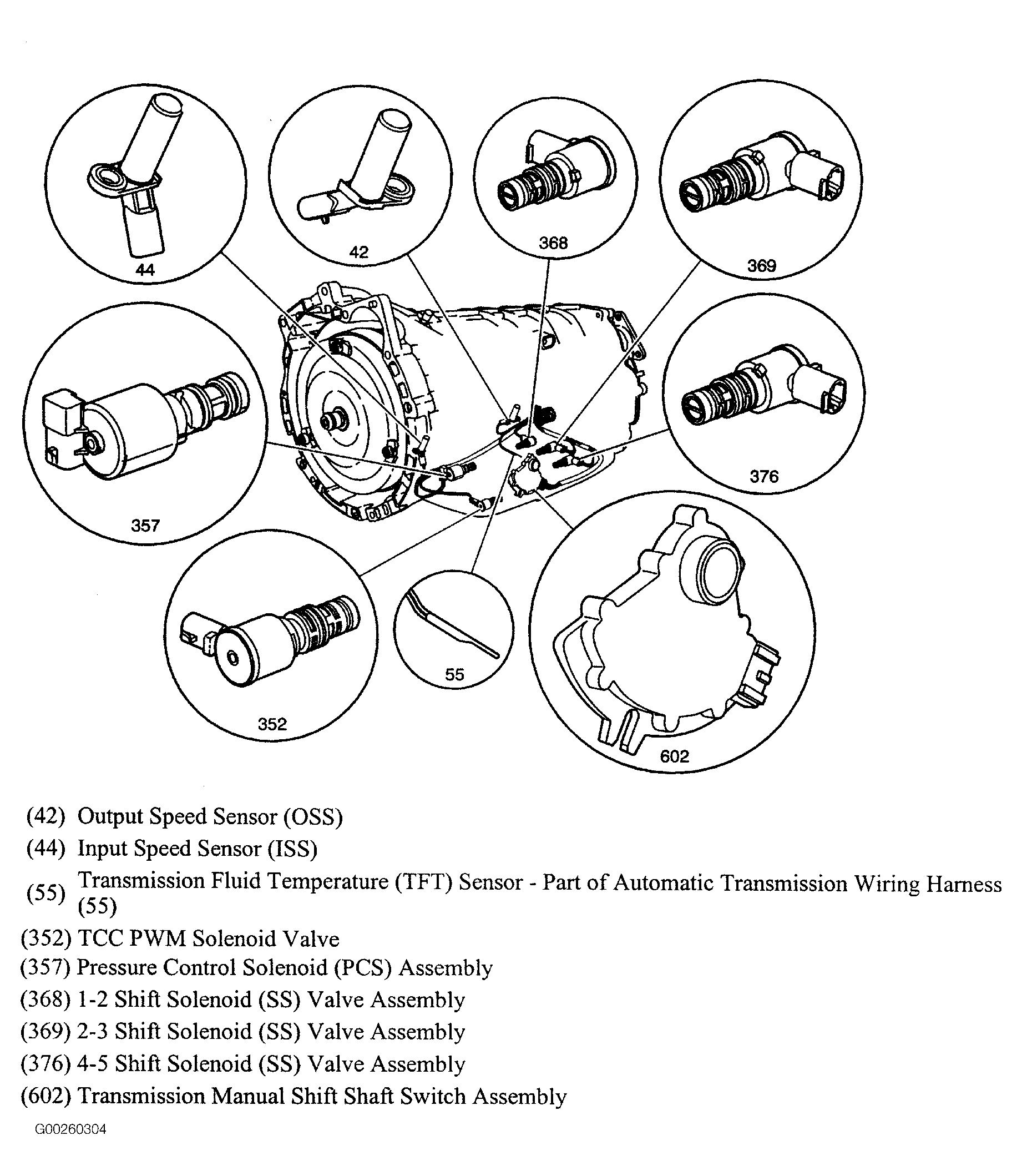

Fig 6: Automatic Transmission Assembly
Courtesy of GENERAL MOTORS CORP.

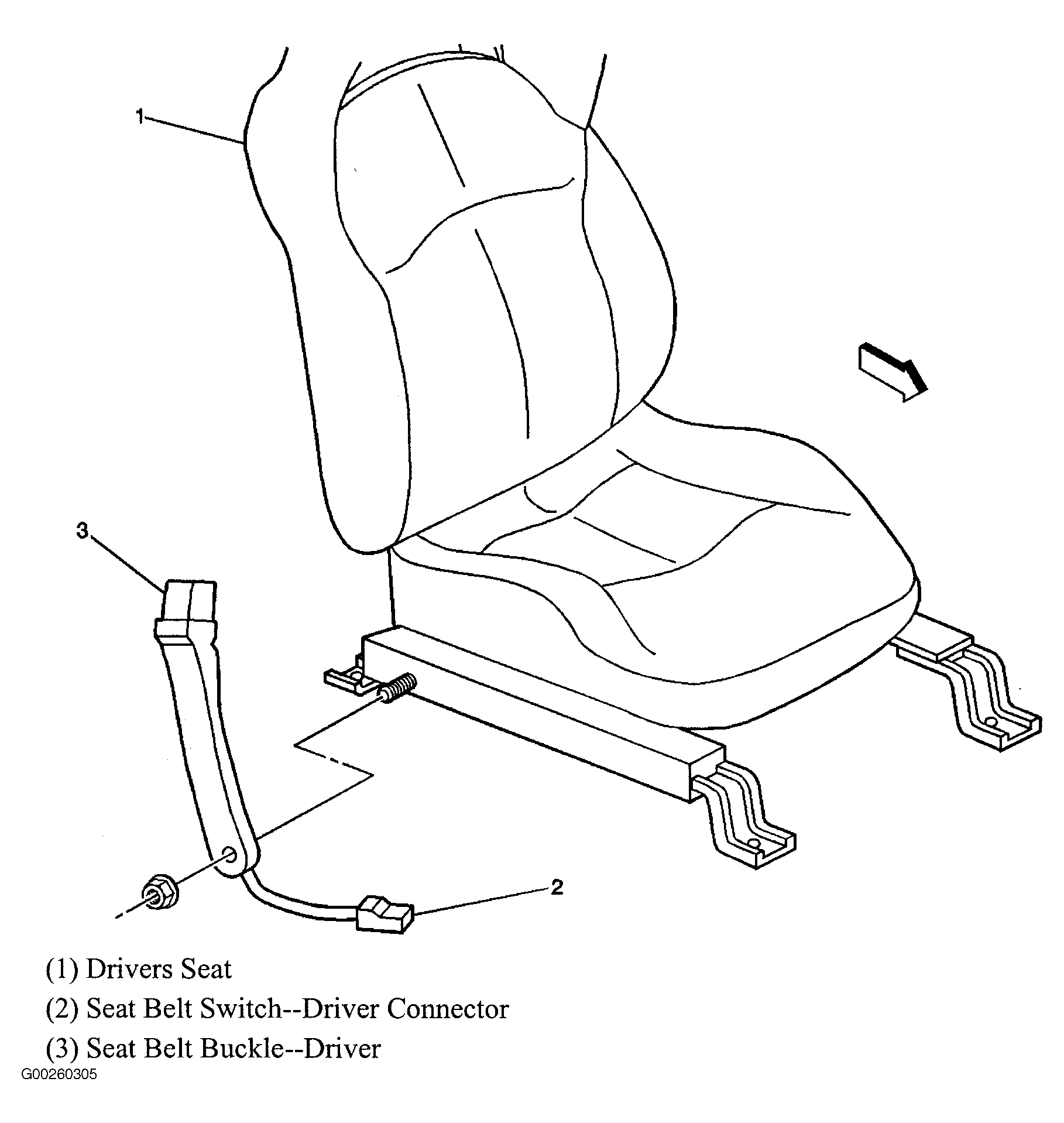

Fig 7: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 8: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 9: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

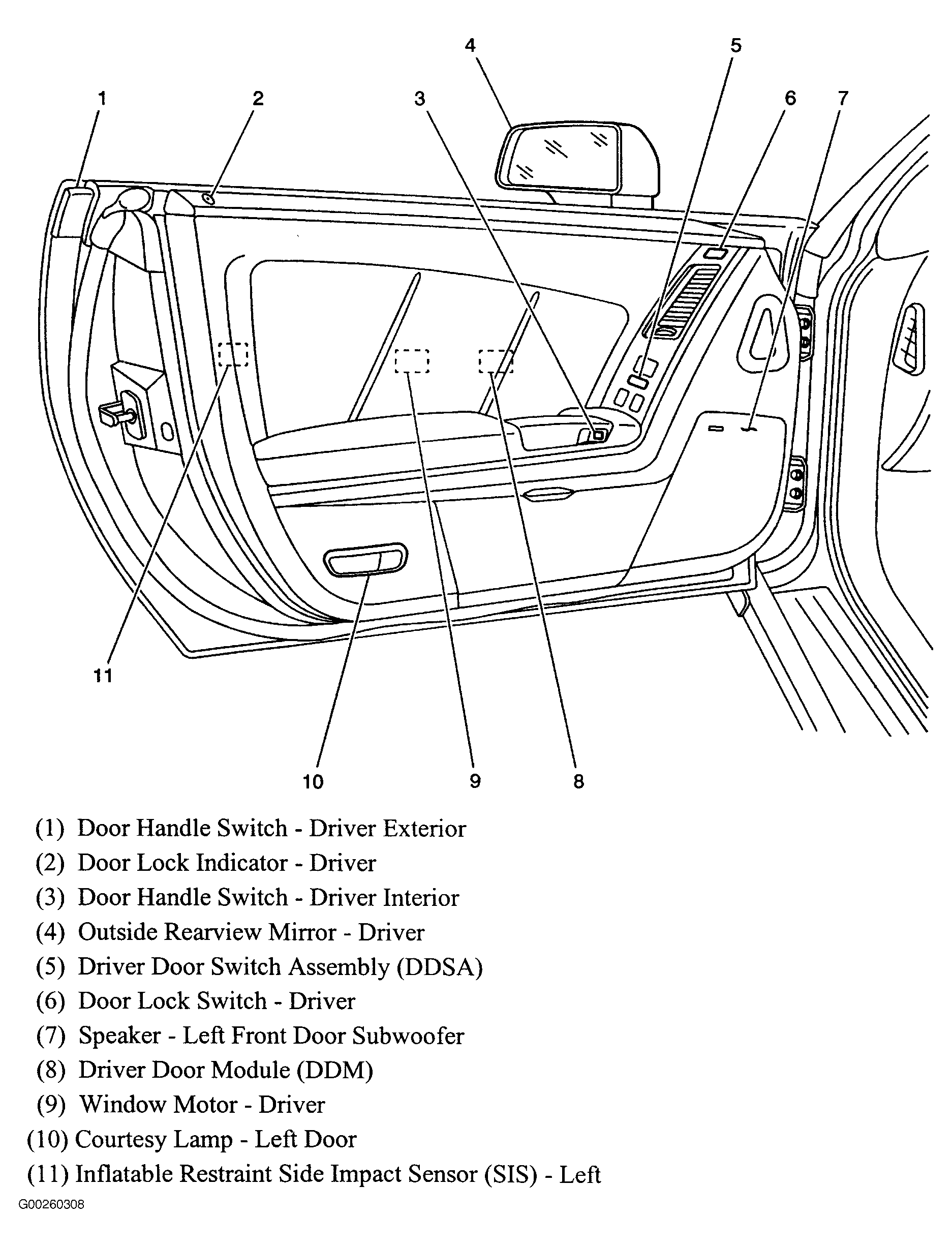

Fig 10: Driver's Door
Courtesy of GENERAL MOTORS CORP.

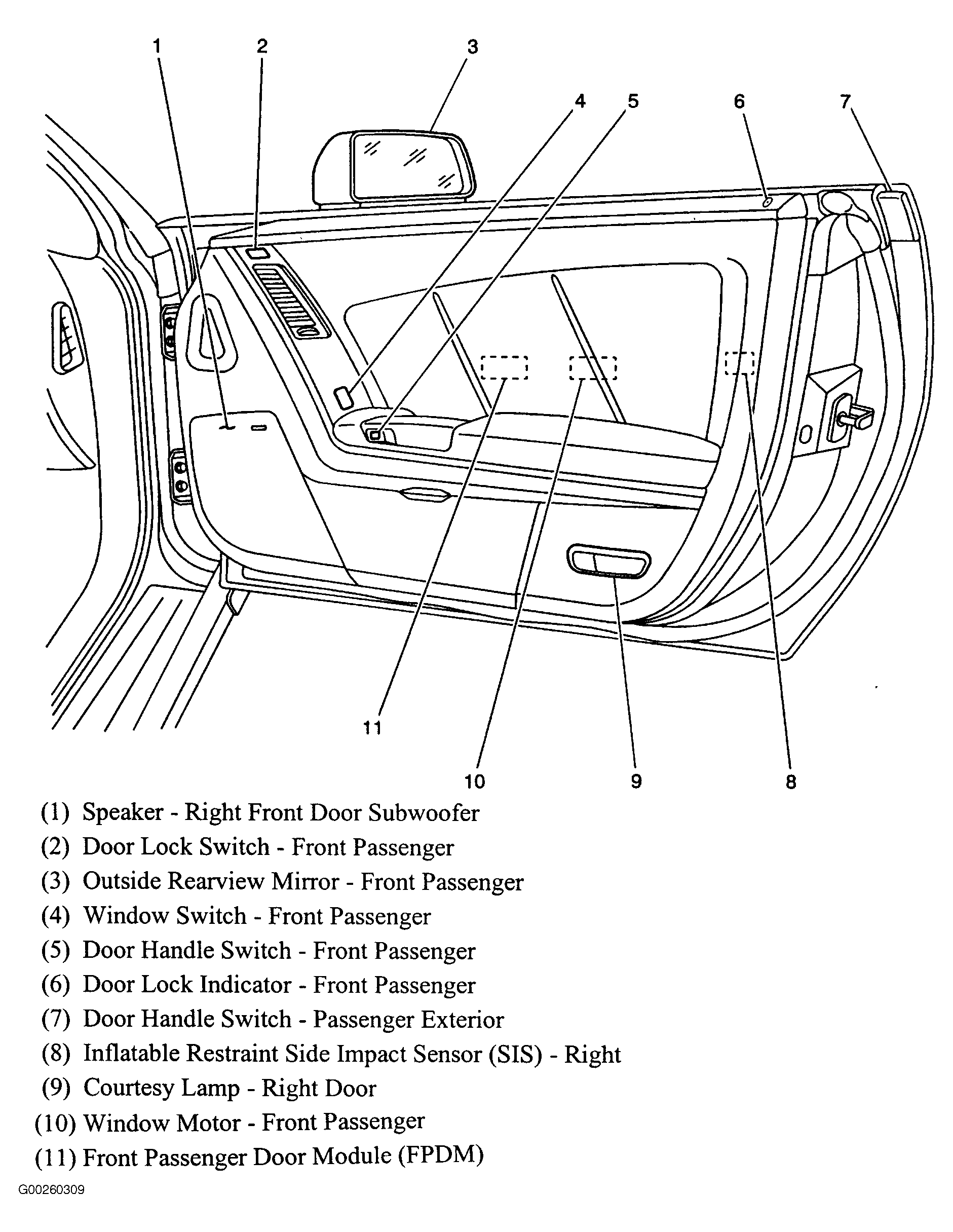

Fig 11: Passenger's Door
Courtesy of GENERAL MOTORS CORP.

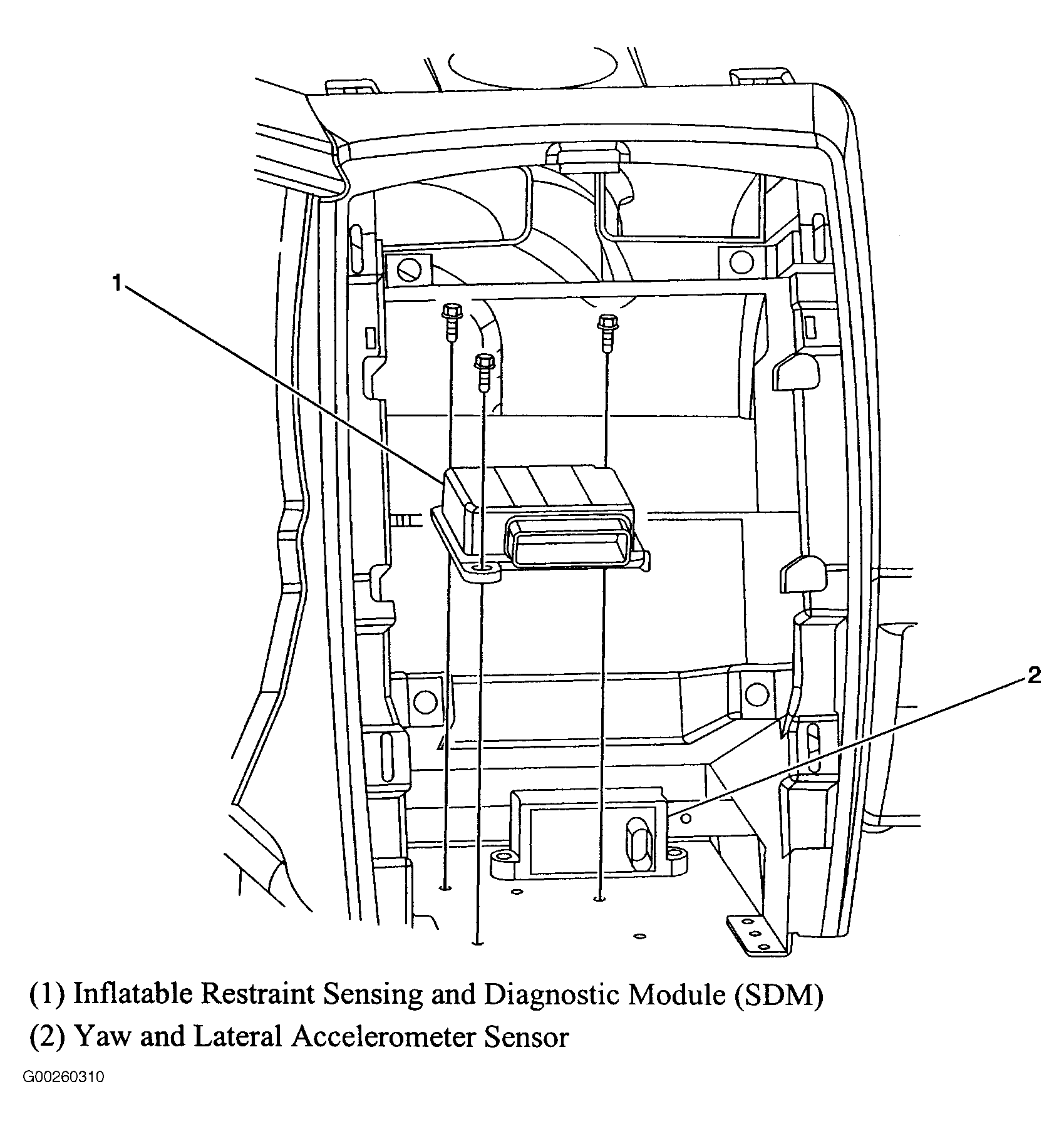

Fig 12: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

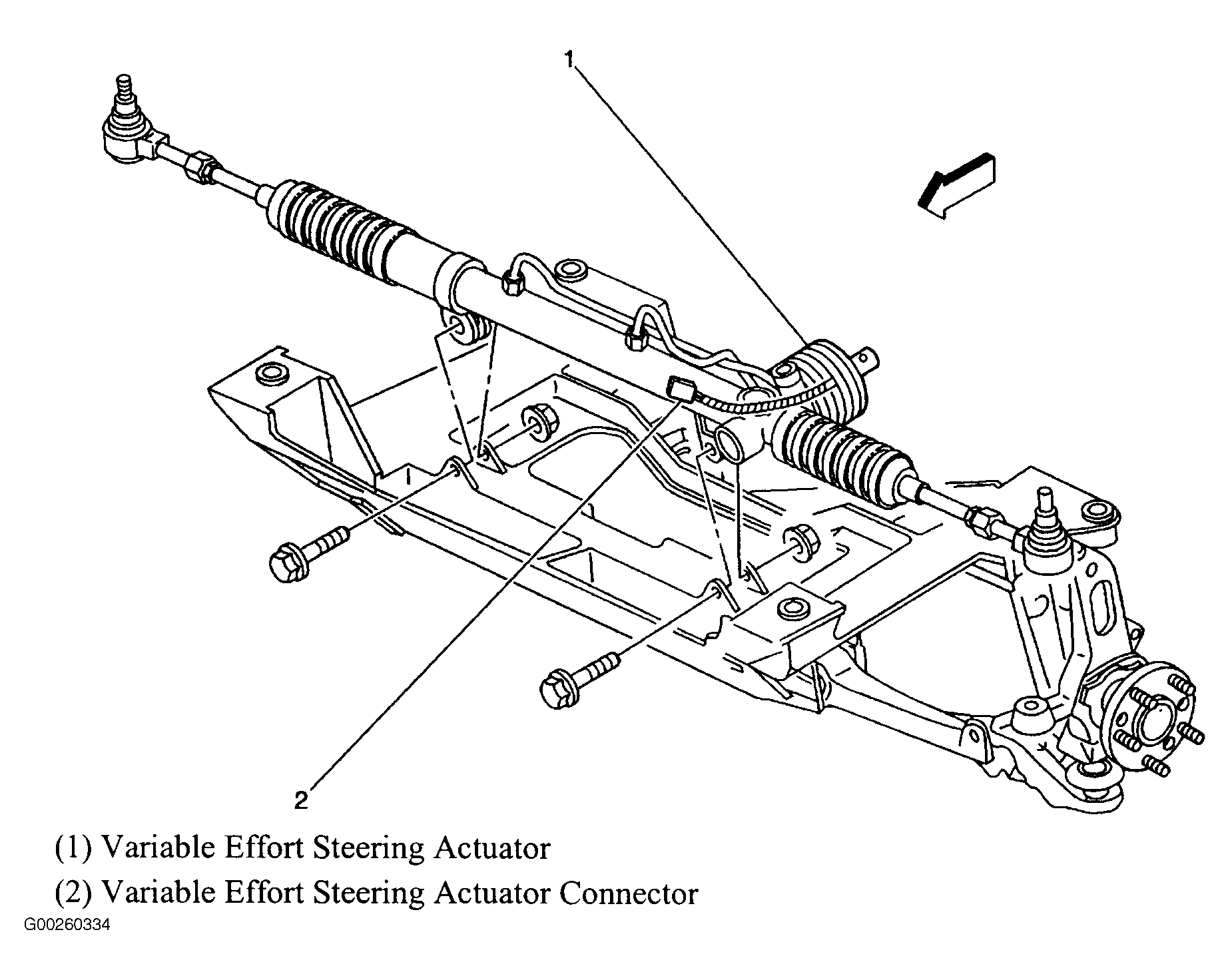

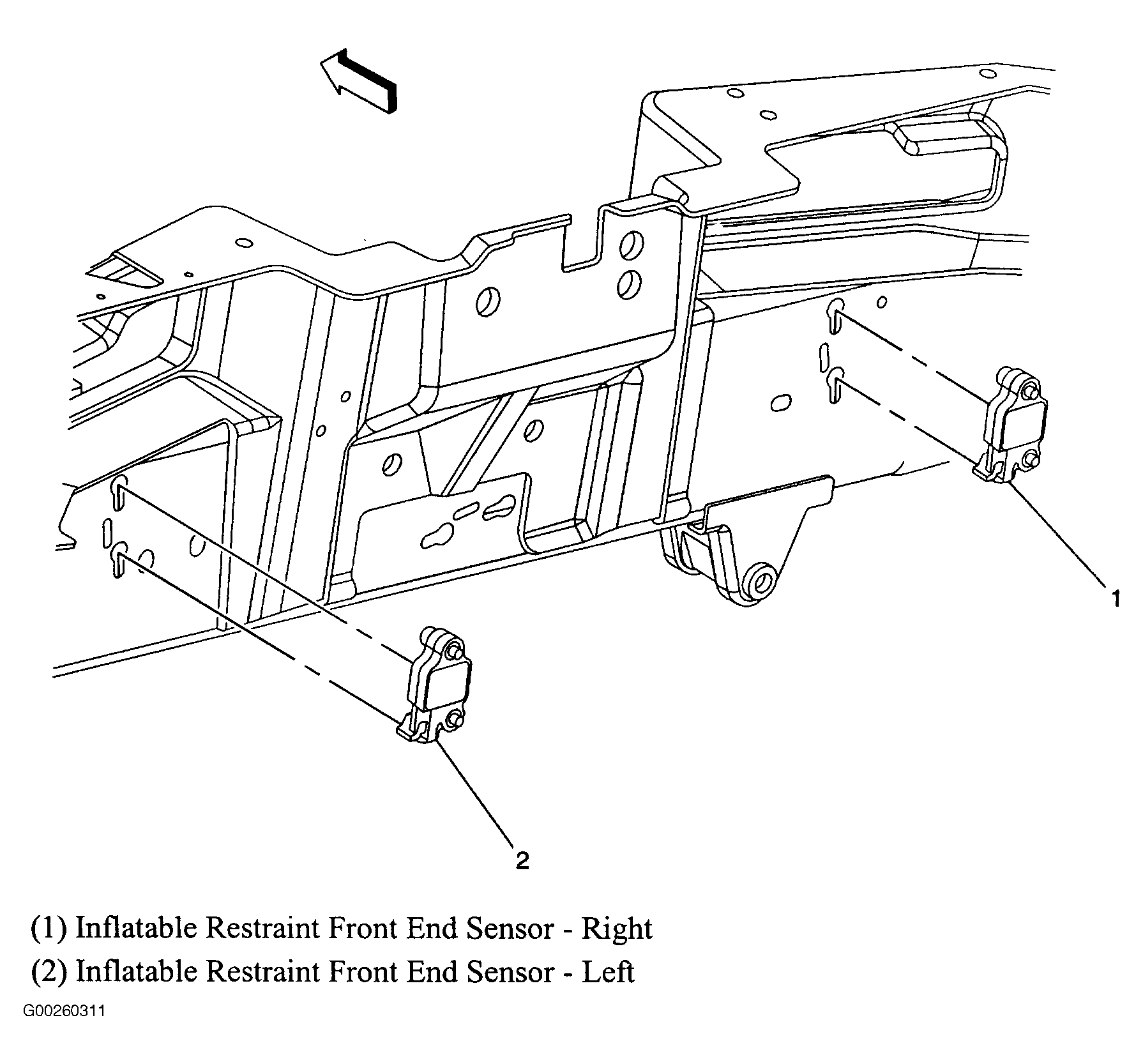

Fig 13: Front Of Vehicle Chassis
Courtesy of GENERAL MOTORS CORP.

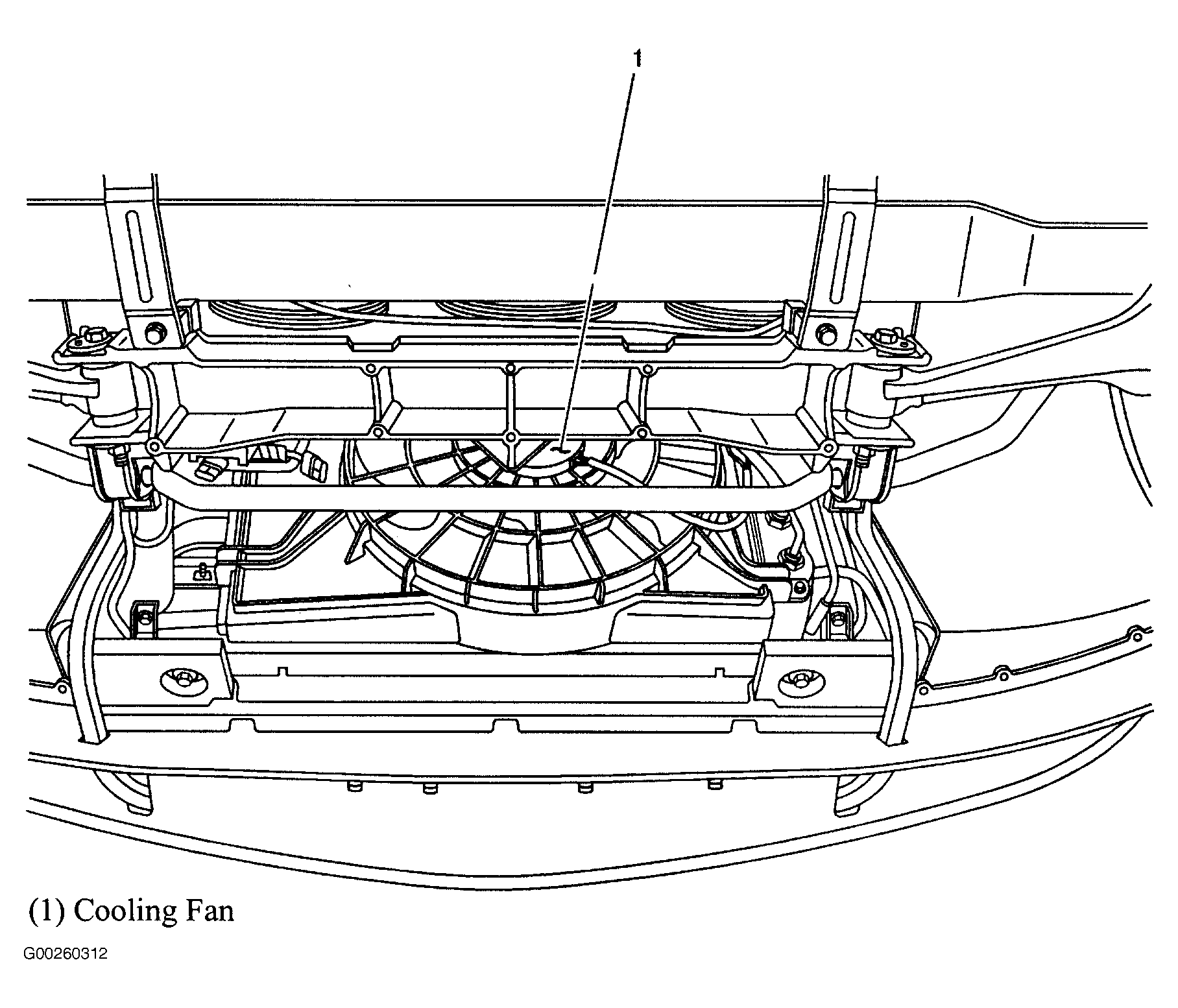

Fig 14: Lower Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 16: Top Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

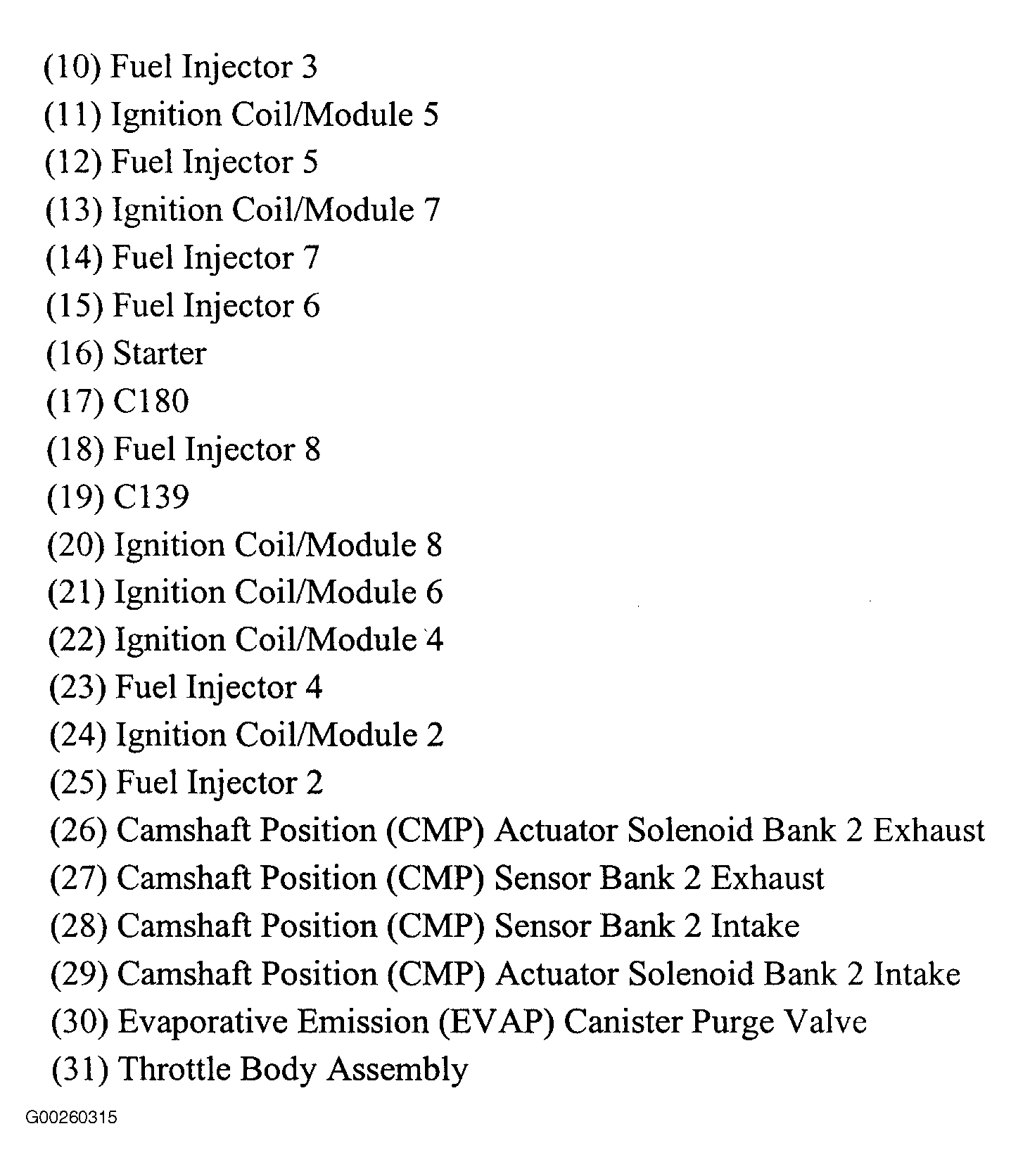

Fig 17: Top Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

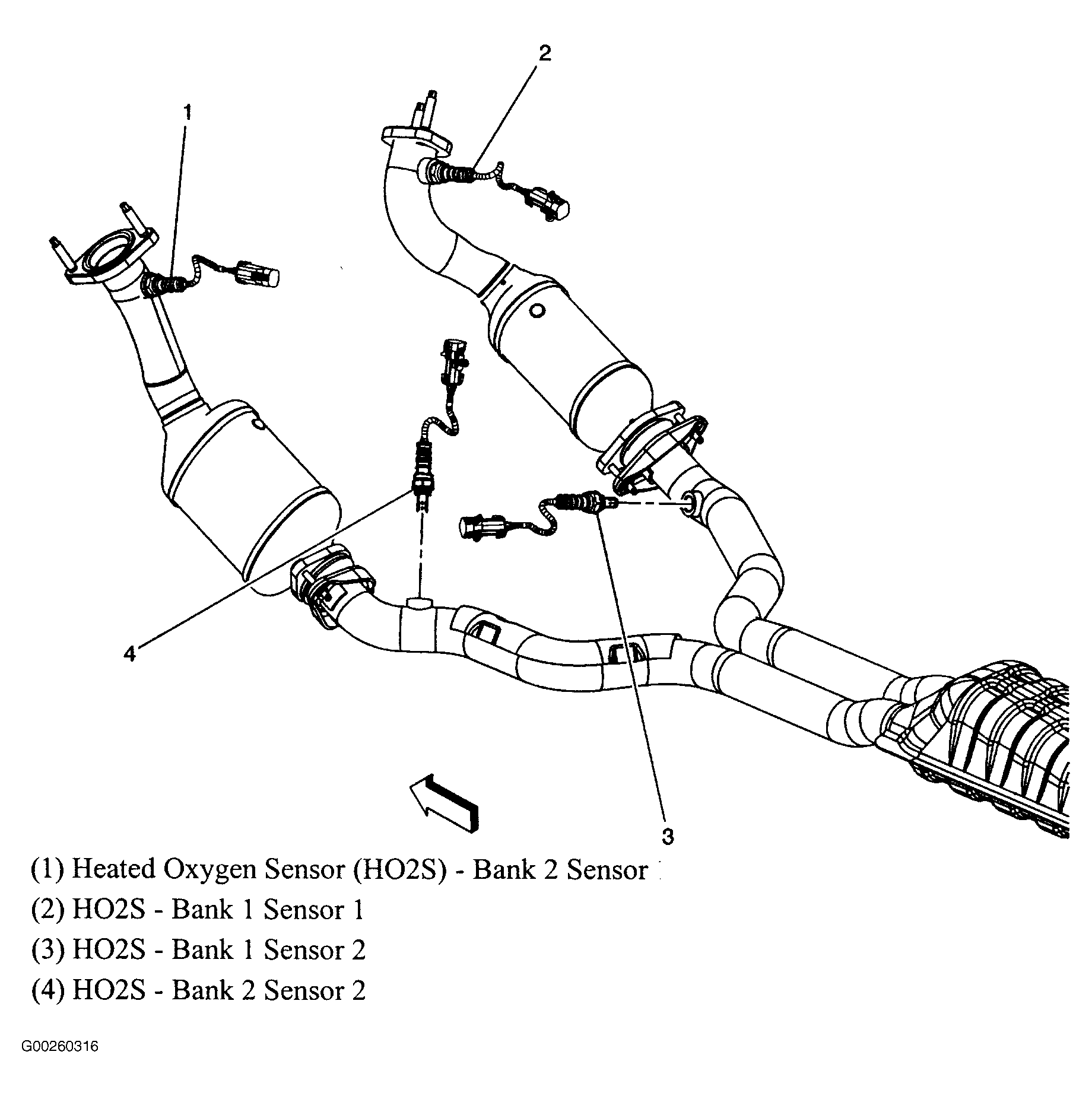

Fig 18: Exhaust
Courtesy of GENERAL MOTORS CORP.

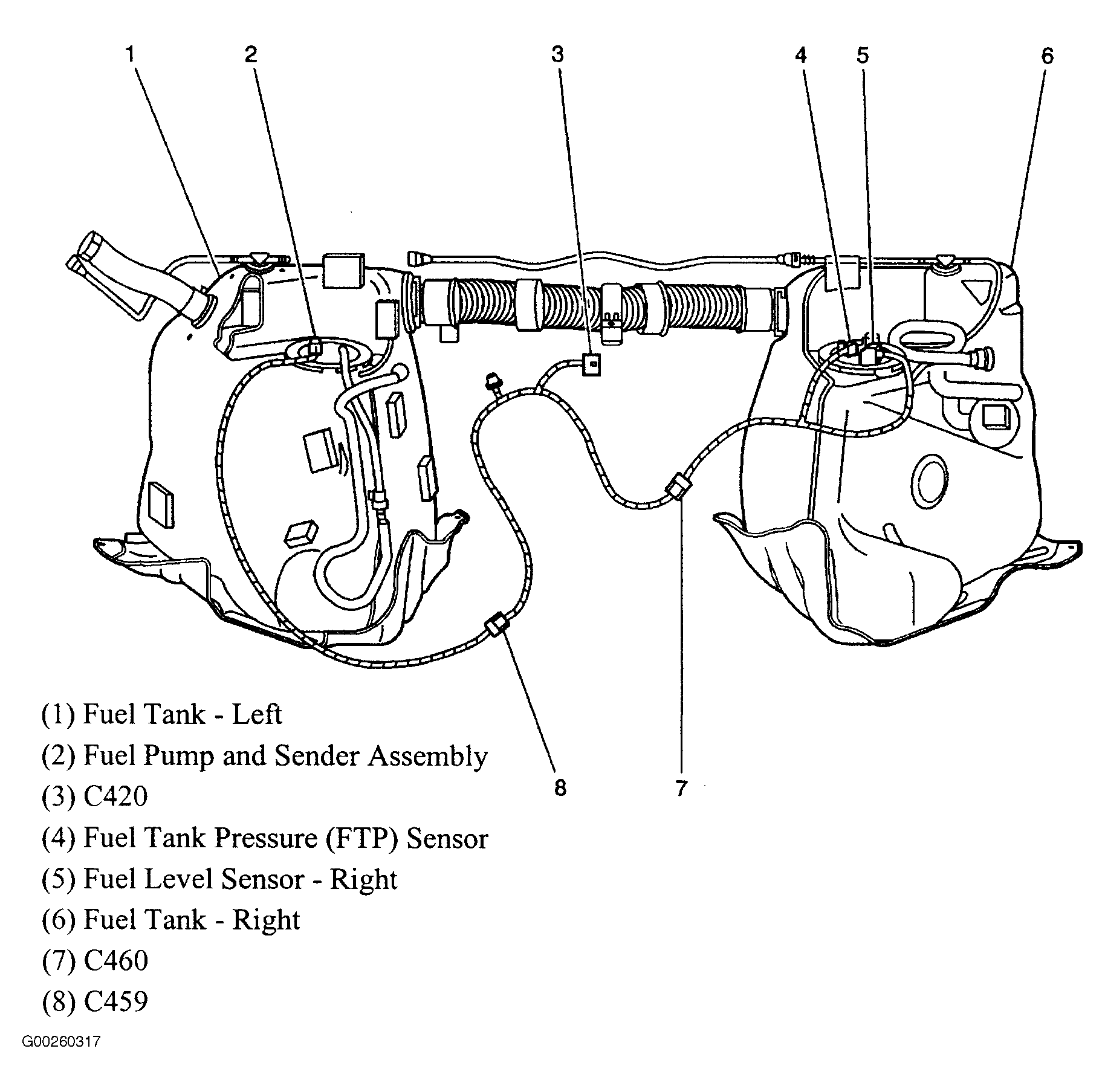

Fig 19: Fuel Tanks
Courtesy of GENERAL MOTORS CORP.
Fig 20: Lower Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

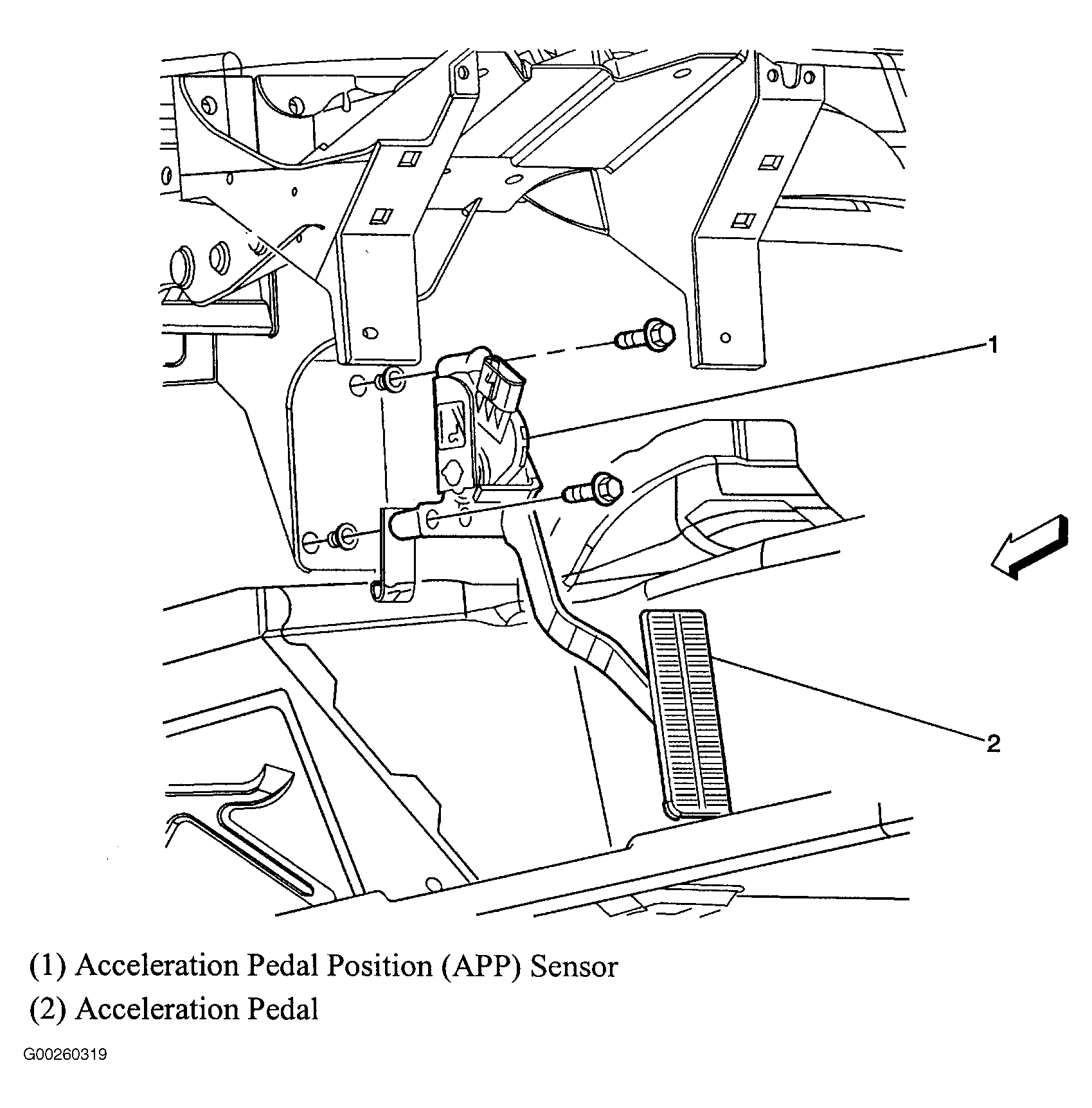

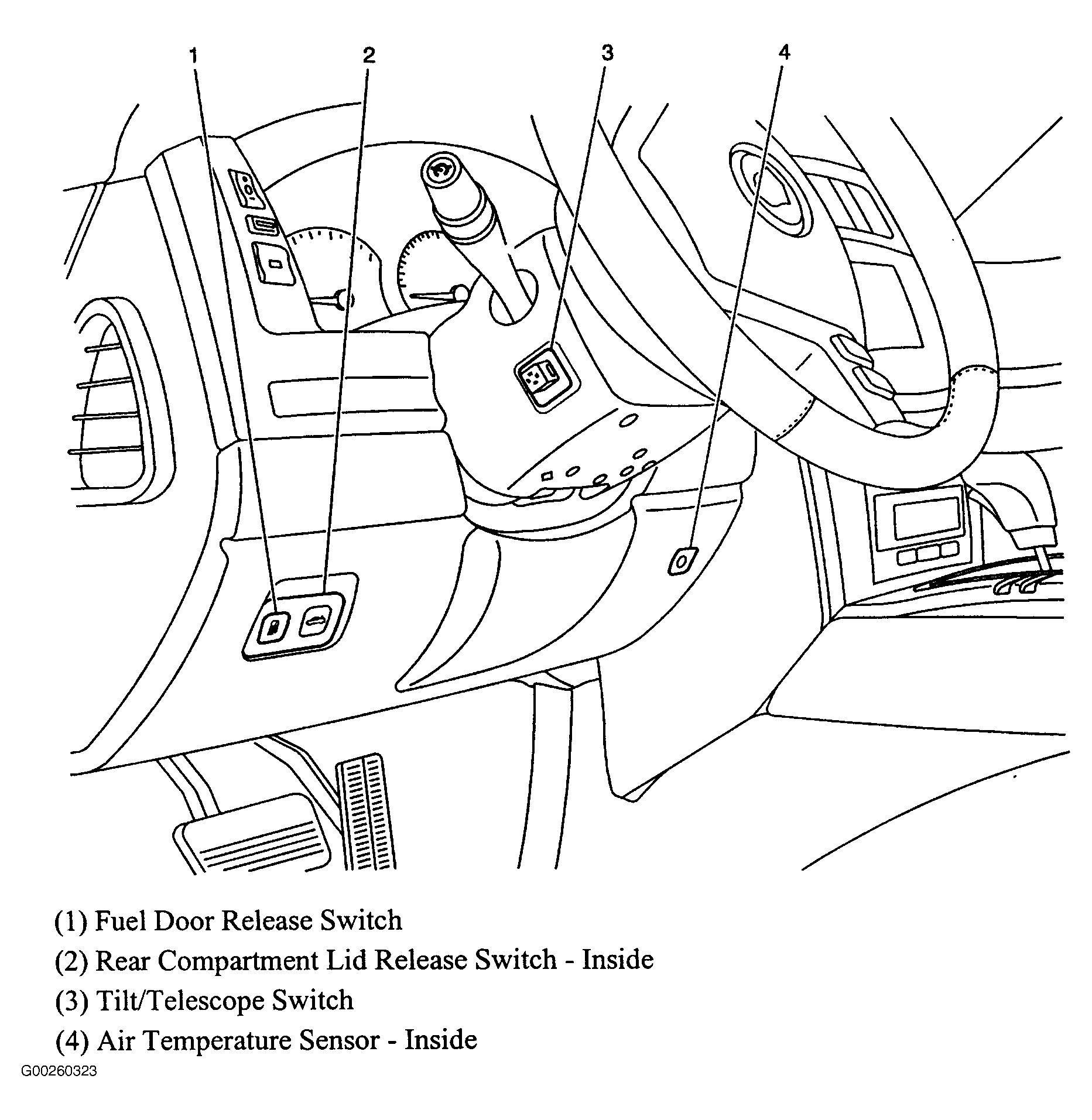

Fig 21: Lower Left Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

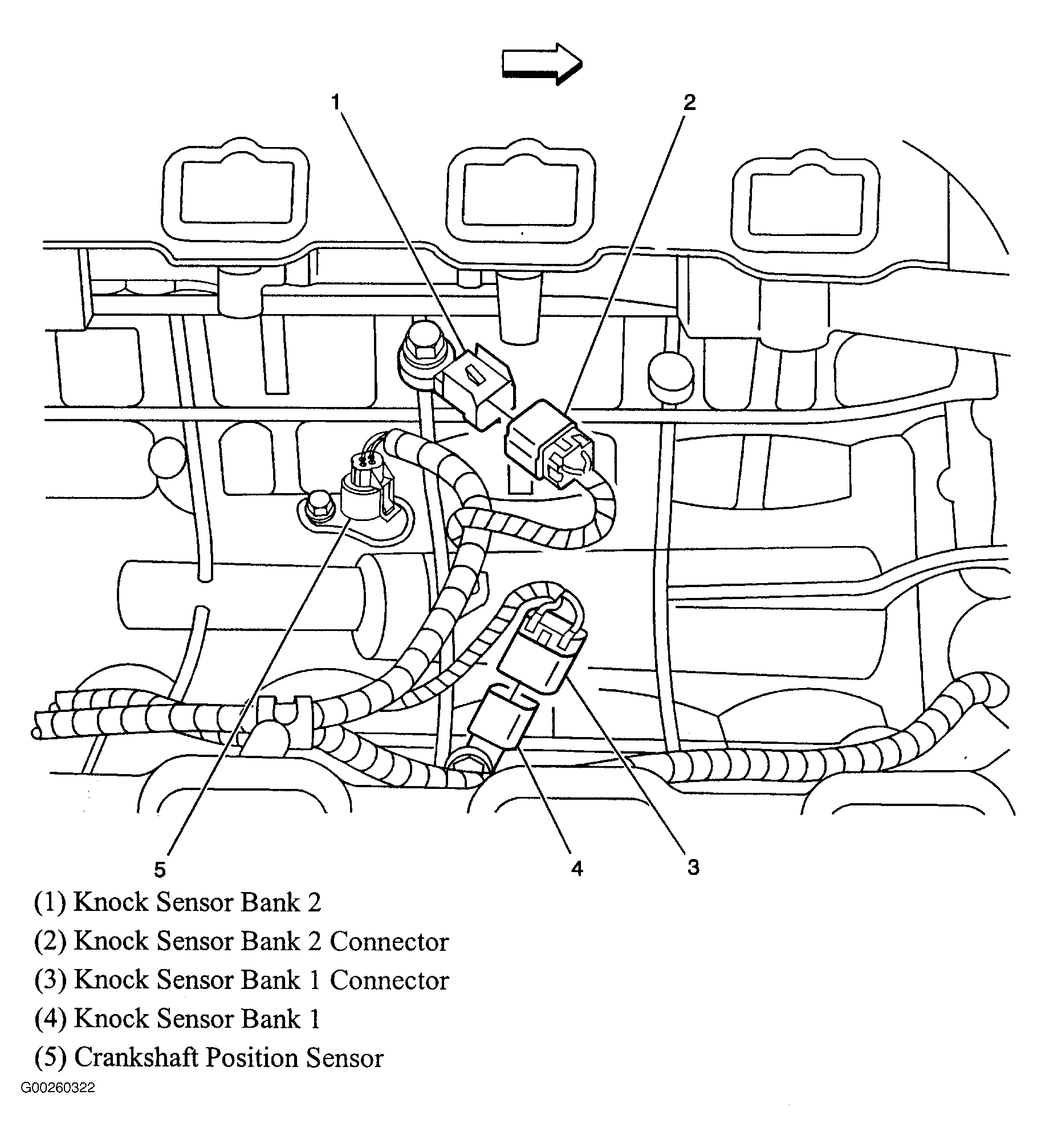

Fig 23: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

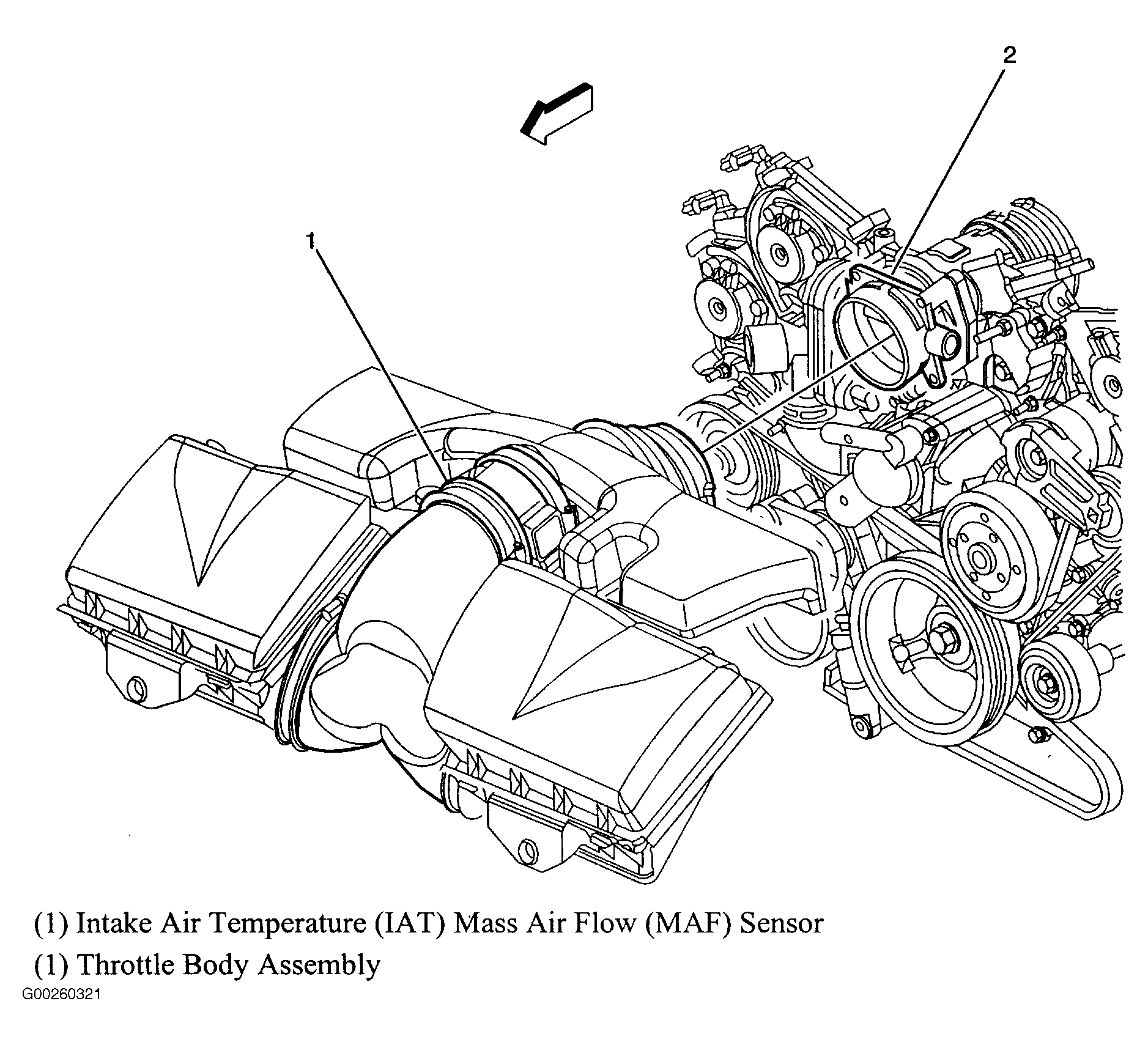

Fig 24: Upper Center Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 25: Lower Left Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

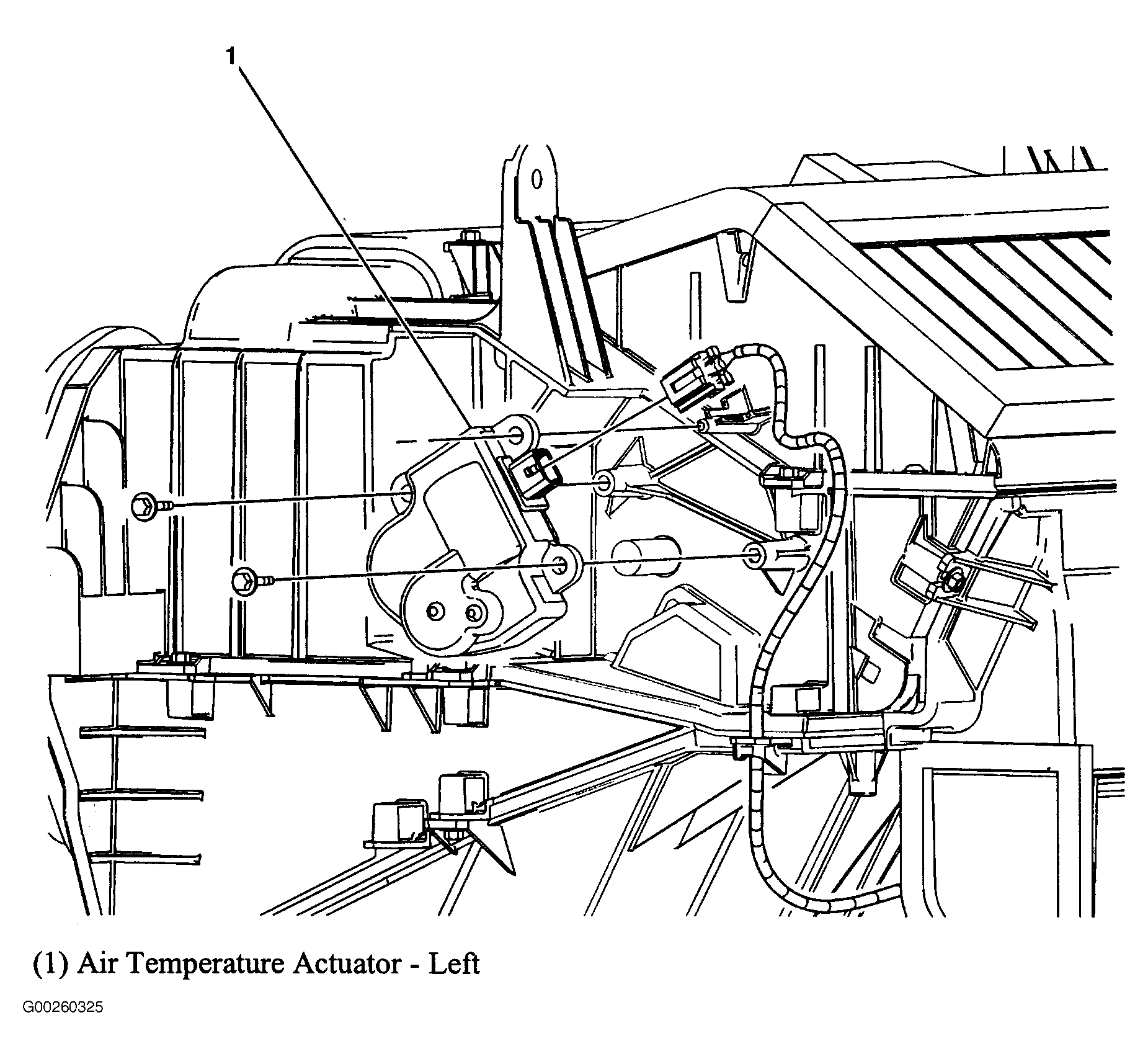

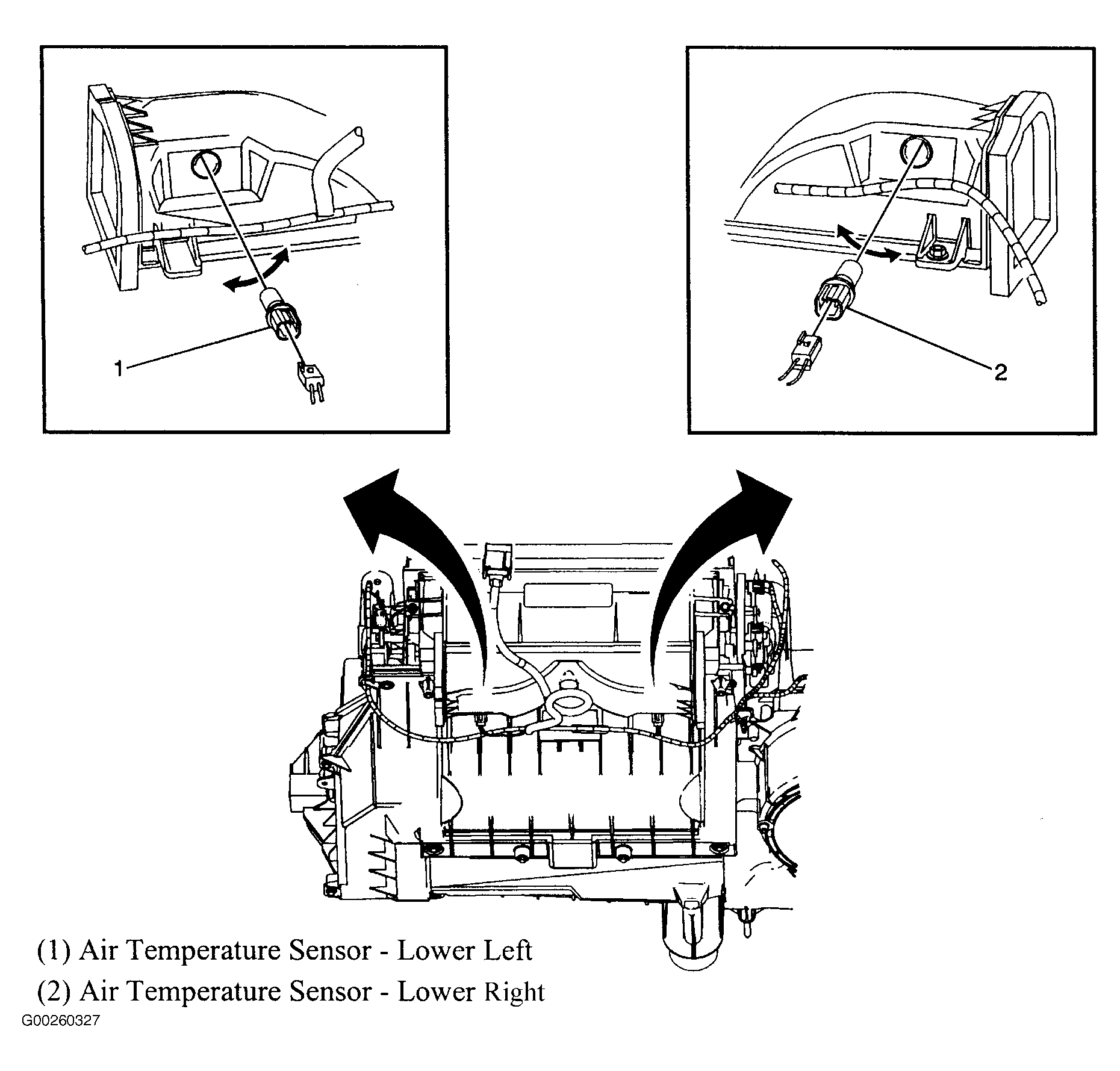

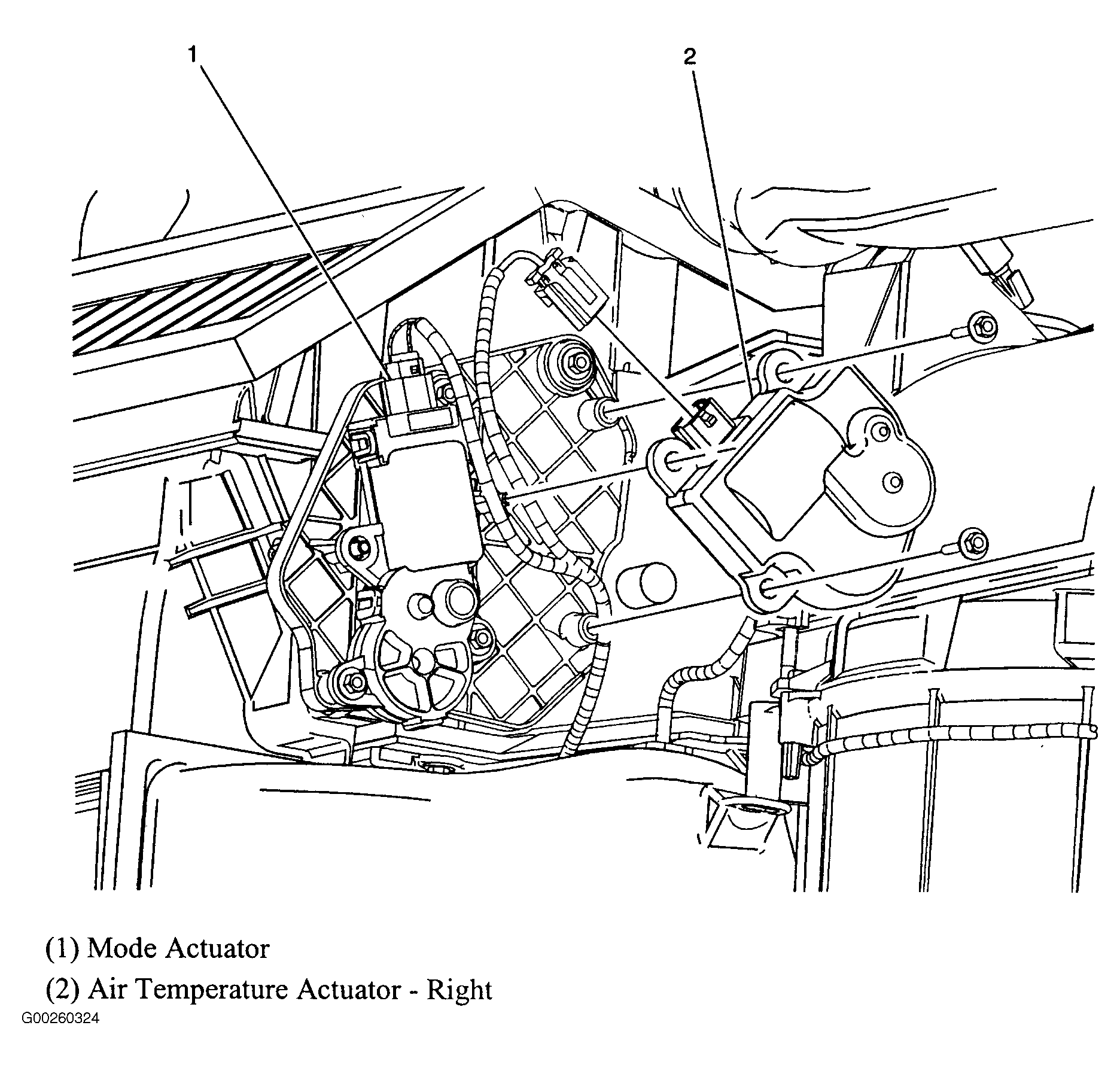

Fig 27: Left Side Of HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Side Of Blower Motor
Courtesy of GENERAL MOTORS CORP.
Fig 29: Center Of HVAC Assembly
Courtesy of GENERAL MOTORS CORP.

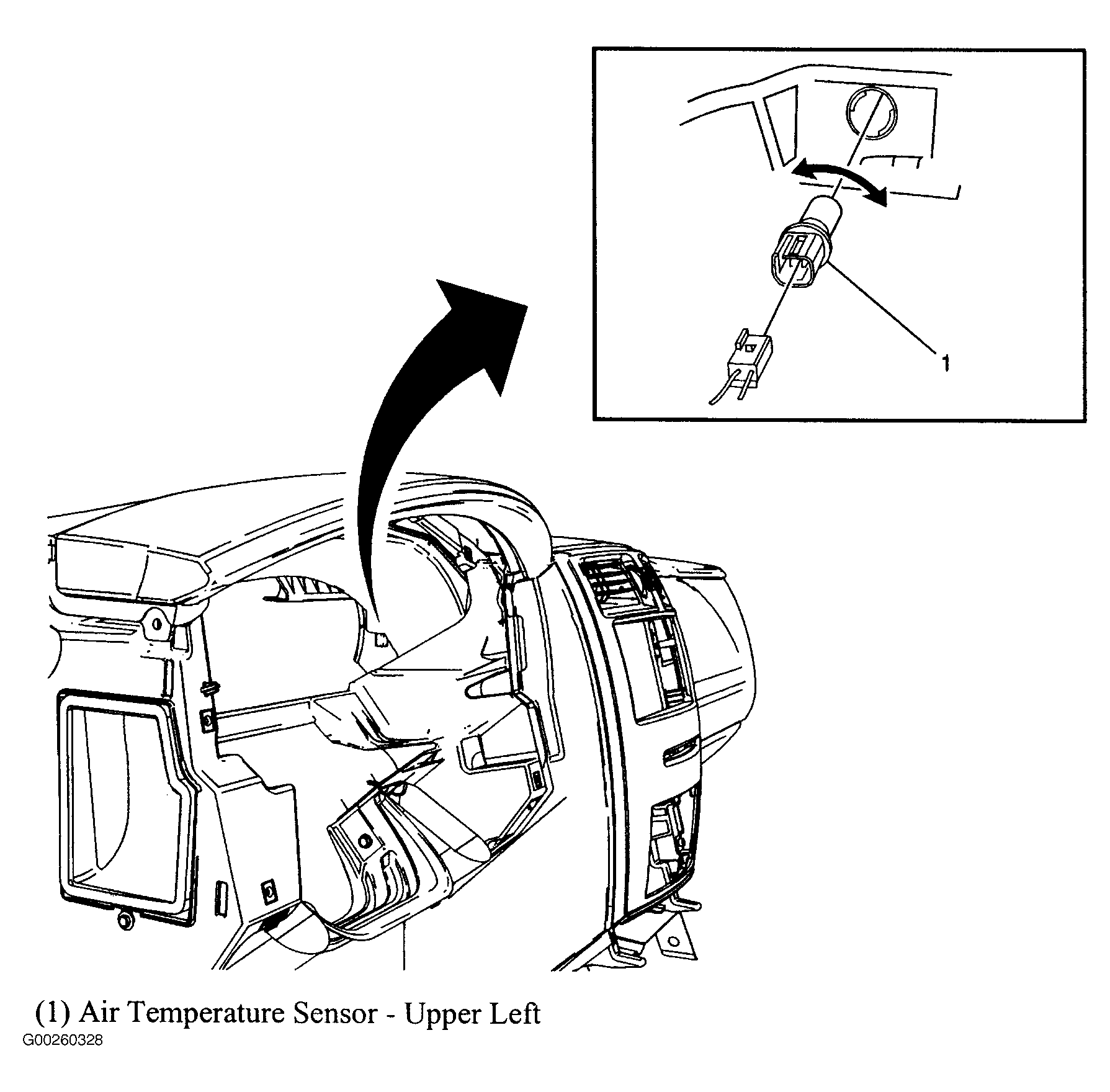

Fig 30: Left Center Of Dash
Courtesy of GENERAL MOTORS CORP.

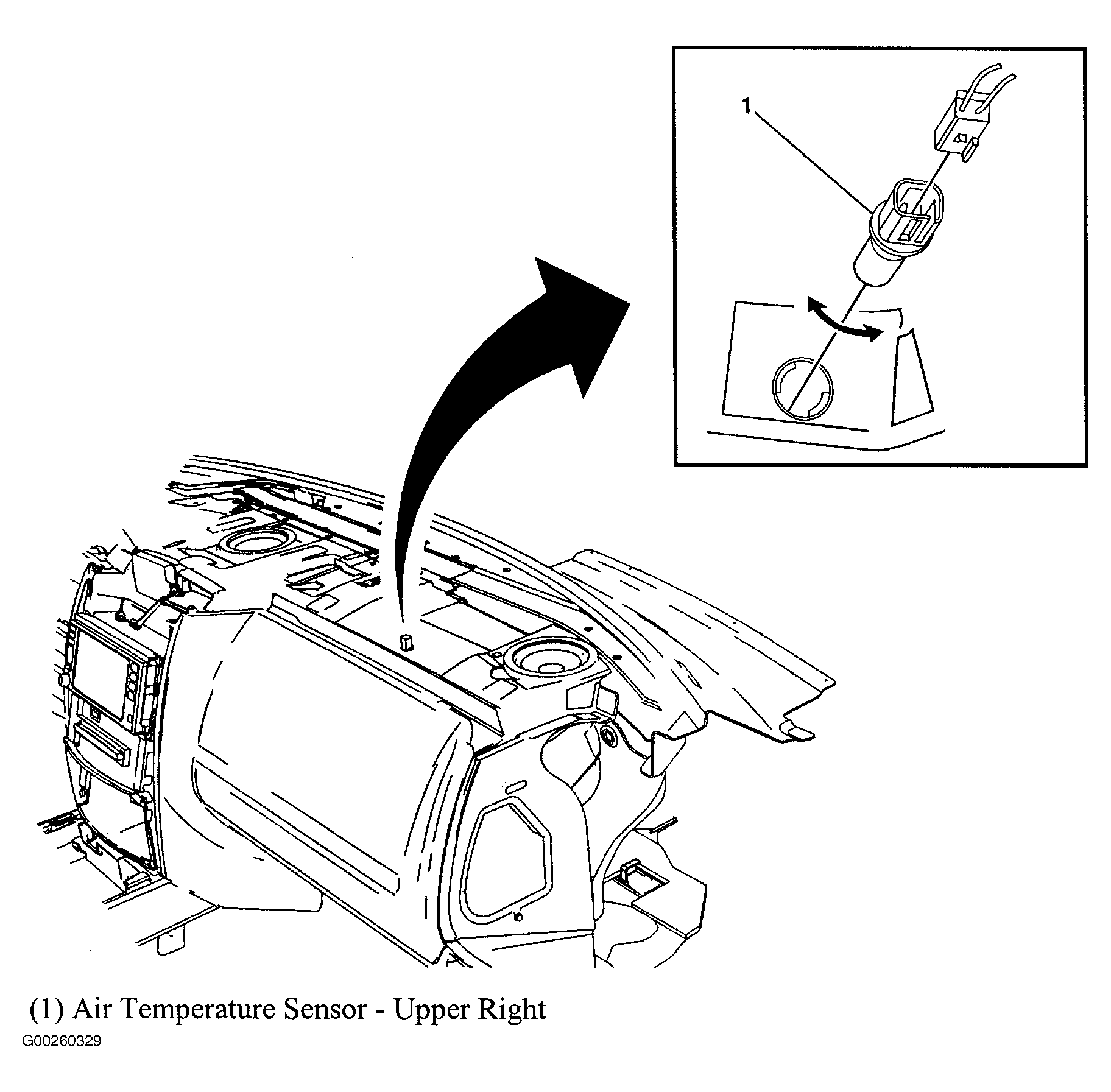

Fig 31: Upper Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

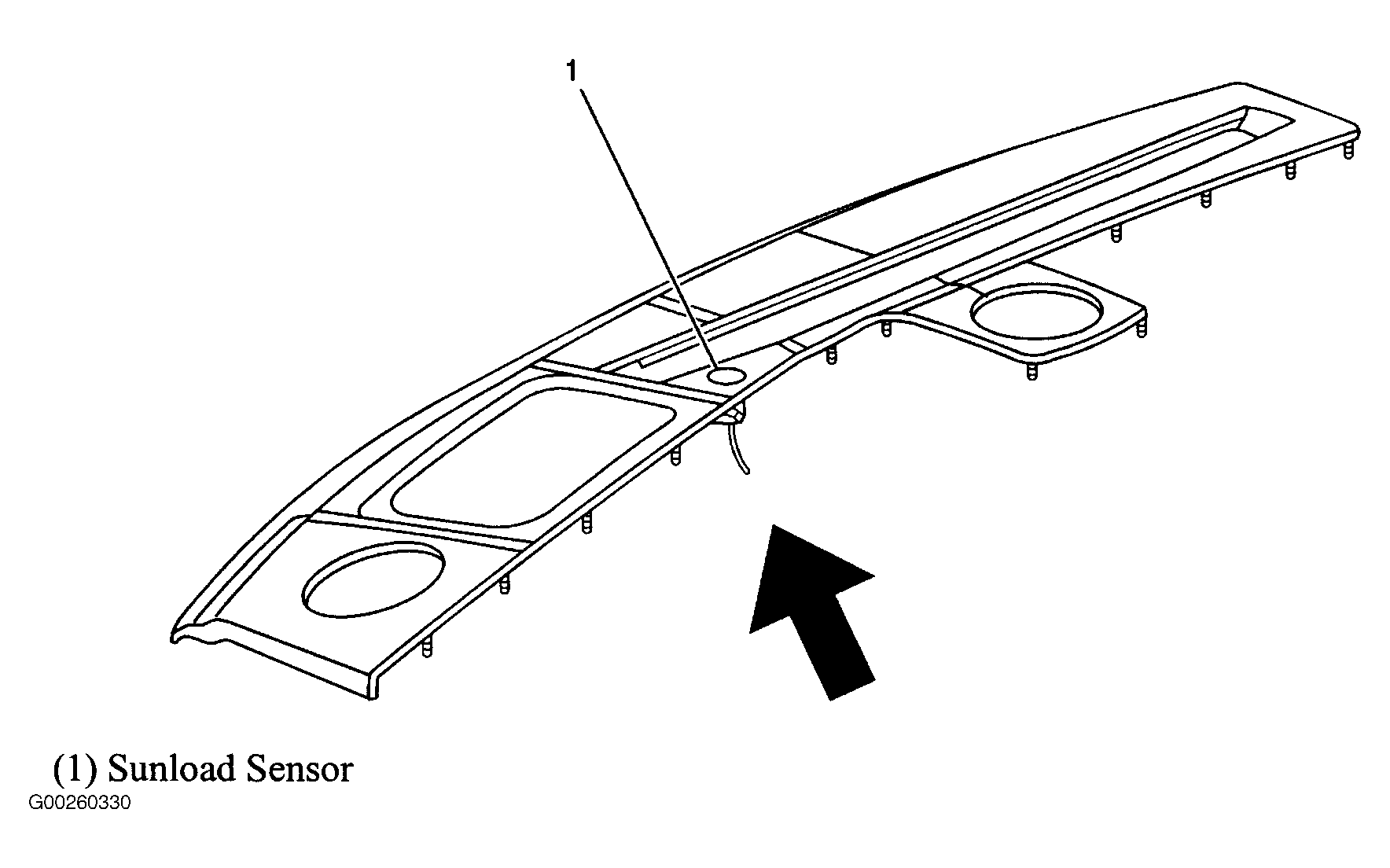

Fig 32: Upper Center Of Dash
Courtesy of GENERAL MOTORS CORP.

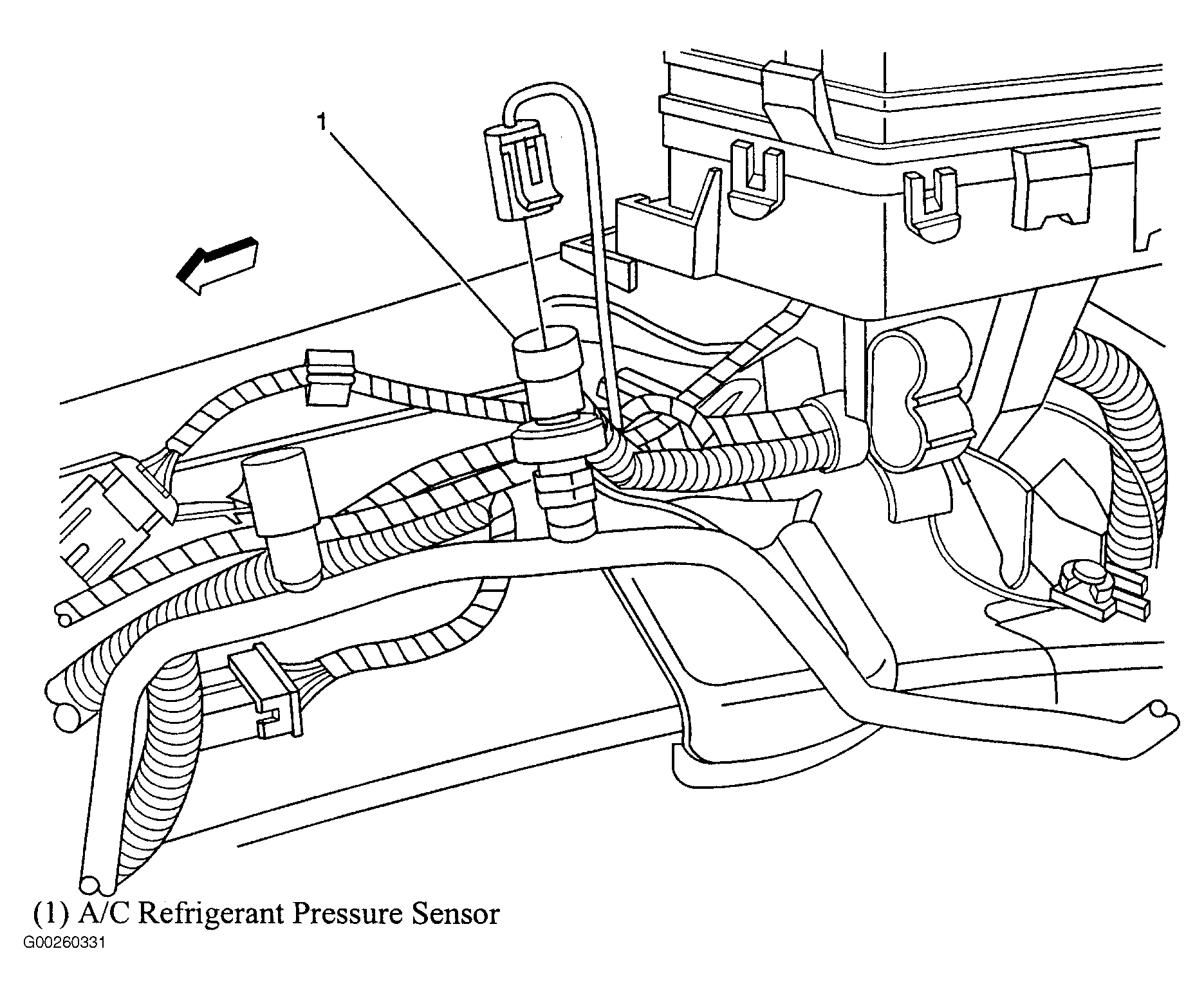

Fig 33: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 34: Lower Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

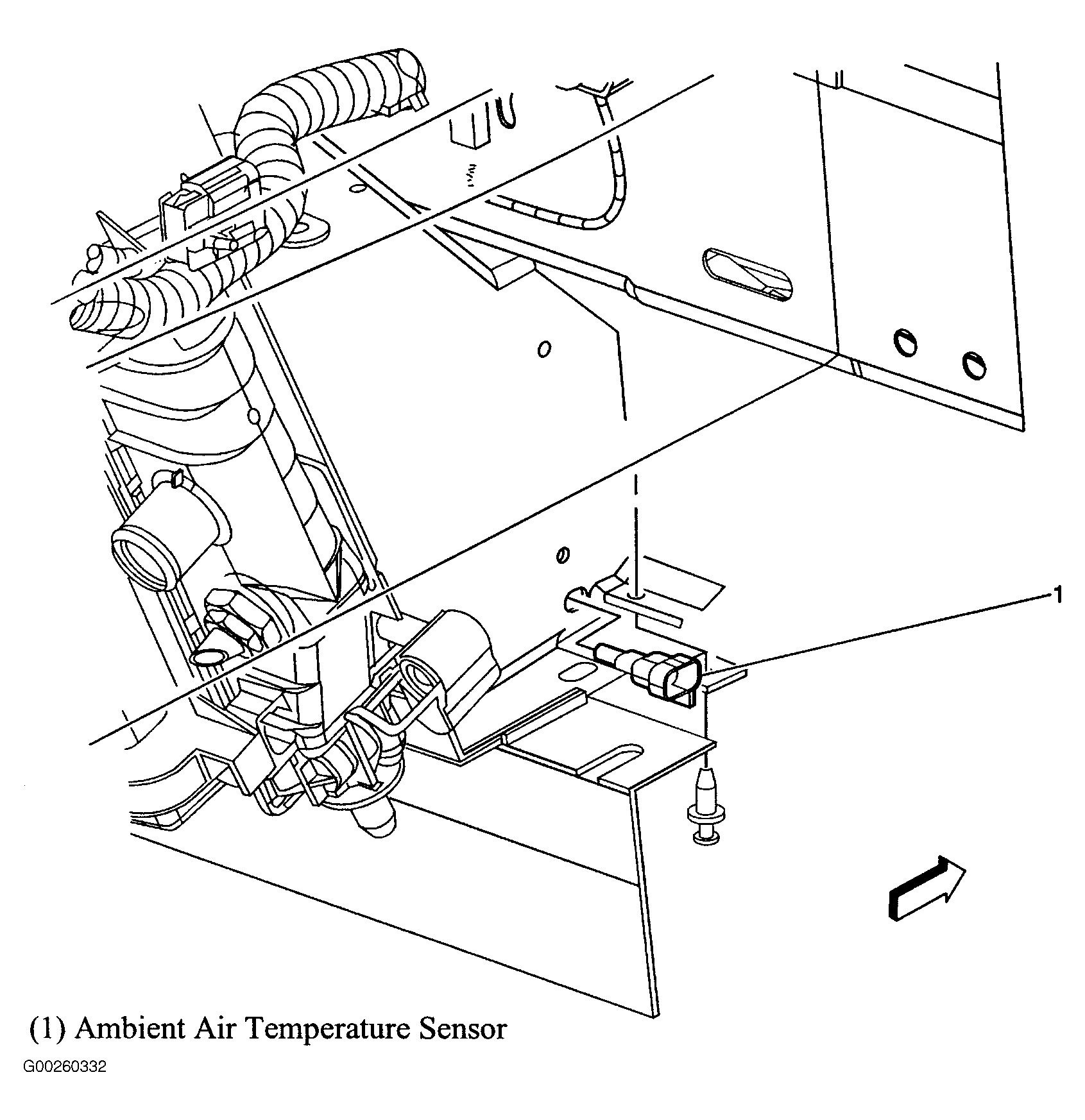

Fig 35: Lower Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

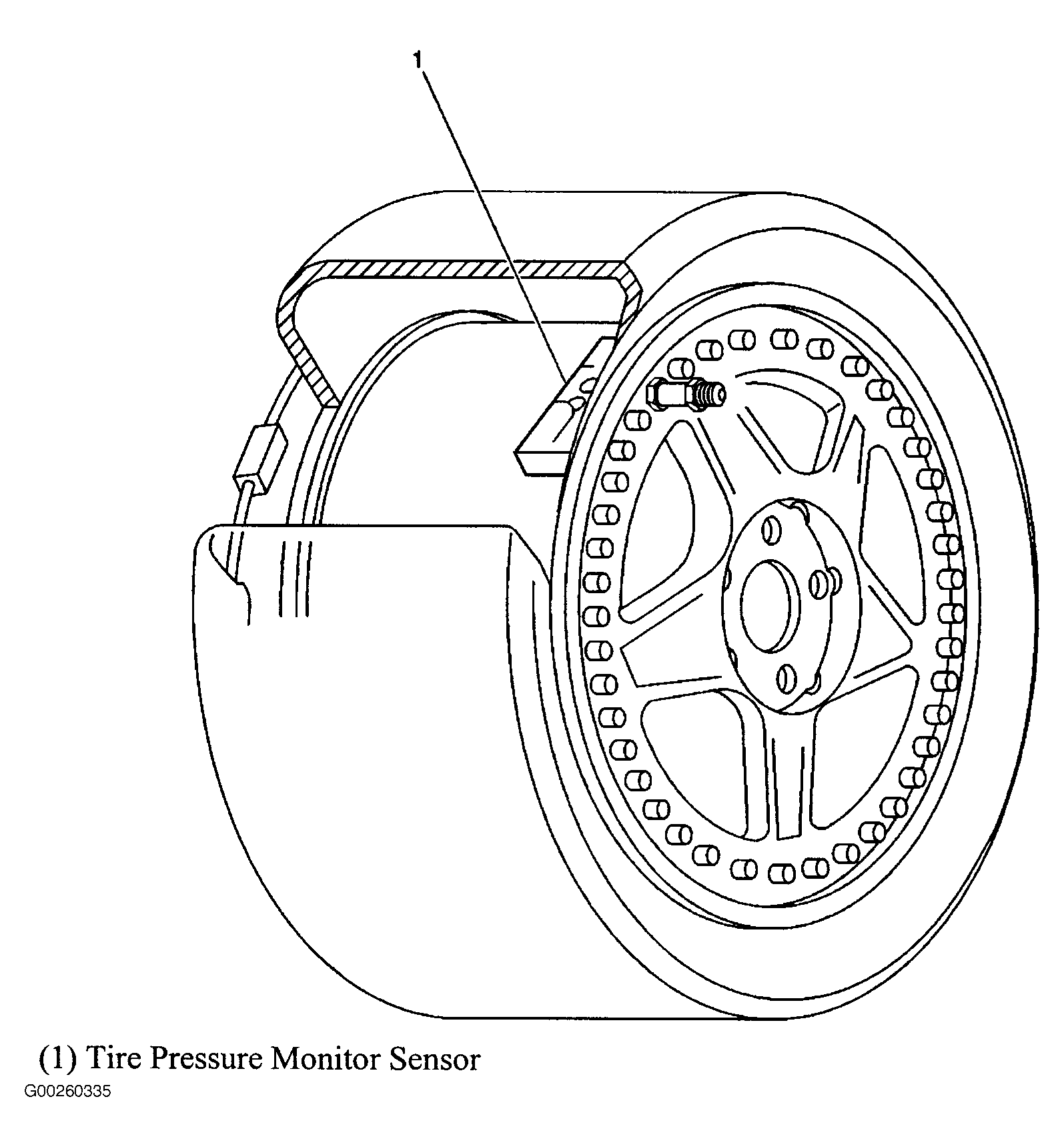

Fig 36: Tire Pressure Monitor Sensor
Courtesy of GENERAL MOTORS CORP.

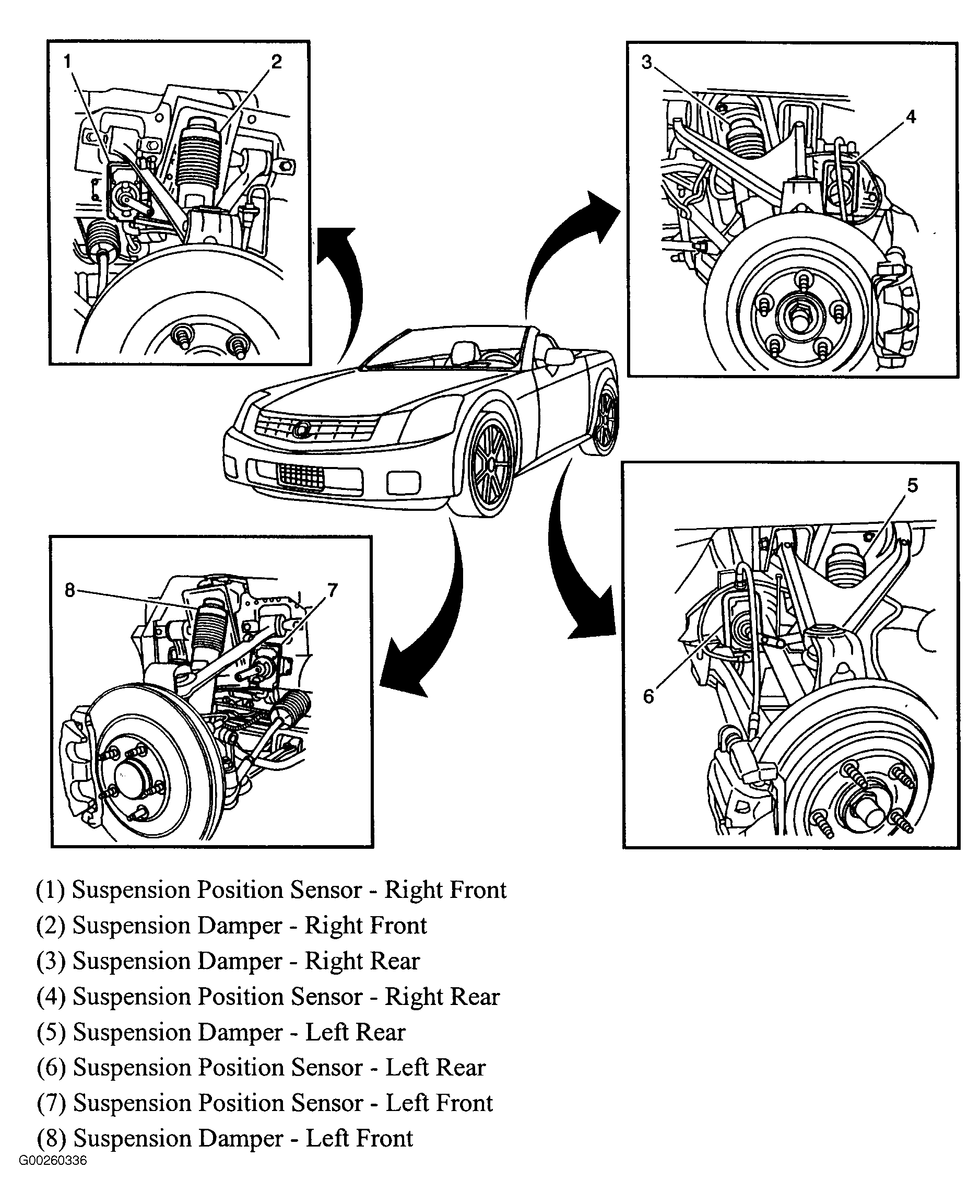

Fig 37: Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 38: Left Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

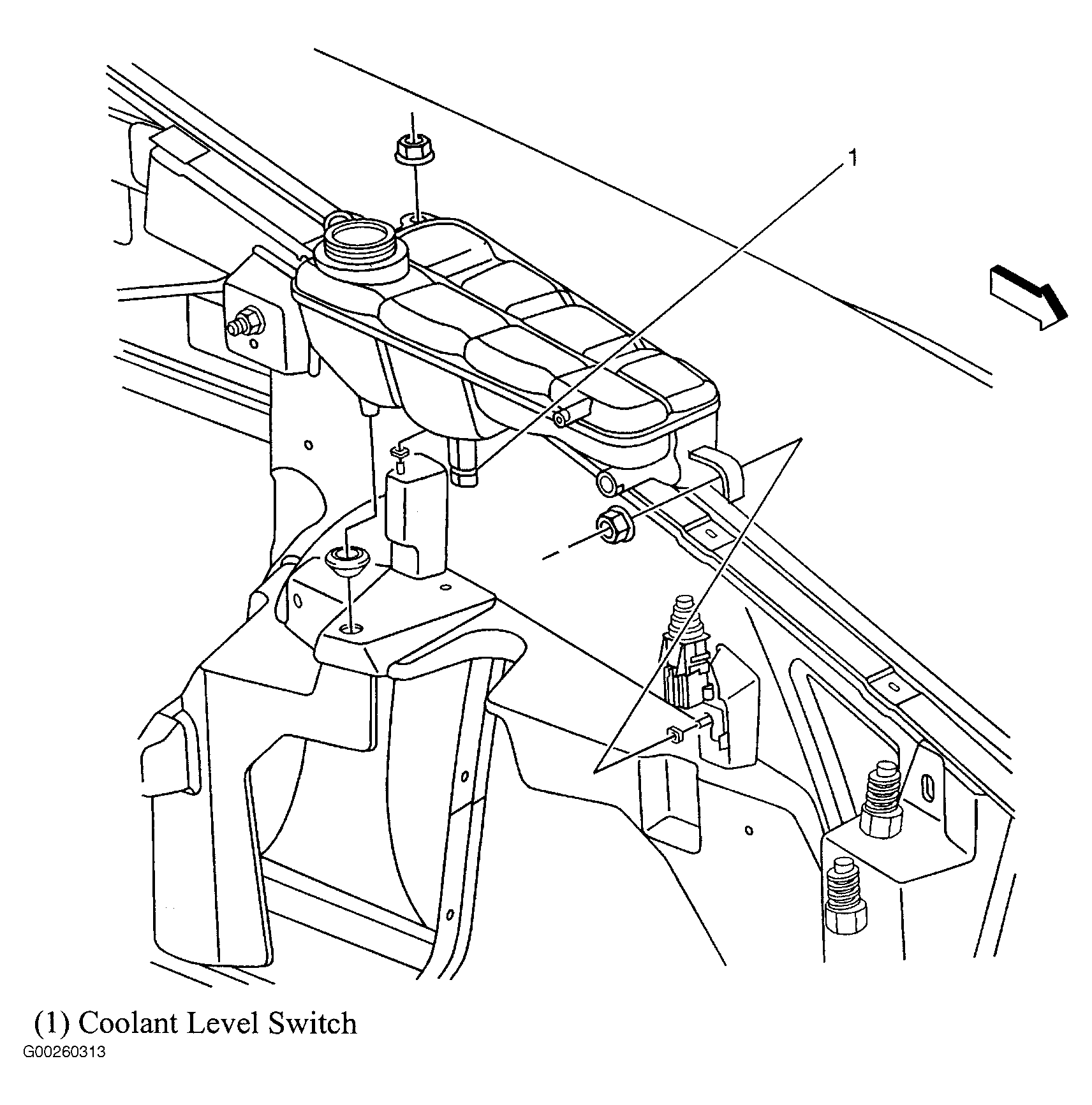

Fig 39: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

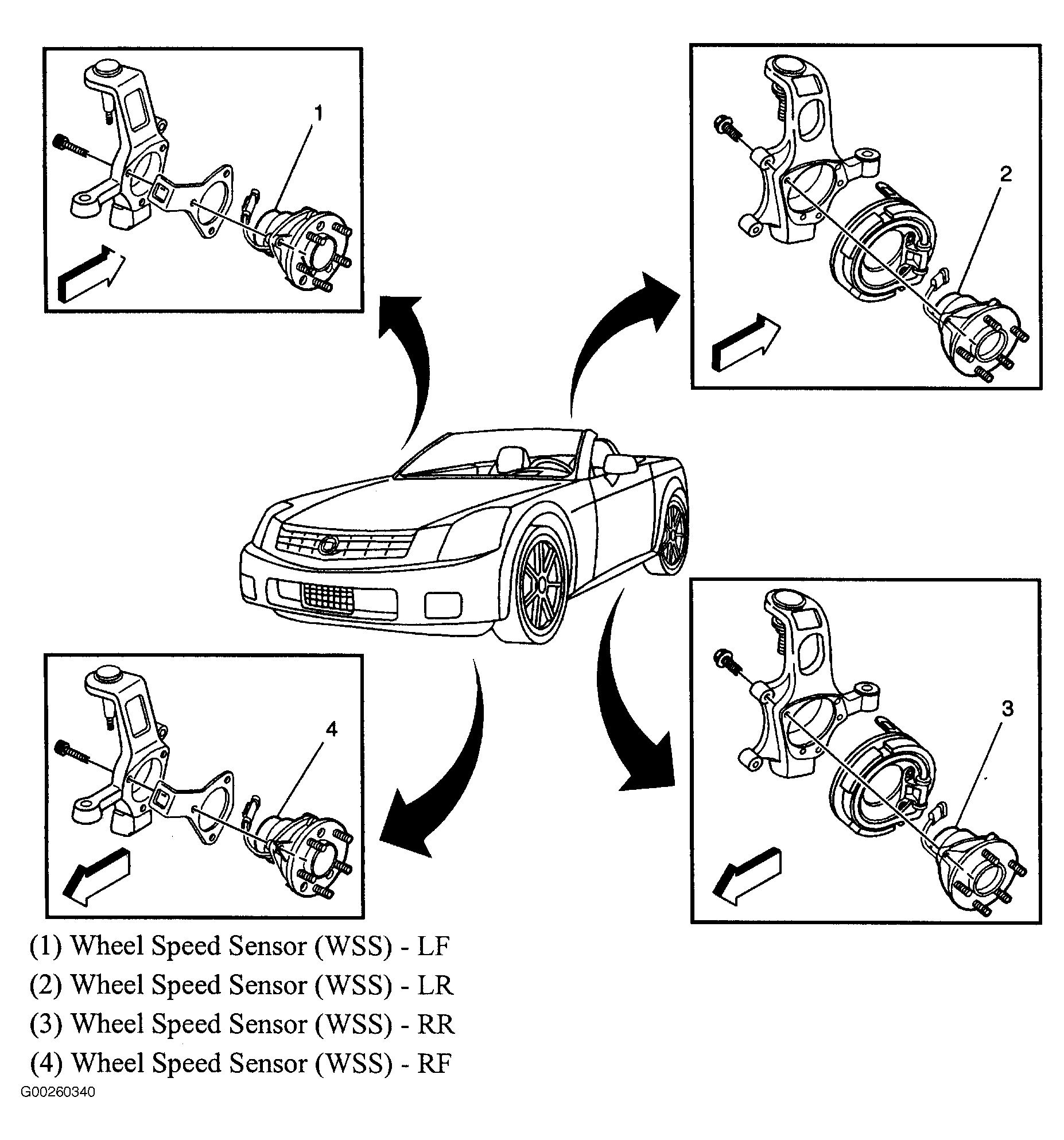

Fig 40: Wheel Hub Assemblies
Courtesy of GENERAL MOTORS CORP.
Fig 41: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 42: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

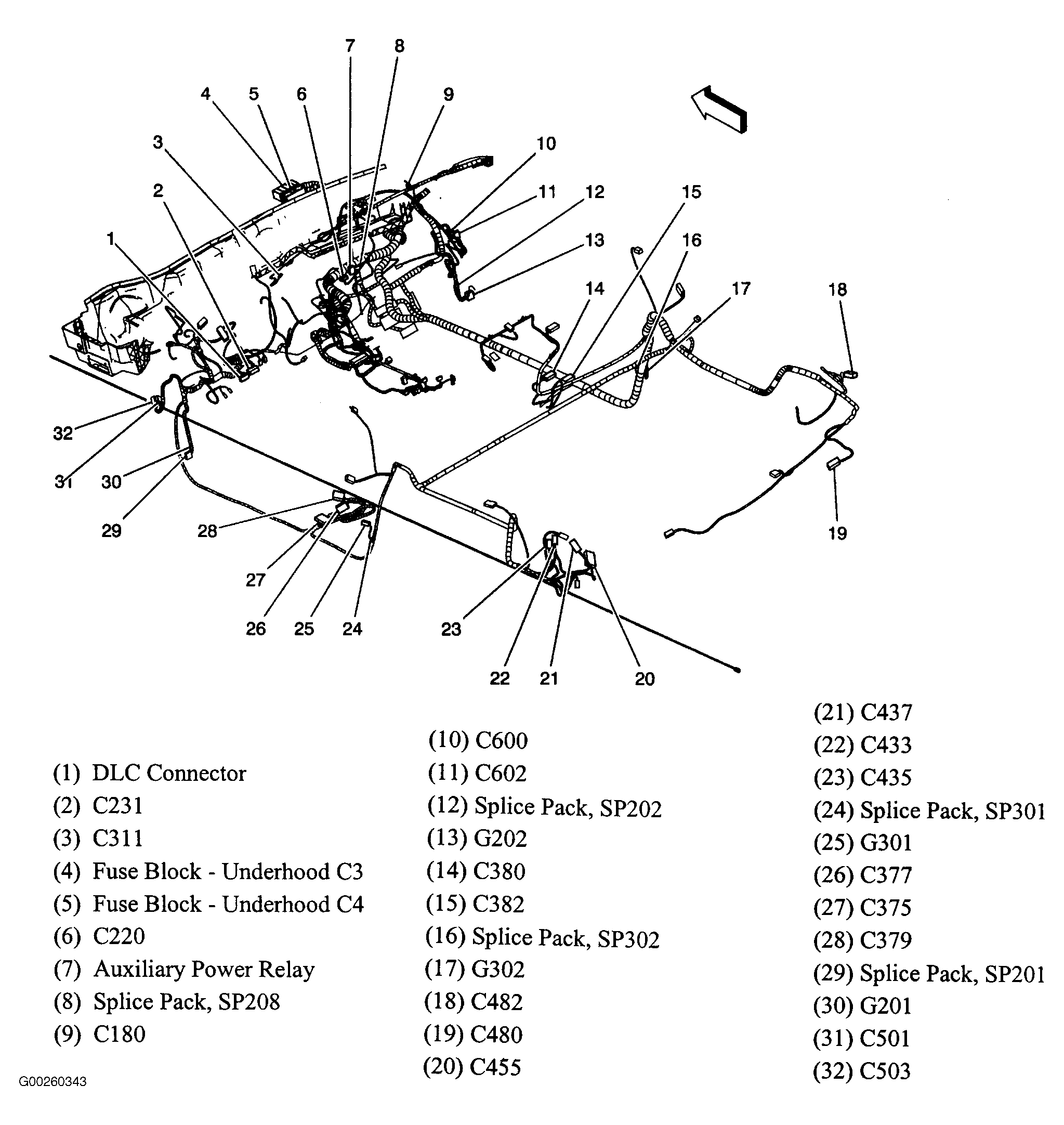

Fig 43: Harness Overview
Courtesy of GENERAL MOTORS CORP.

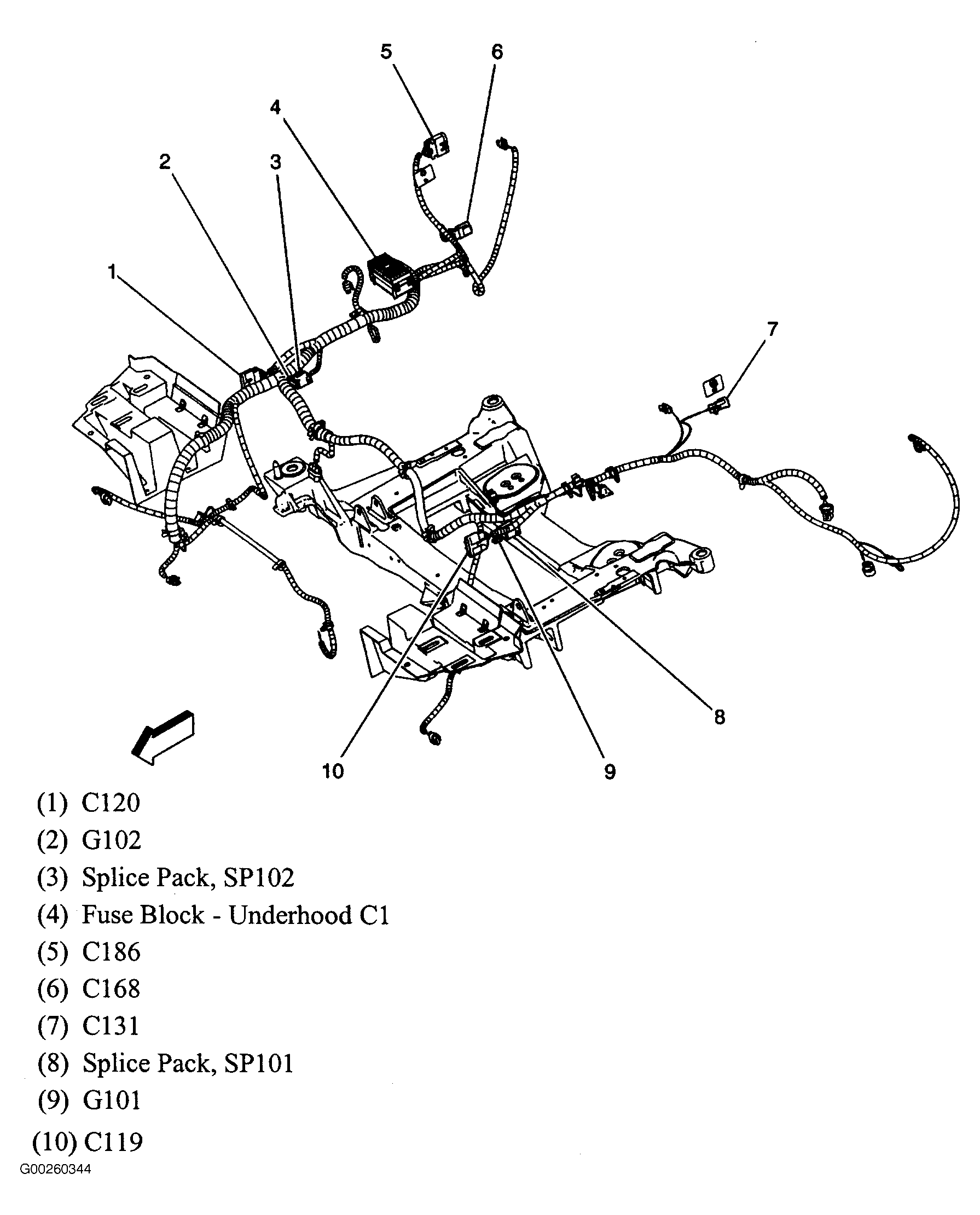

Fig 44: Lamp Harness
Courtesy of GENERAL MOTORS CORP.

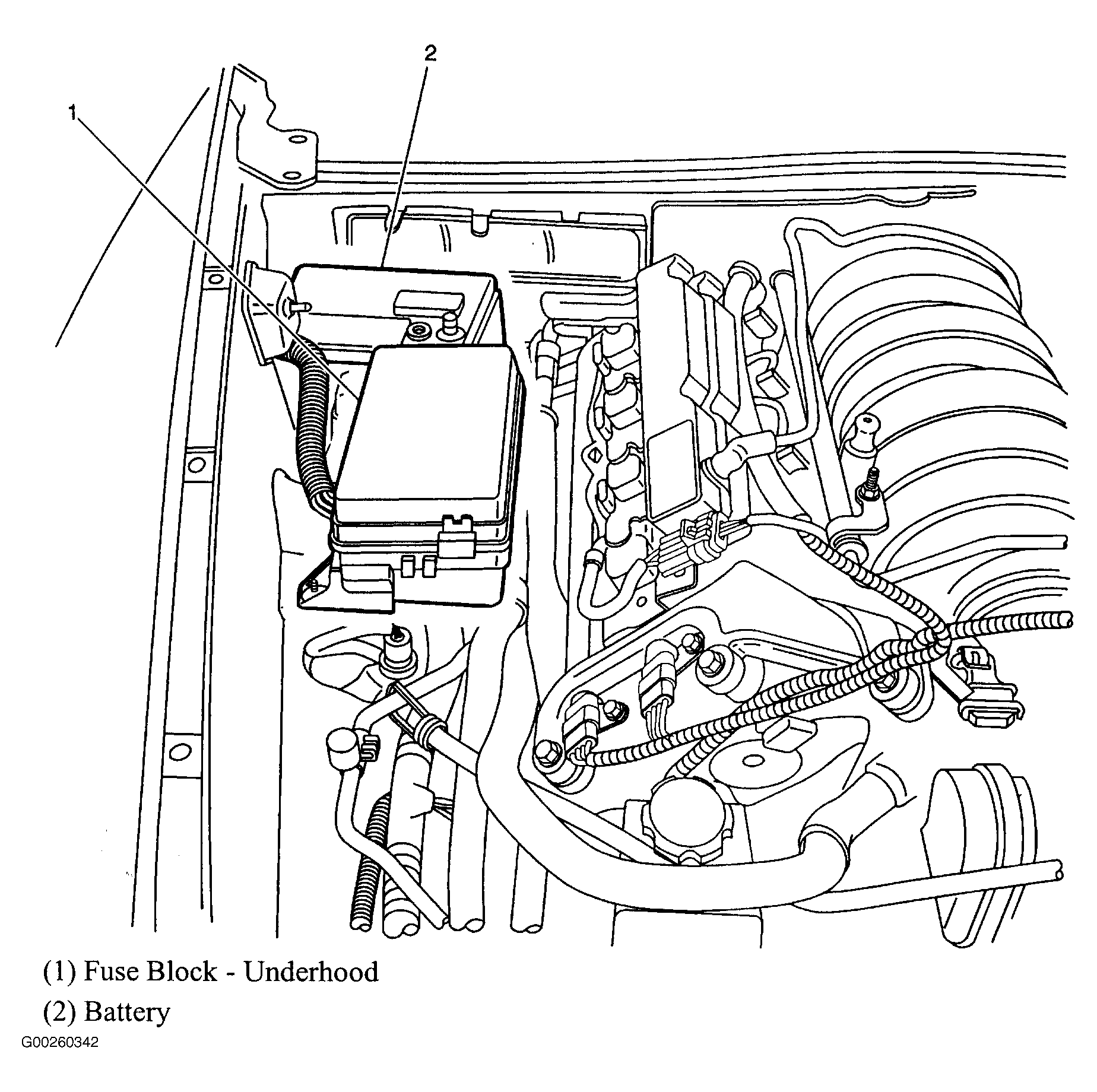

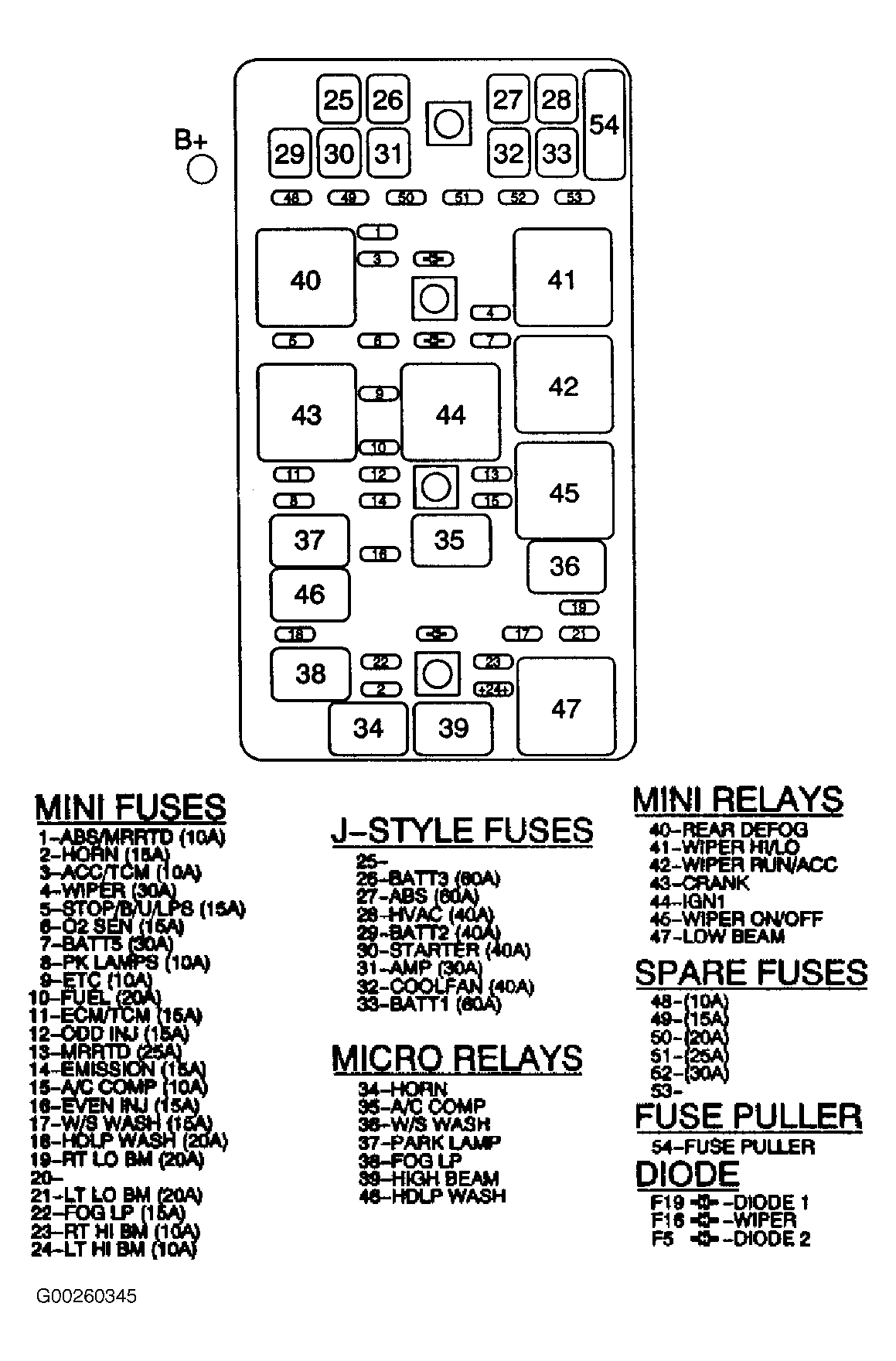

Fig 45: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
