Automatic Transmission Shift Lock Control Connector End Views

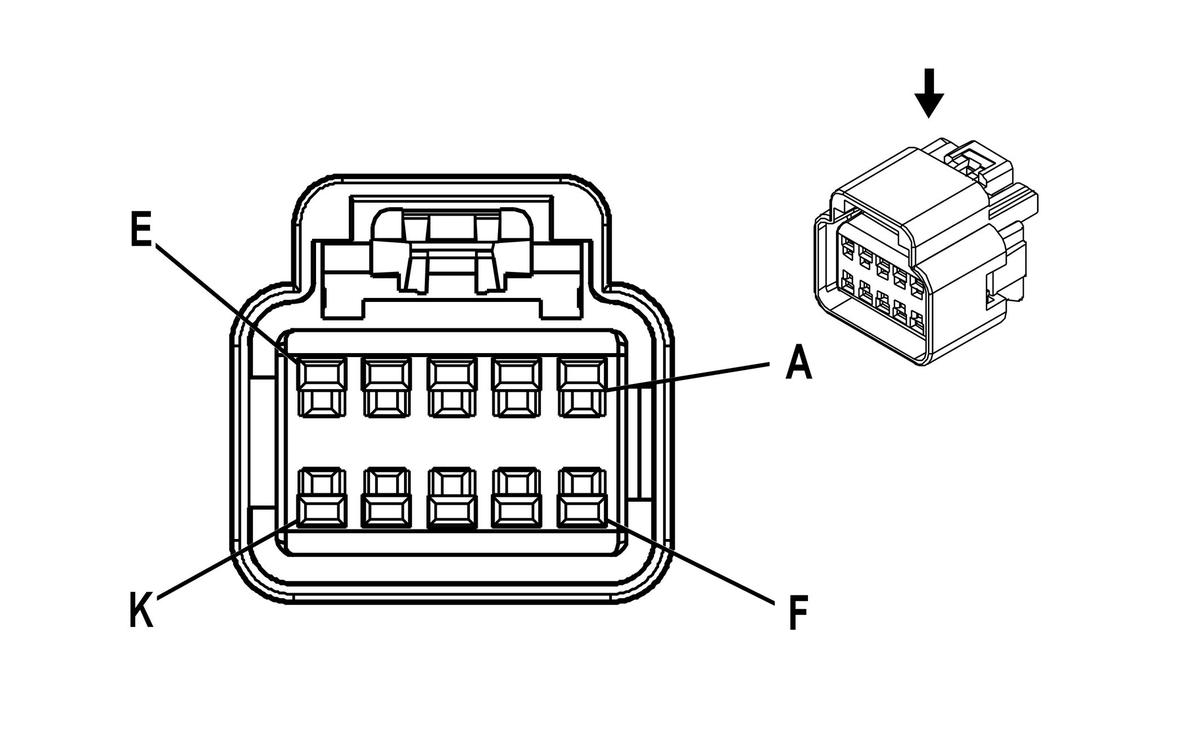

Automatic Transmission Shift Lever Connector End Views
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | D-GN | 1399 | RAP Relay Coil Supply Voltage |
| YE | 843 | Accessory Voltage (Export) | |
| B | D-GN | 5525 | Tap Up/Tap Down Enable Signal |
| C | GY/BK | 1458 | Instrument Panel Lamp Supply Voltage (4) |
| D | PK | 1039 | Run/Crank Ignition 1 Voltage |
| E | RD/WH | 840 | Battery Positive Voltage |
| F | D-GN/WH | 1932 | Shift Select Switch Park Signal |
| D-GN/WH | 1932 | Shift Select Switch Park Signal (Export) | |
| G | BK | 1550 | Ground |
| H | PU | 5526 | Tap Up/Tap Down Switch Signal |
| J | GY/BK | 1357 | Instrument Panel Lamp Control |
| K | D-GN/WH | 1135 | Brake Transmission Shift Interlock Solenoid Supply Voltage |
